Product description - Shure Axient Digital
- Shure Axient Digital Pushes the Limits of Rf

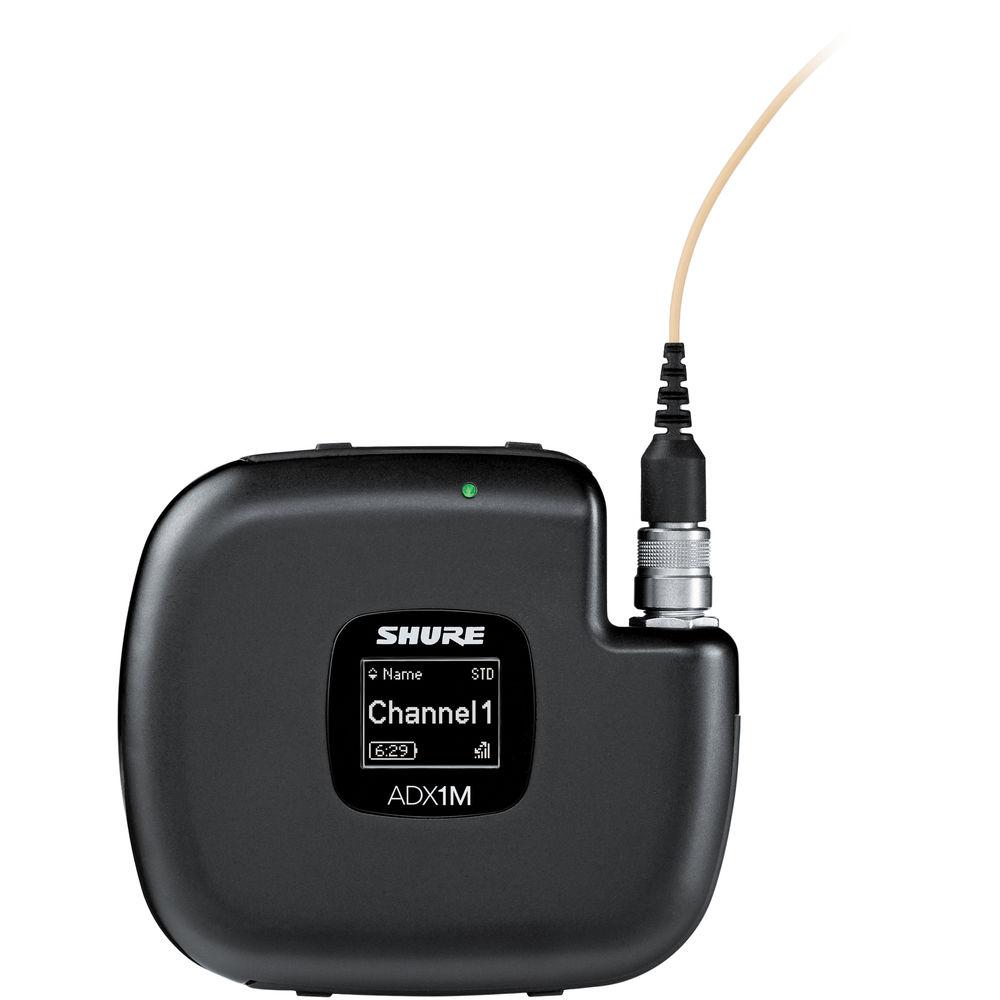

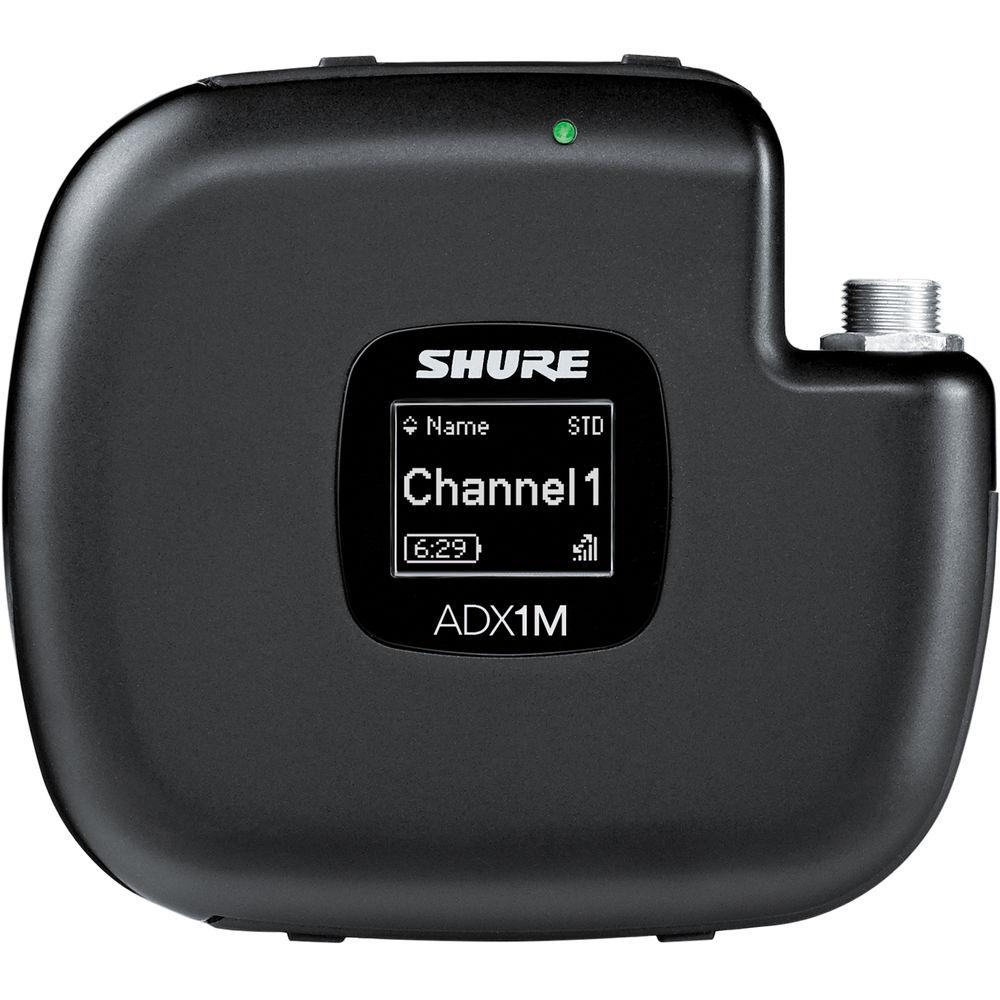

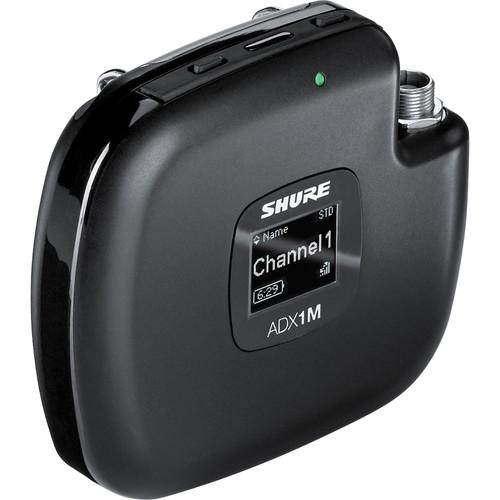

The ADX1M Axient Digital ADX Series Micro Wireless Bodypack Transmitter from Shure is a portable UHF wireless bodypack transmitter with a LEMO 3-pin input connector. It can be used with Axient Digital Wireless Systems to capture audio when paired with a microphone and receiver (sold separately) for live stage, theater, and rehearsal applications. Featuring wide tuning up to 184 MHz, interference protection, and rechargeability, the ADX1M transmitter is built with a streamlined design and a high-contrast OLED display. The sealed buttons and LEMO connector offer protection against sweat and moisture ingress. Other features include two transmission modes, and ShowLink remote control for real-time parameter adjustment right from the booth. - Small and streamlined design for better concealment and wear
- High-contrast OLED display
- Diversity ShowLink enabled for remote transmitter control and automatic interference avoidance
- Patent-pending internal adaptive antenna for optimized signal when ADX1M is worn against the body
- Ultem PEI construction for heat resistance and durability
- Recessed LEMO 3-pin connector
- Sealed buttons and LEMO connection for protection against sweat and moisture ingress
- Two Transmission Modes: Standard for optimal coverage and High Density for maximum system channel count and robust coverage
- Encryption-enabled, secure transmission

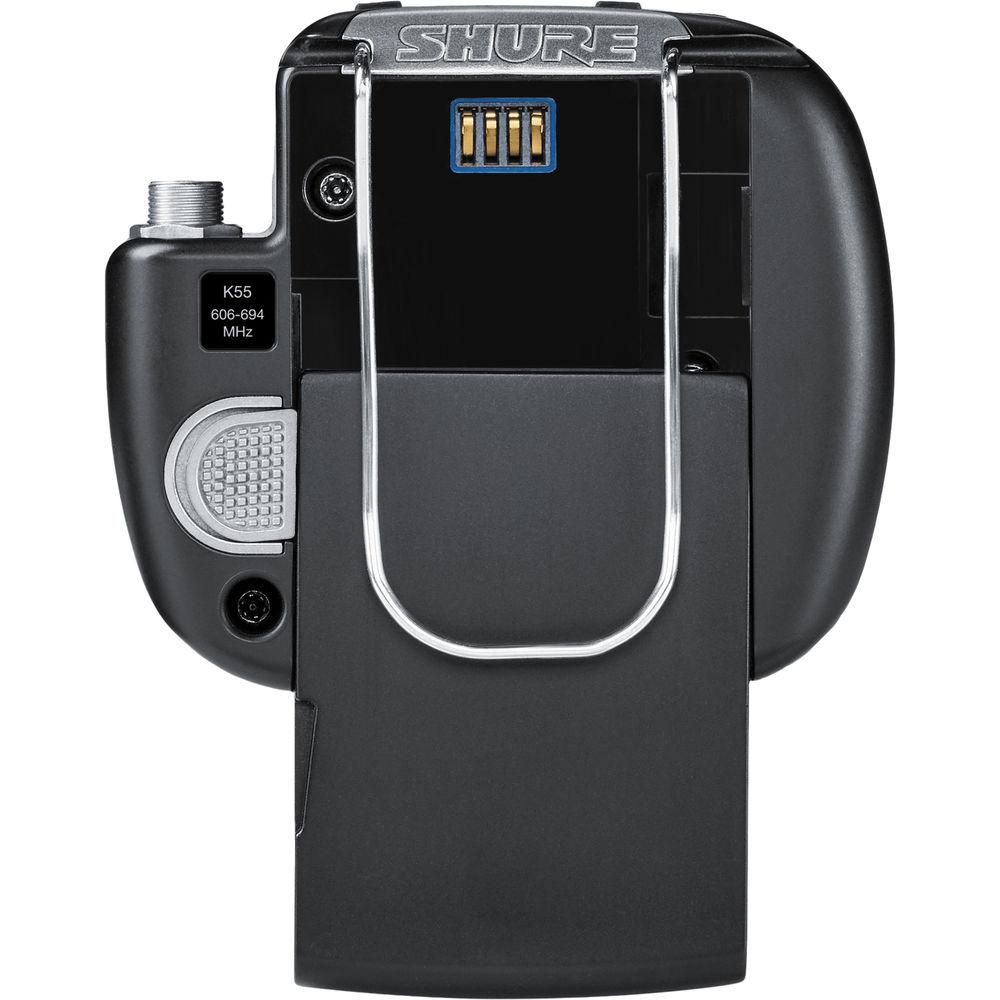

- Up to 7 hours of runtime with SB910M rechargeable battery

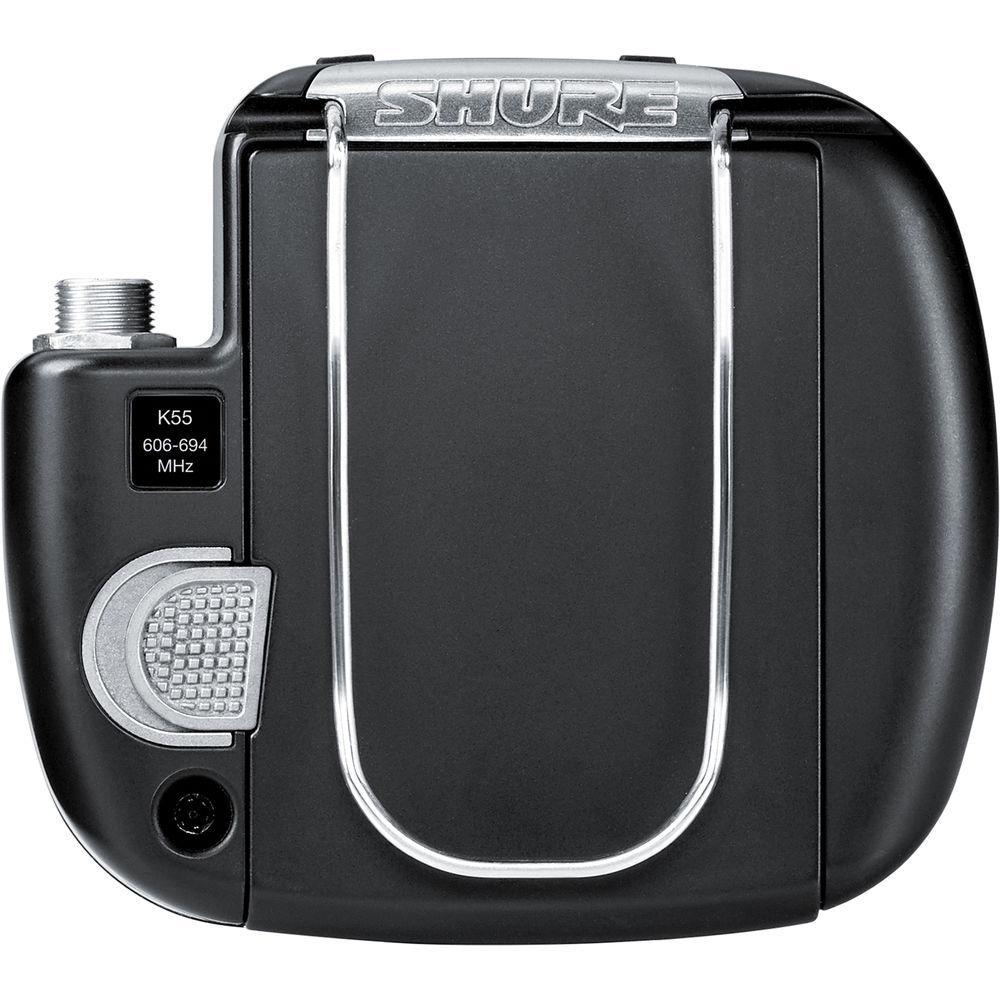

UPC: 042406500883 In the Box Shure ADX1M Axient Digital ADX Series Micro Wireless Bodypack Transmitter (G57: 470-616 MHz) 2 x SB910M Rechargeable Batteries Belt Clip Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure ADX1M Axient Digital ADX Series Micro Wireless Bodypack Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure ADX MICRO Specs | Gain Offset Range | -12 to 21 dB (in 1 dB steps) | | Battery Type | Shure SB910M rechargeable Li-ion battery | | Battery Runtime | At 10 mW
> Up to 7 hours | | Housing | Ultem (PEI) | | Audio Input | Connector: LEMO 3-pin connector
Configuration: Unbalanced
Impedance: 8.2 MOhms
Maximum Input Level: Pad Off: 8.5 dBV (7.5 V pp); Pad On: 20.5 dBV (30 V pp)
Preamplifier Equivalent Input Noise (EIN): -120 dBV, A-weighted, typical | | RF Output | Antenna Type: Integrated helical
Impedance: 50 Ohms
Occupied Bandwidth: < 200 kHz
Modulation Type: Shure Axient Digital Proprietary
Power: 2 / 10 / 20 mW | | ShowLink | Network Type: IEEE 802.15.4
Antenna Type: ZigBee Dual Conformal
Frequency Range: 2.40 to 2.4835 GHz (24 channels)
RF Output Power: 10 dBm (ERP | | Dimensions (L x Diam) | 2.4 x 2.7 x 0.9" / 6.1 x 6.9 x 2.3 cm | | Weight | 1.9 oz / 53.9 g | | | | Package Weight | 1.005 lb | | Box Dimensions (LxWxH) | 11.75 x 5.2 x 3.55" |
