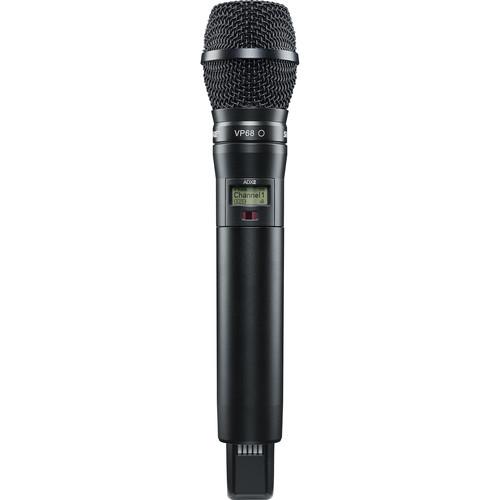

User Manual for Shure ADX2 VP68 Handheld Wireless Microphone Transmitter Click to enlarge the picture
Contents of the user manual for the Shure ADX2 VP68 Handheld Wireless Microphone
- Product category: Wireless Transmitters Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Wireless Transmitters
|
User manual for the Shure ADX2 VP68 Handheld Wireless Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|
Product description - Shure Axient Digital
- Shure Axient Digital Pushes the Limits of Rf
The black ADX2/VP68 Handheld Wireless Microphone Transmitter from Shure is a UHF handheld transmitter and a VP68 omnidirectional condenser microphone capsule for the Axient Digital wireless system. It can be used to capture audio when paired with a wireless digital receiver (sold separately) for live stage, theater, and presentation applications. The ADX2 transmitter features a 20 Hz to 20 kHz frequency response, offers exceptional performance, wide tuning up to 184 MHz, interference protection, rechargeability, and is enclosed in a cast aluminum housing. In addition, it is built with ShowLink remote control for real-time parameter adjustments right from the booth. - Durable, moisture-resistant, lightweight metal case
- 20 Hz to 20 kHz range with flat-frequency response
- Automatic input staging optimizes gain setting
- Up to 9 hours of runtime with SB920 rechargeable battery
- External contacts for docked charging with optional fully covered radome
- Diversity ShowLink enabled for remote transmitter control and automatic interference avoidance
- Two transmission modes: Standard for optimal coverage and new High Density for maximum system channel count and robust coverage
- AES 256-bit encryption-enabled for secure transmission
UPC: 042406526548 In the Box Shure ADX2/VP68 Handheld Wireless Microphone Transmitter (G57: 470 to 616 MHz, Black) WA619-A Battery Cover, Radome Cover for ADX2 (A: 470 to 636 MHz) tryqdraqeex RPW124 Wireless VP68 Omnidirectional Cartridge 2 x SB920 Rechargeable Batteries Zipper Bag Threaded Adapter Swivel Adapter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure ADX2 VP68 Handheld Wireless Microphone Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure ADX2 Specs | Mic Offset Range | -12 to 21 dB (in 3 dB steps) | | Battery Type | Shure SB920 rechargeable Li-ion battery | | Battery Runtime | Shure SB920: Up to 9 hours @ 10 mW | | Housing | Cast aluminum | | Audio Input | Configuration: Unbalanced
Maximum Input Level (1 kHz at 1% THD): 145 dB SPL, typical (dependent on microphone type) | | Frequency Band | G57: 470 to 616 MHz | | RF Output | Antenna Type: Dual-band helical
Occupied Bandwidth: < 200 kHz
Modulation Type: Shure Axient Digital proprietary
Power: 2, 10, and 40 mW | | ShowLink | Network Type: IEEE 802.15.4
Antenna Type: ZigBee Dual Conformal
Frequency Range: 2.40 to 2.4835 GHz (24 channels)
RF Output Power: 10 dBm (ERP | | Dimensions (L x Diam) | 10.0 x 2.0" / 25.4 x 5.1 cm | | Weight | 6.3 oz / 178.6 g |
