Product description - Shure Axient Digital
- Shure Axient Digital Pushes the Limits of Rf

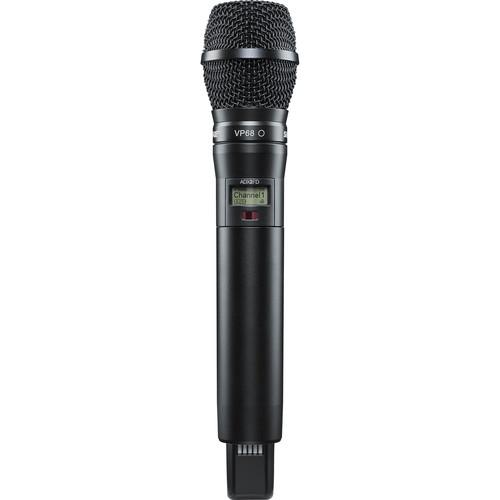

The black ADX2FD/VP68 ShowLink-Enabled Frequency Diversity Handheld Transmitter from Shure is a UHF handheld transmitter and a VP68, omnidirectional condenser microphone capsule. It can be used with the Axient Digital wireless system to capture audio when paired with a wireless digital receiver (sold separately) for live stage, theater, rehearsal, and presentation applications.The ADX2FD transmitter features Frequency Diversity for seamless audio in even the most challenging environments. Frequency Diversity enables simultaneous transmission on two independent frequencies. This ensures uninterrupted audio for mission-critical applications. The transmitter offers exceptional performance and is equipped with 20 Hz to 20 kHz frequency response, wide tuning up to 184 MHz, interference protection, rechargeability, and is enclosed in a cast aluminum housing.Furthermore, the ADX2FD/VP68 Frequency Diversity Handheld Transmitter is built with ShowLink remote control for real-time parameter adjustments right from the booth. Two SB920 rechargeable batteries, a zipper bag, threaded adapter, and a swivel adapter are also included. - Frequency Diversity enables simultaneous transmission on two independent frequencies to ensure seamless, uninterrupted audio for mission-critical applications. Single carrier mode is available if Frequency Diversity is not required.
- 20 Hz to 20 kHz range with flat-frequency response.
- Automatic input staging optimizes gain setting.
- Diversity ShowLink-enabled for remote transmitter control and automatic interference avoidance.
- AES 256-bit encryption-enabled for secure transmission.
- 300' line-of-sight operating range.
- Selectable modulation modes optimize performance for spectral efficiency or audio quality: Standard for optimal coverage and low latency, high density for a dramatic increase in max system channel count.
- Switchable Power Levels (region dependent): 2/10/50 mW for single carrier mode or 2 x 20 mW for Frequency Diversity mode.
- Built-in tone generator and RF markers to facilitate range-testing.
- Interchangeable Shure microphone cartridges.
- Backlit LCD with easy to navigate menu and controls.
- Rugged metal construction.
UPC: 042406526760 In the Box Shure ADX2FD/VP68 ShowLink-Enabled Frequency Diversity Handheld Transmitter (G57: 470 to 616 MHz, Black) WA619-A Battery Cover, Radome Cover for ADX2 (A: 470 to 636 MHz) RPW124 Wireless VP68 Omnidirectional Cartridge 2 x SB920 Rechargeable Batteries Zipper Bag Threaded Adapter Swivel Adapter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure ADX2FD VP68 ShowLink-Enabled Frequency Diversity Handheld Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure ADX2 Specs | Mic Offset Range | -12 to 21 dB (in 3 dB steps) | | Microphone Capsule | VP68 | | Battery Type | Shure SB920 rechargeable Li-ion battery | | Battery Runtime | At 10 mW
> Single Carrier Mode: Up to 9 hours
Frequency Diversity: Up to 6.5 hours | | Housing | Cast aluminum | | Audio Input | Configuration: Unbalanced
Maximum Input Level (1 kHz at 1% THD): 145 dB SPL, typical (dependent on microphone type) | | RF Output | Antenna Type: Dual-band helical
Occupied Bandwidth: <200 kHz
Channel-to-Channel Spacing: Standard Mode: 350 kHz; High-Density Mode: 125 kHz
Modulation Type: Shure Axient Digital proprietary
Power: Single Carrier Mode: 2, 10, and 50 mW
Frequency Diversity Mode: 2, 10, and 20 mW | | ShowLink | Network Type: IEEE 802.15.4
Antenna Type: ZigBee Dual Conformal
Frequency Range: 2.40 to 2.4835 GHz (24 channels)
RF Output Power: 10 dBm (ERP | | Dimensions (L x Diam) | 10.0 x 2.0" / 25.4 x 5.1 cm | | Weight | 6.3 oz / 178.6 g |
