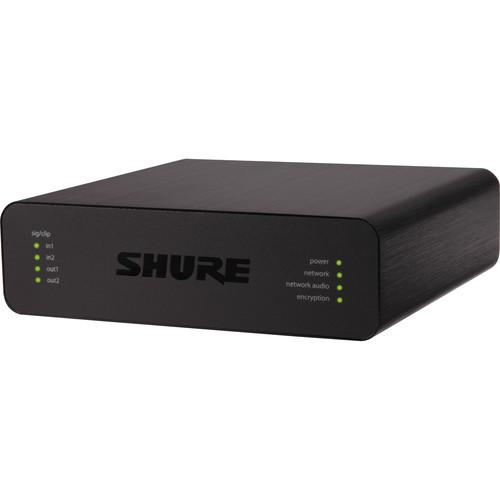

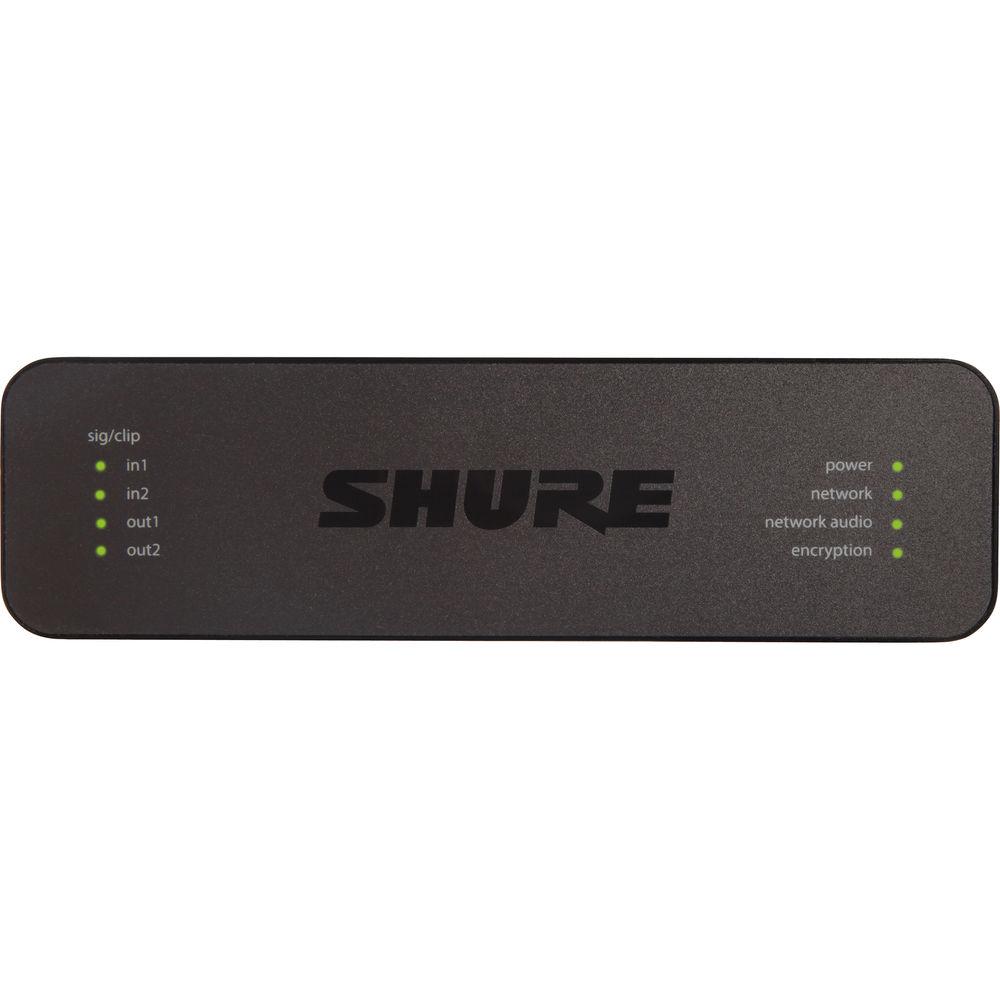

Product description The ANI22 Audio Network Interface from Shure is designed to bring up to two line/mic signals onto or from a Dante network. It can be utilized for easy audio routing and convenient browser-based remote control. In addition, it is built with analog XLR connectors. - Works with Microflex Advance and Microflex Wireless systems
- 2 input and 2 output analog audio connectors
- Converts up to 2 mic / line analog signals onto a Dante Network
- Converts up to 2 Dante digital audio signals to line/ mic analog signals
- Power over Ethernet (PoE) eliminates need for outboard power supply
- Compact form factor is easy to mount without equipment rack
UPC: 042406510486 In the Box Shure ANI22XLR Audio Network Interface (XLR Connectors) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure ANI22XLR Audio Network Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

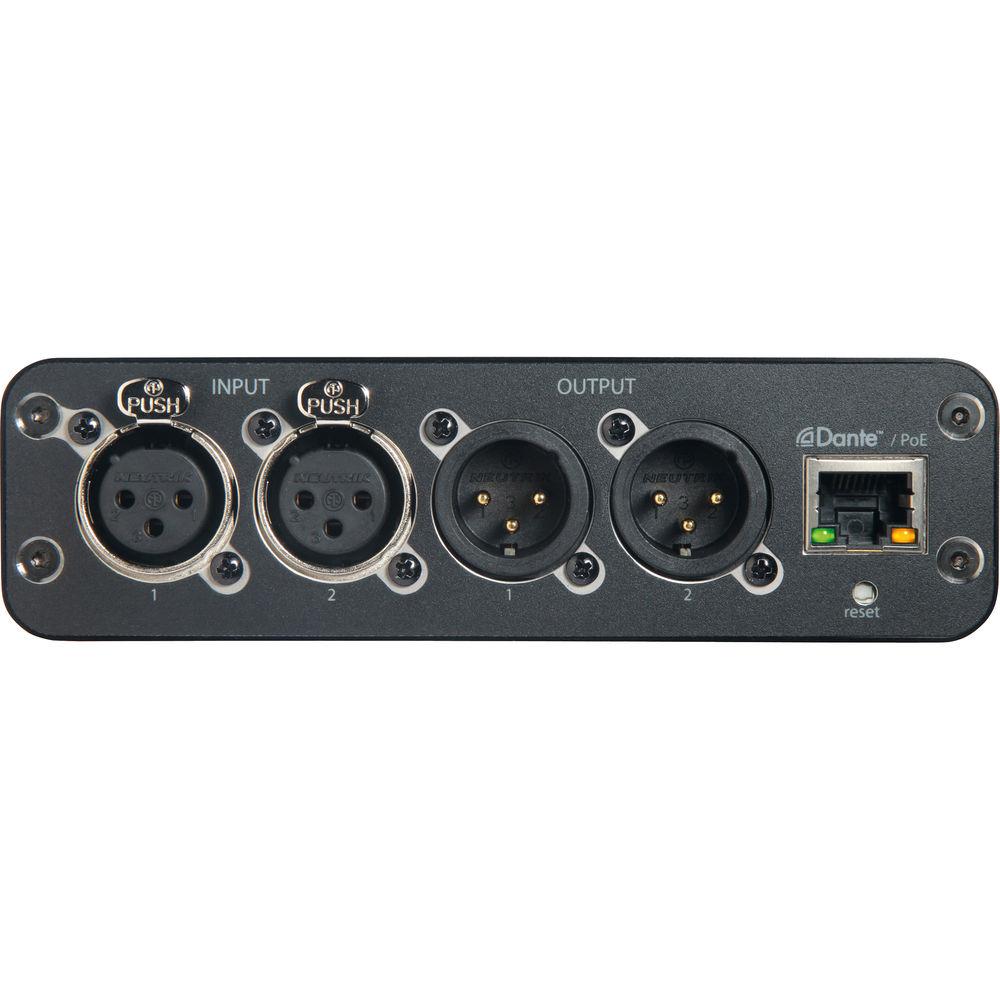

Technical parametersShure ANI22-XLR Specs | Inputs (Analog) | 2 x 3-pin XLR connectors | | Outputs (Analog) | 2 x 3-pin XLR connectors | | Dante Connection | 1 x RJ45
Channel Count: 2 inputs, 2 outputs | | Polarity | Non-inverting, any input to any output | | Power Requirements | Power over Ethernet (PoE), Class 0 (PoE Plus compatible) | | Power Consumption | 11 W maximum | | Application Control | HTML5 | | Operating Temperature Range | 20 to 104°F (-6.7 to 40°C) | | Storage Temperature Range | 20 to 165°F (-29 to 74°C) | | Thermal Dissipation | Maximum: 12.1 W (41.3 BTU/hr)
Typical: 9.8 W (33.7 BTU/hr) | | | | Frequency Response | 20 Hz to 20 kHz ±1 dB | | Dante Audio Flows | Sampling Rate: 24-bit/48 kHz | | Latency | Does not include Dante latency
Analog to Dante: 0.35 ms
Dante to Analog: 0.71 ms | | Analog Gain Range | 51 dB (adjustable in 3 dB steps) | | Dynamic Range | 113 dB, 20 Hz to 20 kHz, A-weighted, typical | | Equivalent Input Noise | 20 Hz to 20 kHz, A-weighted, input terminated with 150 Ohms
Analog Gain Setting = +0 dB, -93 dBV
Analog Gain Setting = +27 dB, -119 dBV
Analog Gain Settings = +51 dB, -130 dBV | | Total Harmonic Distortion (THD) | <0.05% @ 1 kHz, 0 dBV input, 0 dB analog gain | | Common Mode Rejection Ratio | >70 dB, 50 Ohms balanced source @ 1 kHz | | Input Impedance | 5 kOhms | | Output Impedance | 150 Ohms | | Input Clipping Level | Analog Gain Setting = +0 dB, +20 dBV
Analog Gain Setting = +27 dB, -7 dBV
Analog Gain Setting = +51 dB, -31 dBV | | Analog Output Levels | Selectable Line 0 dB
Aux -20 dB
Mic -46 dB | | Digital Signal Processing (DSP) | Per Channel: Equalizer (4-band Parametric, Dante channels only), Mute, Limiter, Gain (140 dB range)
System: Channel Summing | | Networking | Cat 5e or higher (shielded cable recommended) | | Dimensions (H x W x D) | 1.6 x 5.5 x 5.0" (4 x 14 x 12.8 cm) | | Weight | 1.5 lb (672 g) | | | | Package Weight | 2.7 lb | | Box Dimensions (LxWxH) | 10.0 x 6.6 x 3.1" |
