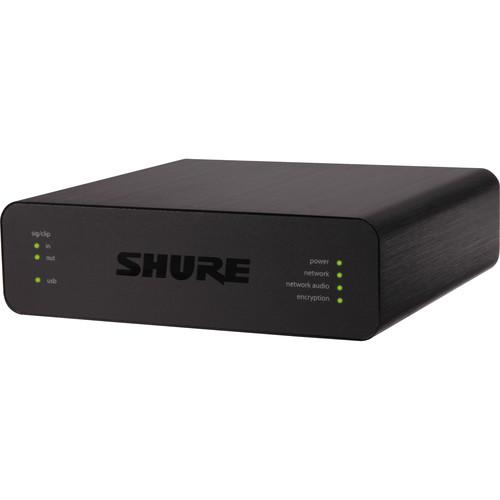

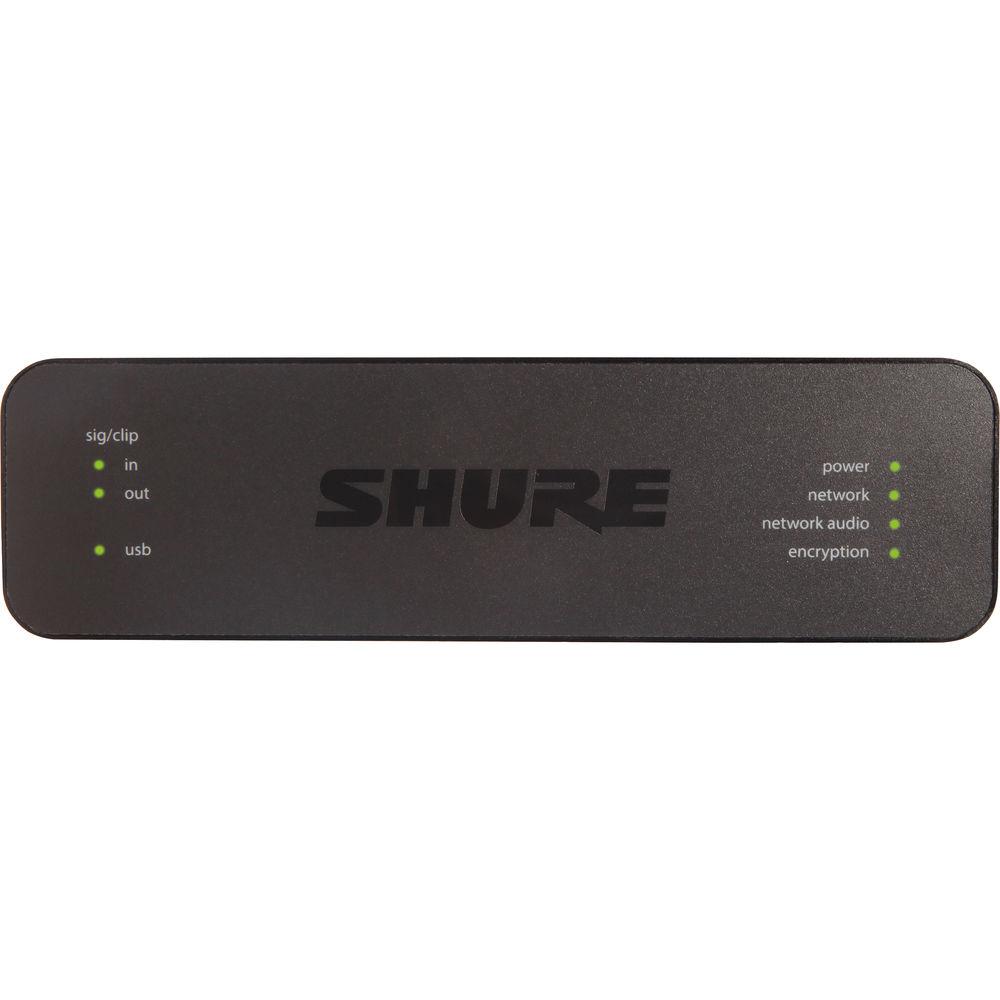

Product description The ANIUSB-MATRIX USB Audio Network Interface from Shure is designed for audio/video conferencing installations in small and medium-size meeting rooms. It can be used to connect 4 Microflex Advanced or Microflex Wireless microphone channels via Dante (4 in/2 out), and provide analog connectivity to a room audio/video conferencing system or a PC-based A/V conferencing application via USB (1 in/out). An internal matrix mixer offers flexible routing, allowing users to route any input to any output. A 4-band parametric EQ filter is also available on the analog and USB outputs. The ANIUSB-MATRIX is compact and easy to mount without an equipment rack. - Connects 4 Dante audio inputs and 1 analog input to an A/V conferencing system or a PC-based videoconferencing application
- Flexible signal routing and connectivity: analog audio (1 block in/1 block out) to room A/V conferencing system; USB (1 in/out) to connect to laptop or room PC
- Power over Ethernet (PoE) eliminates the need for an outboard power supply
- Compact form factor is easy to mount without equipment rack
UPC: 042406512602 In the Box Shure ANIUSB-MATRIX USB Audio Network Interface Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure ANIUSB-MATRIX USB Audio Network Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

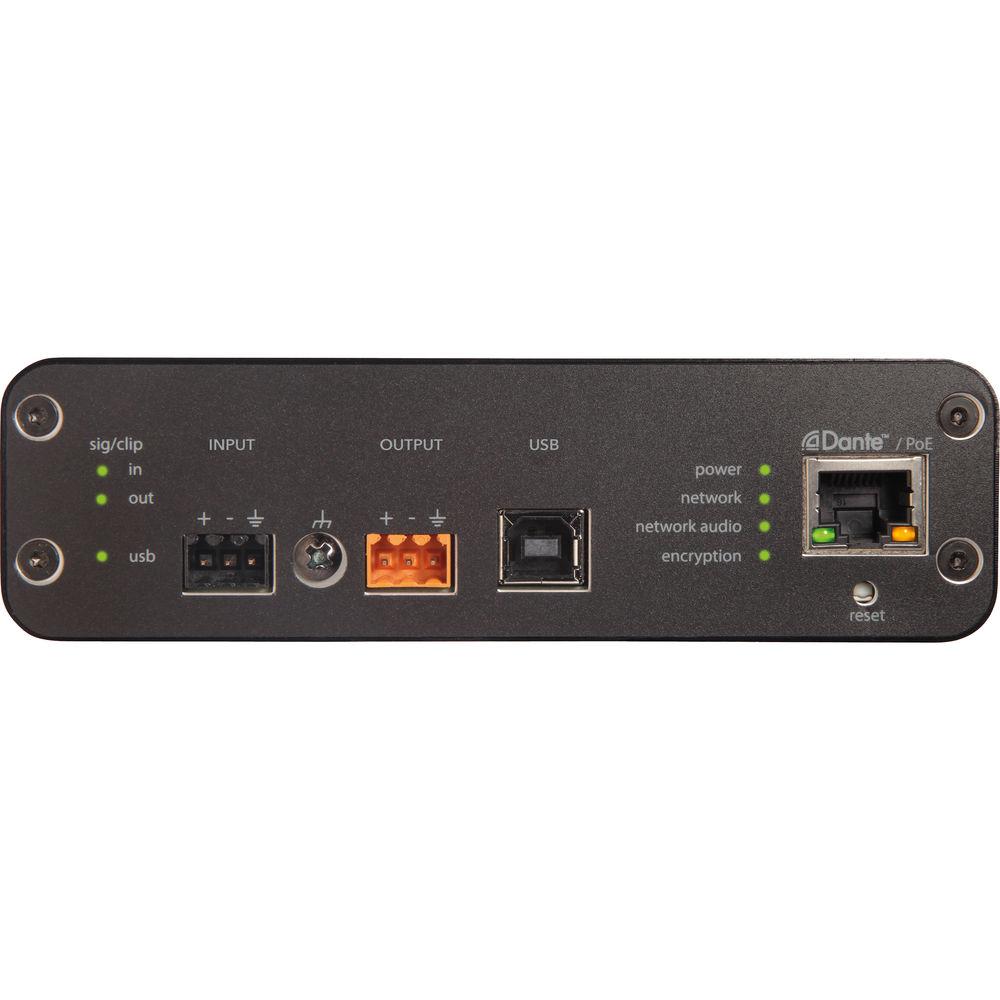

Technical parametersShure ANIUSB-MATRIX Specs | Inputs (Analog) | 1 x 3-pin block connector (active balanced) | | Outputs (Analog) | 1 x 3-pin block connector (impedance balanced) | | USB Connection | 1 x USB 2.0, Type-B | | Dante Connection | 1 x RJ45
Channel Count: 4 inputs, 2 outputs | | Polarity | Non-inverting, any input to any output | | Power Requirements | Power over Ethernet (PoE), Class 0 (PoE Plus compatible) | | Power Consumption | 6.5 W maximum | | Application Control | HTML5 browser based | | Operating Temperature Range | 20 to 104°F (-6.7 to 40°C) | | Storage Temperature Range | 20 to 165°F (-29 to 74°C) | | Thermal Dissipation | Maximum: 6.8 W (23.0 BTU/hr)
Typical: 6.0 W (20.8 BTU/hr) | | | | Frequency Response | 20 Hz to 20 kHz +1, -1.5 dB | | Dante Audio Flows | Sampling Rate: 24-bit/48 kHz | | USB Audio | 16-, 24-bit/44.1, 48 kHz | | Latency | Does not include Dante latency
Analog to Analog: 0.98 ms
Analog to Dante 0.39 ms
Dante to Analog: 0.72 ms
Dante to Dante: 0.14 ms | | Dynamic Range | 20 Hz to 20 kHz, A-weighted, typical
Analog to Dante: 113 dB
Dante to Analog: 117 dB | | Equivalent Input Noise | 20 Hz to 20 kHz, A-weighted, input terminated with 150 Ohms
Line: -86 dBV
Aux: -98 dBV | | Total Harmonic Distortion (THD) | <0.05% @ 1 kHz, 0 dBV input, 0 dB analog gain | | Common Mode Rejection Ratio | >70 dB, 150 Ohms balanced source @ 1 kHz | | Impedance | 10.6 kOhms | | Input Clipping Level | Line: +27 dBV
Aux: +15 dBV | | Output Clip Level | Line: +20 dBV
Aux: 0 dBV
Mic: -26 dBV | | Digital Signal Processing (DSP) | Per Channel: Equalizer (4-band Parametric, Analog and USB output channels only), Mute, Limiter, Gain (140 dB range)
System: Matrix mixer | | Networking | Cat 5e or higher (shielded cable recommended) | | Dimensions (H x W x D) | 1.6 x 5.5 x 5.0" (4 x 14 x 12.8 cm) | | Weight | 1.5 lb (672 g) | | | | Package Weight | 2.65 lb | | Box Dimensions (LxWxH) | 10.1 x 6.6 x 3.3" |
