User Manual for Shure B6 Omnidirectional Lavalier Microphone for Shure Transmitters Click to enlarge the picture
Contents of the user manual for the Shure B6 Omnidirectional Lavalier Microphone for
- Product category: Microphones for Wireless Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Microphones for Wireless
|
User manual for the Shure B6 Omnidirectional Lavalier Microphone for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|

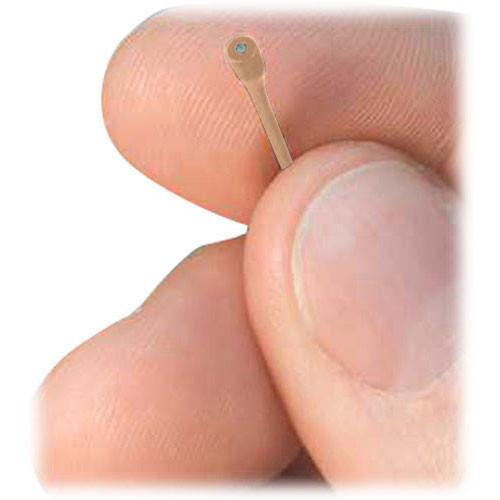

Product description The Countryman B6 Omnidirectional Microphone is a miniature lavalier microphone for virtually invisible operation during stage performances, video and film shoots, houses of worship applications, and general public speaking.The capsule measures only 0.1" in diameter and is resistant to moisture, which allows for placement in hair and on bare skin. In addition, its omnidirectional polar pattern minimizes handling noise, wind noise, and plosives (popping), making the B6 a favorite in theater applications.A wide variety of connections are available. This version features a 3-pin LEMO connector for Shure wireless transmitters. - Miniature Unobtrusive Capsule
- The miniature capsule measures only 0.1" (2.54mm) in diameter. The B6 is available in various colors that will virtually render the entire microphone invisible against the skin.
- Moisture-Resistant Frequency Caps
- Three frequency response altering caps provide flat, bright, and very bright high-frequency enhancement. In addition the caps are resistant to moisture caused by perspiration, make-up, humidity, etc.
- Omnidirectional Polar Pattern
- The omnidirectional polar pattern is most effective in minimizing wind noise, plosives (popping), and handling noise.
- Sensitivity Optimized for General Speaking
- The B6 is available in three sensitivities. This version is optimized to accurately capture general speaking without distortion and noise. Placement on the chest or lapel provide optimum results and is ideal for presentations, sermons, speeches, etc.
UPC: 042406164429 In the Box Shure B6 Omnidirectional Lavalier Microphone for Shure Transmitters (Light Beige) Storage Case Windscreen Flat Frequency Cap Bright High-Frequency Boost Cap Very Bright High-Frequency Boost Cap Black Cable Clip White Cable Clip Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure B6 Omnidirectional Lavalier Microphone for Shure Transmitters in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure B6 Specs Transducer | Condenser | Polar Pattern | Omnidirectional | Frequency Response | 20 Hz to 20 kHz +/-3 dB | Dynamic Range | Not Specified by Manufacturer | Signal-to-Noise Ratio | 24 dB(A) | Maximum Input Sound Level | 120 dB | Power Requirements | Operating Current: 500 uA Operating Voltage: 1 to 2 VPower Supply Voltage: +3 V with 2.7 kOhm Load+5 V with 6.8 kOhm Load | Output Impedance | 2 kOhms | Output Connector | 3-pin LEMO connector for Shure transmitters | Capsule Diameter | 0.1" (2.54 mm) | Weight | 0.07 oz (2 g) | | Package Weight | 0.55 lb | Box Dimensions (LxWxH) | 9.2 x 5.1 x 1.5" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 93 owners. Add your rating and experience with the product.
