User Manual for Shure BETA 181 C Cardioid Compact Side-Address Instrument Microphone Click to enlarge the picture
Contents of the user manual for the Shure BETA 181 C Cardioid Compact
- Product category: Small Diaphragm Condenser Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Small Diaphragm Condenser
|
User manual for the Shure BETA 181 C Cardioid Compact contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|

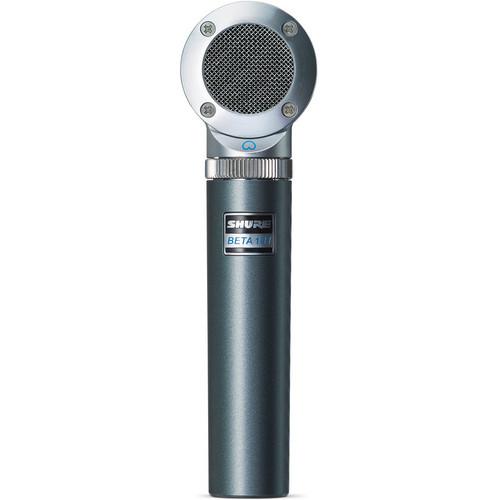

Product description The BETA 181/C Cardioid Compact Side-Address Instrument Microphone from Shure is a durable, small diaphragm, electret condenser microphone with an interchangeable capsule design. The Beta 181/C ships with a cardioid capsule for drum overhead, piano, and acoustic instrument applications, as well as an M/S stereo technique (paired with BETA 181/BI). The microphone features a wide frequency response and rugged build, making it great for the stage and recording studio. - BETA 181/C for drum overhead, piano, and acoustic instrument applications, as well as an M/S stereo technique (paired with BETA 181/BI)
- Interchangeable polar pattern capsules attach to a compact preamplifier with integrated XLR connections for the ultimate in low-profile application flexibility (Each Beta 181 ships with one polar pattern capsule and one XLR preamplifier. Capsules available separately for custom flexibility.)
- Precision-engineered, compact side-address design features innovative locking ring to provide secure connection between capsule and preamplifier
- Frequency response tailored for wide dynamic range applications for use in high SPL environments
- Furnished with stand adapter, windscreen, and carrying case (carrying case will securely protect up to four polar pattern capsules)
UPC: 042406187848 In the Box Shure BETA 181/C Cardioid Compact Side-Address Instrument Microphone A57F Microphone Clip Foam Case Assembly for BETA181 Condenser Microphone A181WS Replacement Foam Windscreen for Beta 181 Microphone Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure BETA 181 C Cardioid Compact Side-Address Instrument Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure 181 Specs | | | Transducer | Electret Condenser | | Diaphragm | 1.36" / 34.54 mm | | Polar Pattern | Cardioid | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 73.5 dB | | Equivalent Noise Level | 20.5 dB A-Weighted | | Maximum SPL | 151.5 dB SPL | | Impedance | 110 Ohms | | Sensitivity | 2.4 mV/Pa | | Dynamic Range | 131 dB | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 2.4 mA | | Operating Voltage | 11 to 52 V | | Length | 4.9" / 124.46 mm | | Diameter | 0.8" / 20.32 mm | | Weight | 5.11 oz / 145 g | | | | Package Weight | 1.2 lb | | Box Dimensions (LxWxH) | 10.0 x 5.0 x 3.3" |
