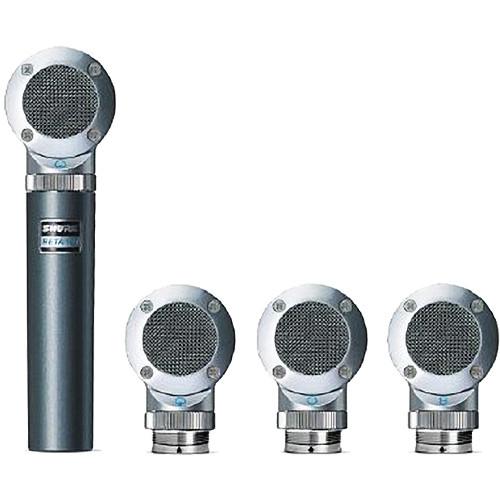

User Manual for Shure Beta 181 Microphone Kit Click to enlarge the picture
Contents of the user manual for the Shure Beta 181 Microphone Kit
- Product category: Small Diaphragm Condenser Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Small Diaphragm Condenser
|
User manual for the Shure Beta 181 Microphone Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|
Product description The Beta 181 Microphone Kit from Shure includes a Beta 181 handheld XLR preamplifier and interchangeable side-address cardioid, supercardioid, bi-directional, and omnidirectional condenser capsules. This line-up of capsules allows you to use the Beta 181 on a variety of sources ranging from drum overheads to piano to acoustic instruments and vocals. - RPM181/PRE Replacement XLR Preamplifier The RPM181/PRE Replacement XLR Preamplifier by Shure is designed to work in combination with one of four interchangeable capsules for the Shure Beta 181 side-address instrument microphone. The capsules come in cardioid, supercardioid, omnidirectional and bidirectional polar patterns making a highly versatile pair. With a capsule attached, it weighs only 5.1 oz and gets close to any source even in the tightest conditions. Its wide frequency response and high SPL handling is great for miking dual sound sources such as between toms or acoustic instruments. It is also very useful as a mono drum overhead or pair two to create the Blumlein stereo effect. The RPM181/PRE matched with any of the available capsules performs with little to no crossover distortion and provides exceptional low-frequency reproduction. The pair provides exceptional audio with consistent, textbook-like polar responses resulting in a mic with noteworthy sound and versatility.
- Works with one of four interchangeable capsules for the Shure Beta 181 instrument microphone
- The cardioid, supercardioid, omnidirectional and bidirectional capsules make this mic highly versatile
- Weighs only 5.1 oz with attached capsule and captures any source even in the tightest conditions
- Matched with any available capsule it performs with little to no crossover distortion and provides exceptional low-frequency reproduction
- RPM181/C Cardioid Polar Pattern Capsule The RPM181/C Cardioid Polar Pattern Capsule by Shure is one of four interchangeable capsules for Shure's Beta 181 side-address instrument microphone. It features a locking ring which provides a secure connection with the Shure RPM181/PRE. Paired with this preamp, its compact design weighs only 5.1 oz and gets close to any source even in the tightest conditions. With its wide frequency response and high SPL handling, it's great for piano, acoustic instruments, or used as a drum overhead. It also performs with little to no crossover distortion and provides exceptional low-frequency reproduction. The capsule is made with a hardened steel mesh grille that resists denting, wear and abuse. Along with its compact form factor, the diaphragm provides exceptional audio with consistent, textbook-like polar responses resulting in a mic with noteworthy sound and versatility.
- Interchangeable side-address Cardioid capsule for the Shure Beta 181
- Locking ring provides secure connection between capsule and Shure RPM181/PRE preamp
- Compact 5.1 oz design gets close to any source even in the tightest conditions
- Provides wide dynamic range and high SPL handling
- Performs with little to no crossover distortion and provides exceptional low-frequency reproduction
- Hardened steel mesh grille resists denting, wear and abuse
- RPM181/S Supercardioid Polar Pattern Capsule The RPM181/S Supercardioid Polar Pattern Capsule by Shure is one of four interchangeable capsules for Shure's Beta 181 side-address instrument microphone. It features a locking ring which provides a secure connection with the Shure RPM181/PRE. Paired with this preamp, its compact design weighs only 5.1 oz and gets close to any source even in the tightest conditions. With its wide frequency response and high SPL handling, it's great for close-miking in performance settings as well as snare drums and acoutsic instruments. It also performs with little to no crossover distortion and provides exceptional low-frequency reproduction. The capsule is made with a hardened steel mesh grille that resists denting, wear and abuse. Along with its compact form factor, the diaphragm provides exceptional audio with consistent, textbook-like polar responses resulting in a mic with noteworthy sound and versatility.
- Interchangeable side-address Supercardioid capsule for the Shure Beta 181
- Locking ring provides secure connection between capsule and Shure RPM181/PRE preamp
- Compact 5.1 oz design gets close to any source even in the tightest conditions
- Provides wide dynamic range and high SPL handling
- Performs with little to no crossover distortion and provides exceptional low-frequency reproduction
- Hardened steel mesh grille resists denting, wear and abuse
- RPM181/O Omnidirectional Polar Pattern Capsule The RPM181/O Omnidirectional Polar Pattern Capsule by Shure is one of four interchangeable capsules for Shure's Beta 181 side-address instrument microphone. It features a locking ring which provides a secure connection with the Shure RPM181/PRE. Paired with this preamp, its compact design weighs only 5.1 oz and gets close to any source even in the tightest conditions. With its wide frequency response and high SPL handling, it's great for capturing room ambience, string ensembles and used as a mono drum overhead. It also performs with little to no crossover distortion and provides exceptional low-frequency reproduction. The capsule is made with a hardened steel mesh grille that resists denting, wear and abuse. Along with its compact form factor, the diaphragm provides exceptional audio with consistent, textbook-like polar responses resulting in a mic with noteworthy sound and versatility.
- Interchangeable side-address Omnidirectional capsule for the Shure Beta 181
- Locking ring provides secure connection between capsule and Shure RPM181/PRE preamp
- Compact 5.1 oz design gets close to any source even in the tightest conditions
- Provides wide dynamic range and high SPL handling
- Performs with little to no crossover distortion and provides exceptional low-frequency reproduction
- Hardened steel mesh grille resists denting, wear and abuse
- RPM181/BI Bidirectional Polar Pattern Capsule The RPM181/BI Bidirectional Polar Pattern Capsule by Shure is one of four interchangeable capsules for Shure's Beta 181 side-address instrument microphone. It features a locking ring which provides a secure connection with the Shure RPM181/PRE. Paired with this preamp, its compact design weighs only 5.1 oz and gets close to any source even in the tightest conditions. With its wide frequency response and high SPL handling, it's great for miking dual sound sources such as between toms or acoustic instruments. It can also be very useful as a mono drum overhead or use a pair to create the Blumlein stereo effect. It also performs with little to no crossover distortion and provides exceptional low-frequency reproduction. The capsule is made with a hardened steel mesh grille that resists denting, wear and abuse. Along with its compact form factor, the diaphragm provides exceptional audio with consistent, textbook-like polar responses resulting in a mic with noteworthy sound and versatility.
- Interchangeable side-address Bidirectional capsule for the Shure Beta 181
- Locking ring provides secure connection between capsule and Shure RPM181/PRE preamp
- Compact 5.1 oz design gets close to any source even in the tightest conditions
- Provides wide dynamic range and high SPL handling
- Performs with little to no crossover distortion and provides exceptional low-frequency reproduction
- Hardened steel mesh grille resists denting, wear and abuse
In the Box Bundle Items RPM181/PRE Replacement XLR Preamplifier txbususawcudzqdazfxxavsd RPM181/C Cardioid Polar Pattern Capsule RPM181/S Supercardioid Polar Pattern Capsule RPM181/O Omnidirectional Polar Pattern Capsule RPM181/BI Bidirectional Polar Pattern Capsule
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure Beta 181 Microphone Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - RPM181/PRE Replacement XLR Preamplifier
| Type | Condenser | | Frequency Response | 20 to 20,000 Hz | | Polar Pattern | 181/C: Cardioid
181/S: Supercardioid
181/O: Omnidirectional
181/BI: Bidirectional | | Sensitivity | Cardioid: -46.5 dBV/Pa[1] (2.4 mV)
Supercardioid: -49.5 dBV/Pa[1] (2.5 mV)
Omnidirectional: -52.0 dBV/Pa[1] (2.6 mV)
Bidirectional: -51.0 dBV/Pa[1] (2.6 mV) | | Output Impedance | 110 ohms (at 1 kHz) | | Signal to Noise Ratio | Cardioid: 73.5 dB
Supercardioid: 71.5 dB
Omnidirectional: 70.5 dB
Bidirectional: 71.0 dB | | Self Noise | Cardioid: 20.5 dB SPL-A
Supercardioid: 22.5 dB SPL-A
Omnidirectional: 23.5 dB SPL-A
Bidirectional: 23.0 dB SPL-A | | Common Mode Rejection | ≥55 dB | | Polarity | Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3 | | Power Requirements | 11-52 V DC[4] phantom power (IEC-61938) 2.4 mA, maximum | | Maximum SPL | 1000 Ohm Load
Cardioid: 149.0 dB SPL
Supercardioid: 152.0 dB SPL
Omnidirectional: 154.0 dB SPL
Bidirectional: 153.5 dB SPL
2500 Ohm Load
Cardioid: 151.5 dB SPL
Supercardioid: 154.5 dB SPL
Omnidirectional: 157.0 dB SPL
Bidirectional: 156.0 dB SPL | | Dynamic Range | 1000 Ohm Load
Cardioid: 128.5 dB
Supercardioid: 129.5 dB
Omnidirectional: 130.5 dB
Bidirectional: 130.5 dB
2500 Ohm Load
Cardioid: 131.0 dB
Supercardioid: 132.0 dB
Omnidirectional: 133.5 dB
Bidirectional: 133.0 dB | | Clipping Level | 1000 Ohm Load
7.5 dBV
2500 Ohm Load
10.5 dBV | | Weight | 5.1 oz (145 grams) | - RPM181/C Cardioid Polar Pattern Capsule
| | | Type | Condenser | | Frequency Response | 20 to 20,000 Hz | | Polar Pattern | Cardioid | | Sensitivity | -46.5 dBV/Pa (2.4 mV) | | Output Impedance | 110 ohms (at 1 kHz) | | Signal to Noise Ratio | 73.5 dB | | Self Noise | 20.5 dB SPL-A | | Common Mode Rejection | ≥55 dB | | Polarity | Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3 | | Power Requirements | 11-52 V DC[4] phantom power (IEC-61938)2.4 mA, maximum | | Weight | 5.1 oz (145 grams) | | | | 1000 Ohm Load | 149.0 dB (1,000 ohm load) | | 2500 Ohm Load | 151.5 dB SPL | | | | 1000 Ohm Load | 128.5 dB | | 2500 Ohm Load | 131.0 dB | | | | 1000 Ohm Load | 7.5 dBV | | 2500 Ohm Load | 10.5 dBV | - RPM181/S Supercardioid Polar Pattern Capsule
| | | Type | Condenser | | Frequency Response | 20 to 20,000 Hz | | Polar Pattern | Supercardioid | | Sensitivity | -49.5 dBV/Pa (2.5 mV) | | Output Impedance | 110 ohms (at 1 kHz) | | Signal to Noise Ratio | 71.5 dB | | Self Noise | 22.5 dB SPL-A | | Common Mode Rejection | ≥55 dB | | Polarity | Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3 | | Power Requirements | 11-52 V DC[4] phantom power (IEC-61938)2.4 mA, maximum | | Weight | 5.1 oz (145 grams) | | | | 1000 Ohm Load | 152.0 dB (1,000 ohm load) | | 2500 Ohm Load | 154.5 dB SPL | | | | 1000 Ohm Load | 129.5 dB | | 2500 Ohm Load | 132.0 dB | | | | 1000 Ohm Load | 7.5 dBV | | 2500 Ohm Load | 10.5 dBV | - RPM181/O Omnidirectional Polar Pattern Capsule
| | | Type | Condenser | | Frequency Response | 20 to 20,000 Hz | | Polar Pattern | Omnidirectional | | Sensitivity | -52.0 dBV/Pa (2.6 mV) | | Output Impedance | 110 ohms (at 1 kHz) | | Signal to Noise Ratio | 70.5 dB | | Self Noise | 23.5 dB SPL-A | | Common Mode Rejection | ≥55 dB | | Polarity | Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3 | | Power Requirements | 11-52 V DC[4] phantom power (IEC-61938)2.4 mA, maximum | | Weight | 5.1 oz (145 grams) | | | | 1000 Ohm Load | 154.0 dB (1,000 ohm load) | | 2500 Ohm Load | 157.0 dB SPL | | | | 1000 Ohm Load | 130.5 dB | | 2500 Ohm Load | 133.5 dB | | | | 1000 Ohm Load | 7.5 dBV | | 2500 Ohm Load | 10.5 dBV | - RPM181/BI Bidirectional Polar Pattern Capsule
| | | Type | Condenser | | Frequency Response | 20 to 20,000 Hz | | Polar Pattern | Bidirectional | | Sensitivity | -51.0 dBV/Pa (2.6 mV) | | Output Impedance | 110 ohms (at 1 kHz) | | Signal to Noise Ratio | 71.0 dB | | Self Noise | 23.0 dB SPL-A | | Common Mode Rejection | ≥55 dB | | Polarity | Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3 | | Power Requirements | 11-52 V DC[4] phantom power (IEC-61938)2.4 mA, maximum | | Weight | 5.1 oz (145 grams) | | | | 1000 Ohm Load | 153.50 dB (1,000 ohm load) | | 2500 Ohm Load | 156.0 dB SPL | | | | 1000 Ohm Load | 130.5 dB | | 2500 Ohm Load | 133.0 dB | | | | 1000 Ohm Load | 7.5 dBV | | 2500 Ohm Load | 10.5 dBV |
