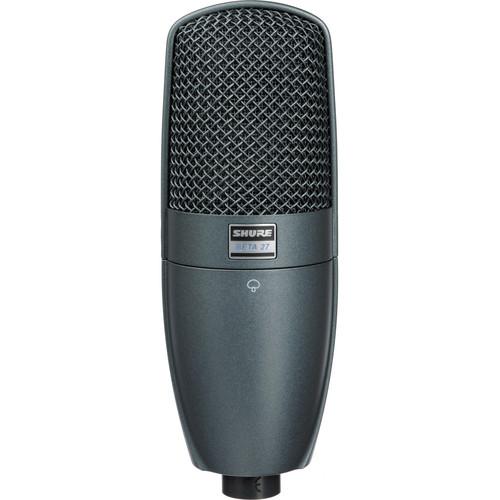

User Manual for Shure Beta 27 Supercardioid Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Shure Beta 27 Supercardioid Condenser Microphone
- Product category: Large Diaphragm Condenser Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Large Diaphragm Condenser
|
User manual for the Shure Beta 27 Supercardioid Condenser Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|
Product description The Beta 27 Supercardioid Condenser Microphone from Shure is a side-address microphone that features a large gold-layered diaphragm, and a natural frequency response well suited for capturing vocals and instruments in recording and live sound applications. The Beta 27's supercardioid polar pattern is most effective in minimizing off-axis noise and feedback. A 3-position low frequency roll off filter switch minimizes low frequency noise, and a -15 dB pad switch maximizes headroom while capturing transient peaks. - Supercardioid polar pattern specifically targets the sound source consistently with greatly minimized bleed from off-axis sound sources
- Tailored for superior transient response from a low-mass, 1" externally-biased, ultra-thin 24K gold-layered Mylar diaphragm
- Flat, neutral frequency response for natural reproduction on stage or in the studio
- 3-position switchable low-frequency filter helps reduce unwanted background noise or counteract proximity effect for consistent, extended low frequency
- -15 dB switchable attenuator handles extremely high SPLs with ease
- Premium electronic components and gold-plated internal and external connectors
- Internal pop filter with three separate mesh layers reduces wind and breath noise
UPC: 042406180375 In the Box Shure Beta 27 Supercardioid Condenser Microphone Stand Adapter Padded Zippered Pouch Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure Beta 27 Supercardioid Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure Beta 27 Specs | | | Transducer | Condenser | | Diaphragm | 1" / 25.40 mm | | Polar Pattern | Supercardioid | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 85.5 dB A-Weighted | | Equivalent Noise Level | 8.5 dB A-Weighted | | Maximum SPL | 134 dB SPL
140 dB SPL | | Pad | -15 dB | | THD | 1% | | Impedance | 160 Ohms | | Sensitivity | 14.3 mV/Pa at 1 kHz | | Low-Cut Filter | 6 dB/Octave @ 115 Hz
18 dB/Octave @ 80 Hz | | Dynamic Range | 126 dB
132 dB | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 6 µA | | Operating Voltage | 48 V | | Weight | 15.1 oz / 428 g | | | | Package Weight | 2.25 lb | | Box Dimensions (LxWxH) | 10.0 x 5.5 x 4.0" |
