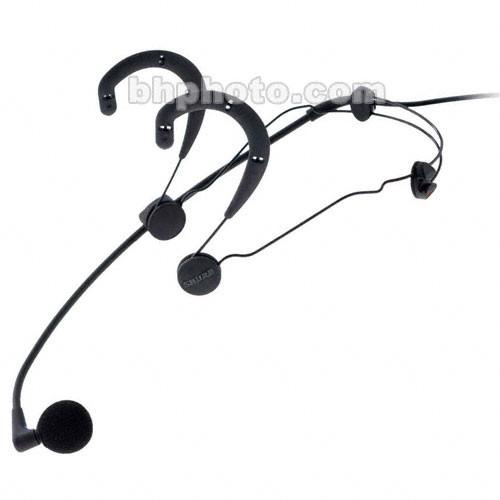

User Manual for Shure Beta 54 - Super-Cardioid Condenser Headworn Microphone Click to enlarge the picture
Contents of the user manual for the Shure Beta 54 - Super-Cardioid Condenser
- Product category: Headset & Earset Microphones Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Headset & Earset Microphones
|
User manual for the Shure Beta 54 - Super-Cardioid Condenser contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|
Product description The Shure Beta 54 is a low-profile, head-worn microphone featuring an electret condenser microphone with a super-cardioid polar pattern. With a frequency response of 20Hz to 50kHz, the unobtrusive microphone delivers transparent, full signal reproduction with minimal noise at the low frequency range. The super-cardioid polar pattern is highly effective at minimizing noise and ambiance at the off-axis sections of the microphone.The end result is exceptional rejection of signal from monitors and instruments, creating high gain-before-feedback response. The Beta 54 is able to reproduce audio sound pressure levels of up to 149dB without noise caused by distortion and overload. The lightweight headband is size adjustable and designed to wrap behind the head for a comfortable fit during long use. The headset excels in performances due to it's excellent off-axis rejection, however instructional applications, aerobics instruction and boardroom settings are all environments the Beta 54 is suitable for. - Super-Cardioid Polar Pattern
- The super-cardioid polar pattern provides excellent rejection of signal at the off-axis sections of the microphone capsule. The off-axis rejection aids in minimizing signal caused by monitors, providing high gain-before-feedback response.
- Designed For Wired Operation
- The Shure Beta 54 is available for use in wireless applications (WBH54 versions), however this version is designed for hard-wired use and includes the RPM626 preamplifier / power supply.
- Wide Frequency Response
- The wide, smooth frequency response of 20Hz to 20kHz enables detailed signal reproduction and accurate phase coherence.
- Interchangeable Protective Caps
- The Beta 54 includes protective caps that alter the frequency response to accentuate high or mid-range frequencies when necessary.
- Wire Frame Adjustable Headband
- The lightweight headband is made of a size adjusting wire frame that wraps behind the head for an unobtrusive profile and added comfort during long use.
UPC: 042406113410 In the Box Shure Beta 54 - Super-Cardioid Condenser Headworn Microphone RPM626 Preamplifier Protective Frequency Altering Caps Cable Clothing Clip 2 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure Beta 54 - Super-Cardioid Condenser Headworn Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure Beta 54 Specs | Transducer | Electret Condenser | | Polar Pattern | Super-cardioid | | Frequency Response | 50Hz to 20kHz | | Dynamic Range (Typical) | 110dB (max. SPL with 1k load, minus typical A-wt. noise) | | Signal-to-Noise Ratio | 55dB @ 94dB SPL | | Maximum Input Sound Level | 149dB SPL produces 1% THD/1k ohms load | | Power Requirements | Phantom power; 11 to 52VDC | | Output Impedance | 136 ohms | | Output Connectors | TA4-Female Connector | | Pad | No | | Low Frequency Roll-Off | No | | Dimensions | 5ft (1.5m) cable length | | Weight | 4.75 oz (135.35 g) | | | | Package Weight | 2.4 lb | | Box Dimensions (LxWxH) | 11.0 x 8.1 x 4.5" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 62 owners. Add your rating and experience with the product.
