User Manual for Shure BETA 87A Supercardioid Handheld Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Shure BETA 87A Supercardioid Handheld Condenser
- Product category: Handheld Performance Microphones Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Handheld Performance Microphones
|
User manual for the Shure BETA 87A Supercardioid Handheld Condenser contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|

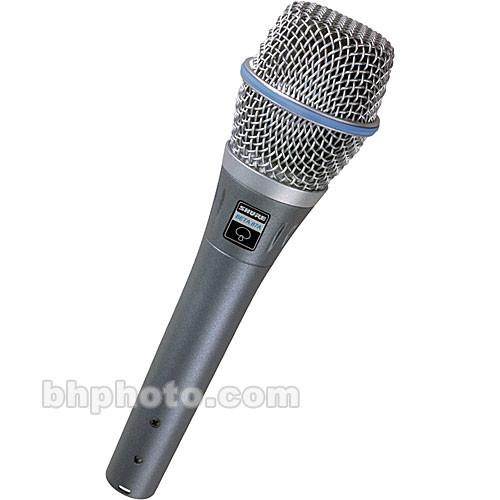

Product description The Shure BETA 87A is a premium-quality supercardioid handheld electret condenser vocal microphone with exceptionally smooth frequency response and high sound pressure level (SPL) capability. Used for professional sound reinforcement, broadcasting, and studio recording applications, the BETA 87A combines superb performance with the ruggedness needed for touring and field production.
The BETA 87A features a controlled low-frequency roll-off that compensates for proximity effect and prevents the "boomy" sound often associated with close pick-up. The characteristic Shure presence rise brightens the upper midrange. The tight supercardioid pattern, with null points at approximately 125 degrees, provides maximum isolation from other vocalists or instruments while offering minimal off-axis coloration. The BETA 87A operates on phantom power. - Supercardioid polar pattern remains uniform throughout the frequency range allowing higher gain before feedback and reduced background noise pickup.
- Wide dynamic range (113 dB) and low distortion characteristics.
- Phantom powered, accepts voltages from 11 to 52 volts.
- Smooth frequency response from 50 Hz to 18 kHz with a gradual presence rise and minimal off-axis coloration.
- Low susceptibility to RFI, electrostatic and electro-magnetic hum.
- Advanced cartridge shockmount system reduces handling noise.
UPC: 042406054744 In the Box Shure BETA 87A Supercardioid Handheld Condenser Microphone A25DM Mic Stand Adapter Zippered Carrying Bag Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure BETA 87A Supercardioid Handheld Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure BETA87A Specs | Transducer | (Electret Bias) Condenser | | Polar Pattern | Supercardioid | | Frequency Response | 50 Hz - 20 kHz | | Maximum Input Sound Level | 140.5 dB @ 1 kHz 1% THD | | Dynamic Range | 117 dB @ 1 kHz 1 kOhm load | | Power Requirements | Phantom 11 - 52 VDC, 1.2 mA | | Output Impedance | 150 Ohms (100 Ohms actual ±20%) | | Output Connectors | XLR-3M Type | | Dimensions (Ø x L) | 2 x 7.56" / 51 x 192 mm | | Weight | 7 oz. (200 g) | | | | Package Weight | 1.25 lb | | Box Dimensions (LxWxH) | 10.1 x 5.0 x 3.3" |
Rating92% users recommend this product to others. And what about you?
This product has already been rated by 01 owners. Add your rating and experience with the product.
