User Manual for Shure Beta 98A C Miniature Cardioid Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Shure Beta 98A C Miniature Cardioid
- Product category: Small Diaphragm Condenser Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Small Diaphragm Condenser
|
User manual for the Shure Beta 98A C Miniature Cardioid contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|

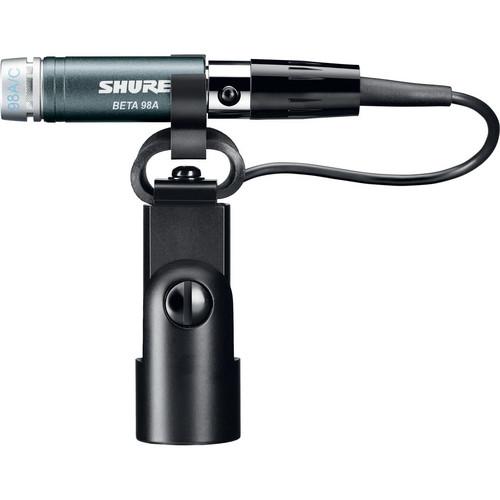

Product description The Beta 98A/C Miniature Cardioid Condenser Microphone from Shure is essentially a Shure Beta 98A accessorized with a shockmount swivel adapter and a lightweight cable. The package is intended to perfectly mount and position the Beta 98A with a flexible gooseneck that makes it an essential, accurate choice for toms, snares, and percussion. Its cardioid polar pattern effectively minimizes off-axis feedback and noise, and its tailored frequency response reproduces drums with pristine results. The Beta 98A's high SPL response captures transients without noise and distortion. Its miniature profile is ideal for close positioning, without interfering with the performance. - Uniform cardioid polar pattern provides maximum gain-before-feedback and rejection of off-axis sound for smooth high-end response and control
- Frequency response tailored for drums and percussion applications with a wide dynamic range for use in high SPL environments
- Precision-engineered design for unobtrusive microphone footprint
UPC: 042406187152 In the Box Shure Beta 98A/C Miniature Cardioid Condenser Microphone Quick Release Microphone Clip 25' Lightweight Cable RPM626 - In-Line Microphone Preamp Zippered Carrying Bag Snap-Fit Windscreen Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure Beta 98A C Miniature Cardioid Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure 98A Specs | | | Transducer | Electret Condenser | | Polar Pattern | Cardioid | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 64 dB | | Equivalent Noise Level | 30 dB A-Weighted | | Maximum SPL | 150.5 dB SPL | | THD | 1% | | Impedance | 179 Ohms | | Sensitivity | 4 mV/Pa at 1 kHz | | Dynamic Range | 120.5 dB | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 3.6 mA | | Operating Voltage | 11 to 52 V | | Length | 1.4" / 35.56 mm | | Diameter | 0.46" / 11.68 mm | | Weight | 0.42 oz / 12 g | | | | Package Weight | 1.25 lb | | Box Dimensions (LxWxH) | 10.0 x 4.9 x 3.4" |
