User Manual for Shure BETA 98AMP Miniature Cardioid Drum Microphone Click to enlarge the picture
Contents of the user manual for the Shure BETA 98AMP Miniature Cardioid Drum
- Product category: Small Diaphragm Condenser Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Small Diaphragm Condenser
|
User manual for the Shure BETA 98AMP Miniature Cardioid Drum contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|

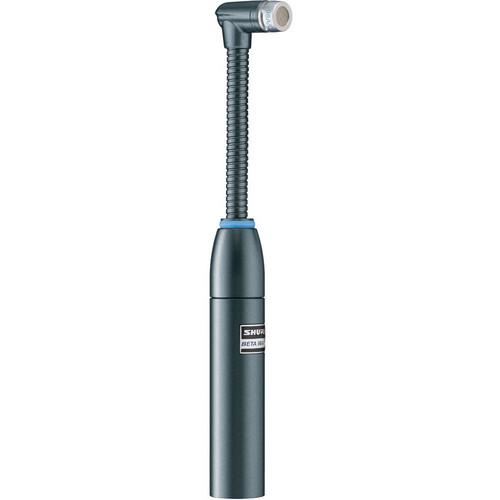

Product description The BETA 98AMP Miniature Cardioid Drum Microphone from Shure is a 3-pack of miniature condenser microphones. The BETA 98AMP features a gooseneck for flexible positioning on drums, percussion, and more. Its high SPL handling and wide frequency response make it ideal for both crucial recording and sound reinforcement applications. The BETA 98AMP's small capsule and flexible gooseneck allow for close drum positioning without interfering with the player's performance. - Uniform cardioid polar pattern provides maximum gain-before-feedback and rejection of off-axis sound for smooth high-end response and control
- Precision-engineered design features integrated preamplifier and XLR connector to maximize setup efficiency while minimizing stage clutter
- Frequency response tailored for drums and percussion applications with a wide dynamic range for use in high SPL environments
- Flexible gooseneck for precise placement and easy adjustment
- Ships with A75M Universal Microphone mounts with quick release, for versatile and secure instrument and/or stand mounting
- Furnished with snap-fit windscreen and zipper pouch
UPC: 042406187145 In the Box Shure BETA 98AMP Miniature Cardioid Drum Microphone (3-Pack) 3 x A75M Universal Microphone Mount 3 x A75-57F Small Microphone Clips 3 x Snap Fit Windscreens Zippered Pouch Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure BETA 98AMP Miniature Cardioid Drum Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure 98AMP Specs | | | Transducer | Electret Condenser | | Polar Pattern | Cardioid | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 63 dB | | Equivalent Noise Level | 31 dB A-Weighted | | Maximum SPL | 157.5 dB SPL | | THD | 1% | | Impedance | 150 Ohms | | Sensitivity | 2.5 mV/Pa at 1 kHz | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 5.5 mA | | Operating Voltage | 11 to 52 V | | Length | 7.18" / 182.37 mm | | Diameter | 0.79" / 20.07 mm | | Weight | 4.6 oz / 130 g | | | | Package Weight | 3.5 lb | | Box Dimensions (LxWxH) | 10.8 x 8.2 x 4.6" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 69 owners. Add your rating and experience with the product.
