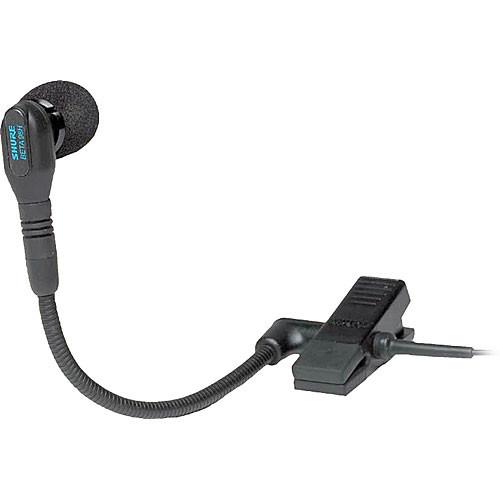

User Manual for Shure BETA-98H C Cardioid Instrument Clip-On Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Shure BETA-98H C Cardioid Instrument Clip-On
- Product category: Instrument Microphones Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Instrument Microphones
|
User manual for the Shure BETA-98H C Cardioid Instrument Clip-On contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|
Product description The Beta 98H/C is a cardioid, mini-condenser instrumental microphone with in-line preamplifier is designed to clearly capture the sounds of today's professional horn players. The pickup pattern of the Beta 98H/C provides high gain-before-feedback and excellent rejection of unwanted noise. With a high maximum sound pressure level (SPL), the Beta 98H/C is ready to handle the demands of brass and woodwind instruments, and is a strong performer for percussion applications. The transformerless preamplifier circuitry of the Beta 98H/C improves linearity across the full frequency range. In situations where phantom power is not available, the MX1-BP battery-powered preamplifier will perform exceptionally.
The integrated gooseneck and ratcheting swivel joint of the Beta 98H/C allows for easy microphone positioning and securing. Once the position is determined, the gooseneck angle brace ensures that the Beta 98H/C will stay in place during even the most active performances. - Tailored frequency response for open, natural sound reproduction
- Compact, lightweight construction provides a low degree of visibility
- Interchangeable microphone cartridges are available: RPM108 - Cardioid cartridge, RPM110 - Supercardioid cartridge
- Gooseneck, ratcheting swivel joint, and gooseneck angle brace allow for optimum placement and fixed positioning
- Legendary Shure ruggedness and reliability
UPC: 042406083379 In the Box Shure BETA-98H/C Cardioid Instrument Clip-On Condenser Microphone 10' (3 m) High Flex Cable 2 x Snap-On Windscreens Storage Bag Preamplifier Gooseneck Angle Brace Cable Management Device Limited 2-Year Warranty User Manual PDF 499.2kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure BETA-98H C Cardioid Instrument Clip-On Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure Beta 98H/C Specs | Transducer | Condenser | | Polar Pattern | Unidirectional (Cardioid) | | Frequency Response | 20 Hz - 20 kHz | | Dynamic Range (Typical) | 132 dB (2.5 kΩ Load) | | Signal-to-Noise Ratio | 63 dB at 94 dB SPL (IEC 651) | | Maximum Input Sound Level | 143.5 dB | | Power Requirements | 11 to 52V DC Phantom Power, or
(Use a Battery in the Optional MX1-BP Battery Powered Supply) | | Output Impedance | 150 Ohms | | Output Connectors | Tini Q-G Connector (from Microphone), XLR-3M Type (from Pre-Amp) | | Pad | None | | Low Frequency Roll-Off | None | | Applications | Saxophone, Soprano Saxophone, Trombone, Trumpet, Drums (Toms) | | Dimensions | .44" (11 mm) Grille Face Diameter
1" (25 mm) Grille Face to Back of the Head
6.68" (167 mm) Top of the Head to Base of Gooseneck | | Weight | Microphone with Cable and Tini Q-G Connector: 2.3 oz. (65 g)
Preamplifier: 3.4 oz (96 g) | | | | Package Weight | 1.05 lb | | Box Dimensions (LxWxH) | 10.079 x 4.961 x 3.465" |
