Product description The BLX Wireless Handheld and Lavalier System with Basic Combo Kit from B&H is an ideal solution for applications requiring wireless microphones. Its two-mic option brings maximum versatility to any single-user application, particularly vocals, lectures, meetings, and interview situations.The kit includes a Shure BLX14/CVL cardioid lavalier wireless microphone system, one BLX2 handheld transmitter with PG58 microphone, and a Gator GM-1W wireless carrying case. In addition, several accessories include the following: One tripod microphone stand with fixed boom, an XLR microphone cable, four AA NiMH rechargeable batteries, a Watson 4-hour rapid charger, an Auray black 1-5/8" foam windscreen, three 1/4" foam windscreens, and a black Auray microphone clip.Featuring everything needed to get you up and running, the B&H kit has both XLR and 1/4" outputs, and is suitable for connecting to a variety of equipment such as mixing boards or PA systems. The system has a 300' line-of-sight range of operation. - Shure BLX14/CVL Lavalier Wireless Microphone System (H9: 512 - 542 MHz) The BLX14/CVL Lavalier Wireless Microphone System from Shure includes a BLX4 single-channel wireless receiver, a BLX1 bodypack transmitter, and a CVL Centraverse clip-on lavalier mic. The system is set to Shure's H9 frequency band and operates between 512 - 542 MHz.
The BLX1 bodypack transmitter has a 300' line of sight operation range with the BLX4 receiver. It is powered by two included AA batteries that can provide up to 14 hours of operation. The BLX4 receiver features microprocessor-controlled internal antenna diversity that helps prevent interference and signal dropouts. Its one-touch QuickScan feature detects the most interference-free frequency and sets the channel to it for fast setup. UPC: 042406470407 - Shure BLX2 Handheld Transmitter with PG58 Microphone (H9: 512 - 542 MHz) The BLX2 Handheld Transmitter with PG58 Microphone from Shure is set to Shure's H9 frequency band between 512 to 542 MHz MHz and provides a 300' line of sight operating range. It is powered by two included AA batteries for up to 14 hours. It is compatible with Shure BLX wireless systems set to the same frequency band. A padded zipper case and microphone clip are included. UPC: 042406470100
- Gator Cases GM-1W Wireless Mobile Pack The Gator Cases GM-1W Wireless Mobile Pack (Black) is a 600 denier nylon case with interior padding. It is designed to carry and protect an entire single wireless system. The zippered case reveals sufficient space for lavalier microphones, cables and accessories. The foam padded interior protects the gear from shock while remaining lightweight and rugged. The receiver is functional while still in the bag. The front and back unzip for easy access. The bag is carried by a removable, adjustable shoulder strap and padded carrying handles.
- Construction
-
- 600 denier nylon
- Foam padded interior
- Zipper closure
- Access for antenna to be extended while in the case
- Space for lavalieres, cables and wireless mic with transporter
- Mounted front and rear access unzips for easy set up in the field
- Carrying options
-
- Removable, adjustable shoulder strap
- Padded carrying handles
- Compatible with most single microphone wireless systems
UPC: 716408503424 - Auray MS-5230F Tripod Microphone Stand with Fixed Boom The Auray MS-5230F Tripod Microphone Stand with Fixed Boom features durable, steel construction. The 31.5" boom arm allows you to angle the mic however you need it. An ergonomic twist-action clutch helps adjust the height of the stand, while the reinforced tripod base and nonslip feet keep it firmly and sturdily in place. The Auray MS-5230F mic stand collapses for easy transport. UPC: 847628015586
- Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 6' (1.8 m), Black The black Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable (6') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise. While the cable's color-coding affords the ability to quickly differentiate between multiple connections on stage, it provides a pleasant aesthetic quality at the same time.
Premium Performance 3000 Series cables are made from 24-AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection. - 95% dual-spiral shielding offers protection from EMI and RFI noise
- Twin conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core
- 24-AWG oxygen-free stranded copper inner core provides the best possible conductivity
- Cotton yarn reduces electrostatic and microphonic noise
- All solder points shrink-wrapped for protection
- Neutrik XX silver connectors offer high conductivity
- Caged type contact and improved ground contact
UPC: 847628558267 - Watson MX 4-Hour Rapid Charger and 4 MX AA NiMH Batteries Power up your photo equipment, flashlights, gaming devices, and other electronics via the Watson MX 4-Hour Rapid Charger with 4 MX AA NiMH Batteries. The 1.2V, 2550mAh nickel-metal hydride cells are pre-charged, rechargeable up to 500 times, and capable of retaining 85% of their capacity after 1 year in storage. The Rapid unit will charge 4 of them in about 310 minutes, or 2 in about 160 minutes. It's also compatible with optional AA NiCd batteries, or AAA NiMH or NiCd cells.
The charger's integrated micro-controller ensures that each battery is charged to its full capacity, and an automatic cut-off feature prevents overcharging. Should the controller and automatic cut-off functions both fail, the safety guard timer will kick in to ensure that power is still shut off after 6 hours. Additionally, the charger features protection against short circuits and reverse polarity. Two charging channels are individually monitored, and two LED indicators display battery status. In order to enable use all over the world, the charger runs on 100-240 VAC power. As a bonus, its compact outlet prongs can fold inwards, making the unit more compact for storage and travel. UPC: 847628599529 - Auray WHF-158 Foam Windscreen for 1-5/8" Diameter Microphones (Black) The black Auray WHF Series Foam Windscreens are designed to reduce unwanted broadband wind noise and vocal pops with minimal high frequency loss. This WHF-158 Foam Windscreen is designed for use with many common handheld microphones with a 1-5/8" diameter head. The density of the specialty acoustic foam is optimized to help protect the microphone element from air bursts without muffling the sound. When used on a handheld microphone, this windscreen is effective in minimizing wind noise and plosive sounds. It is most effective in calm to light breeze conditions (0-7mph), and can be used indoors for protection against drafts caused by air-conditioners. Users can generally expect a 4dB to 8dB reduction in wind noise, with very slight dampening of high frequencies. For most applications, the very slight high frequency dampening is a worthwhile exchange for the notable wind noise reduction. The WHF-158's foam is hypoallergenic and washable and helps prevent moisture and dirt from damaging your microphone. The windscreen is designed to fit microphones from Shure, Electro-Voice, AKG, Audio-Technica, Audix, Beyerdynamic, Sennheiser, Neumann and others. The WHF-158 Foam Windscreen for 1-5/8" Diameter Microphones is an effective solution for basic wind protection.
- Fits these and other similar-sized microphones:
-
- Shure SM58, Beta 58, Beta 87A, Beta 87C, PG58, PG48, SM48, SM96, VP88, SM87, SM53, SM54, PE85, PE86, BG3.0, PE15, PE75, 12a, 14A, 587, 587SB
- Electro-Voice RE50/B, BBK1, Co5, Co7, Co9, DS35, MC100, 150, 300, MT200, N/D200, N/D247, 257, 267, N/D357, 367, 457, 757, N/D767, PL50, PL60, PL70, PL77, PL80, RE11, RE16, RE18
- Sennheiser e825S, e865, MD21, 200, MD400, 425, 427, 429, MD511, 512, 515, 516, 735, MD736, ME65, MKE44, SKM3072, SKM5000, SKM100, SKM300, SKM500, SKP30
- Audio-Technica AE3300, 4100, 5400, 6100, ATM23, 25, 29, 31, 41, 61, ATM91, AT801, AT802, AT813, AT814, ATW7375, ATW-T602, MB1000, Pro-1a, Pro-2ax, Pro-3, Pro-4, Pro-5, Pro-10
- Audix OM-2, OM-3, OM-5, OM-6, OM-7, VX-10
- AKG C900, D40, D50, D60, D80, D90, D95, D125, D130, D190, D200, D310, D321, D330, D590, D770, D880, C535, CK4, D3700, D3800, D5900
- Beyerdynamic BM85, EM85, M01, M59, M69, M260, M300, M400, M500, MCE81, TGX-20, TGX-40, TGX-58, TGX-60, TGX-80
- Neumann KMS105, KMS140, KMS150
- Nady SP-1, SP-3, SP-4, SP-5, SP-9, SP10, WHT14, WHT15, UH10
- Peavey Celebrity, PAA250, PVM835, PVM880, PV, PVi
- Telex HT700, SH100, FMR150, FMR450, EN6100, H12E, VR12E
UPC: 847628562868 - Auray WLF-014-3 Foam Windscreens for 1/4" Diameter Microphones (3 Pack) The Auray WLF Series Foam Windscreens are designed to reduce unwanted vocal pops and broadband wind noise with minimal high frequency loss. This WLF-014-3 Foam Windscreen is designed for use with headset and lavalier mics with a 1/4" diameter. The density of the specialty acoustic foam is optimized to help protect the microphone element from air bursts without muffling the sound. Whether used on headset, or lavalier microphones, these windscreens are effective in minimizing wind noise and plosive sounds. They are most effective in calm to light breeze conditions (0-7mph), and can be used indoors for protection against drafts caused by air-conditioners. Users can generally expect a notable reduction in wind noise, with very slight dampening of high frequencies. For most applications, this is a worthwhile exchange. The WLF-014-3's foam is hypoallergenic and helps prevent moisture and dirt from damaging your microphone. The windscreens are designed to fit microphones from Audio-Technica, Audix, Beyerdynamic, Electro-Voice, Shure and others. The WLF-014-3 Foam Windscreens for 1/4" Diameter Microphones are an effective solution for basic wind protection.
- Fits these and other similar sized microphones:
-
- Audio-Technica ATM15, ATM73a, Pro7a, AT803, AT830, AT831, AT837, AT855, AT859
UPC: 847628562899 - Auray Microphone Clip (Black) This Auray Microphone Clip is a solution for lavalier (clip-on) microphone cables measuring 0.06 - 0.09" (1.5 - 2.2mm) in diameter. The clip accommodates one microphone and is ideal for both wireless and wired applications. The clip grips the cable and swivels, which provides greater flexibility in the positioning of the microphone. Note: Never force the clip onto the cable, use with care.

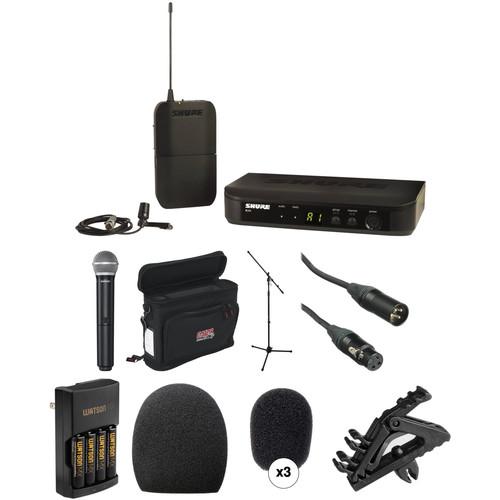

Fits: UPC: 847628562820 In the Box - BLX14/CVL Lavalier Wireless Microphone System (H9: 512 - 542 MHz) rewbeufqcdcxrzrzurdccebf
- CVL Centraverse Lavalier Condenser Microphone
- BLX4 Single-Channel Wireless Receiver (H9: 512 - 542 MHz)
- BLX1 Bodypack Transmitter (H9: 512 - 542 MHz)
- Limited 2-Year Warranty
- BLX2 Handheld Transmitter with PG58 Microphone (H9: 512 - 542 MHz)
- Gator Cases - GM-1W Wireless Mobile Pack
- Auray - MS-5230F Tripod Microphone Stand with Fixed Boom
- Kopul - Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 6' (1.8 m), Black
- Watson - MX 4-Hour Rapid Charger and 4 MX AA NiMH Batteries
- Auray - WHF-158 Foam Windscreen for 1-5/8" Diameter Microphones (Black)
- Auray - WLF-014-3 Foam Windscreens for 1/4" Diameter Microphones (3 Pack)
- Auray - Microphone Clip (Black)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure BLX Wireless Handheld and Lavalier System with Basic Combo Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Shure CVL Centraverse Lavalier Condenser Microphone
| Type | Electret condenser | | Frequency Response | 50 Hz to 20 kHz | | Polar Pattern | Cardioid | | Output Impedance | 600 Ω @ 1 kHz, typical | | Audio Output Level | -43.5 dBV/Pa | | Signal to Noise Ratio | 72 dB @ 1 kHz | | Maximum SPL | 139 dB, @ 1 kHz (1,000 Ω load) | | Dynamic Range | 117 dB, @ 1 kHz (1,000 Ω load) | | Output Noise | 22 dB, typical, A-weighted | | Power Requirements | +5 V DC (nominal), 10 V maximum (DC bias) | | Polarity | Positive pressure on diaphragm produces positive voltage on pin 3 with respect to pin 1 | | Cable | 50" (1.3 m) | | Connector | TA4F | | Weight | 0.88 oz (25 g) | | | | Box Dimensions (LxWxH) | 7.7 x 5.0 x 3.1" | - Shure BLX4 Single-Channel Wireless Receiver (H9: 512 - 542 MHz)
| Output | 1x XLR Output
1x 1/4" (6.35 mm) Output | | Output Impedance | XLR: 200 ohms
1/4": 50 ohms | | Audio Output Level | XLR Connector: -27 dBV into 100 kOhms Load (Reference +/-33 kHz with 1 kHz Tone)
1/4": -13 dBV into 100 kOhms Load (Reference +/-33 kHz with 1 kHz Tone) | | RF Sensitivity | -105 dBm for 12 dB SINAD, Typical | | Image Rejection | >50 dB, Typical | | Housing | Molded ABS | | Power Requirement | 12 to 15 V DC @ 160 mA, Supplied by External Power Supply (Tip Positive) | | Dimensions (H x W x D) | 1.5 x 7.4 x 4.1" (40 x 188 x 103 mm) | | Weight | 8.5 oz (241 g) | | | | Box Dimensions (LxWxH) | 13.5 x 12.0 x 3.8" | - Shure BLX1 Bodypack Transmitter (H9: 512 - 542 MHz)
| Audio Input | Gain: -16 dBV (Maximum), 10 dBV (Minimum) | | Gain Adjustment Range | 26 dB | | Input Impedance | 1 MOhm | | RF Output | 10 mW, Typical | | Housing | Molded ABS | | Power Requirement | 2x LR6 AA Batteries, 1.5 V Alkaline | | Battery Life | Up to 14 Hours | | Dimensions (H x W x D) | 4.3 x 2.5 x 0.8" (110 x 64 x 21 mm) | | Weight | 2.6 oz (75 g) | | | | Box Dimensions (LxWxH) | 11.1 x 5.3 x 3.2" | - Shure BLX2 Handheld Transmitter with PG58 Microphone (H9: 512 - 542 MHz)
| | | Audio Input Level | 0 dB Gain: -20 dBV Maximum
-10 dB Gain: -10 dBV Maximum | | Gain Adjustment Range | 10 dB | | RF Output | 10 mW, Typical (Varies by Region) | | Power Requirement | 2x LR6 AA Batteries, 1.5 V Alkaline | | Housing | Molded ABS | | Dimensions (Ø x L) | 2.1 x 8.8" (53 x 224 mm) | | Weight | 7.7 oz (218 g) | | | | Type | Dynamic (Moving Coil) | | Polar Pattern | Cardioid | | Frequency Response | 60 Hz to 15 kHz | | Polarity | Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of microphone output connector | | Sensitivity | -53 dBV/Pa, (2.2 mV), 1 Pascal=94 dB SPL (@ 1 kHz) | | Electromagnetic Hum Sensitivity | 26 dB equivalent SPL in a 1 millioersted field (60 Hz) | | Temperature Range | -20 to 153°F (-29 to 57°C) | | Relative Humidity | 0 to 95% | | | | Box Dimensions (LxWxH) | 11.1 x 5.3 x 3.0" | - Gator Cases GM-1W Wireless Mobile Pack
| Material | Exterior: 600 denier nylon
Interior: Foam padded | | Type of Closure | Zippers | | Exterior Dimensions | 15.35 x 5.0 x 11.42" (38.99 x 12.7 x 29cm) (LxDxH) | | Interior Dimensions | 8.5 x 2.0 x 8.5" (21.59 x 5.08 x 21.59cm) (LxDxH)
Mic Drops: 8.25" (20.96cm) | | Carrying/Transport Options | Shoulder strap
Padded carrying handles | | Weight | 4.4 lbs (2.0kg) | | | | Box Dimensions (LxWxH) | 14.724 x 10.315 x 4.882" | - Auray MS-5230F Tripod Microphone Stand with Fixed Boom
| | | Height | 36.2 to 63" / 91.9 to 160 cm | | Base Type | Tripod | | Base Dimensions | 25.6 x 25.6" / 65 x 65 cm | | | | Material | Steel | | Weight | 4.5 lb / 2 kg | | | | Box Dimensions (LxWxH) | 33.5 x 4.0 x 4.0" | - Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 6' (1.8 m), Black
| Connector 1 | 3-Pin XLR Male | | Connector 2 | 3-Pin XLR Female | | Cable Length | 6' / 1.8 m | | Shielding | 95% Spiral | | Wire Gauge | 24 AWG | | Contact Plating | Silver | | | | Box Dimensions (LxWxH) | 3.5 x 0.9 x 0.2" | - Watson MX 4-Hour Rapid Charger and 4 MX AA NiMH Batteries
| | | Configuration | 2 or 4 x AA or AAA NiMH or NiCd batteries | | Input Voltage | 100-240 VAC, 50/60 Hz | | Output Voltage | 2.8 VDC, 500 mAh | | Charging Time | 4 x AAA 950 mAh: About 190 minutes
2 x AAA 950 mAh: About 95 minutes
4 x AA 2550 mAh: About 310 minutes
2 x AA 2550 mAh: About 160 minutes | | Operating Temperature | 32 to 113°F / 0 to 45°C | | Dimensions | 2.7 x 1.3 x 4.3" / 6.9 x 3.3 x 10.9 cm | | Weight | 2.8 oz / 79.4 g | | | | Quantity | 4 x | | Size | AA | | Chemistry | NiMH (nickel-metal hydride) | | Capacity | 2550 mAh | | Output Voltage | 1.2 V | | Durability | Rechargeable up to 500 times | | Temperature Range | Down to -4°F / -20°C | | | | Box Dimensions (LxWxH) | 7.8 x 4.1 x 0.4" | - Auray WHF-158 Foam Windscreen for 1-5/8" Diameter Microphones (Black)
| Compatible Mic Diameter | 1.62" / 4.13 cm | | Material | Foam | | | | Box Dimensions (LxWxH) | 2.6 x 2.6 x 1.8" | - Auray WLF-014-3 Foam Windscreens for 1/4" Diameter Microphones (3 Pack)
| Diameter | 1/4" | | Construction | Foam | | | | Box Dimensions (LxWxH) | 3.1 x 3.1 x 0.9" | - Auray Microphone Clip (Black)
| | | Box Dimensions (LxWxH) | 3.0 x 2.35 x 0.2" |
