Product description The Shure BLX Wireless Presentation Dual Combo Kit from comes with all the tools you need for dual channel wireless miking in a variety of applications. It comes with handheld, headset and lavalier microphone options, bringing versatility to any dual-user application, particularly for singing, lectures, meetings, and interview situations. The kit comes with two Shure BLX4 Single-Channel Wireless Receivers, two BLX2 Handheld Transmitters with PG58 Mic, two BLX1 Bodypack Transmitters, two CVL Centraverse Lavalier Condenser Mics, two PGA31 Headset Condenser Microphones, two 6' XLR cables, windscreens, mic clips and a protective carry case. - 2 x Shure BLX4 Single-Channel Wireless Receiver (H9: 512 - 542 MHz) The BLX4 Wireless Receiver from Shure is a single-channel receiver set to Shure's H9 frequency band and operates between 512 to 542 MHz. It has microprocessor-controlled internal antenna diversity for reduced signal interference and dropouts. The one-touch QuickScan frequency selection feature allows you to quickly locate the frequency with the least amount of interference available.
Its front-panel dual-color LED status indicator displays green for normal levels and red when clipping for fast metering. It has an XLR output in additional to an instrument level ¼" output. The BLX4 can be used with up to 11 other compatible systems simultaneously per frequency band. UPC: 042406470735 - 2 x Shure BLX2 Handheld Transmitter with PG58 Microphone (H9: 512 - 542 MHz) The BLX2 Handheld Transmitter with PG58 Microphone from Shure is set to Shure's H9 frequency band between 512 to 542 MHz MHz and provides a 300' line of sight operating range. It is powered by two included AA batteries for up to 14 hours. It is compatible with Shure BLX wireless systems set to the same frequency band. A padded zipper case and microphone clip are included. UPC: 042406470100
- 2 x Shure BLX1 Bodypack Transmitter (H9: 512 - 542 MHz) The BLX1 Bodypack Transmitter from Shure is designed for use with Shure's BLX wireless systems. It is set to the H9 frequency band and operates between 512 and 542 MHz. It has a TQG input and can be used with Shure lavalier, headset, earset and instrument microphones. With the optional WA302 adapter cable, the BLX1 can be used as a transmitter for guitar. The unit has a top panel mounted on/off switch as well as volume control for quick access while speaking or performing. The BLX1 is powered by the two included AA batteries for up to 14 hours. UPC: 042406470254
- 2 x Shure CVL Centraverse Lavalier Condenser Microphone The CVL Centraverse Lavalier Condenser Microphone from Shure is a miniature lavalier condenser microphone that is optimized for speech and vocal performance. A tie clip and windscreen are included.
- Designed for low visibility
- Permanently charged electret condenser element for vocal reproduction
- TA4F (TQG) connector integrates with Shure wireless bodypack systems
- Tailored frequency response optimized for public speaking and presentation
UPC: 042406325813 - 2 x Shure PGA31 Performance Headset Condenser Microphone The PGA31 Performance Headset Condenser Microphone from Shure is a wireframe headset cardioid condenser microphone that can be used for a variety of vocal, general speech, and performance applications. A windscreen is included.
- Wearable wireframe headset for multi-instrumentalists and active performers
- Permanently charged electret condenser element for detailed vocals
- Flexible gooseneck design and discrete adjustment options optimize microphone positioning for further source isolation
- TA4F (TQG) connector seamlessly integrates with existing Shure bodypack systems
- Tailored frequency response primed for great sound on vocals
UPC: 042406370028 - Gator Cases GM-2W Deluxe Wireless 2 Microphone Bag The Gator GM-2W Deluxe Wireless 2 Microphone Bag is designed to transport a 2 wireless microphone system. It has an oversized compartment for the pro rack mount receivers and an external pocket for cables and batteries. The exterior is 600D polyester material to provide a long life in the harshest environments. The bag will hold 2 wireless microphones up to 11" in length.
- The best compact two wireless microphone transport system available today
- Durable 600-denier nylon exterior
- Storage compartments for wireless receivers
- External storage compartments
- Compatible with;
-
- Two wireless microphone system
UPC: 716408502687 - 2 x Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 6' (1.8 m), Black The black Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable (6') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise. While the cable's color-coding affords the ability to quickly differentiate between multiple connections on stage, it provides a pleasant aesthetic quality at the same time.
Premium Performance 3000 Series cables are made from 24-AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection. - 95% dual-spiral shielding offers protection from EMI and RFI noise
- Twin conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core
- 24-AWG oxygen-free stranded copper inner core provides the best possible conductivity
- Cotton yarn reduces electrostatic and microphonic noise
- All solder points shrink-wrapped for protection
- Neutrik XX silver connectors offer high conductivity
- Caged type contact and improved ground contact
UPC: 847628558267 - 2 x Auray WHF-158 Foam Windscreen for 1-5/8" Diameter Microphones (Black) The black Auray WHF Series Foam Windscreens are designed to reduce unwanted broadband wind noise and vocal pops with minimal high frequency loss. This WHF-158 Foam Windscreen is designed for use with many common handheld microphones with a 1-5/8" diameter head. The density of the specialty acoustic foam is optimized to help protect the microphone element from air bursts without muffling the sound. When used on a handheld microphone, this windscreen is effective in minimizing wind noise and plosive sounds. It is most effective in calm to light breeze conditions (0-7mph), and can be used indoors for protection against drafts caused by air-conditioners. Users can generally expect a 4dB to 8dB reduction in wind noise, with very slight dampening of high frequencies. For most applications, the very slight high frequency dampening is a worthwhile exchange for the notable wind noise reduction. The WHF-158's foam is hypoallergenic and washable and helps prevent moisture and dirt from damaging your microphone. The windscreen is designed to fit microphones from Shure, Electro-Voice, AKG, Audio-Technica, Audix, Beyerdynamic, Sennheiser, Neumann and others. The WHF-158 Foam Windscreen for 1-5/8" Diameter Microphones is an effective solution for basic wind protection.
- Fits these and other similar-sized microphones:
-
- Shure SM58, Beta 58, Beta 87A, Beta 87C, PG58, PG48, SM48, SM96, VP88, SM87, SM53, SM54, PE85, PE86, BG3.0, PE15, PE75, 12a, 14A, 587, 587SB
- Electro-Voice RE50/B, BBK1, Co5, Co7, Co9, DS35, MC100, 150, 300, MT200, N/D200, N/D247, 257, 267, N/D357, 367, 457, 757, N/D767, PL50, PL60, PL70, PL77, PL80, RE11, RE16, RE18
- Sennheiser e825S, e865, MD21, 200, MD400, 425, 427, 429, MD511, 512, 515, 516, 735, MD736, ME65, MKE44, SKM3072, SKM5000, SKM100, SKM300, SKM500, SKP30
- Audio-Technica AE3300, 4100, 5400, 6100, ATM23, 25, 29, 31, 41, 61, ATM91, AT801, AT802, AT813, AT814, ATW7375, ATW-T602, MB1000, Pro-1a, Pro-2ax, Pro-3, Pro-4, Pro-5, Pro-10
- Audix OM-2, OM-3, OM-5, OM-6, OM-7, VX-10
- AKG C900, D40, D50, D60, D80, D90, D95, D125, D130, D190, D200, D310, D321, D330, D590, D770, D880, C535, CK4, D3700, D3800, D5900
- Beyerdynamic BM85, EM85, M01, M59, M69, M260, M300, M400, M500, MCE81, TGX-20, TGX-40, TGX-58, TGX-60, TGX-80
- Neumann KMS105, KMS140, KMS150
- Nady SP-1, SP-3, SP-4, SP-5, SP-9, SP10, WHT14, WHT15, UH10
- Peavey Celebrity, PAA250, PVM835, PVM880, PV, PVi
- Telex HT700, SH100, FMR150, FMR450, EN6100, H12E, VR12E
UPC: 847628562868 - 2 x Auray WLF-038-3R Foam Windscreens for 3/8" Diameter Microphones (Round Shape, 3 Pack) The Auray WLF Series Foam Windscreens are designed to reduce unwanted vocal pops and broadband wind noise with minimal high frequency loss. This round shaped WLF-038-3R Foam Windscreen is designed for use with headset, podium and lavalier mics with a 3/8" diameter. The density of the specialty acoustic foam is optimized to help protect the microphone element from air bursts without muffling the sound. Whether used on headset, podium or lavalier microphones, these windscreens are effective in minimizing wind noise and plosive sounds. They are most effective in calm to light breeze conditions (0-7mph), and can be used indoors for protection against drafts caused by air-conditioners. Users can generally expect a notable reduction in wind noise, with very slight dampening of high frequencies. For most applications, this is a worthwhile exchange. The WLF-038-3R's foam is hypoallergenic and helps prevent moisture and dirt from damaging your microphone. The windscreens are designed to fit microphones from AKG, Audio-Technica, Audix, Beyerdynamic, Electro-Voice, Sennheiser, Sony, Shure and others. The WLF-038-3R Foam Windscreens for 3/8" Diameter Microphones are an effective solution for basic wind protection.
Fits these and other similar sized microphones: - Sony: ECM44, ECM55, ECM66, ECM166
- Audio-Technica: AT803B, AT853, AT855, AT857, AT859, ATM35
- Shure: MX183, MX184, MX185, MX412, SM83, SM84, SM98, SM99, 839W, EZG, EZO
- Audix: ADX20, ADX112, ADX118
- Beyerdynamic: MCE10, MCE52, SHM 22, SHM 88
- Electro-Voice: CH230, Co90, Co94, Co100, CP212, CP218, CS200, RE98
UPC: 847628563018 - 2 x Auray Microphone Clip (Black) This Auray Microphone Clip is a solution for lavalier (clip-on) microphone cables measuring 0.06 - 0.09" (1.5 - 2.2mm) in diameter. The clip accommodates one microphone and is ideal for both wireless and wired applications. The clip grips the cable and swivels, which provides greater flexibility in the positioning of the microphone. Note: Never force the clip onto the cable, use with care.

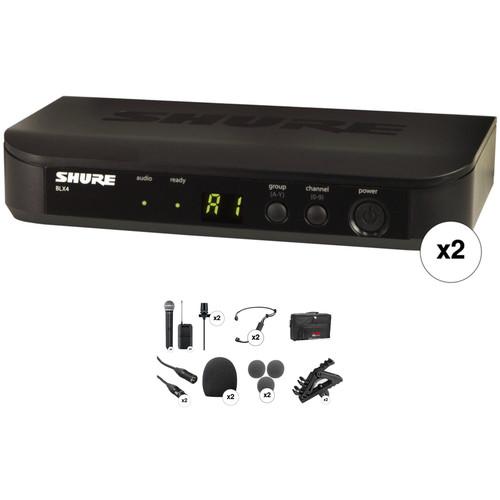

Fits: UPC: 847628562820 In the Box - 2 x BLX4 Single-Channel Wireless Receiver (H9: 512 - 542 MHz) erzrqqsxtz
- Power Supply
- Limited 2-Year Warranty
- 2 x BLX2 Handheld Transmitter with PG58 Microphone (H9: 512 - 542 MHz)
- 2 x BLX1 Bodypack Transmitter (H9: 512 - 542 MHz) erzrqqsxtz
- 2 x CVL Centraverse Lavalier Condenser Microphone
- 2 x PGA31 Performance Headset Condenser Microphone
- Gator Cases - GM-2W Deluxe Wireless 2 Microphone Bag erzrqqsxtz
- 2 x Kopul - Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 6' (1.8 m), Black
- 2 x Auray - WHF-158 Foam Windscreen for 1-5/8" Diameter Microphones (Black)
- 2 x Auray - WLF-038-3R Foam Windscreens for 3/8" Diameter Microphones (Round Shape, 3 Pack)
- 2 x Auray - Microphone Clip (Black)
