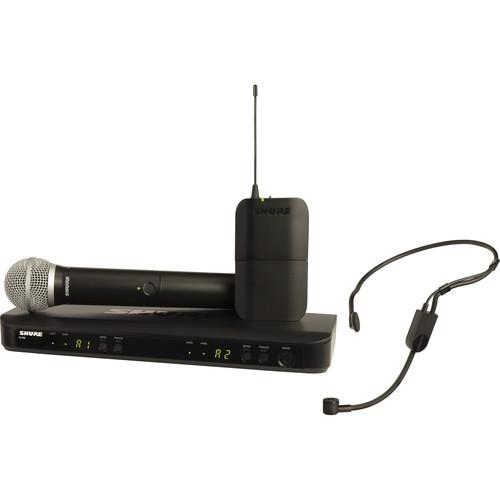

Product description The BLX1288/P31 Dual-Channel Combo Wireless System from Shure includes a BLX88 dual-channel wireless receiver, a BLX1 bodypack transmitter, a PGA31 headset mic, a BLX2 handheld transmitter with a PG58 microphone, and 4 AA batteries. The system is set to Shure's H10 frequency band and operates between 542 - 572 MHz.
Both the BLX1 bodypack transmitter and the BLX2 handheld transmitter have a 300' line of sight operation range with the BLX88 receiver. They are each powered by two included AA batteries that can provide up to 14 hours of operation. The BLX88 receiver features microprocessor-controlled internal antenna diversity that helps prevent interference and signal dropouts. Its one-touch QuickScan feature detects the most interference-free frequency and sets the channel to it for fast setup. - PGA31 Performance Headset Condenser Microphone The PGA31 Performance Headset Condenser Microphone from Shure is a wireframe headset cardioid condenser microphone that can be used for a variety of vocal, general speech, and performance applications. A windscreen is included.
- Wearable wireframe headset for multi-instrumentalists and active performers
- Permanently charged electret condenser element for detailed vocals
- Flexible gooseneck design and discrete adjustment options optimize microphone positioning for further source isolation
- TA4F (TQG) connector seamlessly integrates with existing Shure bodypack systems
- Tailored frequency response primed for great sound on vocals
UPC: 042406370028 - BLX2 Handheld Transmitter with PG58 Microphone (H10: 542 - 572 MHz) The BLX2 Handheld Transmitter with PG58 Microphone from Shure is set to Shure's H10 frequency band between 542 to 572 MHz MHz and provides a 300' line of sight operating range. It is powered by two included AA batteries for up to 14 hours. It is compatible with Shure BLX wireless systems set to the same frequency band. A padded zipper case and microphone clip are included. UPC: 042406470094

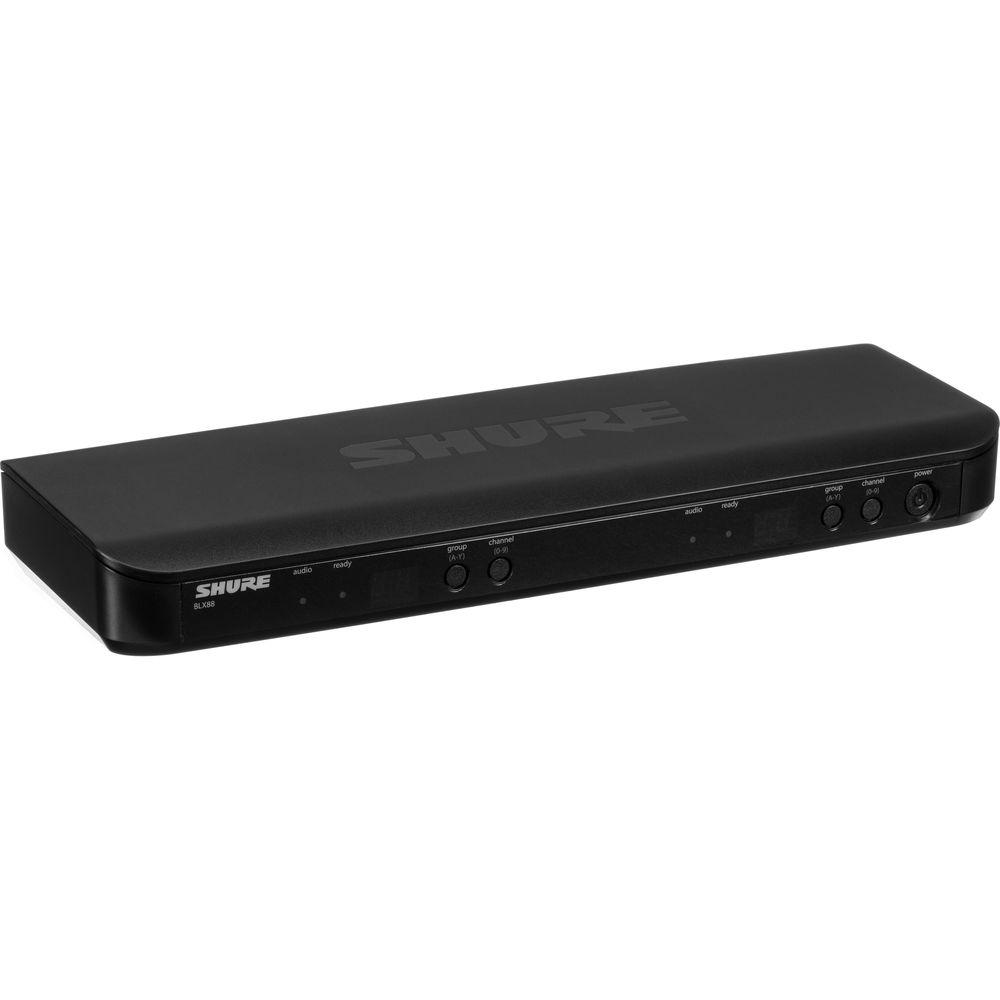

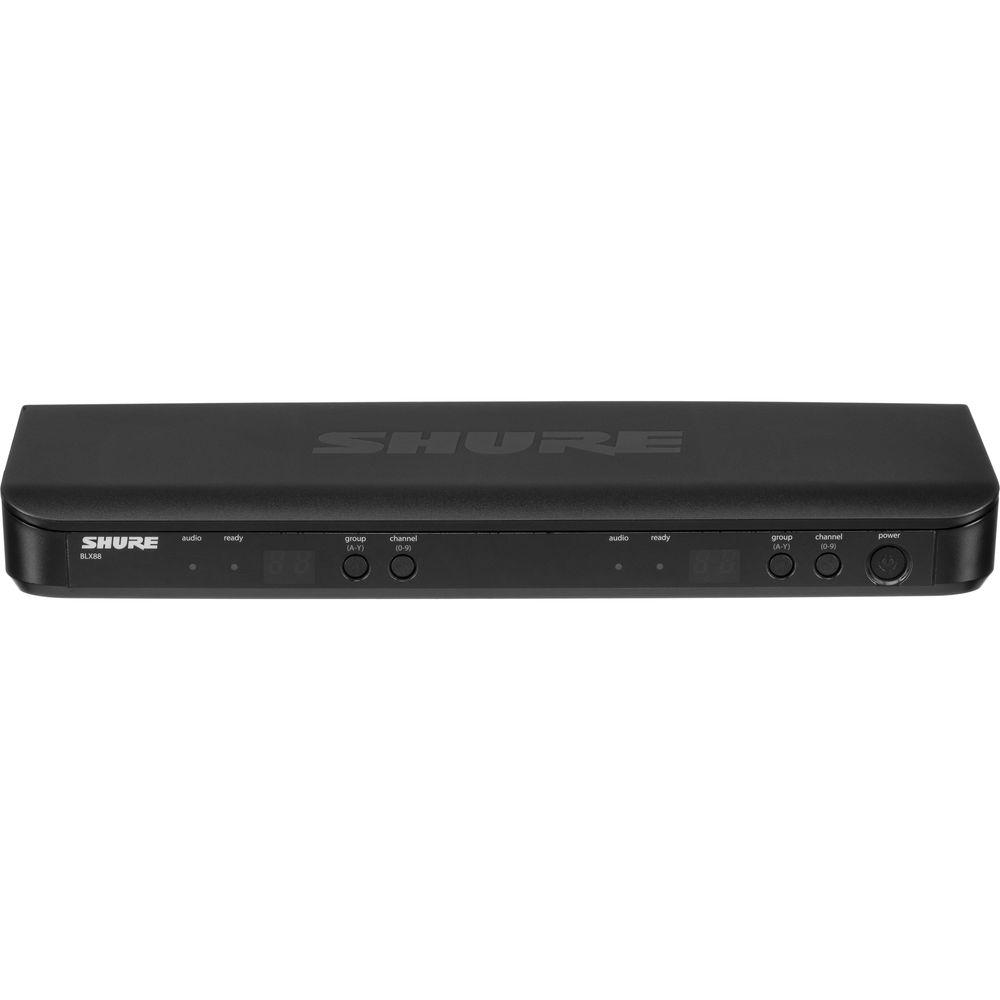

- BLX88 Dual-Channel Wireless Receiver (H10: 542 - 572 MHz) The BLX88 Dual-Channel Wireless Receiver from Shure is a dual-channel receiver set to Shure's H10 frequency band and operates between 542 to 572 MHz. It has microprocessor-controlled internal antenna diversity for reduced signal interference and dropouts. The one-touch QuickScan frequency selection feature allows you to quickly locate the frequency with the least amount of interference available.

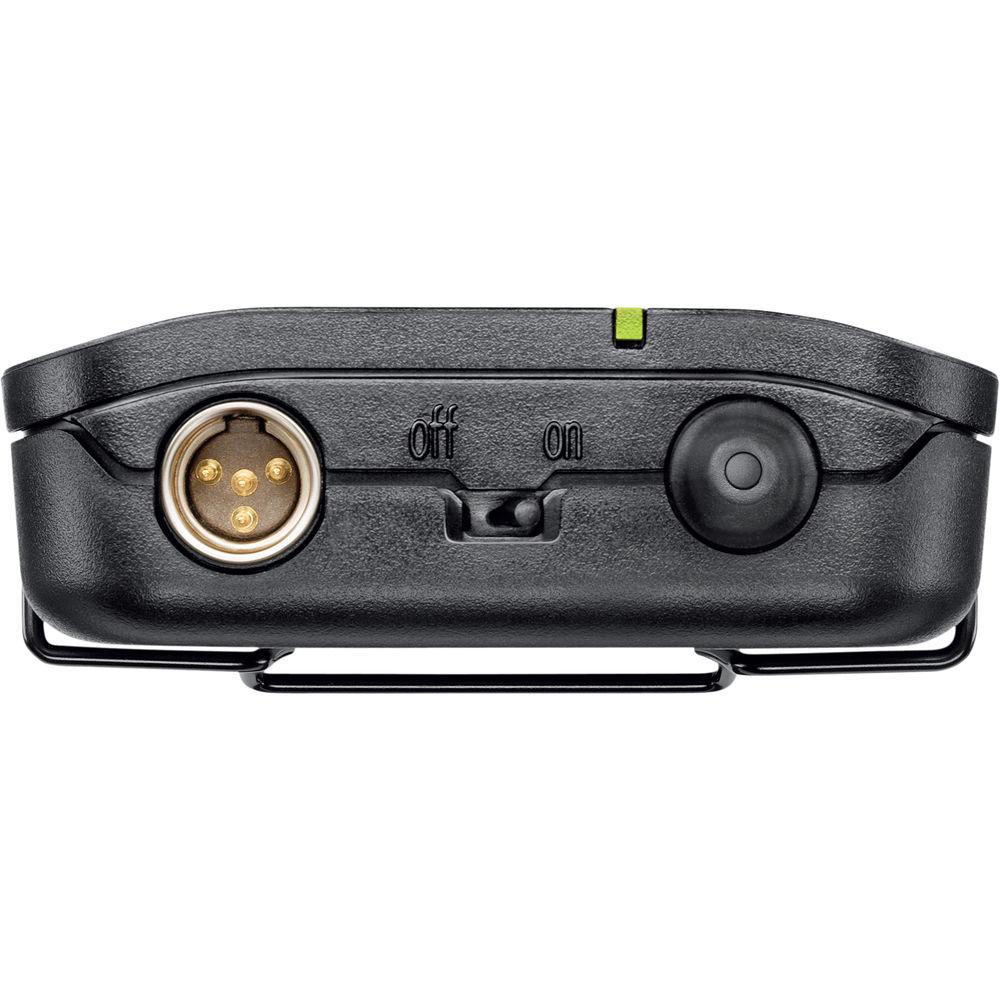

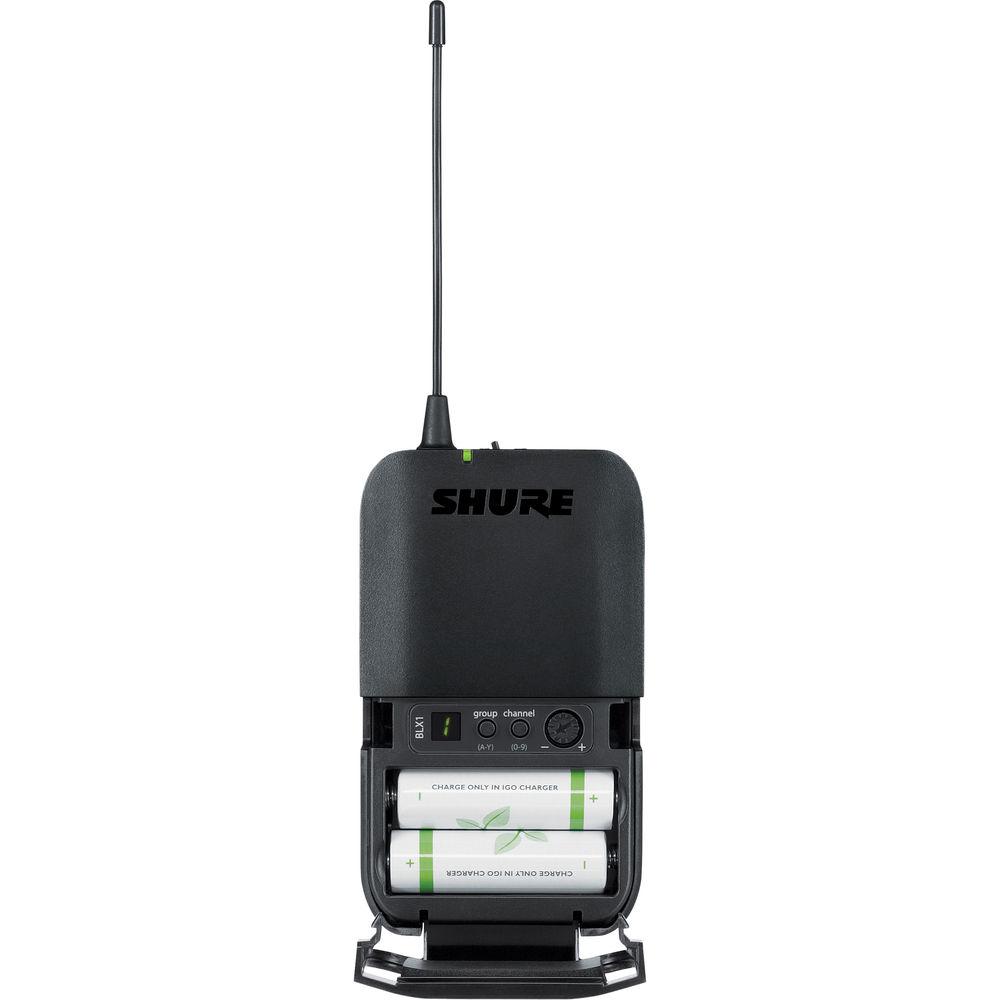

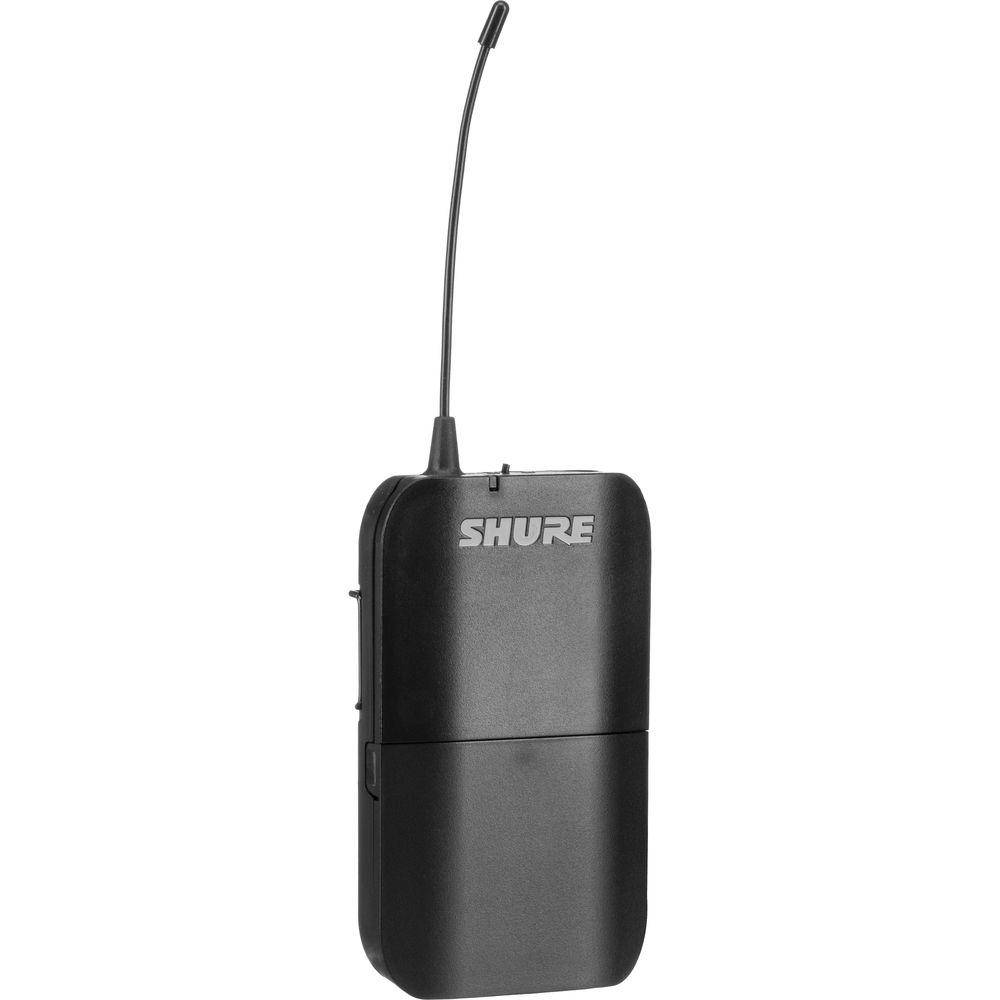

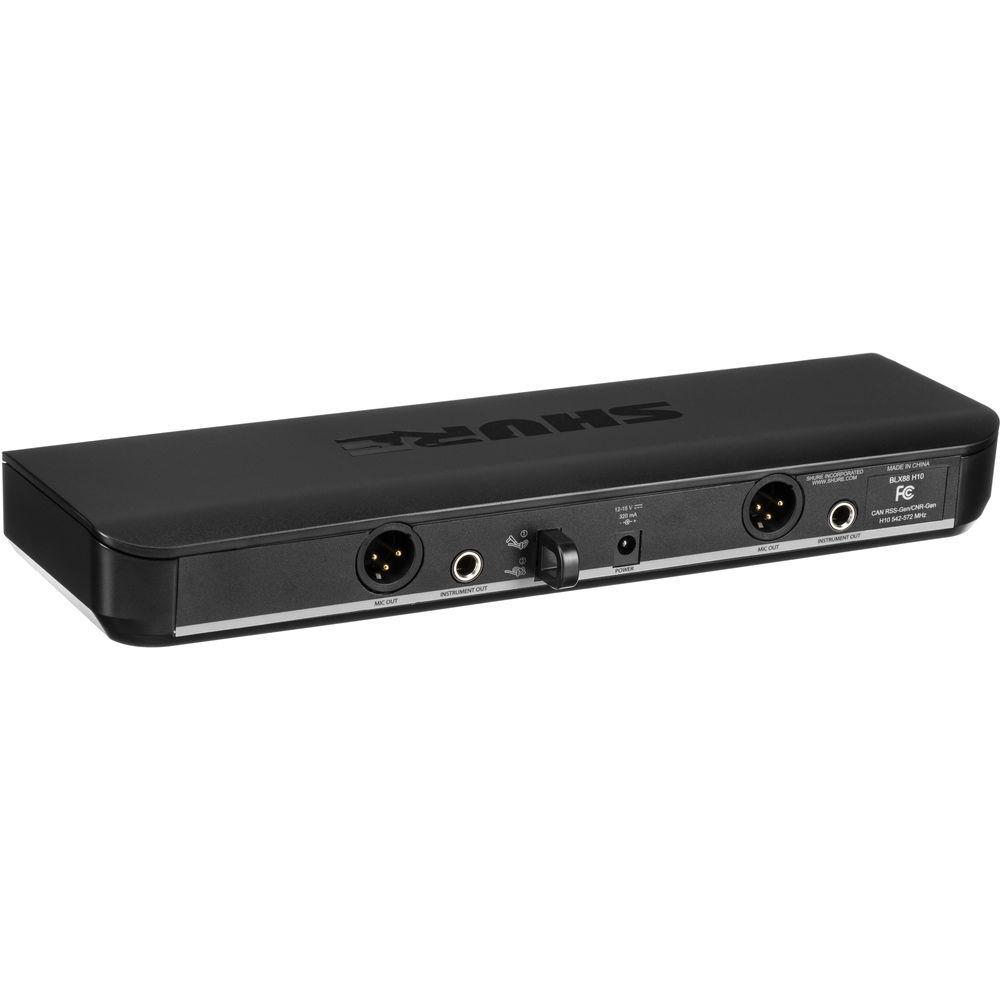

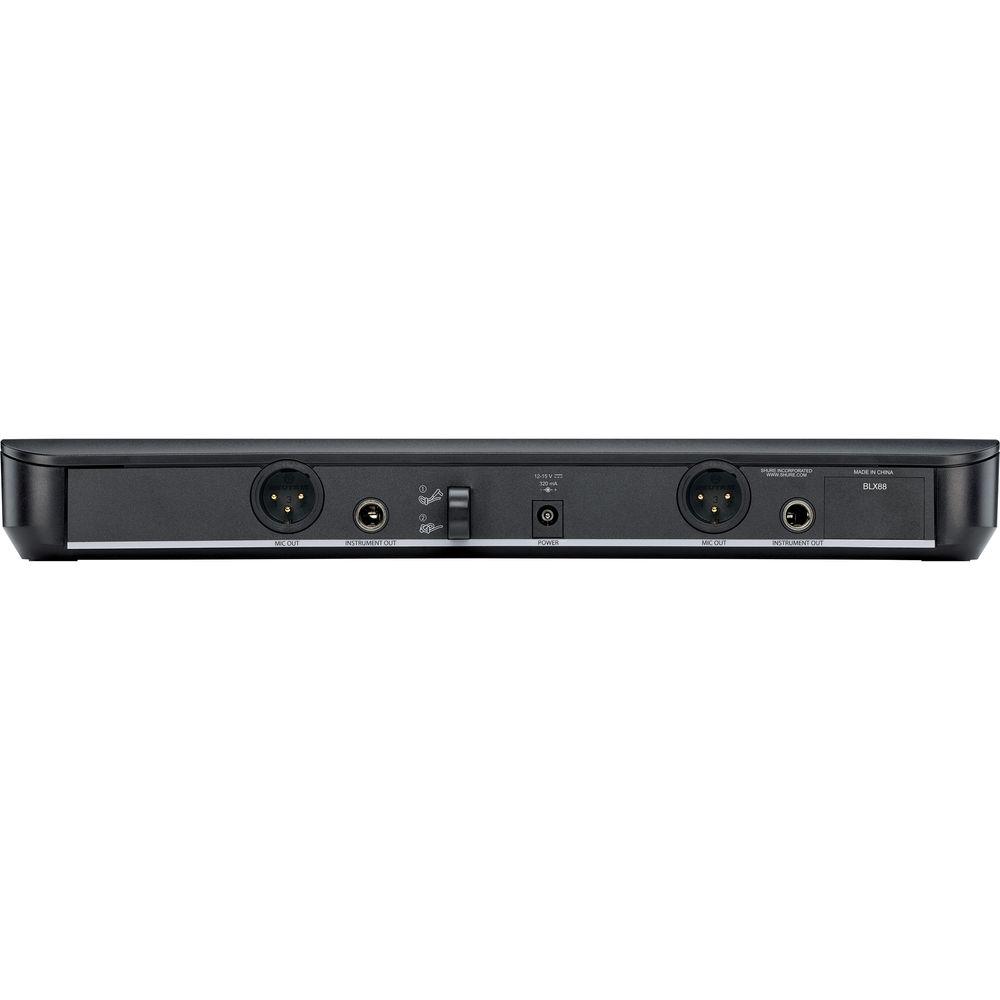

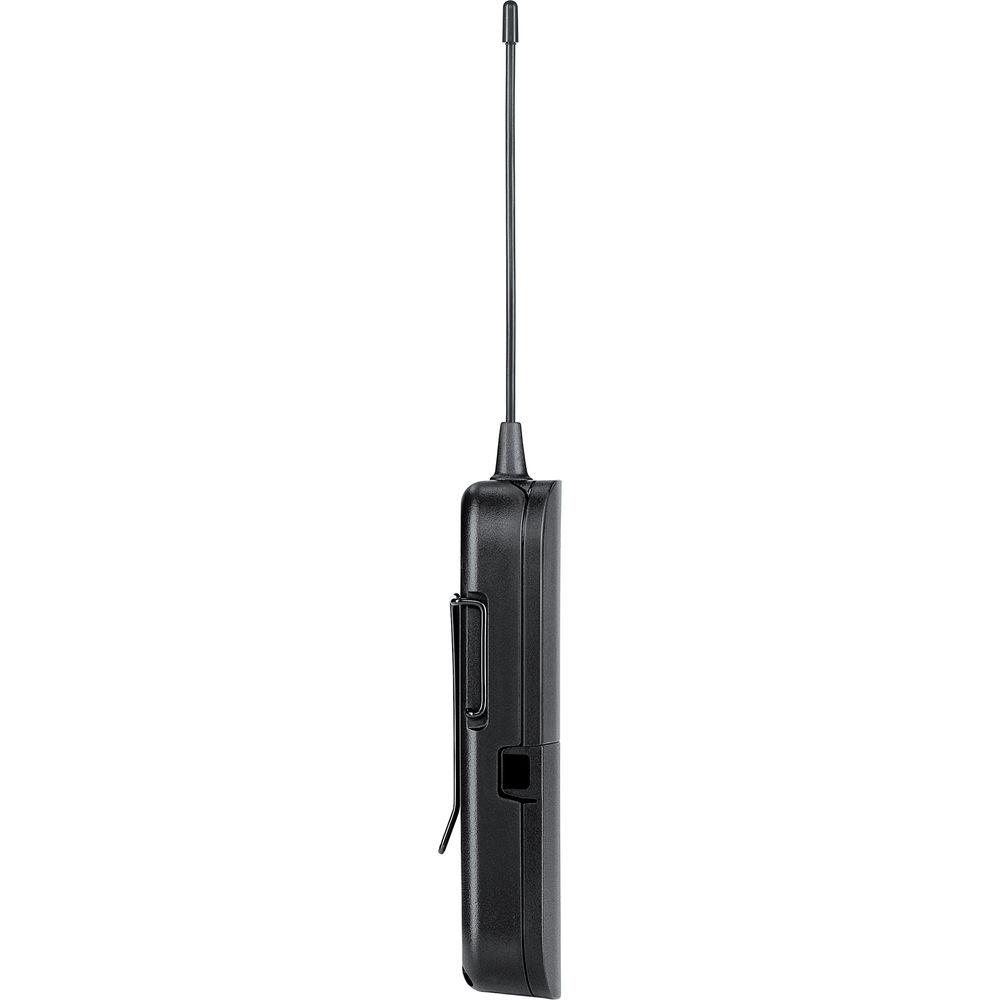

Its front-panel dual-color LED status indicator displays green for normal levels and red when clipping for fast metering. It has two XLR outputs in additional to two instrument-level 1/4" outputs. The BLX88 can be used with up to 11 other compatible systems simultaneously per frequency band. UPC: 042406470797 - BLX1 Bodypack Transmitter (H10: 542 - 572 MHz) The BLX1 Bodypack Transmitter from Shure is designed for use with Shure's BLX wireless systems. It is set to the H10 frequency band and operates between 542 and 572 MHz. It has a TQG input and can be used with Shure lavalier, headset, earset and instrument microphones. With the optional WA302 adapter cable, the BLX1 can be used as a transmitter for guitar. The unit has a top panel mounted on/off switch as well as volume control for quick access while speaking or performing. The BLX1 is powered by the two included AA batteries for up to 14 hours. UPC: 042406470261

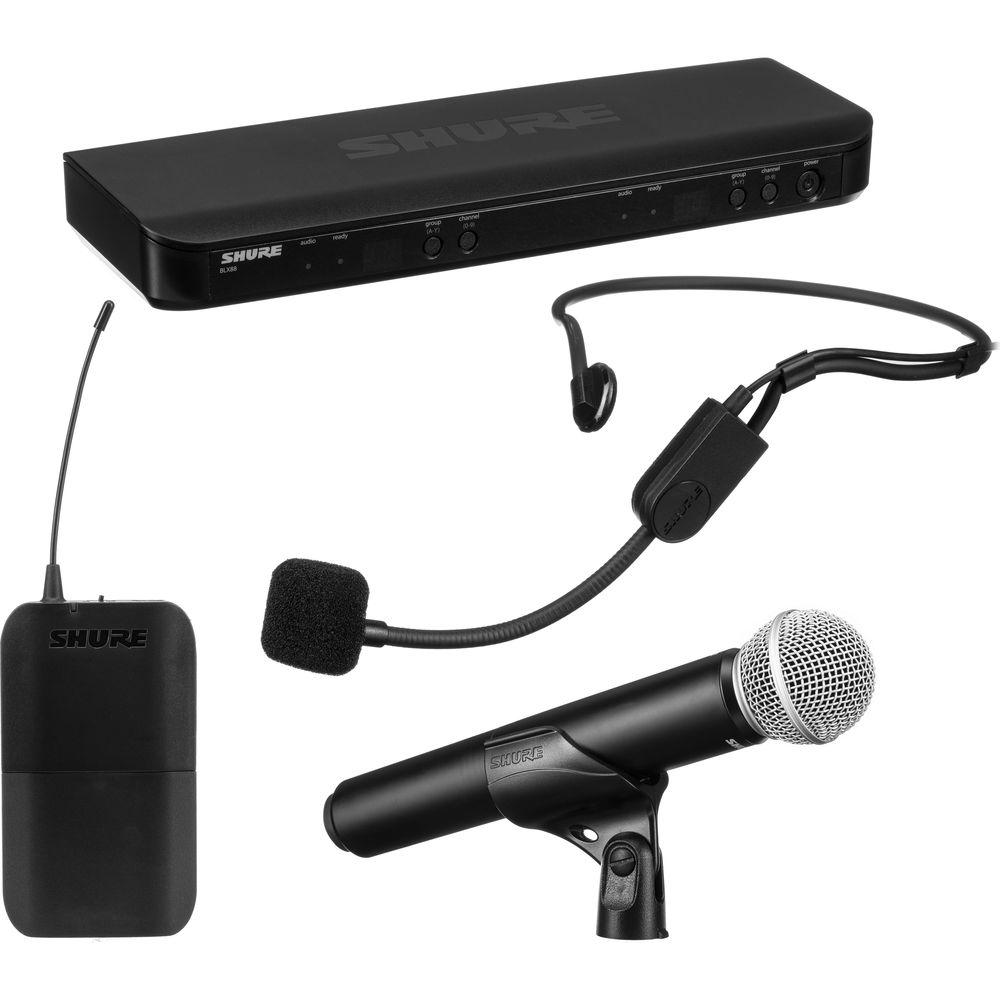

In the Box Bundle Items PGA31 Performance Headset Condenser Microphone ttbydrfztyzbuzctusceurytwbyfwtvwyb BLX2 Handheld Transmitter with PG58 Microphone (H10: 542 - 572 MHz) ttbydrfztyzbuzctusceurytwbyfwtvwyb BLX88 Dual-Channel Wireless Receiver (H10: 542 - 572 MHz) BLX1 Bodypack Transmitter (H10: 542 - 572 MHz)
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure BLX1288 P31 Dual-Channel Headset & Handheld Combo Wireless Mic System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - PGA31 Performance Headset Condenser Microphone
| Type | Electret condenser | | Frequency Response | 60 Hz to 20 kHz | | Polar Pattern | Cardioid | | Output Impedance | 600 Ω @ 1 kHz, typical | | Audio Output Level | -50 dBV/Pa | | Signal to Noise Ratio | 66 dB @ 1 kHz | | Maximum SPL | 145 dB, @ 1 kHz (1,000 Ω load) | | Dynamic Range | 117 dB, @ 1 kHz (1,000 Ω load) | | Output Noise | 28 dB, typical, A-weighted | | Power Requirements | +5 V DC (nominal), 10 V maximum (DC bias) | | Polarity | Positive pressure on diaphragm produces positive voltage on pin 3 with respect to pin 1 | | Cable | 50" (1.3 m)) | | Connector | TA4F | | Weight | 1.59 oz (45 g) | | | | Box Dimensions (LxWxH) | 7.559 x 6.299 x 3.15" | - BLX2 Handheld Transmitter with PG58 Microphone (H10: 542 - 572 MHz)
| | | Audio Input Level | 0 dB Gain: -20 dBV Maximum
-10 dB Gain: -10 dBV Maximum | | Gain Adjustment Range | 10 dB | | RF Output | 10 mW, Typical (Varies by Region) | | Power Requirement | 2x LR6 AA Batteries, 1.5 V Alkaline | | Housing | Molded ABS | | Dimensions (Ø x L) | 2.1 x 8.8" (53 x 224 mm) | | Weight | 7.7 oz (218 g) | | | | Type | Dynamic (Moving Coil) | | Polar Pattern | Cardioid | | Frequency Response | 60 Hz to 15 kHz | | Polarity | Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of microphone output connector | | Sensitivity | -53 dBV/Pa, (2.2 mV), 1 Pascal=94 dB SPL (@ 1 kHz) | | Electromagnetic Hum Sensitivity | 26 dB equivalent SPL in a 1 millioersted field (60 Hz) | | Temperature Range | -20 to 153°F (-29 to 57°C) | | Relative Humidity | 0 to 95% | | | | Box Dimensions (LxWxH) | 11.1 x 5.3 x 3.3" | - BLX88 Dual-Channel Wireless Receiver (H10: 542 - 572 MHz)
| Output | 2x XLR Output
2x 1/4" (6.35 mm) Output | | Output Impedance | XLR: 200 ohms
1/4": 50 ohms | | Audio Output Level | XLR Connector: -20.5 dBV into 100 kOhm Load (Reference +/-33 kHz with 1 kHz Tone)
1/4": -13 dBV into 100 kOhm Load (Reference +/-33 kHz with 1 kHz Tone) | | RF Sensitivity | -105 dBm for 12 dB SINAD, Typical | | Image Rejection | >50 dB, Typical | | Housing | Molded ABS | | Power Requirement | 12 to 15 VDC @ 320 mA, Supplied by External Power Supply (Tip Positive) | | Dimensions (H x W x D) | 1.5 x 15 x 4.5" (40 x 388 x 116 mm) | | Weight | 15.1 oz (429 g) | | | | Box Dimensions (LxWxH) | 19.1 x 16.2 x 3.6" | - BLX1 Bodypack Transmitter (H10: 542 - 572 MHz)
| Audio Input | Gain: -16 dBV (Maximum), 10 dBV (Minimum) | | Gain Adjustment Range | 26 dB | | Input Impedance | 1 MOhm | | RF Output | 10 mW, Typical | | Housing | Molded ABS | | Power Requirement | 2x LR6 AA Batteries, 1.5 V Alkaline | | Battery Life | Up to 14 Hours | | Dimensions (H x W x D) | 4.3 x 2.5 x 0.8" (110 x 64 x 21 mm) | | Weight | 2.6 oz (75 g) | | | | Box Dimensions (LxWxH) | 11.1 x 5.3 x 3.0" |
