Product description

• Shure BLX14/CVL Lavalier Wireless Microphone System (J10: 584 - 608 MHz)
  • How to Set Up a system

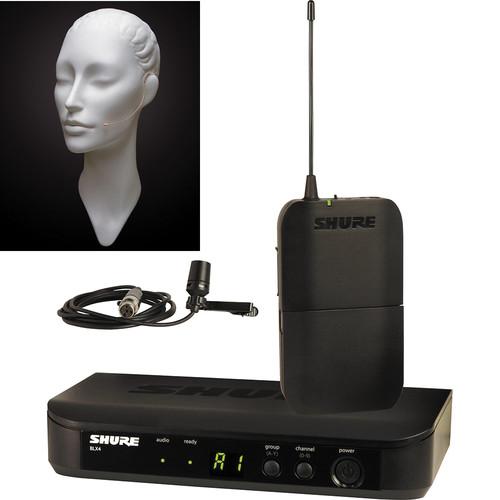

  The BLX14/CVL Lavalier Wireless Microphone System from Shure includes a BLX4 single-channel wireless receiver, a BLX1 bodypack transmitter, and a CVL Centraverse clip-on lavalier mic. The system is set to Shure's J10 frequency band and operates between 584 - 608 MHz.

  The BLX1 bodypack transmitter has a 300' line of sight operation range with the BLX4 receiver. It is powered by two included AA batteries that can provide up to 14 hours of operation. The BLX4 receiver features microprocessor-controlled internal antenna diversity that helps prevent interference and signal dropouts. Its one-touch QuickScan feature detects the most interference-free frequency and sets the channel to it for fast setup. UPC: 042406367844
• Shure E6 Omnidirectional Earset Microphone for Shure Transmitters (Tan)
  • How to Set Up a system
  The Countryman E6 Omnidirectional Microphone is a miniature earset microphone for virtually invisible operation in stage performances, trade shows, houses of worship, auctions, lectures, and much more.The omnidirectional pickup pattern greatly decreases handling and clothing noise, as well as popping and wind noise. Flexible microphone positioning is maintained and the included windscreen further minimizes wind noise. The E6 is set apart from the E6i with its stiffer flexible boom. The flexible boom maintains its shape for custom, single-user size adjustments.A wide variety of colors and connections are available for use with various wireless transmitters. This version terminates to a TA4-female connector for Shure wireless transmitters.
  Miniature Unobtrusive Design
  • A miniature omnidirectional capsule is mounted to a low-profile, flexible frame. This lightweight, unobtrusive design is available in various colors that virtually render the entire microphone invisible against the skin.
  Omnidirectional Polar Pattern
  • The omnidirectional pickup pattern greatly decreases handling and clothing noise, as well as popping and wind noise. The flexible boom provides a stiff fit that maintains its shape for single user applications.
  Sensitivity Optimized for General Speaking
  • This E6's sensitivity response is optimized to accurately capture general speech without noise and distortion.
  UPC: 042406117999

• BLX14/CVL Lavalier Wireless Microphone System (J10: 584 - 608 MHz) vfvxssutcu
• CVL Centraverse Lavalier Condenser Microphone
• BLX4 Single-Channel Wireless Receiver (J10: 584 - 608 MHz)
• BLX1 Bodypack Transmitter (J10: 584 - 608 MHz)
• Limited 2-Year Warranty

• E6 Omnidirectional Earset Microphone for Shure Transmitters (Tan)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Shure CVL Centraverse Lavalier Condenser Microphone

  Type	Electret condenser
  Frequency Response	50 Hz to 20 kHz
  Polar Pattern	Cardioid
  Output Impedance	600 Ω @ 1 kHz, typical
  Audio Output Level	-43.5 dBV/Pa
  Signal to Noise Ratio	72 dB @ 1 kHz
  Maximum SPL	139 dB, @ 1 kHz (1,000 Ω load)
  Dynamic Range	117 dB, @ 1 kHz (1,000 Ω load)
  Output Noise	22 dB, typical, A-weighted
  Power Requirements	+5 V DC (nominal), 10 V maximum (DC bias)
  Polarity	Positive pressure on diaphragm produces positive voltage on pin 3 with respect to pin 1
  Cable	50" (1.3 m)
  Connector	TA4F
  Weight	0.88 oz (25 g)

  Box Dimensions (LxWxH)	7.7 x 5.0 x 3.1"

• Shure BLX4 Single-Channel Wireless Receiver (J10: 584 - 608 MHz)

  Output	1x XLR Output 1x 1/4" (6.35 mm) Output
  Output Impedance	XLR: 200 ohms 1/4": 50 ohms
  Audio Output Level	XLR Connector: -27 dBV into 100 kOhms Load (Reference +/-33 kHz with 1 kHz Tone) 1/4": -13 dBV into 100 kOhms Load (Reference +/-33 kHz with 1 kHz Tone)
  RF Sensitivity	-105 dBm for 12 dB SINAD, Typical
  Image Rejection	>50 dB, Typical
  Housing	Molded ABS
  Power Requirement	12 to 15 V DC @ 160 mA, Supplied by External Power Supply (Tip Positive)
  Dimensions (H x W x D)	1.5 x 7.4 x 4.1" (40 x 188 x 103 mm)
  Weight	8.5 oz (241 g)

  Box Dimensions (LxWxH)	13.6 x 11.9 x 4.0"

• Shure BLX1 Bodypack Transmitter (J10: 584 - 608 MHz)

  Audio Input	Gain: -16 dBV (Maximum), 10 dBV (Minimum)
  Gain Adjustment Range	26 dB
  Input Impedance	1 MOhm
  RF Output	10 mW, Typical
  Housing	Molded ABS
  Power Requirement	2x LR6 AA Batteries, 1.5 V Alkaline
  Battery Life	Up to 14 Hours
  Dimensions (H x W x D)	4.3 x 2.5 x 0.8" (110 x 64 x 21 mm)
  Weight	2.6 oz (75 g)

  Box Dimensions (LxWxH)	11.1 x 5.1 x 3.1"

• Shure E6 Omnidirectional Earset Microphone for Shure Transmitters (Tan)

  Transducer	Condenser
  Polar Pattern	Omnidirectional
  Frequency Response	20 Hz to 20 kHz
  Dynamic Range (Typical)	Not Specified by Manufacturer
  Signal-to-Noise Ratio	Equivalent Acoustic Noise: 24 dBA SPL
  Maximum Input Sound Level	130 dB SPL
  Power Requirements	Operating Current: 500 uA Operating Voltage: 1 to 2 V Power Supply Voltage: +3 V with 2.7 kOhm Load +5 V with 6.8 kOhm Load +9 V with 15 kOhm Load
  Output Impedance	2 kOhms
  Output Connector	TA4-female connector for Shure Transmitters
  Dimensions	Not Specified by Manufacturer
  Weight	0.07 oz (2 g)

  Box Dimensions (LxWxH)	9.213 x 5.039 x 1.496"
