Product description The BLX14/CVL Lavalier Wireless Microphone System from Shure includes a BLX4 single-channel wireless receiver, a BLX1 bodypack transmitter, and a CVL Centraverse clip-on lavalier mic. The system is set to Shure's H10 frequency band and operates between 542 - 572 MHz.
The BLX1 bodypack transmitter has a 300' line of sight operation range with the BLX4 receiver. It is powered by two included AA batteries that can provide up to 14 hours of operation. The BLX4 receiver features microprocessor-controlled internal antenna diversity that helps prevent interference and signal dropouts. Its one-touch QuickScan feature detects the most interference-free frequency and sets the channel to it for fast setup. - CVL Centraverse Lavalier Condenser Microphone The CVL Centraverse Lavalier Condenser Microphone from Shure is a miniature lavalier condenser microphone that is optimized for speech and vocal performance. A tie clip and windscreen are included.
- Designed for low visibility
- Permanently charged electret condenser element for vocal reproduction
- TA4F (TQG) connector integrates with Shure wireless bodypack systems
- Tailored frequency response optimized for public speaking and presentation

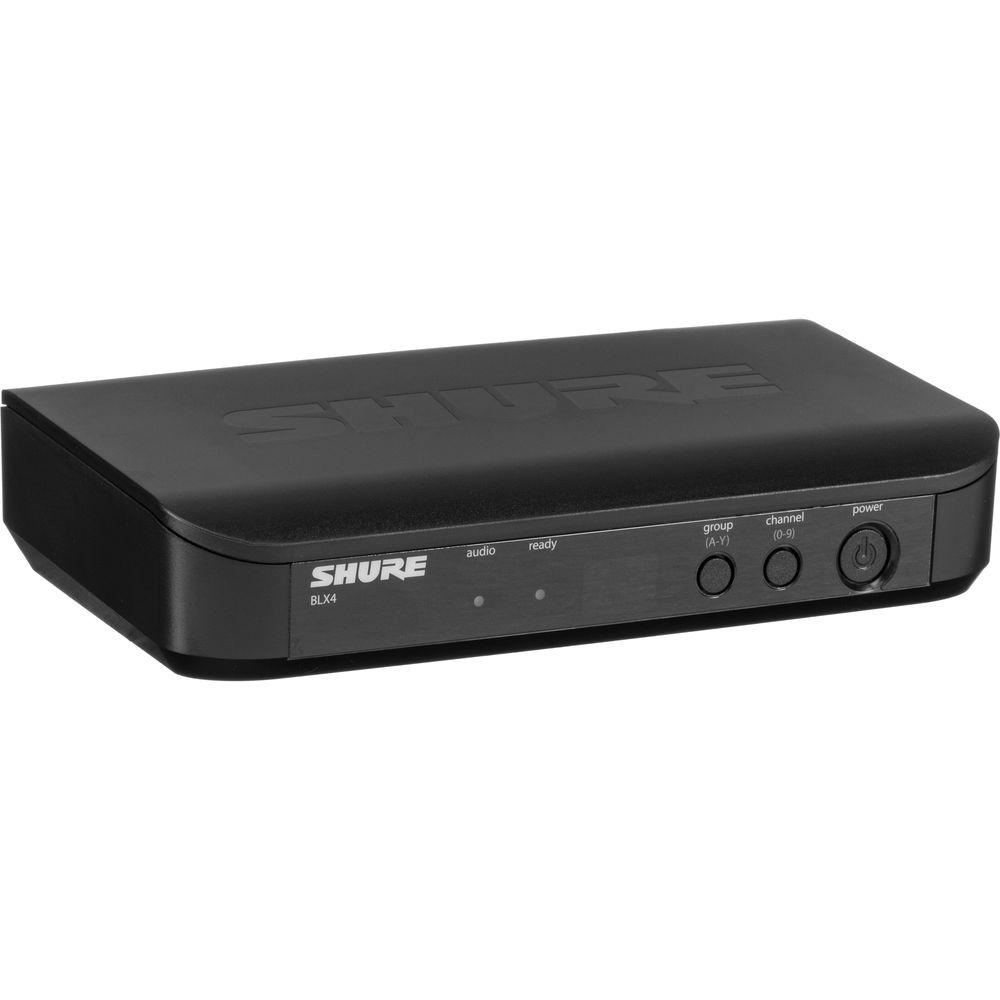

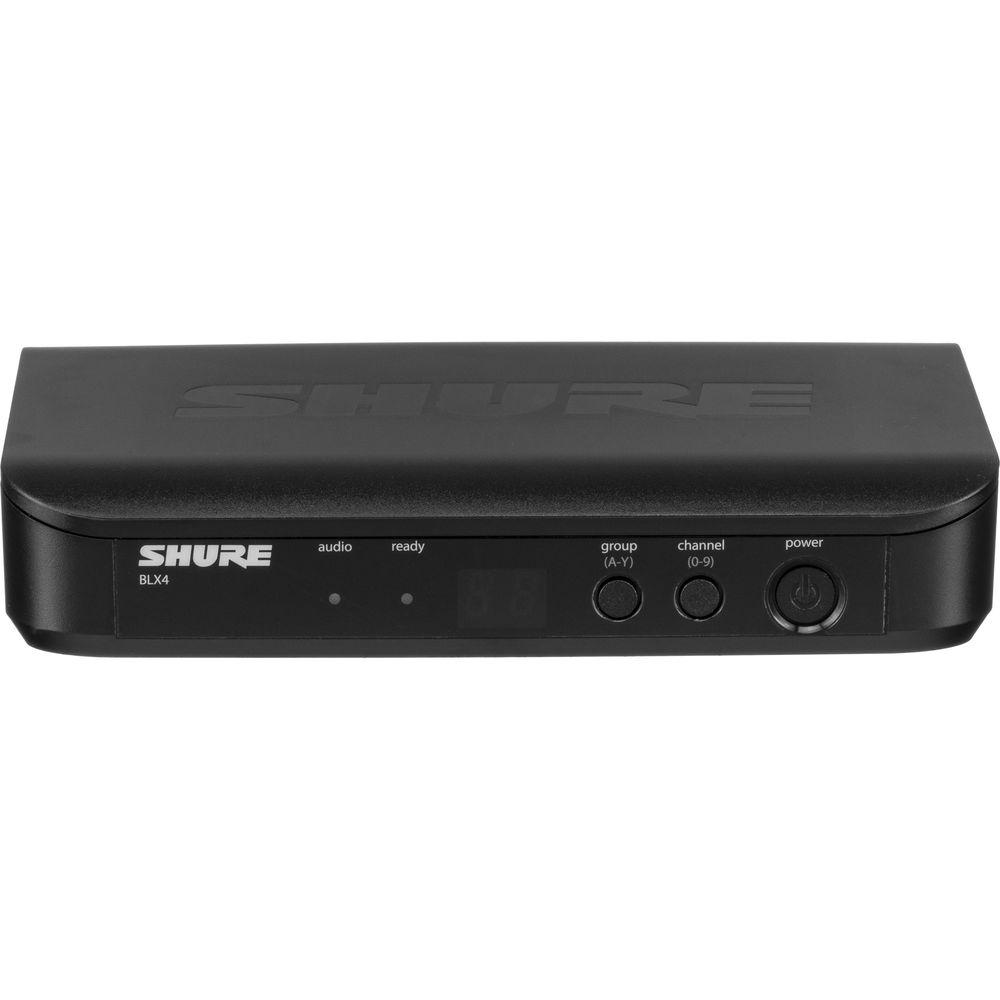

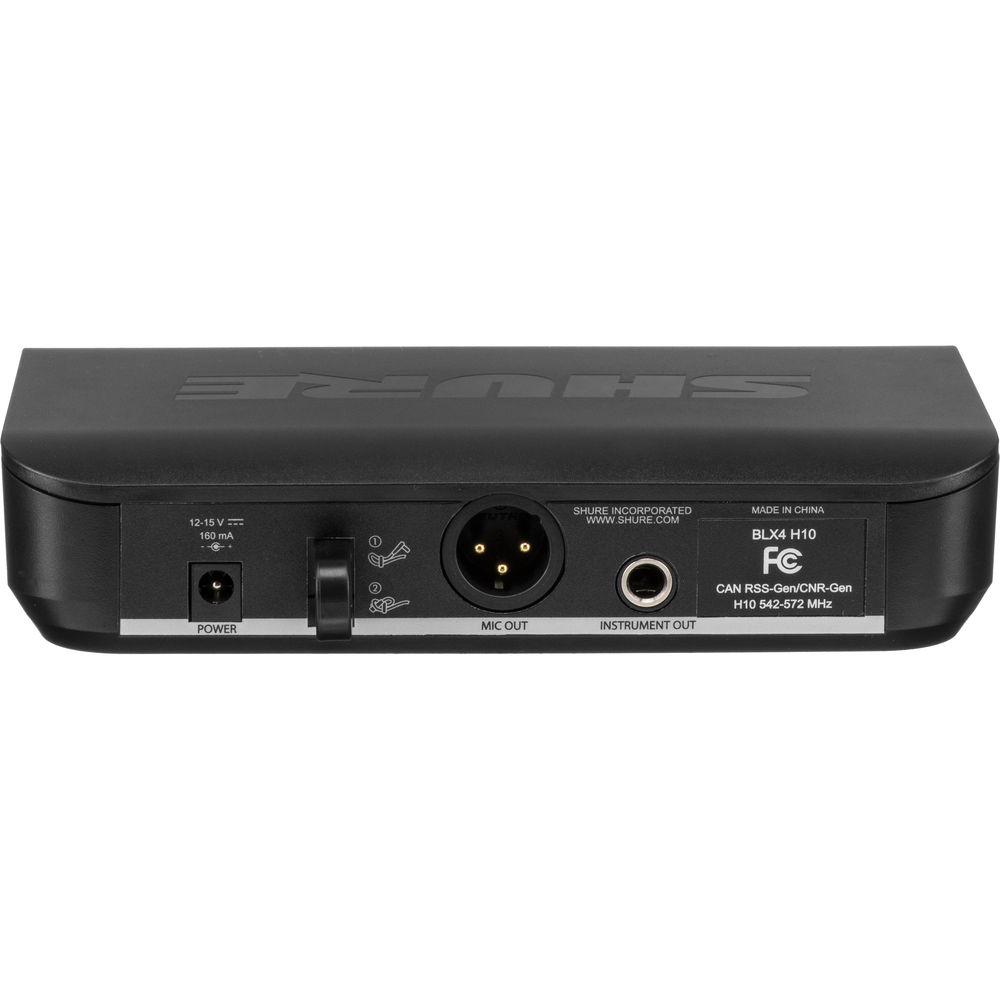

UPC: 042406325813 - BLX4 Single-Channel Wireless Receiver (H10: 542 - 572 MHz) The BLX4 Wireless Receiver from Shure is a single-channel receiver set to Shure's H10 frequency band and operates between 542 to 572 MHz. It has microprocessor-controlled internal antenna diversity for reduced signal interference and dropouts. The one-touch QuickScan frequency selection feature allows you to quickly locate the frequency with the least amount of interference available.

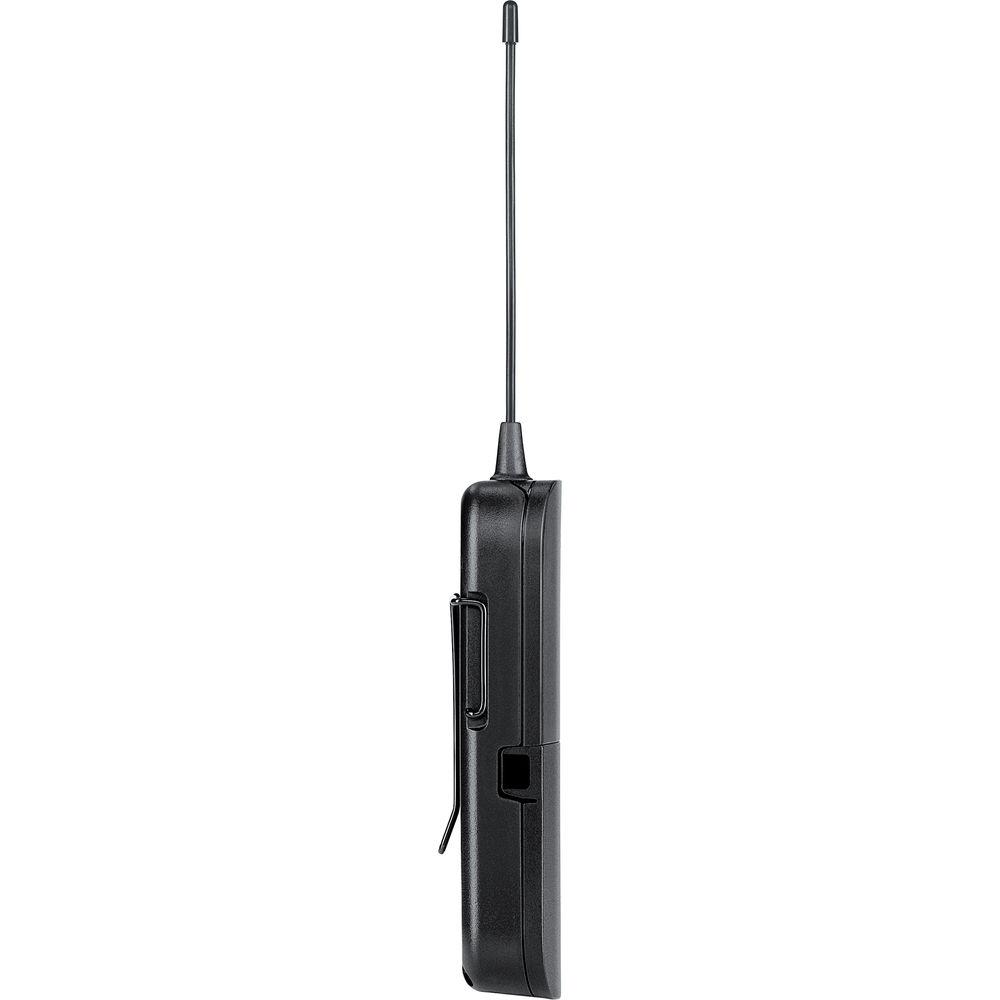

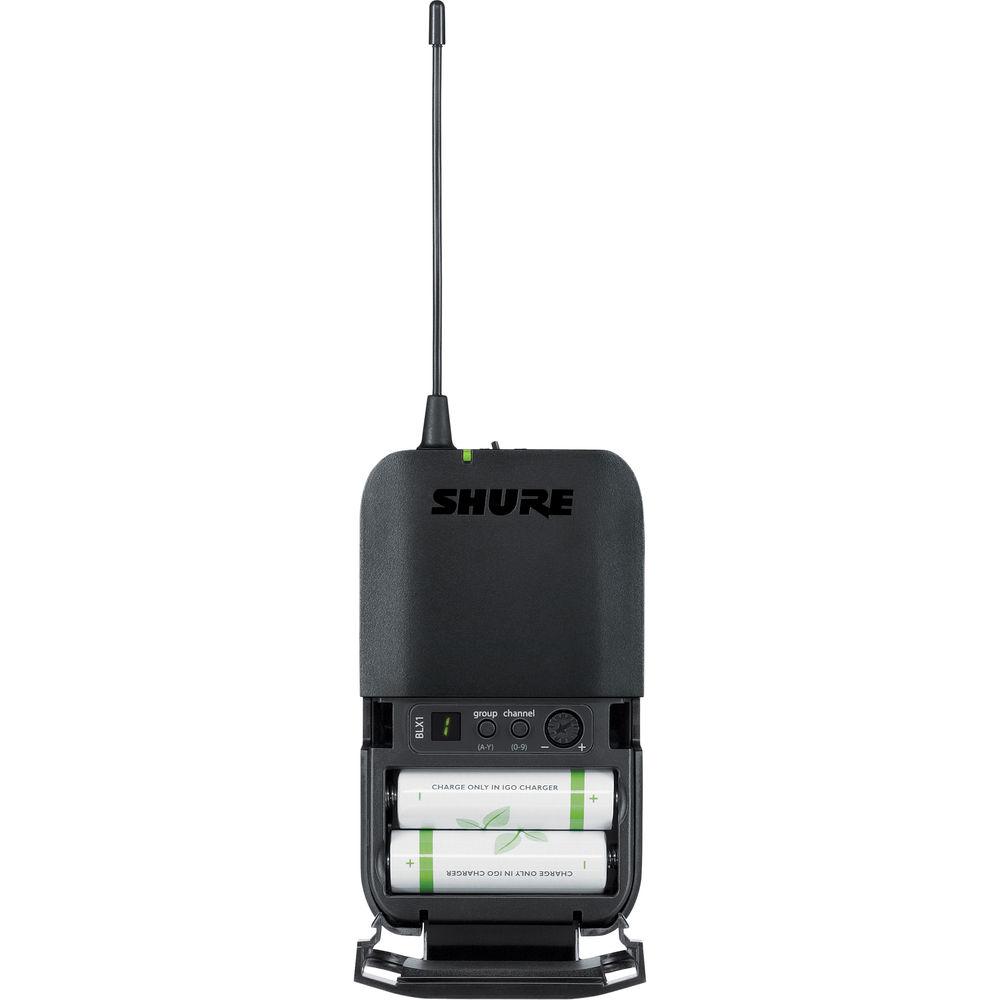

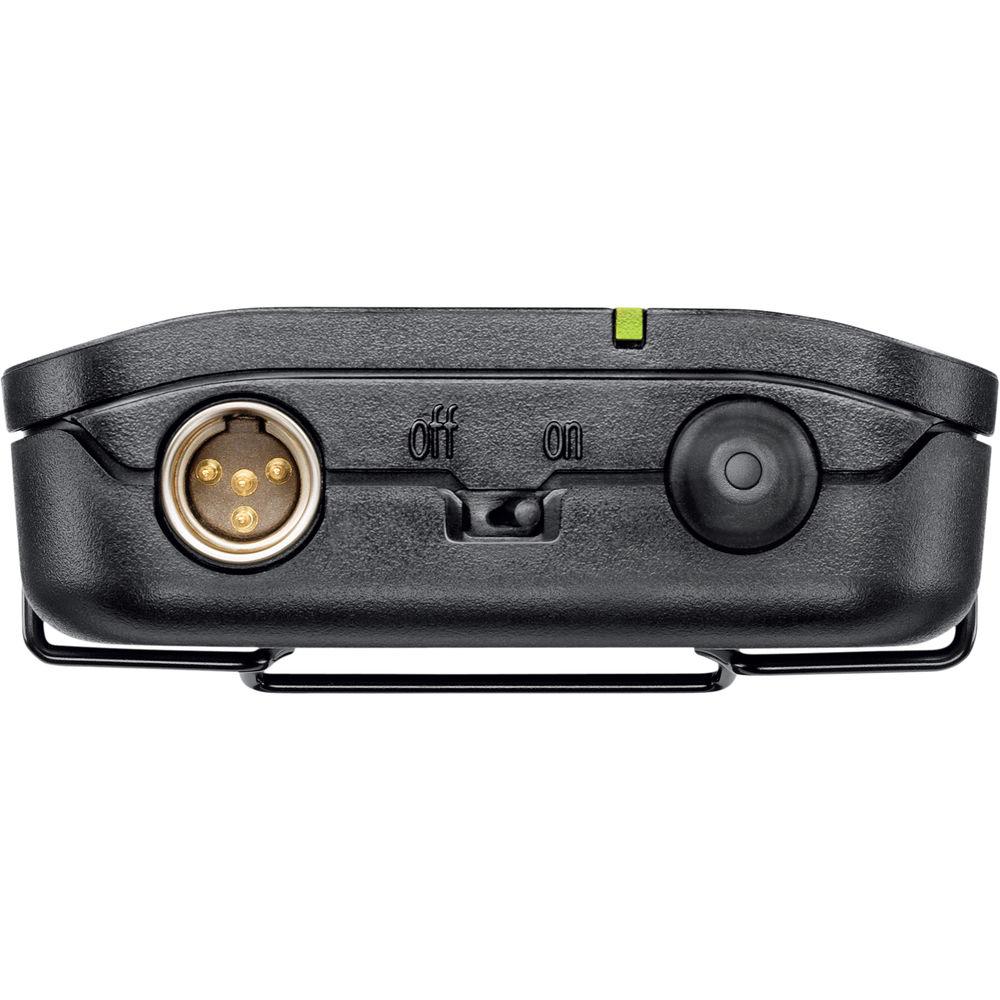

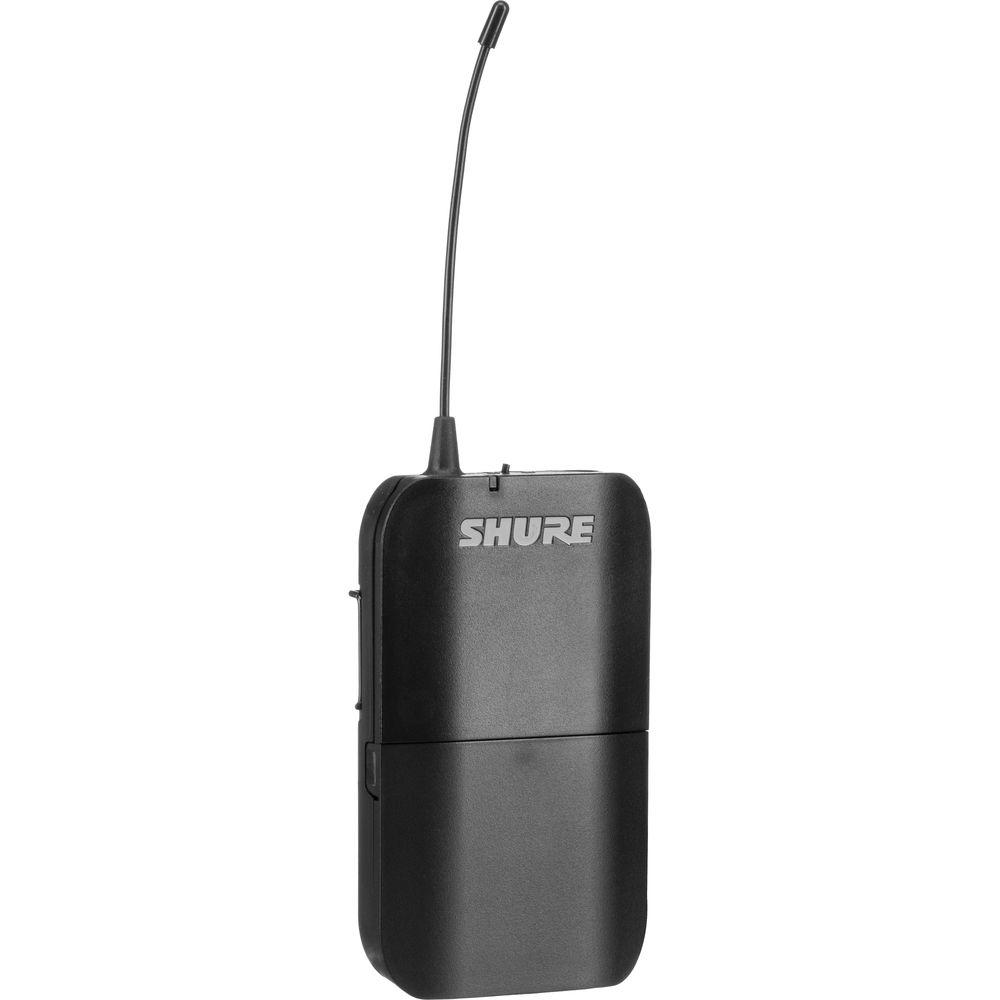

Its front-panel dual-color LED status indicator displays green for normal levels and red when clipping for fast metering. It has an XLR output in additional to an instrument level ¼" output. The BLX4 can be used with up to 11 other compatible systems simultaneously per frequency band. UPC: 042406470742 - BLX1 Bodypack Transmitter (H10: 542 - 572 MHz) The BLX1 Bodypack Transmitter from Shure is designed for use with Shure's BLX wireless systems. It is set to the H10 frequency band and operates between 542 and 572 MHz. It has a TQG input and can be used with Shure lavalier, headset, earset and instrument microphones. With the optional WA302 adapter cable, the BLX1 can be used as a transmitter for guitar. The unit has a top panel mounted on/off switch as well as volume control for quick access while speaking or performing. The BLX1 is powered by the two included AA batteries for up to 14 hours. UPC: 042406470261

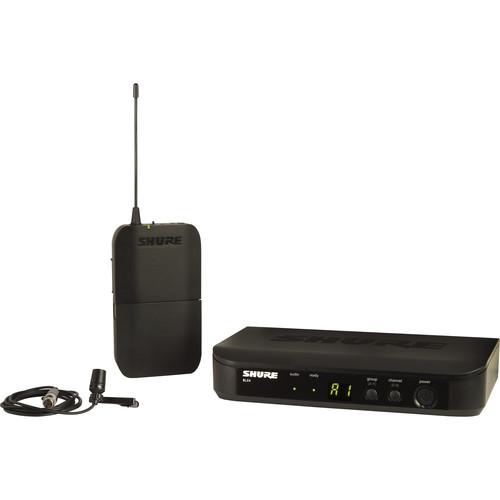

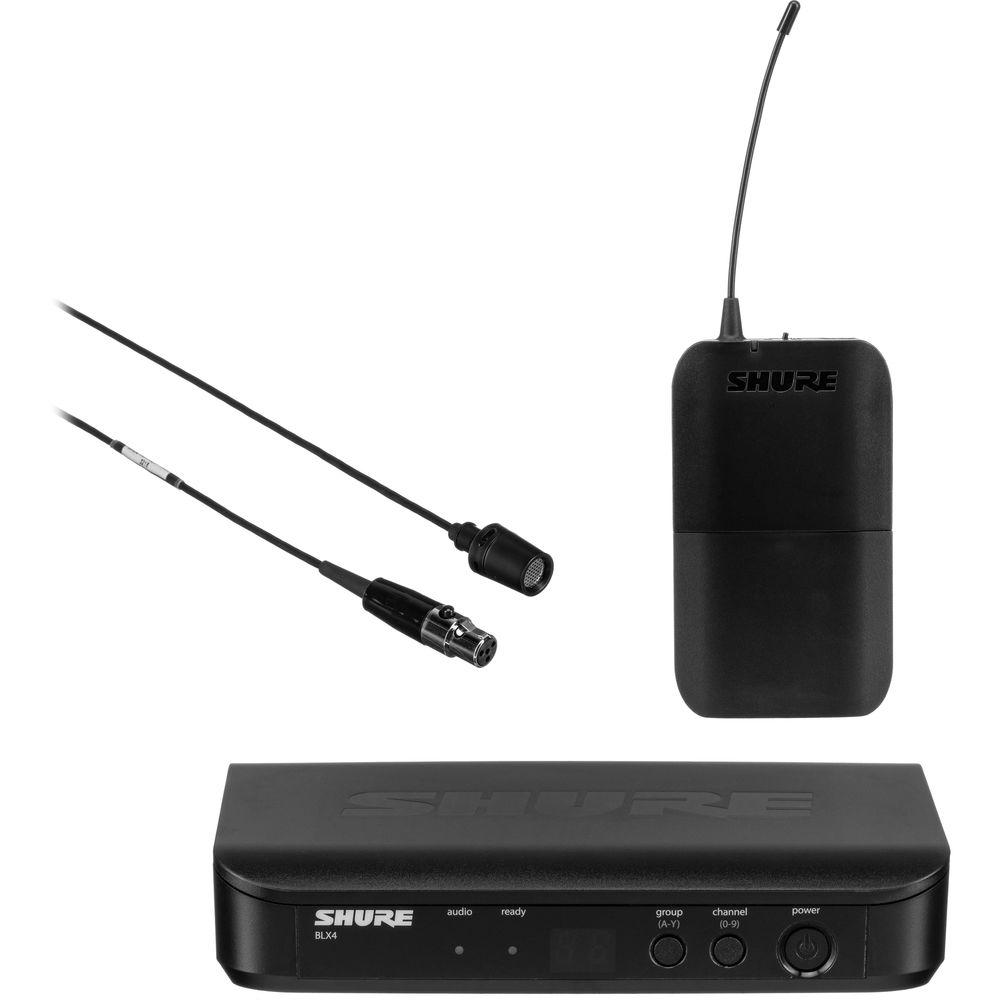

In the Box Bundle Items CVL Centraverse Lavalier Condenser Microphone vxufqysbcwvvyyrtzycyxfbadwxdardyt BLX4 Single-Channel Wireless Receiver (H10: 542 - 572 MHz) BLX1 Bodypack Transmitter (H10: 542 - 572 MHz)
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure BLX14 CVL Lavalier Wireless Microphone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - CVL Centraverse Lavalier Condenser Microphone
| Type | Electret condenser | | Frequency Response | 50 Hz to 20 kHz | | Polar Pattern | Cardioid | | Output Impedance | 600 Ω @ 1 kHz, typical | | Audio Output Level | -43.5 dBV/Pa | | Signal to Noise Ratio | 72 dB @ 1 kHz | | Maximum SPL | 139 dB, @ 1 kHz (1,000 Ω load) | | Dynamic Range | 117 dB, @ 1 kHz (1,000 Ω load) | | Output Noise | 22 dB, typical, A-weighted | | Power Requirements | +5 V DC (nominal), 10 V maximum (DC bias) | | Polarity | Positive pressure on diaphragm produces positive voltage on pin 3 with respect to pin 1 | | Cable | 50" (1.3 m) | | Connector | TA4F | | Weight | 0.88 oz (25 g) | | | | Box Dimensions (LxWxH) | 7.7 x 5.0 x 3.1" | - BLX4 Single-Channel Wireless Receiver (H10: 542 - 572 MHz)

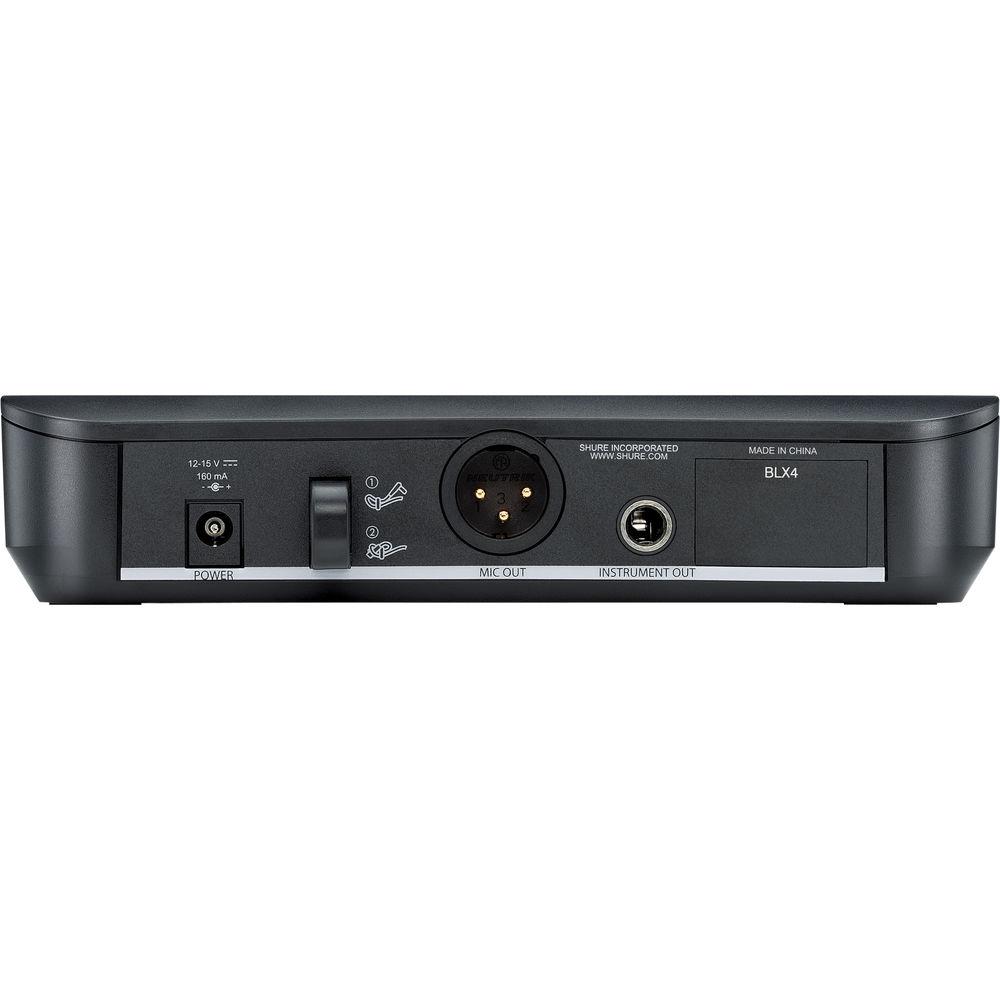

| Output | 1x XLR Output
1x 1/4" (6.35 mm) Output | | Output Impedance | XLR: 200 ohms
1/4": 50 ohms | | Audio Output Level | XLR Connector: -27 dBV into 100 kOhms Load (Reference +/-33 kHz with 1 kHz Tone)
1/4": -13 dBV into 100 kOhms Load (Reference +/-33 kHz with 1 kHz Tone) | | RF Sensitivity | -105 dBm for 12 dB SINAD, Typical | | Image Rejection | >50 dB, Typical | | Housing | Molded ABS | | Power Requirement | 12 to 15 V DC @ 160 mA, Supplied by External Power Supply (Tip Positive) | | Dimensions (H x W x D) | 1.5 x 7.4 x 4.1" (40 x 188 x 103 mm) | | Weight | 8.5 oz (241 g) | | | | Box Dimensions (LxWxH) | 13.5 x 11.9 x 4.0" | - BLX1 Bodypack Transmitter (H10: 542 - 572 MHz)
| Audio Input | Gain: -16 dBV (Maximum), 10 dBV (Minimum) | | Gain Adjustment Range | 26 dB | | Input Impedance | 1 MOhm | | RF Output | 10 mW, Typical | | Housing | Molded ABS | | Power Requirement | 2x LR6 AA Batteries, 1.5 V Alkaline | | Battery Life | Up to 14 Hours | | Dimensions (H x W x D) | 4.3 x 2.5 x 0.8" (110 x 64 x 21 mm) | | Weight | 2.6 oz (75 g) | | | | Box Dimensions (LxWxH) | 11.1 x 5.3 x 3.0" |
