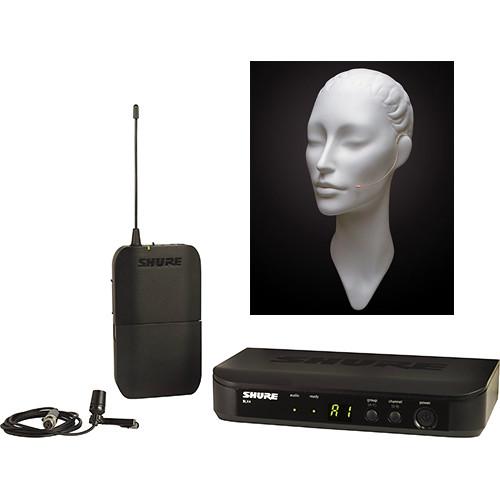

Product description The Shure BLX14 Lavalier Wireless System and Countryman E6 EarSet Kit from includes both lavalier and earset hands-free options for audio capture and speech applications. Consisting of a BLX4 single-channel receiver, a BLX1 bodypack transmitter, a Shure CVL cardioid lavalier microphone, and a Countryman E6 omnidirectional earset microphone, the wireless system is tuned to Shure's H9 frequency band between 512 and 542 MHz. A tie clip and windscreen is also included. Note: This is a single-channel system, and only one of the included microphones can be used at a time. - Shure BLX14/CVL Lavalier Wireless Microphone System (H9: 512 - 542 MHz) The BLX14/CVL Lavalier Wireless Microphone System from Shure includes a BLX4 single-channel wireless receiver, a BLX1 bodypack transmitter, and a CVL Centraverse clip-on lavalier mic. The system is set to Shure's H9 frequency band and operates between 512 - 542 MHz.
The BLX1 bodypack transmitter has a 300' line of sight operation range with the BLX4 receiver. It is powered by two included AA batteries that can provide up to 14 hours of operation. The BLX4 receiver features microprocessor-controlled internal antenna diversity that helps prevent interference and signal dropouts. Its one-touch QuickScan feature detects the most interference-free frequency and sets the channel to it for fast setup. UPC: 042406470407 - Shure E6 Omnidirectional Earset Microphone for Shure Transmitters (Tan) The Countryman E6 Omnidirectional Microphone is a miniature earset microphone for virtually invisible operation in stage performances, trade shows, houses of worship, auctions, lectures, and much more.The omnidirectional pickup pattern greatly decreases handling and clothing noise, as well as popping and wind noise. Flexible microphone positioning is maintained and the included windscreen further minimizes wind noise. The E6 is set apart from the E6i with its stiffer flexible boom. The flexible boom maintains its shape for custom, single-user size adjustments.A wide variety of colors and connections are available for use with various wireless transmitters. This version terminates to a TA4-female connector for Shure wireless transmitters.
- Miniature Unobtrusive Design
- A miniature omnidirectional capsule is mounted to a low-profile, flexible frame. This lightweight, unobtrusive design is available in various colors that virtually render the entire microphone invisible against the skin.
- Omnidirectional Polar Pattern
- The omnidirectional pickup pattern greatly decreases handling and clothing noise, as well as popping and wind noise. The flexible boom provides a stiff fit that maintains its shape for single user applications.
- Sensitivity Optimized for General Speaking
- This E6's sensitivity response is optimized to accurately capture general speech without noise and distortion.
UPC: 042406117999 In the Box - BLX14/CVL Lavalier Wireless Microphone System (H9: 512 - 542 MHz) zruwdswtwscqsrcctxaq
- CVL Centraverse Lavalier Condenser Microphone
- BLX4 Single-Channel Wireless Receiver (H9: 512 - 542 MHz)
- BLX1 Bodypack Transmitter (H9: 512 - 542 MHz)
- Limited 2-Year Warranty
- E6 Omnidirectional Earset Microphone for Shure Transmitters (Tan)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure BLX14 Lavalier Wireless System and Countryman E6 EarSet Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Shure CVL Centraverse Lavalier Condenser Microphone
| Type | Electret condenser | | Frequency Response | 50 Hz to 20 kHz | | Polar Pattern | Cardioid | | Output Impedance | 600 Ω @ 1 kHz, typical | | Audio Output Level | -43.5 dBV/Pa | | Signal to Noise Ratio | 72 dB @ 1 kHz | | Maximum SPL | 139 dB, @ 1 kHz (1,000 Ω load) | | Dynamic Range | 117 dB, @ 1 kHz (1,000 Ω load) | | Output Noise | 22 dB, typical, A-weighted | | Power Requirements | +5 V DC (nominal), 10 V maximum (DC bias) | | Polarity | Positive pressure on diaphragm produces positive voltage on pin 3 with respect to pin 1 | | Cable | 50" (1.3 m) | | Connector | TA4F | | Weight | 0.88 oz (25 g) | | | | Box Dimensions (LxWxH) | 7.7 x 5.0 x 3.1" | - Shure BLX4 Single-Channel Wireless Receiver (H9: 512 - 542 MHz)
| Output | 1x XLR Output
1x 1/4" (6.35 mm) Output | | Output Impedance | XLR: 200 ohms
1/4": 50 ohms | | Audio Output Level | XLR Connector: -27 dBV into 100 kOhms Load (Reference +/-33 kHz with 1 kHz Tone)
1/4": -13 dBV into 100 kOhms Load (Reference +/-33 kHz with 1 kHz Tone) | | RF Sensitivity | -105 dBm for 12 dB SINAD, Typical | | Image Rejection | >50 dB, Typical | | Housing | Molded ABS | | Power Requirement | 12 to 15 V DC @ 160 mA, Supplied by External Power Supply (Tip Positive) | | Dimensions (H x W x D) | 1.5 x 7.4 x 4.1" (40 x 188 x 103 mm) | | Weight | 8.5 oz (241 g) | | | | Box Dimensions (LxWxH) | 13.5 x 12.0 x 3.8" | - Shure BLX1 Bodypack Transmitter (H9: 512 - 542 MHz)
| Audio Input | Gain: -16 dBV (Maximum), 10 dBV (Minimum) | | Gain Adjustment Range | 26 dB | | Input Impedance | 1 MOhm | | RF Output | 10 mW, Typical | | Housing | Molded ABS | | Power Requirement | 2x LR6 AA Batteries, 1.5 V Alkaline | | Battery Life | Up to 14 Hours | | Dimensions (H x W x D) | 4.3 x 2.5 x 0.8" (110 x 64 x 21 mm) | | Weight | 2.6 oz (75 g) | | | | Box Dimensions (LxWxH) | 11.1 x 5.3 x 3.2" | - Shure E6 Omnidirectional Earset Microphone for Shure Transmitters (Tan)
| Transducer | Condenser | | Polar Pattern | Omnidirectional | | Frequency Response | 20 Hz to 20 kHz | | Dynamic Range (Typical) | Not Specified by Manufacturer | | Signal-to-Noise Ratio | Equivalent Acoustic Noise: 24 dBA SPL | | Maximum Input Sound Level | 130 dB SPL | | Power Requirements | Operating Current: 500 uA
Operating Voltage: 1 to 2 V
Power Supply Voltage:
+3 V with 2.7 kOhm Load+5 V with 6.8 kOhm Load
+9 V with 15 kOhm Load | | Output Impedance | 2 kOhms | | Output Connector | TA4-female connector for Shure Transmitters | | Dimensions | Not Specified by Manufacturer | | Weight | 0.07 oz (2 g) | | | | Box Dimensions (LxWxH) | 9.213 x 5.039 x 1.496" |
