Shure BLX14R B98 Instrument Wireless System

User Manual for Shure BLX14R B98 Instrument Wireless System with Beta 98H C Mic

• Product category: Wireless Systems Shure
• Brand: Shure
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Shure Wireless Systems

Product description

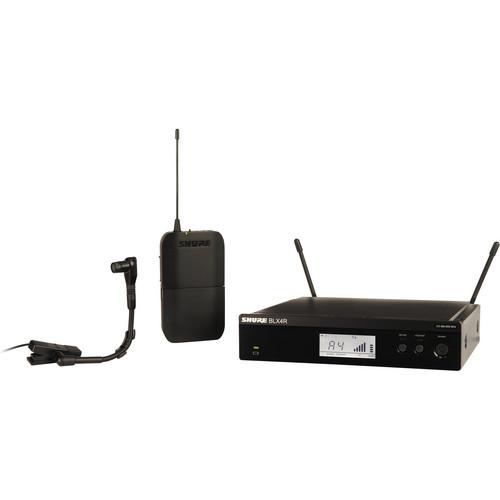

• BLX1 Bodypack Transmitter (J10: 584 - 608 MHz) The BLX1 Bodypack Transmitter from Shure is designed for use with Shure's BLX wireless systems. It is set to the J10 frequency band and operates between 584 and 608 MHz. It has a TQG input and can be used with Shure lavalier, headset, earset and instrument microphones. With the optional WA302 adapter cable, the BLX1 can be used as a transmitter for guitar. The unit has a top panel mounted on/off switch as well as volume control for quick access while speaking or performing. The BLX1 is powered by the two included AA batteries for up to 14 hours. UPC: 042406246200
• BLX4R Single-Channel Wireless Rackmount Receiver (J10: 584 - 608 MHz) The BLX4R Wireless Rackmount Receiver from Shure is a single-channel receiver set to Shure's J10 frequency band and operates between 548 to 608 MHz. It has dual antennas with microprocessor-controlled internal diversity for reduced signal interference and dropouts. The one-touch QuickScan frequency selection feature allows you to quickly locate the available frequency with the least amount of interference.

  The unit features an LCD display for RF and audio level metering while its front-panel dual-color LED status indicator displays green for normal levels and red when clipping. It has an XLR output in additional to an instrument level 1/4" output. A rear-panel control provides output level. The BLX4R can be rackmounted with the included rackmount kit. UPC: 042406252836
• BETA-98H/C - Clip-On Condenser Microphone The Beta 98H/C is a cardioid, mini-condenser instrumental microphone with in-line preamplifier is designed to clearly capture the sounds of today's professional horn players. The pickup pattern of the Beta 98H/C provides high gain-before-feedback and excellent rejection of unwanted noise. With a high maximum sound pressure level (SPL), the Beta 98H/C is ready to handle the demands of brass and woodwind instruments, and is a strong performer for percussion applications. The transformerless preamplifier circuitry of the Beta 98H/C improves linearity across the full frequency range. In situations where phantom power is not available, the MX1-BP battery-powered preamplifier will perform exceptionally.

  The integrated gooseneck and ratcheting swivel joint of the Beta 98H/C allows for easy microphone positioning and securing. Once the position is determined, the gooseneck angle brace ensures that the Beta 98H/C will stay in place during even the most active performances.
  • Tailored frequency response for open, natural sound reproduction
  • Compact, lightweight construction provides a low degree of visibility
  • Interchangeable microphone cartridges are available: RPM108 - Cardioid cartridge, RPM110 - Supercardioid cartridge
  • Gooseneck, ratcheting swivel joint, and gooseneck angle brace allow for optimum placement and fixed positioning
  • Legendary Shure ruggedness and reliability
  UPC: 042406083379

• 2 x AA Batteries

• Limited 2-Year Warranty

• Rackmount Hardware Kit

• Limited 2-Year Warranty

• 10' (3 m) High Flex Cable

• 2 x Snap-On Windscreens

• Storage Bag

• Preamplifier

• Gooseneck Angle Brace

• Cable Management Device

• Limited 2-Year Warranty

Also Includes

• Limited 2-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• BLX1 Bodypack Transmitter (J10: 584 - 608 MHz)

  Audio Input	Gain: -16 dBV (Maximum), 10 dBV (Minimum)
  Gain Adjustment Range	26 dB
  Input Impedance	1 MOhm
  RF Output	10 mW, Typical
  Housing	Molded ABS
  Power Requirement	2x LR6 AA Batteries, 1.5 V Alkaline
  Battery Life	Up to 14 Hours
  Dimensions (H x W x D)	4.3 x 2.5 x 0.8" (110 x 64 x 21 mm)
  Weight	2.6 oz (75 g)

  Box Dimensions (LxWxH)	11.1 x 5.1 x 3.1"

• BLX4R Single-Channel Wireless Rackmount Receiver (J10: 584 - 608 MHz)

  Output	1x XLR Output 1x 1/4" (6.35 mm) Output
  Output Impedance	XLR: 200 ohms 1/4": 50 ohms
  Audio Output Level	XLR Connector: -20.5 dBV into 100 kOhms Load (Reference +/-33 kHz with 1 kHz Tone) 1/4": -13 dBV into 100 kOhms Load (Reference +/-33 kHz with 1 kHz Tone)
  RF Sensitivity	-105 dBm for 12 dB SINAD, Typical
  Image Rejection	>50 dB, Typical
  Housing	Molded ABS, Steel
  Power Requirement	12 to 15 VDC @ 260 mA, Supplied by External Power Supply (Tip Positive)
  Dimensions (H x W x D)	2.0 x 7.8 x 6.4" (50 x 198 x 163 mm)
  Weight	2.2 lb (998 g)

  Box Dimensions (LxWxH)	18.4 x 14.8 x 3.9"

• BETA-98H/C - Clip-On Condenser Microphone

  Transducer	Condenser
  Polar Pattern	Unidirectional (Cardioid)
  Frequency Response	20 Hz - 20 kHz
  Dynamic Range (Typical)	132 dB (2.5 kΩ Load)
  Signal-to-Noise Ratio	63 dB at 94 dB SPL (IEC 651)
  Maximum Input Sound Level	143.5 dB
  Power Requirements	11 to 52V DC Phantom Power, or (Use a Battery in the Optional MX1-BP Battery Powered Supply)
  Output Impedance	150 Ohms
  Output Connectors	Tini Q-G Connector (from Microphone), XLR-3M Type (from Pre-Amp)
  Pad	None
  Low Frequency Roll-Off	None
  Applications	Saxophone, Soprano Saxophone, Trombone, Trumpet, Drums (Toms)
  Dimensions	.44" (11 mm) Grille Face Diameter 1" (25 mm) Grille Face to Back of the Head 6.68" (167 mm) Top of the Head to Base of Gooseneck
  Weight	Microphone with Cable and Tini Q-G Connector: 2.3 oz. (65 g) Preamplifier: 3.4 oz (96 g)

  Box Dimensions (LxWxH)	10.079 x 4.961 x 3.465"
