Shure BLX14R SM35 Headworn Wireless System

User Manual for Shure BLX14R SM35 Headworn Wireless System

• Product category: Wireless Systems Shure
• Brand: Shure
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Shure Wireless Systems

Product description

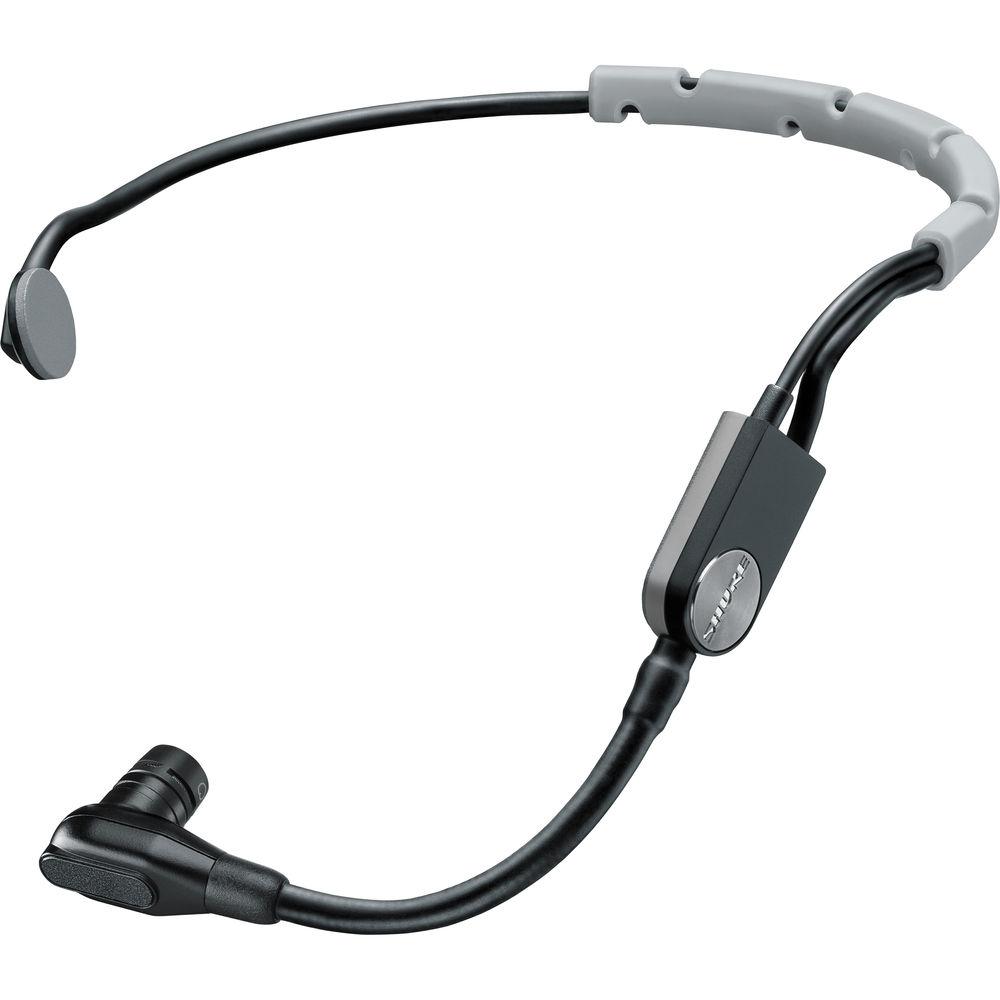

• SM35 Performance Headset Condenser Microphone (TA4F) The TA4F SM35 Performance Headset Condenser Microphone from Shure is a wireframe headset cardioid condenser microphone that can be used for a variety of active vocal and general speech performance applications. It features an in-line XLR preamp and connector. A snap-fit windscreen is included.
  • Wearable wireframe headset is designed to fit securely and comfortably for active performers and multi-instrumentalists
  • Flexible gooseneck design allows for optimized placement to further improve source isolation
  • Lightweight and low-profile form for long-wearing use
  • TA4F connector compatible with any Shure wireless bodypack system
  • Locking snap-fit windscreen
  • Tailored frequency response refined for clear, crisp vocal reproduction
  UPC: 042406325820

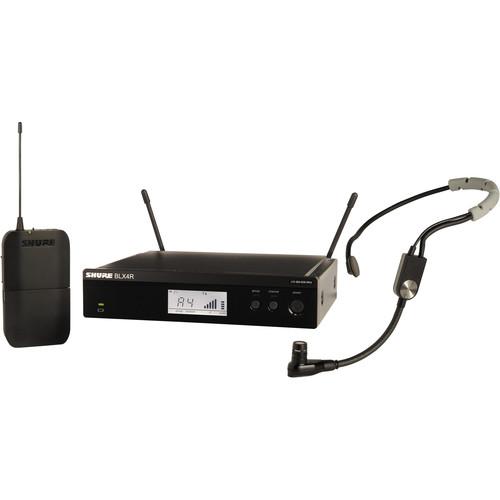

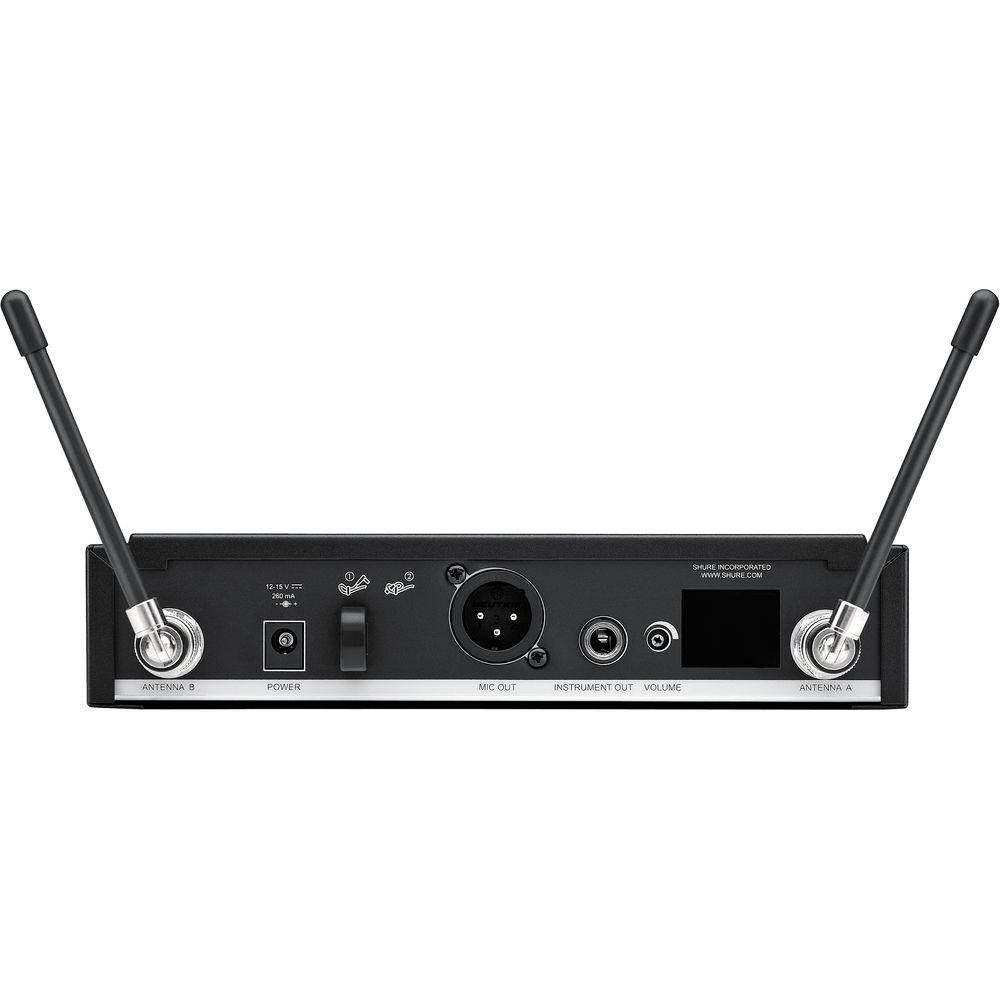

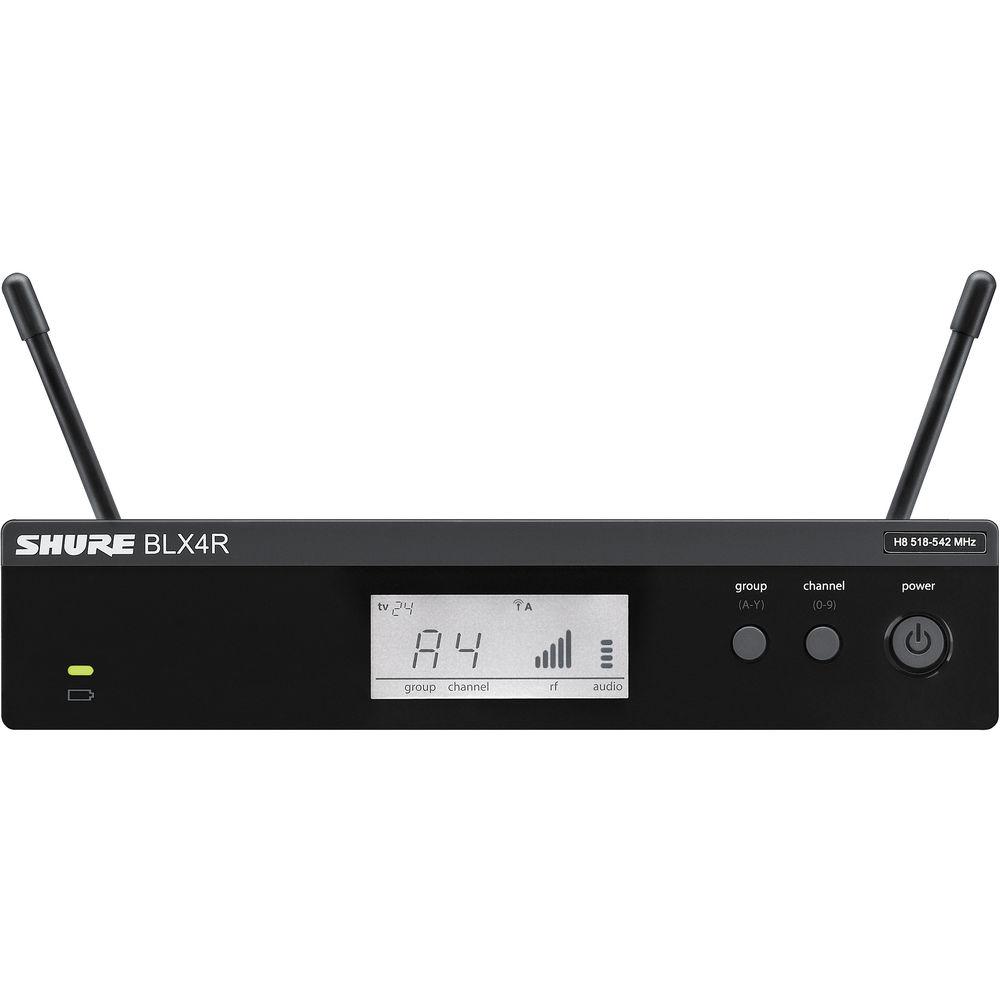

• BLX4R Single-Channel Wireless Rackmount Receiver (J10: 584 - 608 MHz) The BLX4R Wireless Rackmount Receiver from Shure is a single-channel receiver set to Shure's J10 frequency band and operates between 548 to 608 MHz. It has dual antennas with microprocessor-controlled internal diversity for reduced signal interference and dropouts. The one-touch QuickScan frequency selection feature allows you to quickly locate the available frequency with the least amount of interference.

  The unit features an LCD display for RF and audio level metering while its front-panel dual-color LED status indicator displays green for normal levels and red when clipping. It has an XLR output in additional to an instrument level 1/4" output. A rear-panel control provides output level. The BLX4R can be rackmounted with the included rackmount kit. UPC: 042406252836

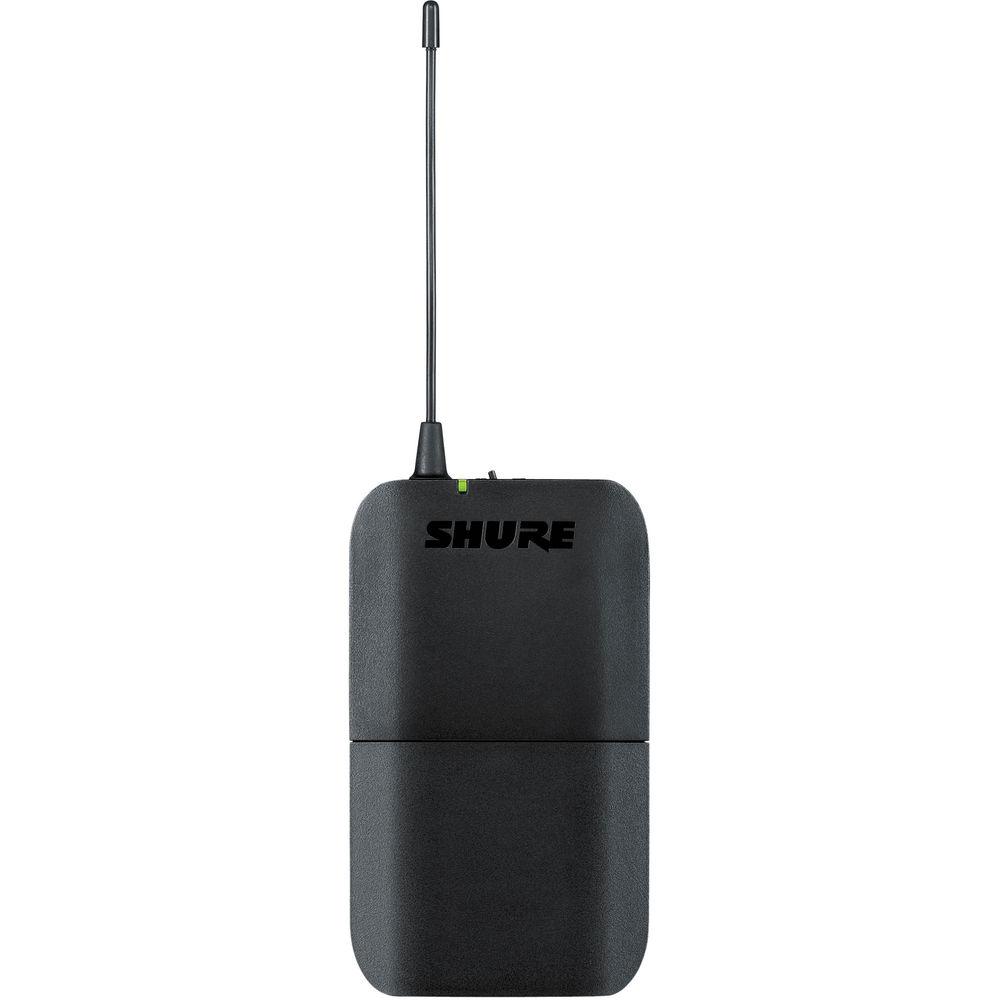

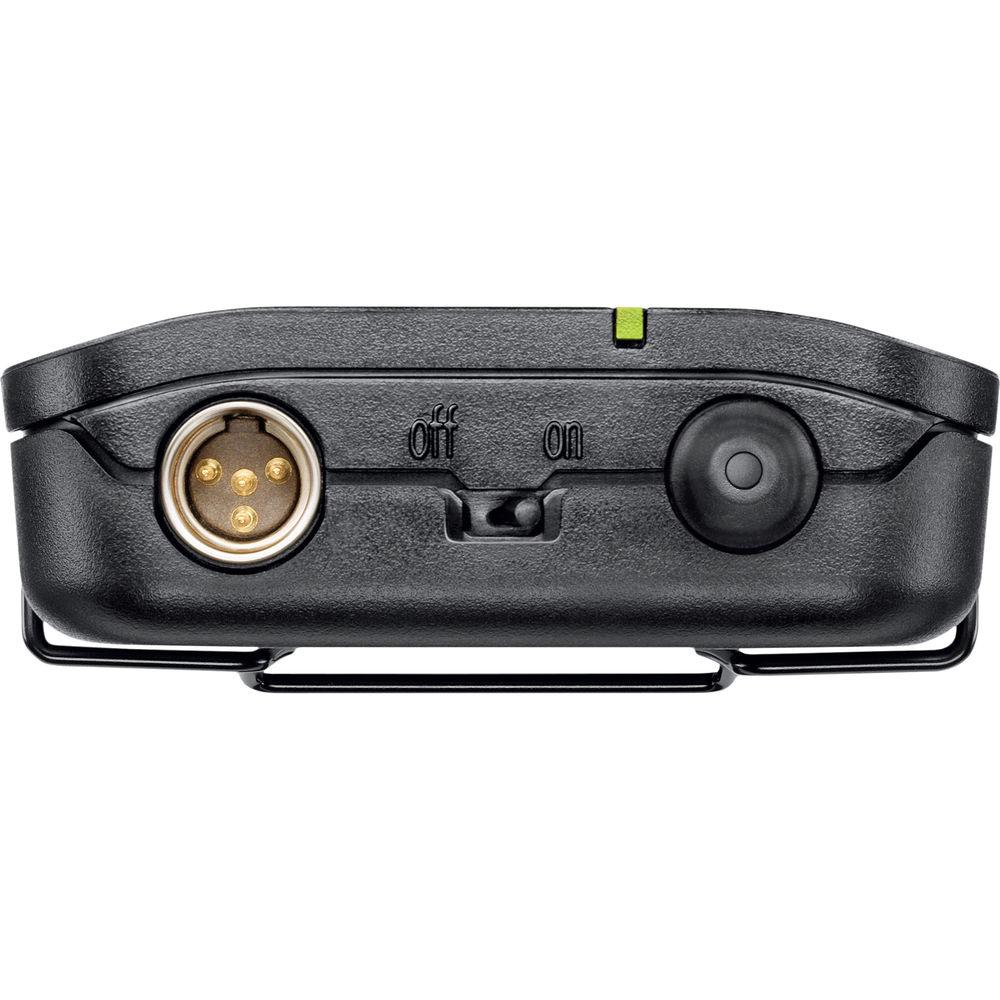

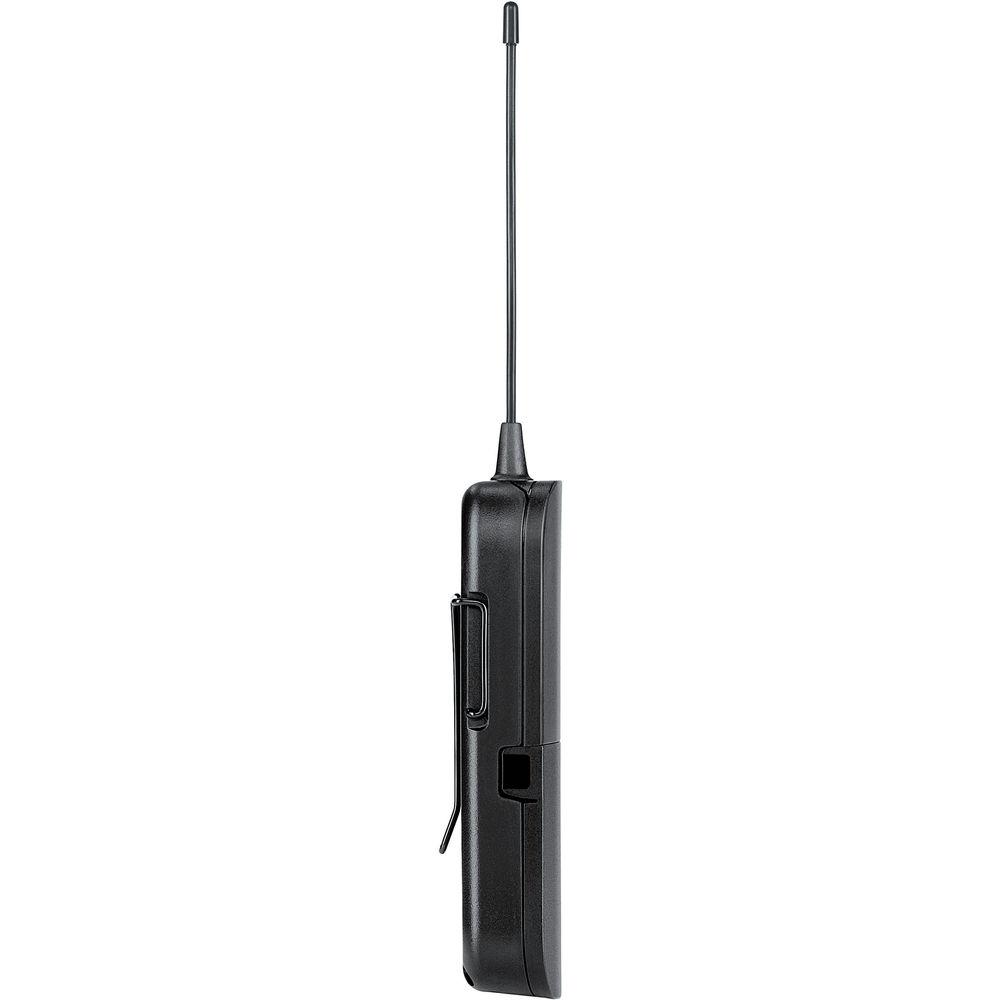

• BLX1 Bodypack Transmitter (J10: 584 - 608 MHz) The BLX1 Bodypack Transmitter from Shure is designed for use with Shure's BLX wireless systems. It is set to the J10 frequency band and operates between 584 and 608 MHz. It has a TQG input and can be used with Shure lavalier, headset, earset and instrument microphones. With the optional WA302 adapter cable, the BLX1 can be used as a transmitter for guitar. The unit has a top panel mounted on/off switch as well as volume control for quick access while speaking or performing. The BLX1 is powered by the two included AA batteries for up to 14 hours. UPC: 042406246200

• Locking Snap-Fit Windscreen

• Limited 1-Year Warranty

• Rackmount Hardware Kit

• Limited 2-Year Warranty

• 2 x AA Batteries

• Limited 2-Year Warranty

Also Includes

• Limited 2-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• SM35 Performance Headset Condenser Microphone (TA4F)

  Type	Electret condenser
  Frequency Response	40 Hz to 20 kHz
  Polar Pattern	Cardioid
  Output Impedance	2400 Ω @ 1 kHz, typical
  Audio Output Level	-59 dBV/Pa
  Signal to Noise Ratio	55 dB @ 1 kHz
  Maximum SPL	153 dB, @ 1 kHz (1,000 Ω load)
  Dynamic Range	114 dB, @ 1 kHz (1,000 Ω load)
  Output Noise	39 dB, typical, A-weighted
  Power Requirements	+5 V DC (nominal), 10 V maximum (DC bias)
  Polarity	Positive pressure on diaphragm produces positive voltage on pin 3 with respect to pin 1
  Cable	45" (1.1 m)
  Connector	TA4F
  Weight	2.53 oz (72 g)

  Box Dimensions (LxWxH)	8.0 x 6.3 x 3.0"

• BLX4R Single-Channel Wireless Rackmount Receiver (J10: 584 - 608 MHz)

  Output	1x XLR Output 1x 1/4" (6.35 mm) Output
  Output Impedance	XLR: 200 ohms 1/4": 50 ohms
  Audio Output Level	XLR Connector: -20.5 dBV into 100 kOhms Load (Reference +/-33 kHz with 1 kHz Tone) 1/4": -13 dBV into 100 kOhms Load (Reference +/-33 kHz with 1 kHz Tone)
  RF Sensitivity	-105 dBm for 12 dB SINAD, Typical
  Image Rejection	>50 dB, Typical
  Housing	Molded ABS, Steel
  Power Requirement	12 to 15 VDC @ 260 mA, Supplied by External Power Supply (Tip Positive)
  Dimensions (H x W x D)	2.0 x 7.8 x 6.4" (50 x 198 x 163 mm)
  Weight	2.2 lb (998 g)

  Box Dimensions (LxWxH)	18.4 x 14.8 x 3.9"

• BLX1 Bodypack Transmitter (J10: 584 - 608 MHz)

  Audio Input	Gain: -16 dBV (Maximum), 10 dBV (Minimum)
  Gain Adjustment Range	26 dB
  Input Impedance	1 MOhm
  RF Output	10 mW, Typical
  Housing	Molded ABS
  Power Requirement	2x LR6 AA Batteries, 1.5 V Alkaline
  Battery Life	Up to 14 Hours
  Dimensions (H x W x D)	4.3 x 2.5 x 0.8" (110 x 64 x 21 mm)
  Weight	2.6 oz (75 g)

  Box Dimensions (LxWxH)	11.1 x 5.1 x 3.1"
