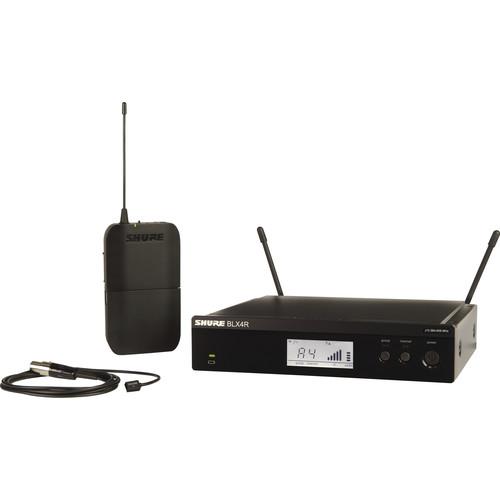

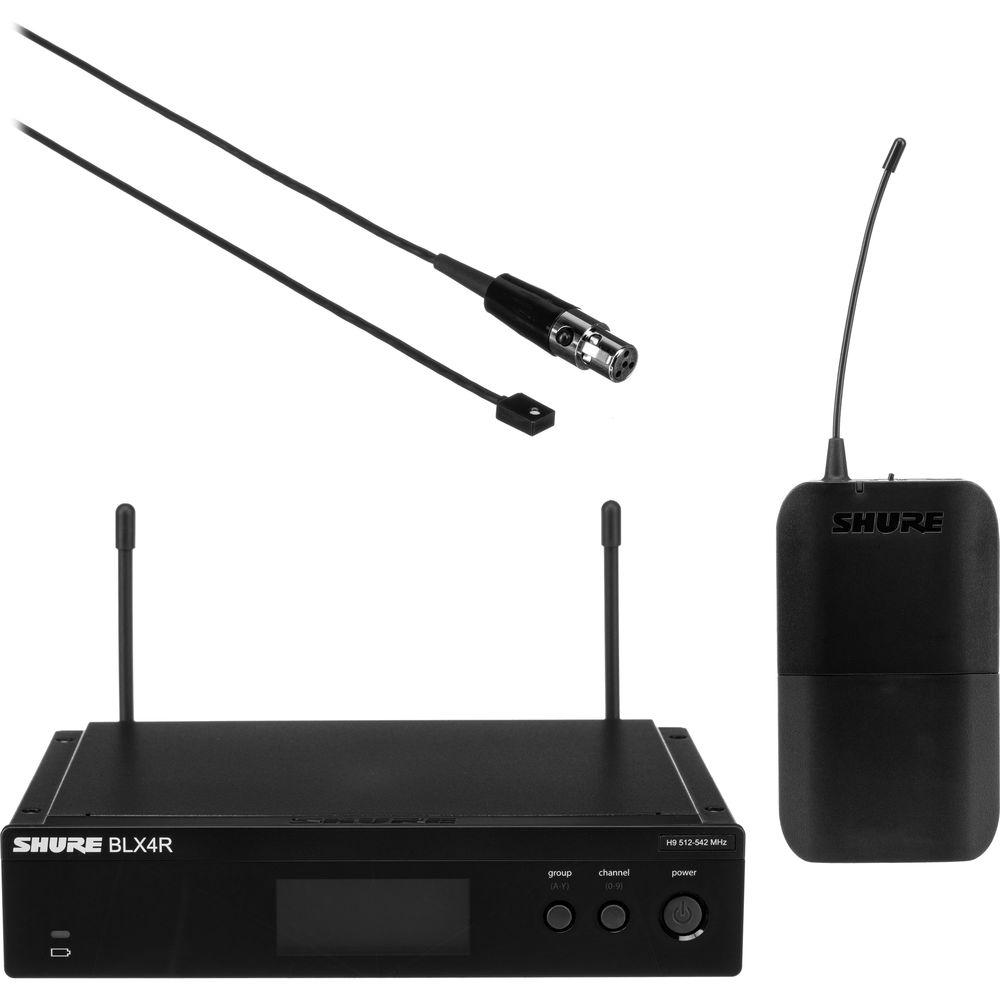

Product description

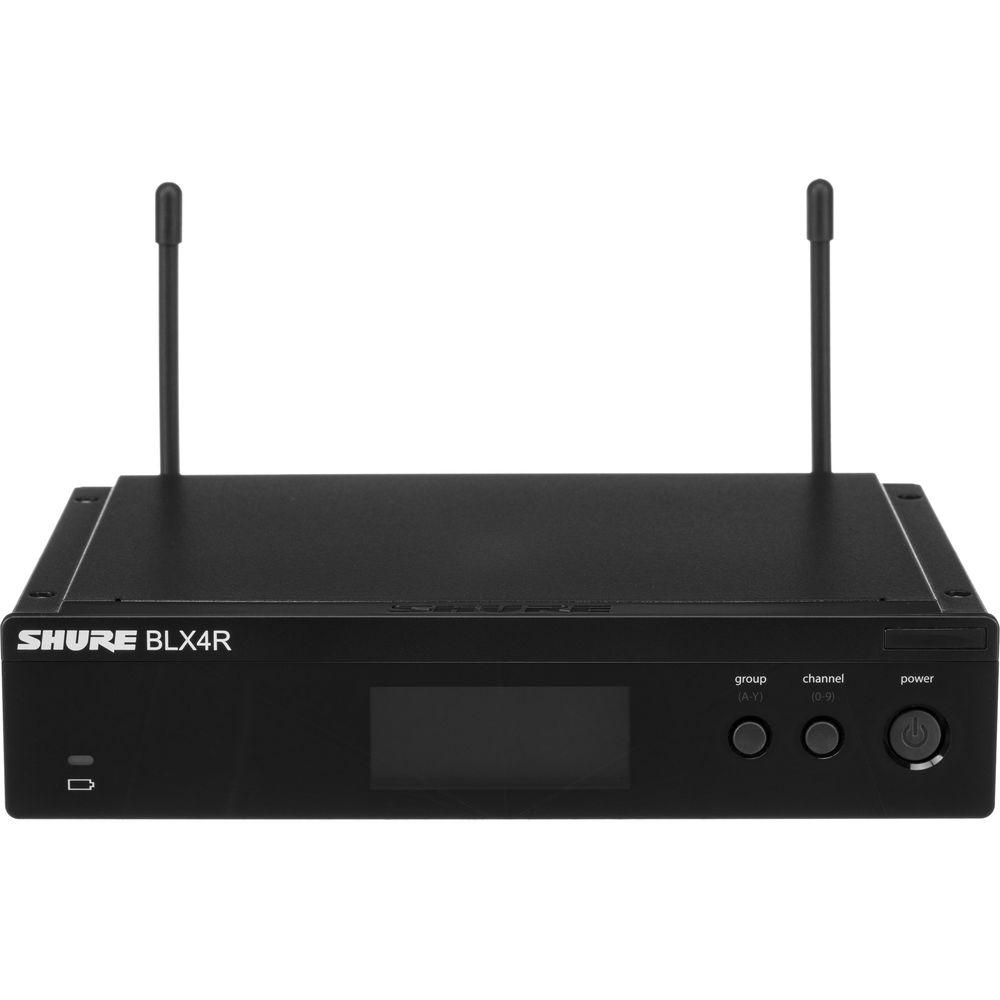

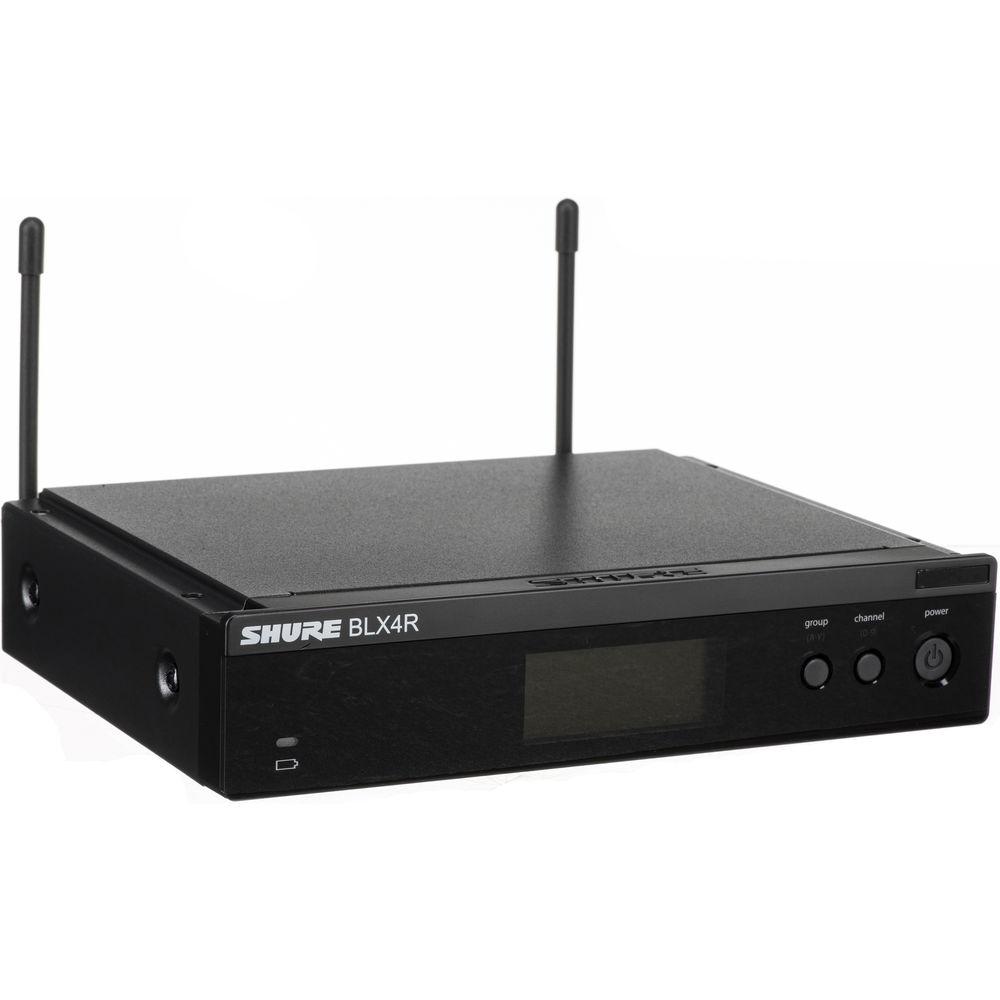

• BLX4R Single-Channel Wireless Rackmount Receiver (H10: 542 - 572 MHz) The BLX4R Wireless Rackmount Receiver from Shure is a single-channel receiver set to Shure's H10 frequency band and operates between 542 to 572 MHz. It has dual antennas with microprocessor-controlled internal diversity for reduced signal interference and dropouts. The one-touch QuickScan frequency selection feature allows you to quickly locate the available frequency with the least amount of interference.

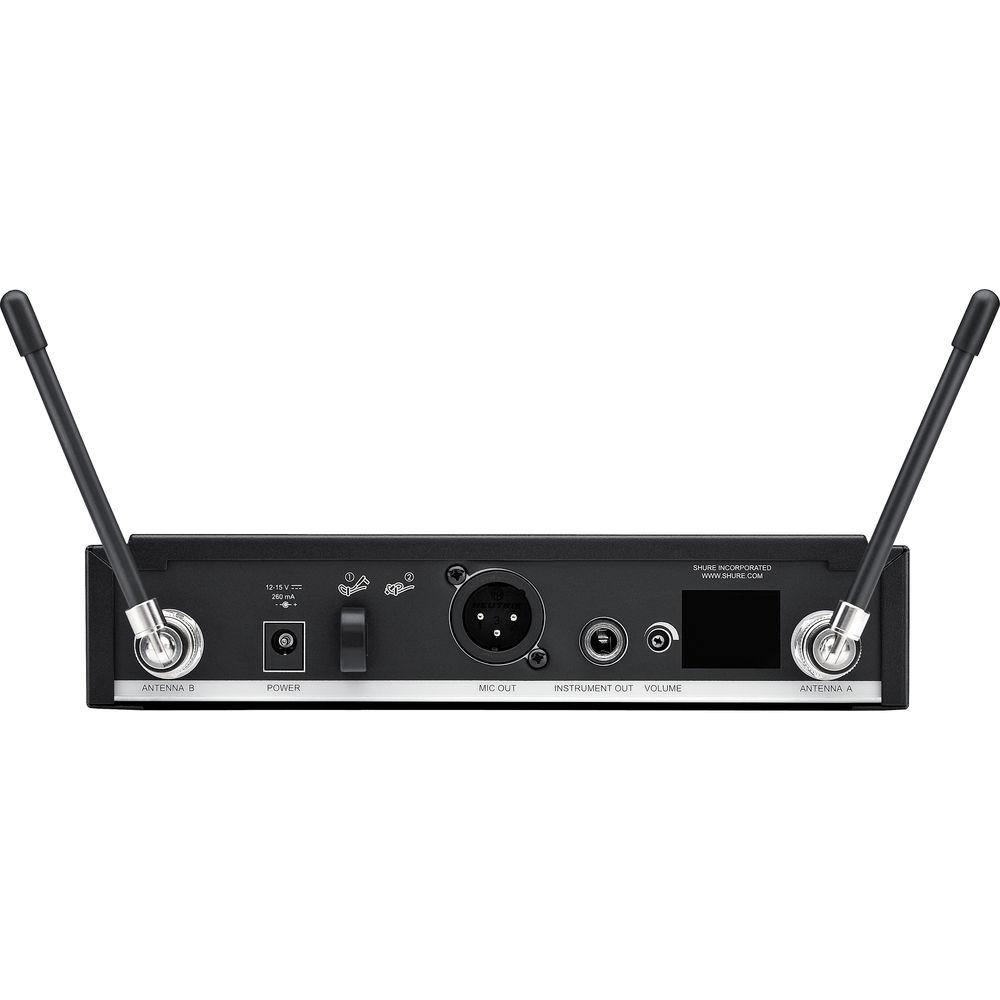

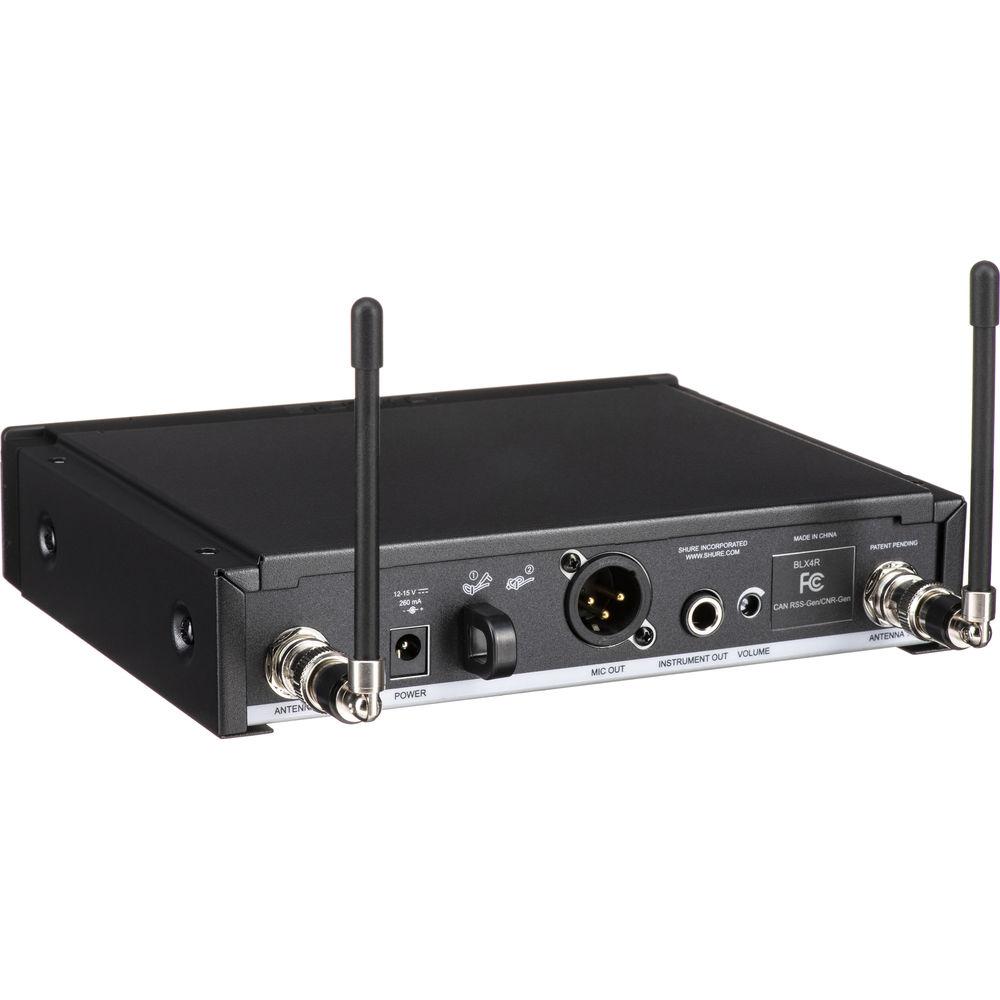

  The unit features an LCD display for RF and audio level metering while its front-panel dual-color LED status indicator displays green for normal levels and red when clipping. It has an XLR output in additional to an instrument level 1/4" output. A rear-panel control provides output level. The BLX4R can be rackmounted with the included rackmount kit. UPC: 042406470766

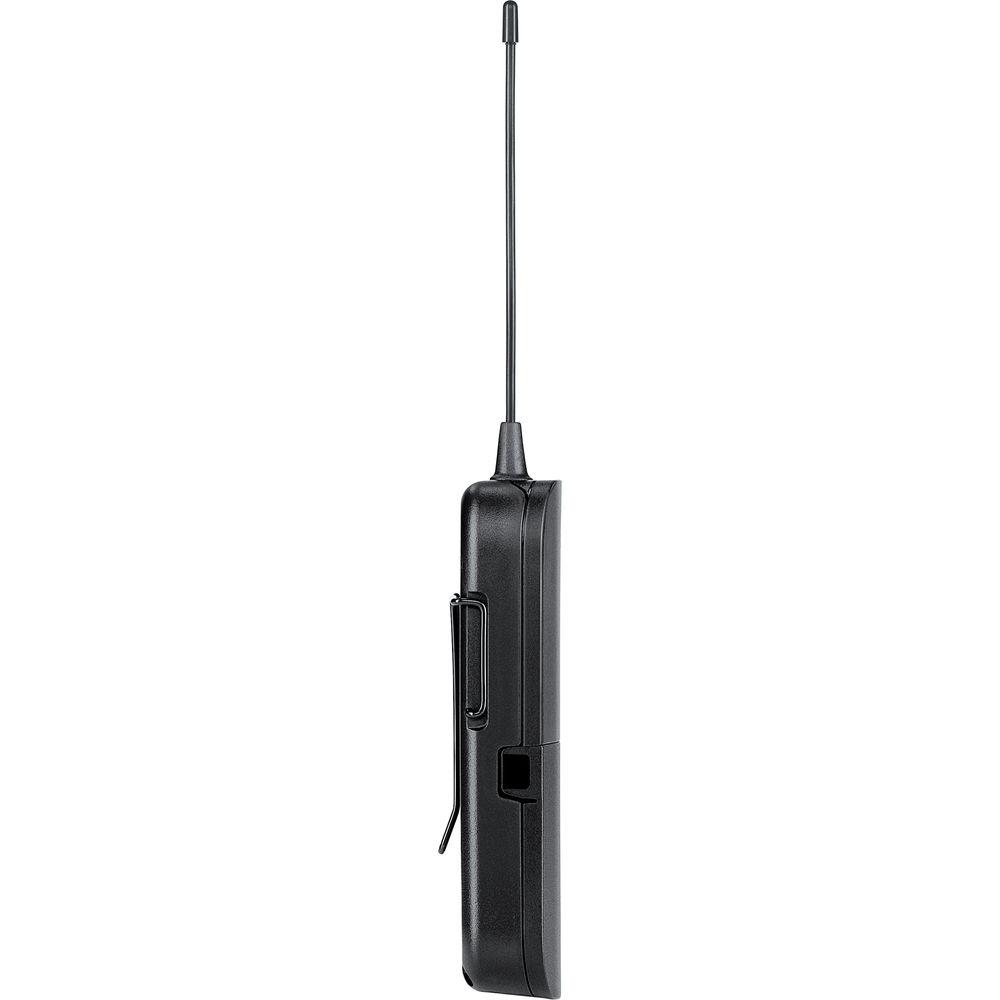

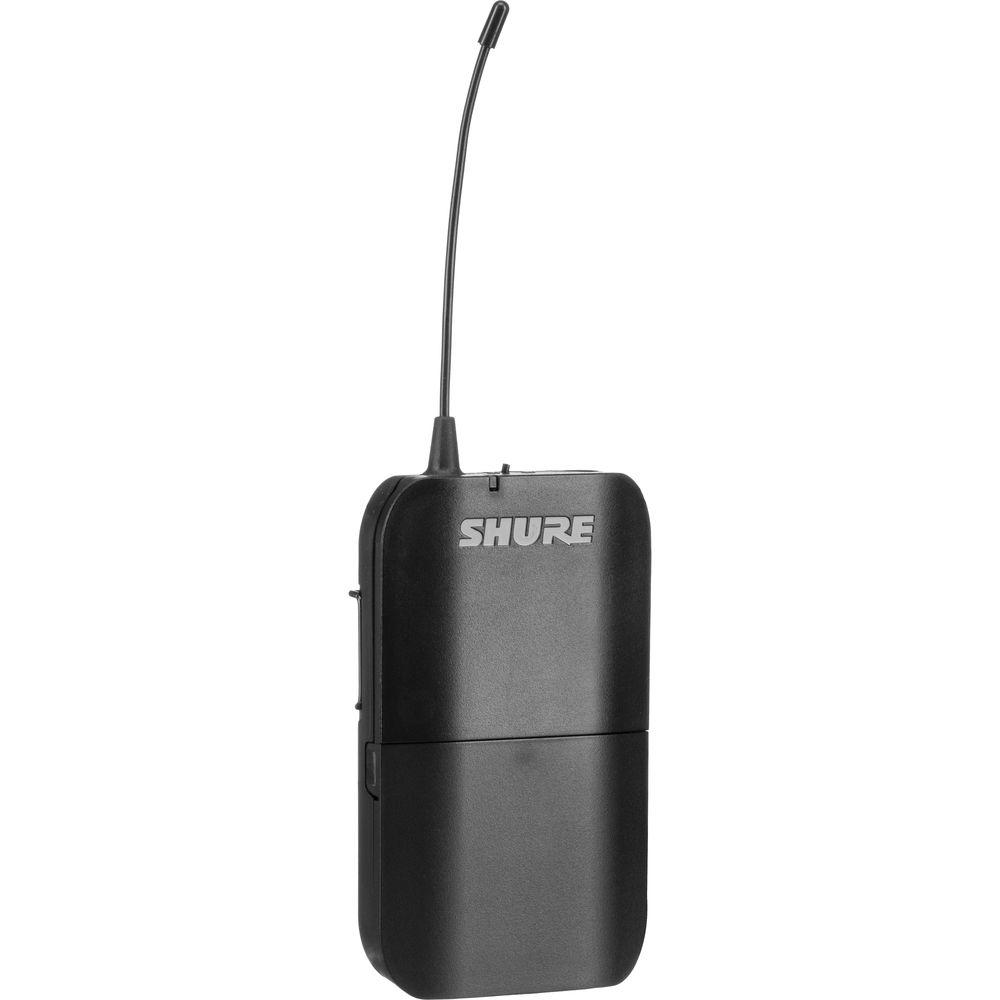

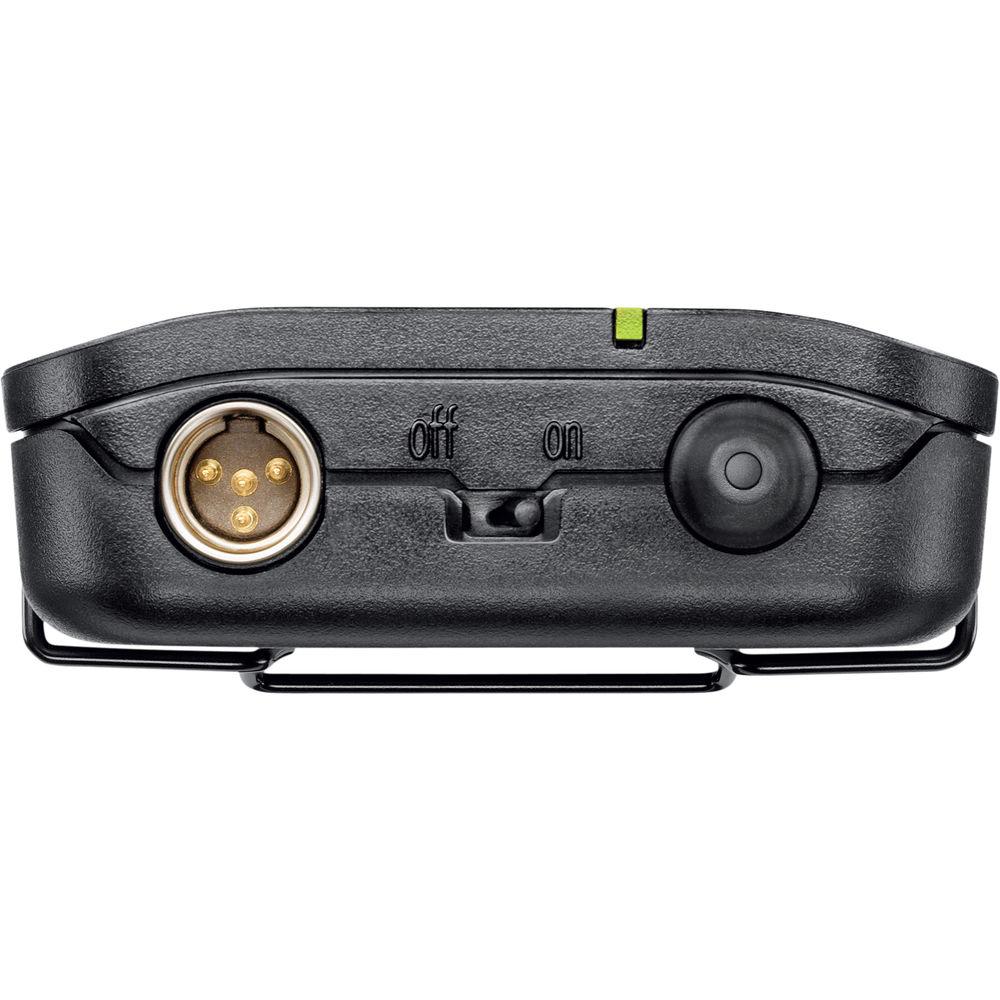

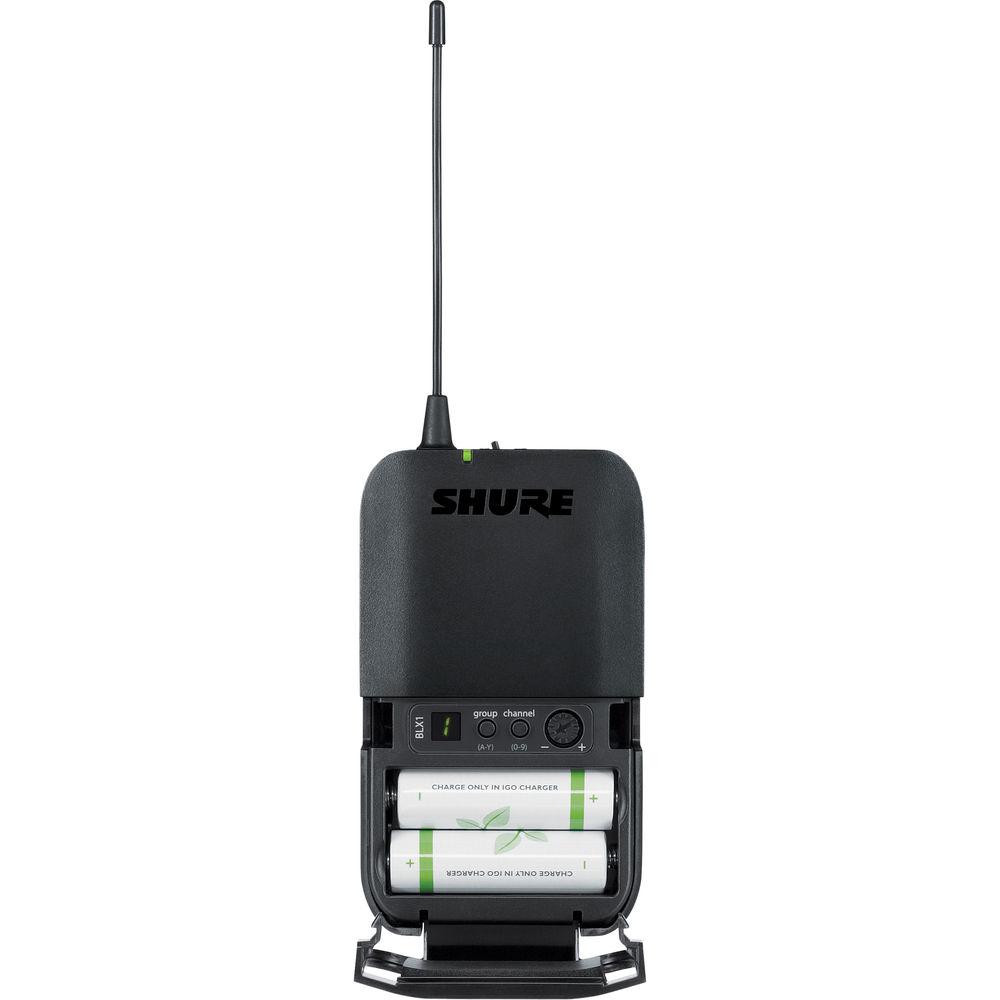

• BLX1 Bodypack Transmitter (H10: 542 - 572 MHz) The BLX1 Bodypack Transmitter from Shure is designed for use with Shure's BLX wireless systems. It is set to the H10 frequency band and operates between 542 and 572 MHz. It has a TQG input and can be used with Shure lavalier, headset, earset and instrument microphones. With the optional WA302 adapter cable, the BLX1 can be used as a transmitter for guitar. The unit has a top panel mounted on/off switch as well as volume control for quick access while speaking or performing. The BLX1 is powered by the two included AA batteries for up to 14 hours. UPC: 042406470261
• WL93 Professional Micro-Lavalier Omni Mic (Black) The Shure model WL93 Microphones are economical omnidirectional, subminiature, lavalier, condenser microphones designed for general speech applications where a visually unobtrusive microphone is desirable. All WL93 models are supplied with a mounting block with attached tie bar, a sew-on mounting bracket, and an acoustic windscreen to minimize wind noise in outdoor applications. All WL93 models include a cable terminated with a 4-pin mini connector which connects directly to a Shure wireless body-pack transmitter.
  • Subminiature lavalier design; ideal size for theater, television broadcasting, video, film, and sound reinforcement
  • Uniform omnidirectional polar pattern
  • Full, clear sound comparable to larger microphones
  • Smooth extended frequency response with presence rise specially tailored for chest-worn microphone operation
  • Controlled low-frequency rolloff reduces low-frequency clothing and room noise
  • Low distortion, wide dynamic range
  • Small, inconspicuous mounting hardware
  UPC: 042406055338

• Rackmount Hardware Kit

• Limited 2-Year Warranty

• 2 x AA Batteries

• Limited 2-Year Warranty

• Mounting Block with Attached Tie Bar

• Sew-On Mounting Bracket

• Zippered Pouch

• Black Acoustic Windscreen

• 1 Year Warranty

Also Includes

• Limited 2-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• BLX4R Single-Channel Wireless Rackmount Receiver (H10: 542 - 572 MHz)

  Output	1x XLR Output 1x 1/4" (6.35 mm) Output
  Output Impedance	XLR: 200 ohms 1/4": 50 ohms
  Audio Output Level	XLR Connector: -20.5 dBV into 100 kOhms Load (Reference +/-33 kHz with 1 kHz Tone) 1/4": -13 dBV into 100 kOhms Load (Reference +/-33 kHz with 1 kHz Tone)
  RF Sensitivity	-105 dBm for 12 dB SINAD, Typical
  Image Rejection	>50 dB, Typical
  Housing	Molded ABS, Steel
  Power Requirement	12 to 15 VDC @ 260 mA, Supplied by External Power Supply (Tip Positive)
  Dimensions (H x W x D)	2.0 x 7.8 x 6.4" (50 x 198 x 163 mm)
  Weight	2.2 lb (998 g)

  Box Dimensions (LxWxH)	18.4 x 14.7 x 3.8"

• BLX1 Bodypack Transmitter (H10: 542 - 572 MHz)

  Audio Input	Gain: -16 dBV (Maximum), 10 dBV (Minimum)
  Gain Adjustment Range	26 dB
  Input Impedance	1 MOhm
  RF Output	10 mW, Typical
  Housing	Molded ABS
  Power Requirement	2x LR6 AA Batteries, 1.5 V Alkaline
  Battery Life	Up to 14 Hours
  Dimensions (H x W x D)	4.3 x 2.5 x 0.8" (110 x 64 x 21 mm)
  Weight	2.6 oz (75 g)

  Box Dimensions (LxWxH)	11.1 x 5.3 x 3.0"

• WL93 Professional Micro-Lavalier Omni Mic (Black)

  Transducer	Electret Condenser
  Polar Pattern	Omnidirectional
  Frequency Response	80 Hz - 20 kHz
  Dynamic Range (Typical)	98dB @ Max. SPL, A-Weighted
  Signal-to-Noise Ratio	72dB
  Maximum Input Sound Level	120dB @ 1 kHz,(1% THD)
  Power Requirements	2 to 10v; 5v Nominal (Pin 2 to Pins 3 and 4) (Supplied by Shure Wireless Body Transmitter Pack)
  Output Impedance	3000 Ω
  Output Connectors	TA4F, for Use with the Shure Wireless Transmitters
  Case	Zippered Carrying Pouch
  Pad	None
  Low Frequency Roll-Off	None
  Applications	Radio, Television and Broadcast, Wireless Videography.
  Dimensions	Approximately: .023 x 0.37" (5.84 x 9.40mm)DiameterxL
  Weight	Approximately: 0.57 oz. (16 g)

  Box Dimensions (LxWxH)	6.7 x 4.3 x 3.4"
