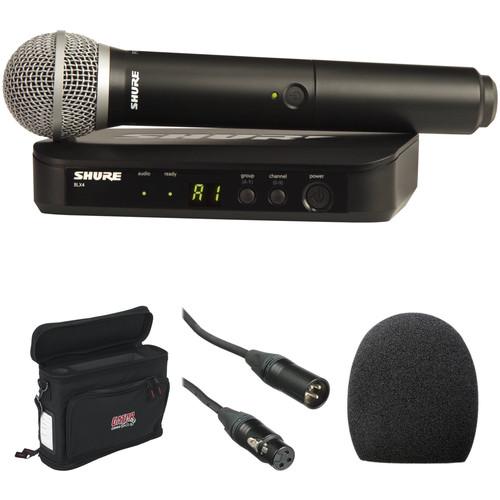

User Manual for Shure BLX24 PG58 Handheld Wireless Microphone System with Carry Case Click to enlarge the picture
Contents of the user manual for the Shure BLX24 PG58 Handheld Wireless Microphone
- Product category: Wireless Systems Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Wireless Systems
|
User manual for the Shure BLX24 PG58 Handheld Wireless Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|
Product description The Shure BLX24 PG58 Handheld Wireless Microphone System with Carry Case is a Kit that comes with everything you need for wireless miking of singers, presenters, teachers and more. The kit comes with the BLX24 Wireless System with PG58 Mic, a protective carry case, 6' XLR cable, and a foam windscreen. - Shure BLX24 Wireless System With PG58 Mic (H9: 512 - 542 MHz) The BLX24 Wireless System With PG58 Mic from Shure includes a BLX4 wireless receiver and a BLX2 handheld transmitter with a PG58 microphone. This system is set to Shure's H9 frequency band between 512 to 542 MHz. The system has up to a 300' line-of-sight range of operation and is designed for easy setup.
The BLX4 receiver's one-touch QuickScan frequency selection finds the clearest available channel and tunes the unit to it. Its front panel LED display indicates the group and channel it is tuned to, allowing you to set the BXLR2 transmitter to match. A dual-colored LED indicator displays green for normal audio levels and red to alert you if your levels are clipping. The unit has a microprocessor-controlled internal diversity antenna to prevent interference and dropouts.
Two included AA batteries provide The BLX2 transmitter with up to 14 hours of operation. You can use up to 12 compatible BLX systems simultaneously per frequency band. UPC: 042406470162 - Gator Cases GM-1W Wireless Mobile Pack The Gator Cases GM-1W Wireless Mobile Pack (Black) is a 600 denier nylon case with interior padding. It is designed to carry and protect an entire single wireless system. The zippered case reveals sufficient space for lavalier microphones, cables and accessories. The foam padded interior protects the gear from shock while remaining lightweight and rugged. The receiver is functional while still in the bag. The front and back unzip for easy access. The bag is carried by a removable, adjustable shoulder strap and padded carrying handles.
- Construction
-
- 600 denier nylon
- Foam padded interior
- Zipper closure
- Access for antenna to be extended while in the case
- Space for lavalieres, cables and wireless mic with transporter
- Mounted front and rear access unzips for easy set up in the field
- Carrying options
-
- Removable, adjustable shoulder strap
- Padded carrying handles
- Compatible with most single microphone wireless systems
UPC: 716408503424 - Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 6' (1.8 m), Black The black Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable (6') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise. While the cable's color-coding affords the ability to quickly differentiate between multiple connections on stage, it provides a pleasant aesthetic quality at the same time.
Premium Performance 3000 Series cables are made from 24-AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection. - 95% dual-spiral shielding offers protection from EMI and RFI noise
- Twin conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core
- 24-AWG oxygen-free stranded copper inner core provides the best possible conductivity
- Cotton yarn reduces electrostatic and microphonic noise
- All solder points shrink-wrapped for protection
- Neutrik XX silver connectors offer high conductivity
- Caged type contact and improved ground contact
UPC: 847628558267 - Auray WHF-158 Foam Windscreen for 1-5/8" Diameter Microphones (Black) The black Auray WHF Series Foam Windscreens are designed to reduce unwanted broadband wind noise and vocal pops with minimal high frequency loss. This WHF-158 Foam Windscreen is designed for use with many common handheld microphones with a 1-5/8" diameter head. The density of the specialty acoustic foam is optimized to help protect the microphone element from air bursts without muffling the sound. When used on a handheld microphone, this windscreen is effective in minimizing wind noise and plosive sounds. It is most effective in calm to light breeze conditions (0-7mph), and can be used indoors for protection against drafts caused by air-conditioners. Users can generally expect a 4dB to 8dB reduction in wind noise, with very slight dampening of high frequencies. For most applications, the very slight high frequency dampening is a worthwhile exchange for the notable wind noise reduction. The WHF-158's foam is hypoallergenic and washable and helps prevent moisture and dirt from damaging your microphone. The windscreen is designed to fit microphones from Shure, Electro-Voice, AKG, Audio-Technica, Audix, Beyerdynamic, Sennheiser, Neumann and others. The WHF-158 Foam Windscreen for 1-5/8" Diameter Microphones is an effective solution for basic wind protection.
- Fits these and other similar-sized microphones:
-
- Shure SM58, Beta 58, Beta 87A, Beta 87C, PG58, PG48, SM48, SM96, VP88, SM87, SM53, SM54, PE85, PE86, BG3.0, PE15, PE75, 12a, 14A, 587, 587SB
- Electro-Voice RE50/B, BBK1, Co5, Co7, Co9, DS35, MC100, 150, 300, MT200, N/D200, N/D247, 257, 267, N/D357, 367, 457, 757, N/D767, PL50, PL60, PL70, PL77, PL80, RE11, RE16, RE18
- Sennheiser e825S, e865, MD21, 200, MD400, 425, 427, 429, MD511, 512, 515, 516, 735, MD736, ME65, MKE44, SKM3072, SKM5000, SKM100, SKM300, SKM500, SKP30
- Audio-Technica AE3300, 4100, 5400, 6100, ATM23, 25, 29, 31, 41, 61, ATM91, AT801, AT802, AT813, AT814, ATW7375, ATW-T602, MB1000, Pro-1a, Pro-2ax, Pro-3, Pro-4, Pro-5, Pro-10
- Audix OM-2, OM-3, OM-5, OM-6, OM-7, VX-10
- AKG C900, D40, D50, D60, D80, D90, D95, D125, D130, D190, D200, D310, D321, D330, D590, D770, D880, C535, CK4, D3700, D3800, D5900
- Beyerdynamic BM85, EM85, M01, M59, M69, M260, M300, M400, M500, MCE81, TGX-20, TGX-40, TGX-58, TGX-60, TGX-80
- Neumann KMS105, KMS140, KMS150
- Nady SP-1, SP-3, SP-4, SP-5, SP-9, SP10, WHT14, WHT15, UH10
- Peavey Celebrity, PAA250, PVM835, PVM880, PV, PVi
- Telex HT700, SH100, FMR150, FMR450, EN6100, H12E, VR12E
UPC: 847628562868 In the Box - BLX24 Wireless System With PG58 Mic (H9: 512 - 542 MHz) yuvxzrqtbswweeuqweabydbbrtbcufcudqbrtc
- BLX2 Handheld Transmitter with PG58 Microphone (H9: 512 - 542 MHz)
- BLX4 Single-Channel Wireless Receiver (H9: 512 - 542 MHz)
- 2 x AA Batteries
- Limited 2-Year Warranty
- Gator Cases - GM-1W Wireless Mobile Pack yuvxzrqtbswweeuqweabydbbrtbcufcudqbrtc
- Kopul - Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 6' (1.8 m), Black
- Auray - WHF-158 Foam Windscreen for 1-5/8" Diameter Microphones (Black)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure BLX24 PG58 Handheld Wireless Microphone System with Carry Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Shure BLX24 Wireless System With PG58 Mic (H9: 512 - 542 MHz)
| | | Box Dimensions (LxWxH) | 13.4 x 12.0 x 4.1" | - Gator Cases GM-1W Wireless Mobile Pack
| Material | Exterior: 600 denier nylon
Interior: Foam padded | | Type of Closure | Zippers | | Exterior Dimensions | 15.35 x 5.0 x 11.42" (38.99 x 12.7 x 29cm) (LxDxH) | | Interior Dimensions | 8.5 x 2.0 x 8.5" (21.59 x 5.08 x 21.59cm) (LxDxH)
Mic Drops: 8.25" (20.96cm) | | Carrying/Transport Options | Shoulder strap
Padded carrying handles | | Weight | 4.4 lbs (2.0kg) | | | | Box Dimensions (LxWxH) | 14.724 x 10.315 x 4.882" | - Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 6' (1.8 m), Black
| Connector 1 | 3-Pin XLR Male | | Connector 2 | 3-Pin XLR Female | | Cable Length | 6' / 1.8 m | | Shielding | 95% Spiral | | Wire Gauge | 24 AWG | | Contact Plating | Silver | | | | Box Dimensions (LxWxH) | 3.5 x 0.9 x 0.2" | - Auray WHF-158 Foam Windscreen for 1-5/8" Diameter Microphones (Black)
| Compatible Mic Diameter | 1.62" / 4.13 cm | | Material | Foam | | | | Box Dimensions (LxWxH) | 2.6 x 2.6 x 1.8" |
