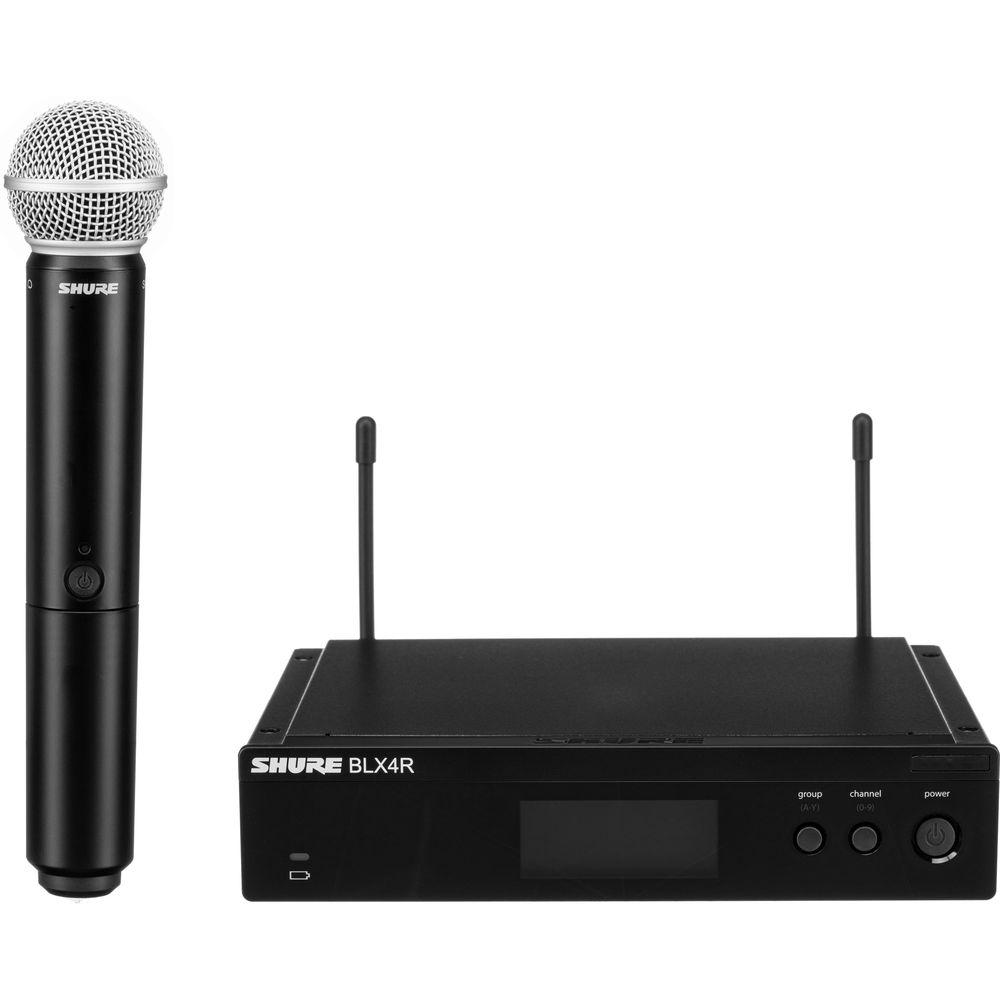

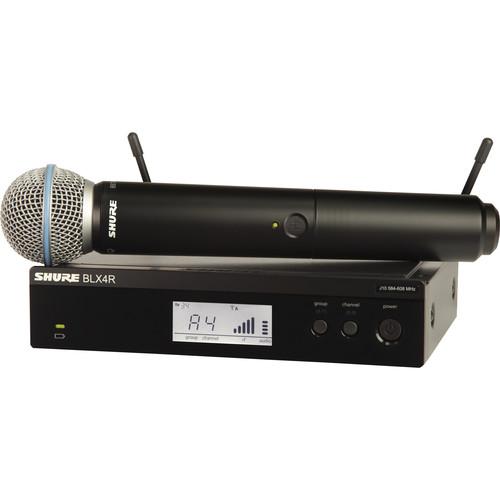

Product description The BLX24R/B58 Handheld Wireless System with Beta 58A Mic from Shure includes a BLX4R single-channel wireless receiver and a BLX2 handheld transmitter with a Beta 58A microphone cartridge. This system is set to Shure's H9 frequency band between 512 to 542 MHz. The system has up to a 300' line-of-sight range of operation and is designed for easy setup.
The BLX4R receiver's one-touch QuickScan frequency selection finds the clearest available channel and tunes the unit to it. Its front-panel LCD display indicates the group and channel it is tuned to, allowing you to set the BLX2 transmitter to match. A dual-colored LED indicator displays green for normal audio levels and red to alert you if your levels are clipping. The two antennas have microprocessor controlled internal diversity to help prevent interference.

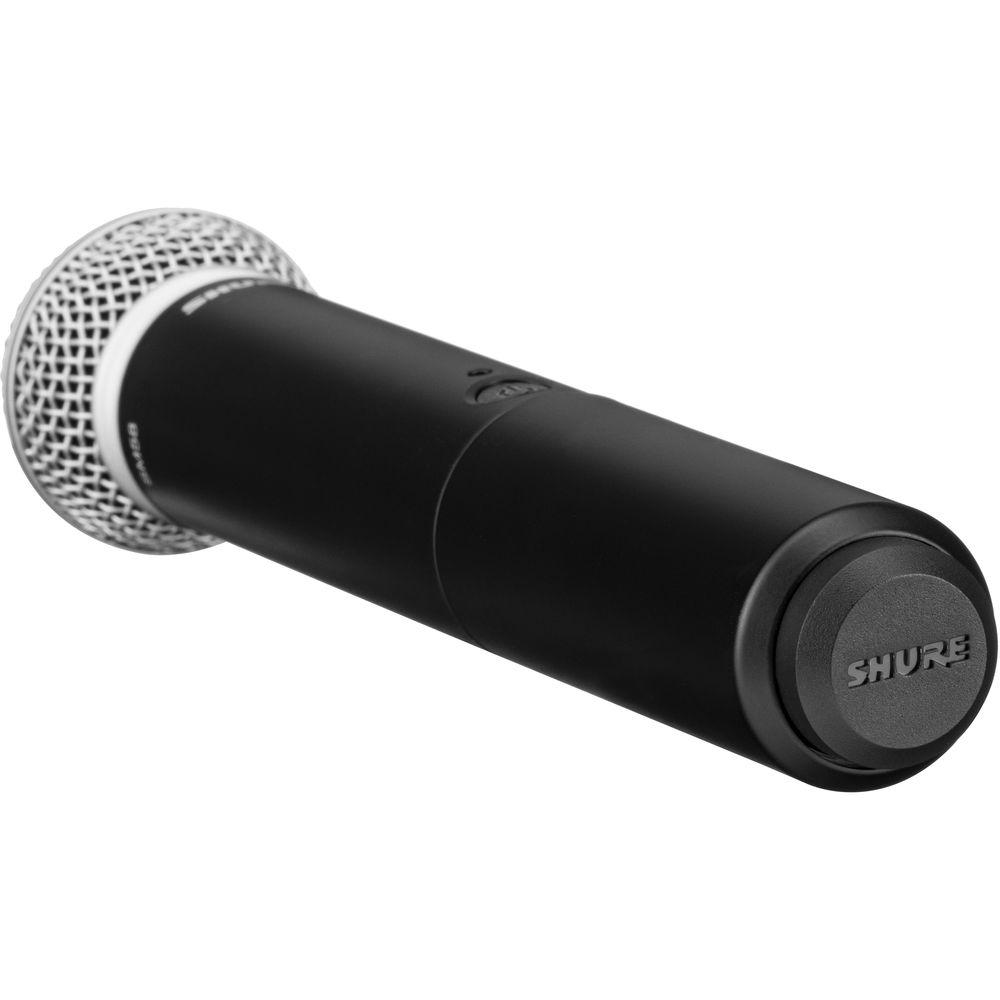

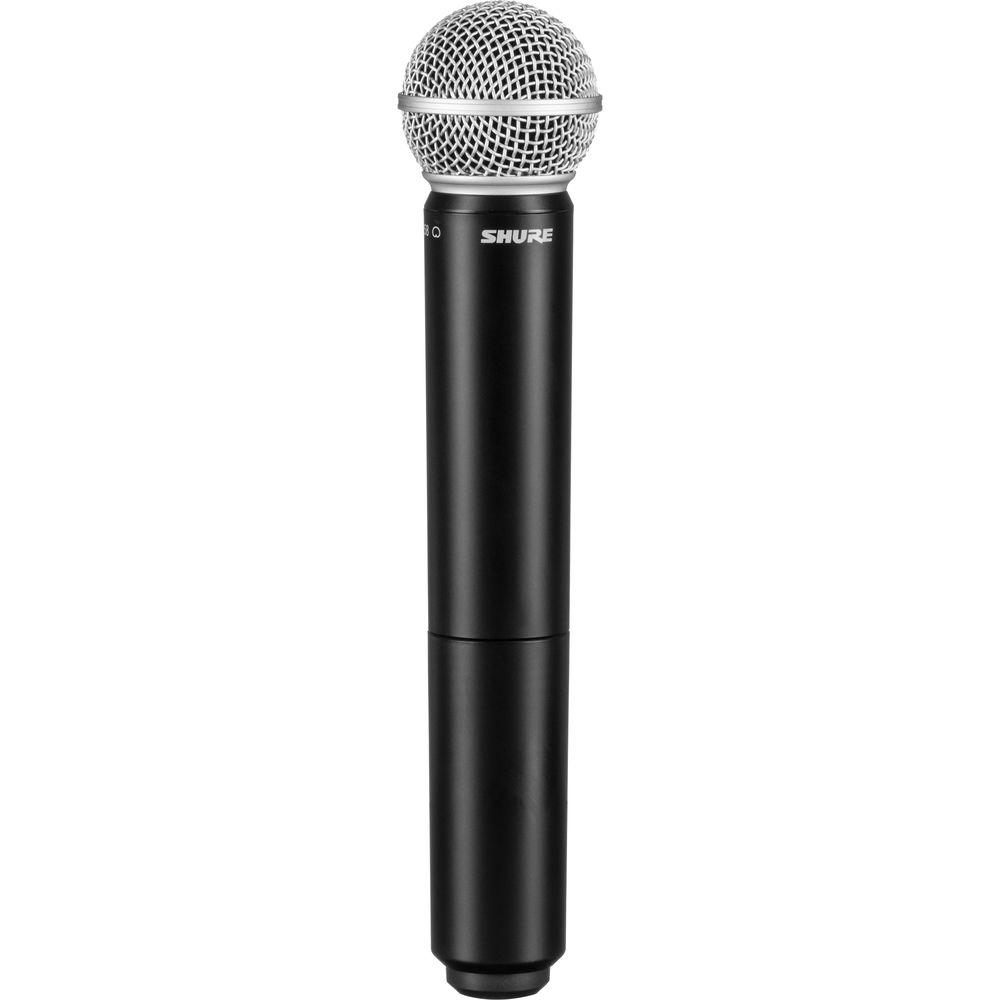

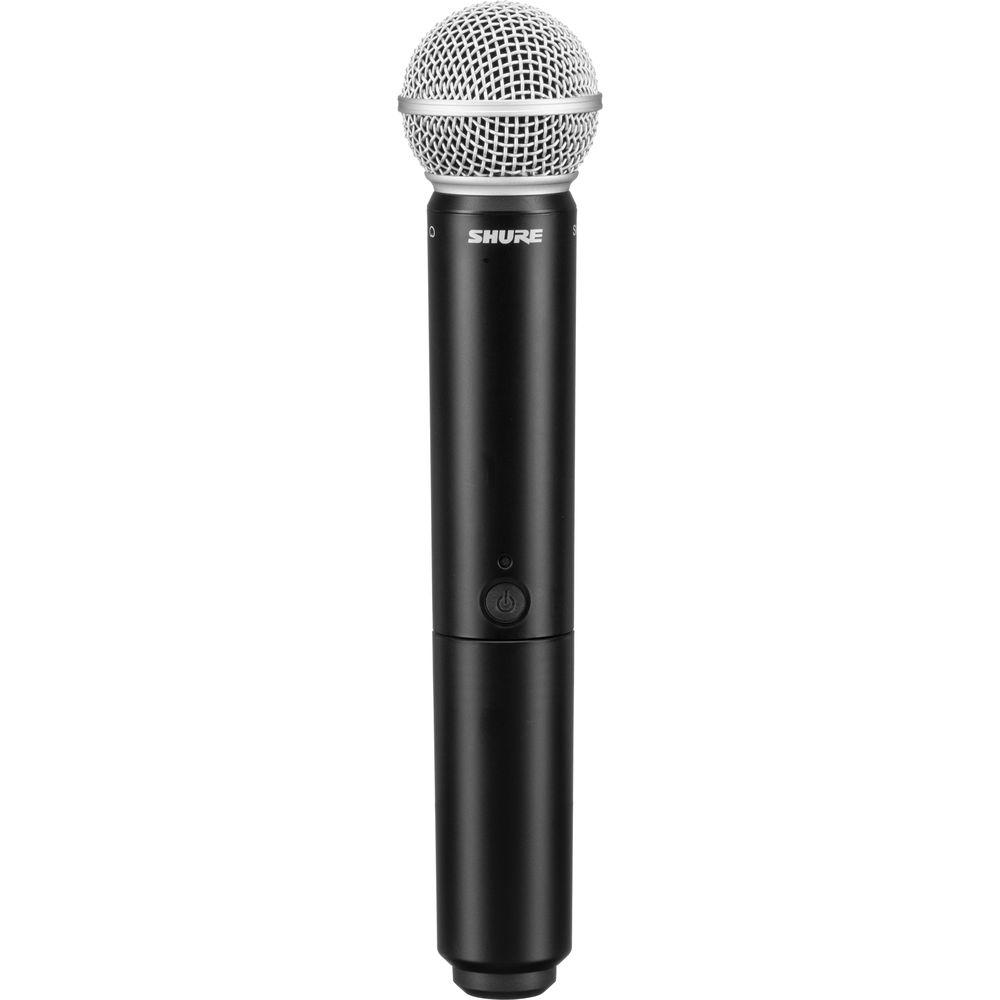

Two included AA batteries provide the BLX2 transmitter with up to 14 hours of operation. You can use up to 12 compatible BLX systems simultaneously per frequency band. - BLX2/B58 Handheld Wireless Transmitter with Beta 58A Microphone Cartridge (H9: 512 - 542 MHz) The BLX2/58 Handheld Transmitter with Beta 58A Cartridge from Shure is tuned to Shure's H9 frequency band between 512 to 542 MHz MHz and provides a 300' line of sight operating range. It is powered by two included AA batteries for up to 14 hours, and is compatible with Shure BLX wireless systems set to the same frequency band. A padded zipper case and microphone clip are included. UPC: 042406470070

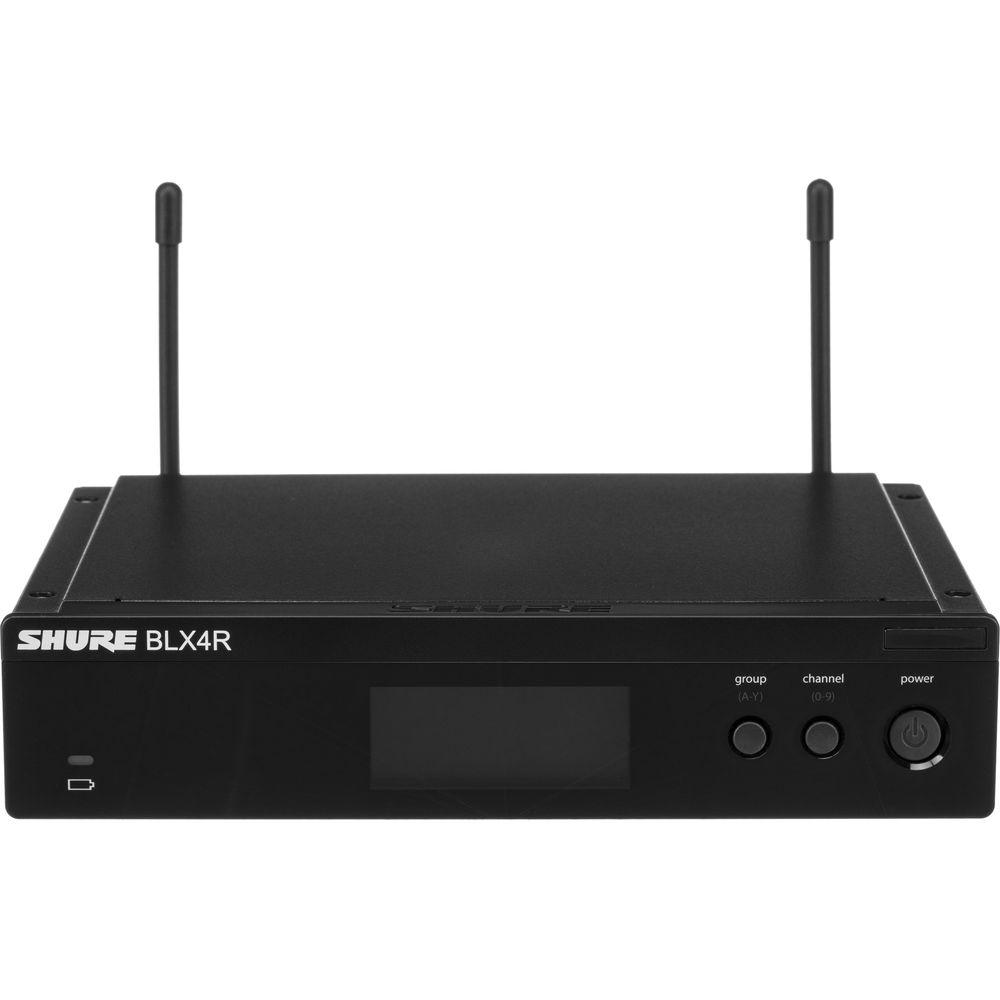

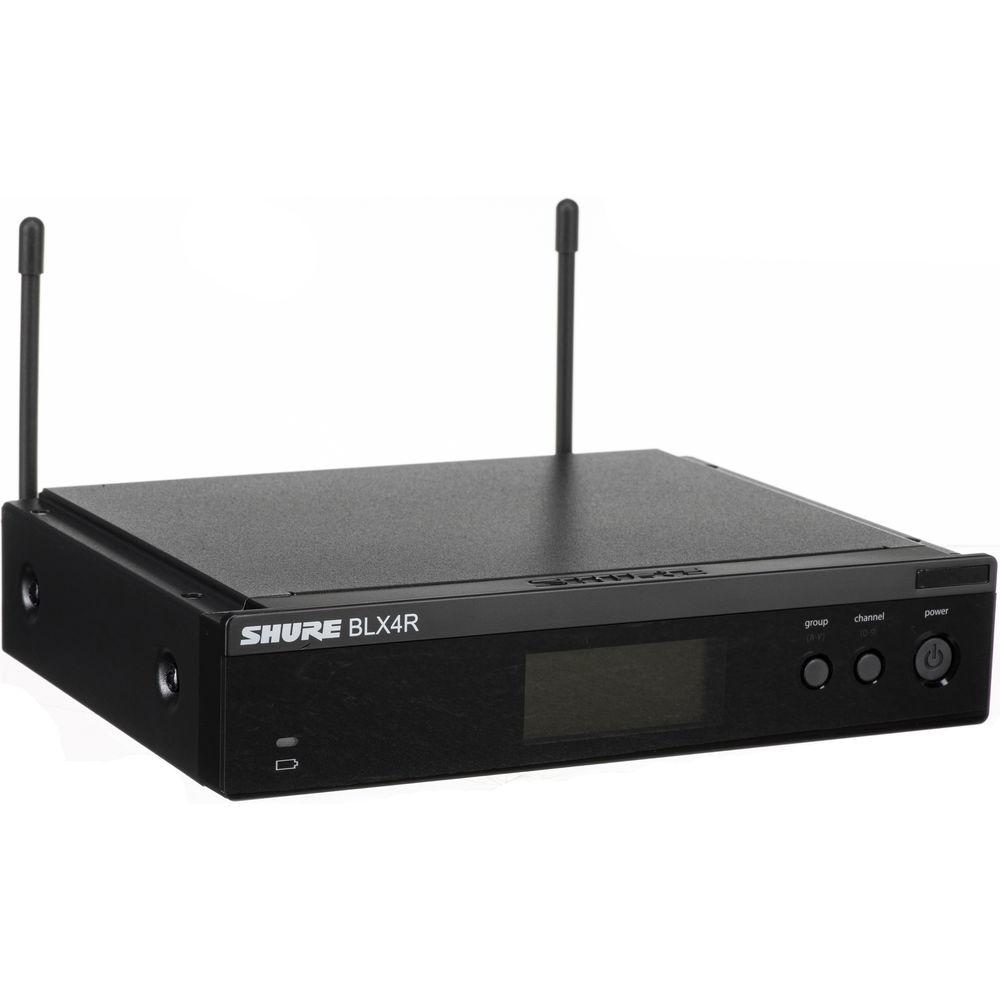

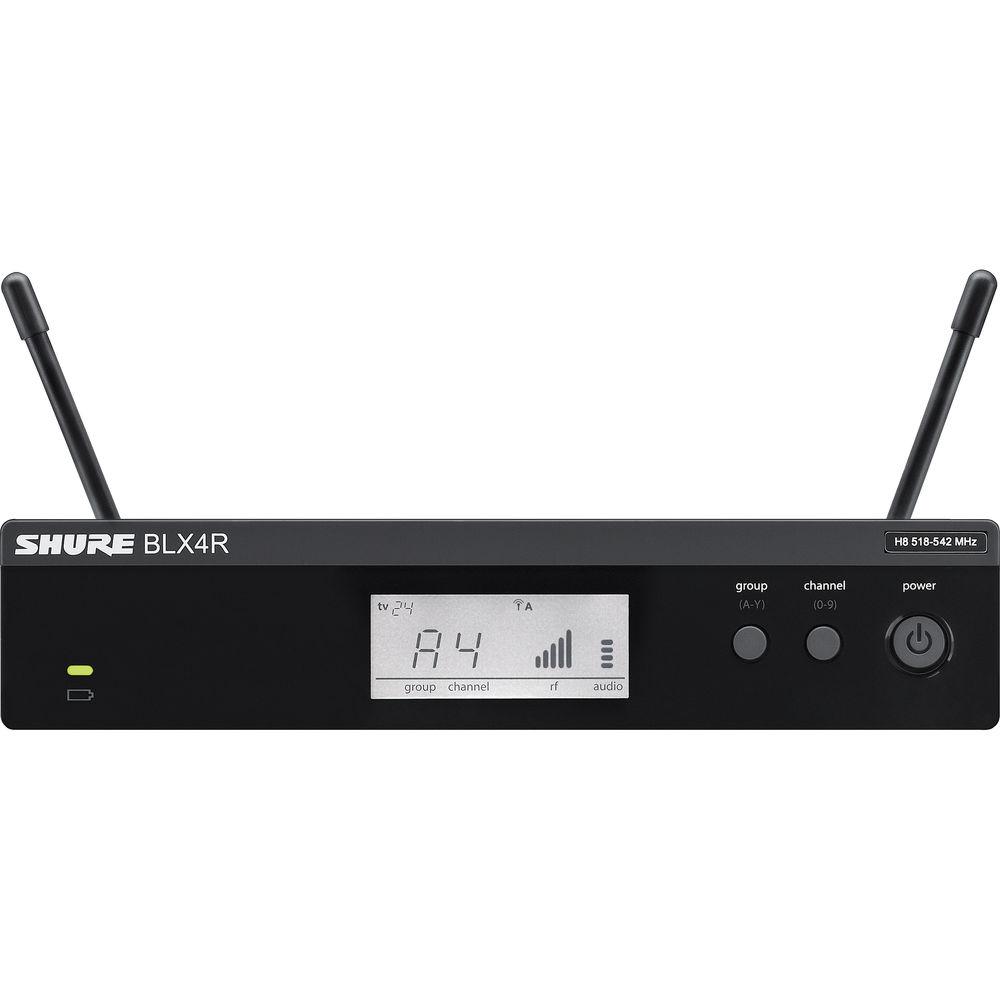

- BLX4R Single-Channel Wireless Rackmount Receiver (H9: 512 - 542 MHz) The BLX4R Wireless Rackmount Receiver from Shure is a single-channel receiver set to Shure's H9 frequency band and operates between 512 to 542 MHz. It has dual antennas with microprocessor-controlled internal diversity for reduced signal interference and dropouts. The one-touch QuickScan frequency selection feature allows you to quickly locate the available frequency with the least amount of interference.

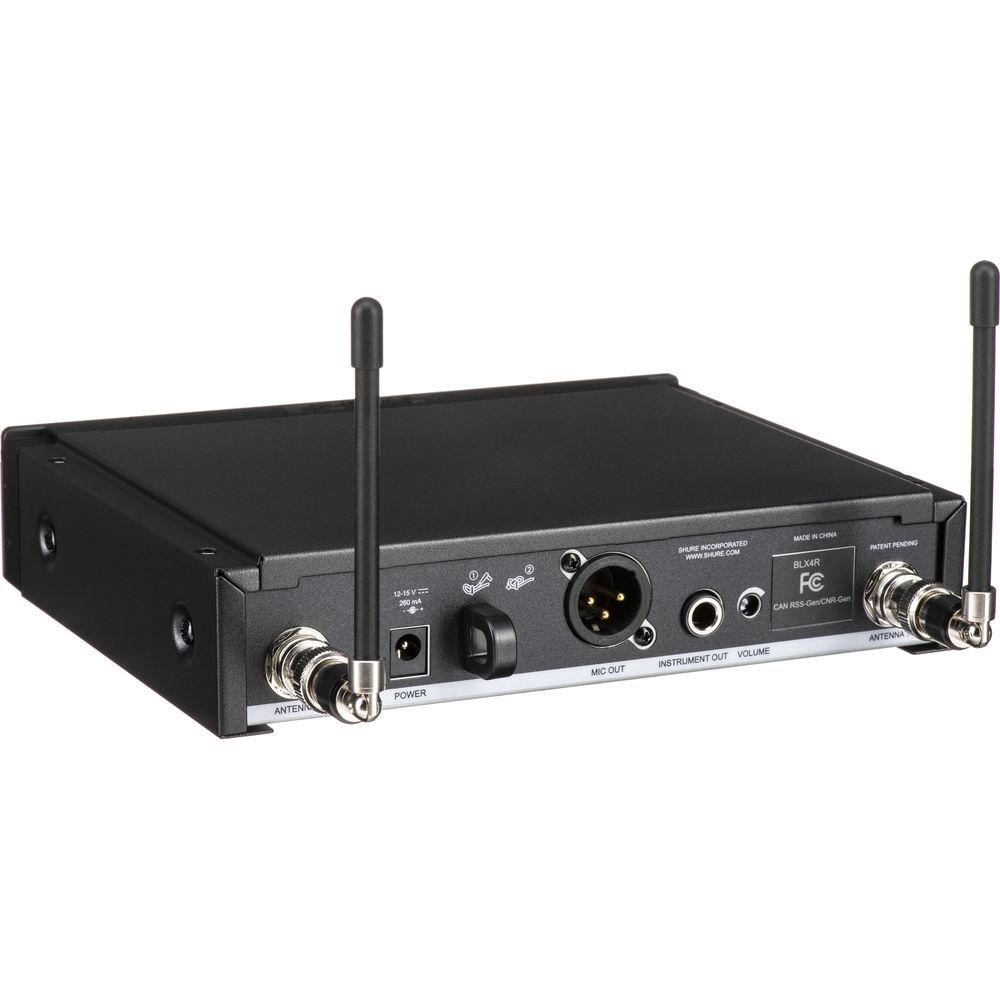

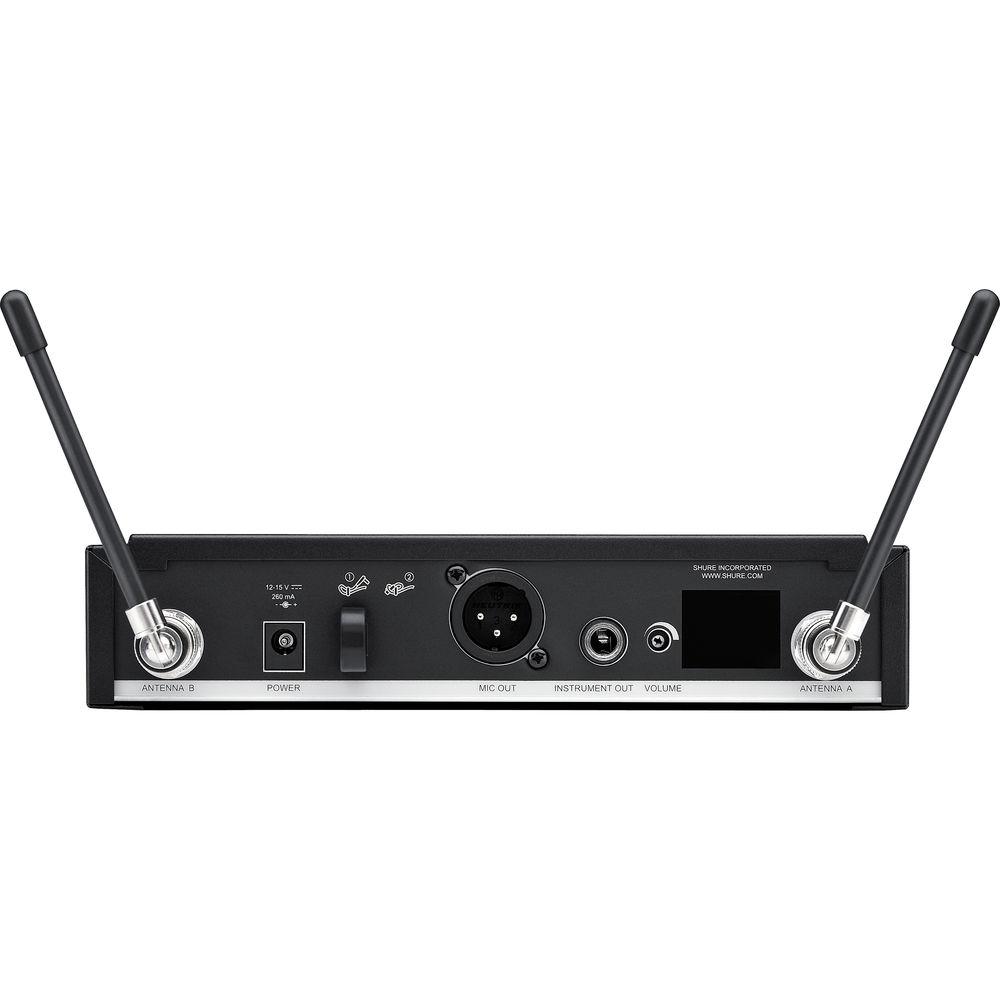

The unit features an LCD display for RF and audio level metering while its front-panel dual-color LED status indicator displays green for normal levels and red when clipping. It has an XLR output in additional to an instrument level 1/4" output. A rear-panel control provides output level. The BLX4R can be rackmounted with the included rackmount kit. UPC: 042406470773 In the Box Bundle Items BLX2/B58 Handheld Wireless Transmitter with Beta 58A Microphone Cartridge (H9: 512 - 542 MHz) xtrxbaxzuwbsfd BLX4R Single-Channel Wireless Rackmount Receiver (H9: 512 - 542 MHz)
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure BLX24R B58 Handheld Wireless System with Beta 58A Mic in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - BLX2/B58 Handheld Wireless Transmitter with Beta 58A Microphone Cartridge (H9: 512 - 542 MHz)
| | | Audio Input Level | 0 dB Gain: -20 dBV Maximum
-10 dB Gain: -10 dBV Maximum | | Gain Adjustment Range | 10 dB | | RF Output | 10 mW, Typical (Varies by Region) | | Power Requirement | 2x LR6 AA Batteries, 1.5 V Alkaline | | Housing | Molded ABS | | Dimensions (Ø x L) | 2.1 x 8.8" (53 x 224 mm) | | Weight | 7.7 oz (218 g) | | | | Type | Dynamic (Moving Coil) | | Frequency Response | 50 Hz to 16 kHz | | Polar Pattern | Supercardioid, rotationally symmetrical about microphone axis, uniform with frequency | | Output Level | Open Circuit Voltage: -51.5 dBV/Pa* (2.6 mV) *1 Pa = 94 dB SPL | | | | Box Dimensions (LxWxH) | 11.1 x 5.3 x 3.3" | - BLX4R Single-Channel Wireless Rackmount Receiver (H9: 512 - 542 MHz)
| Output | 1x XLR Output
1x 1/4" (6.35 mm) Output | | Output Impedance | XLR: 200 ohms
1/4": 50 ohms | | Audio Output Level | XLR Connector: -20.5 dBV into 100 kOhms Load (Reference +/-33 kHz with 1 kHz Tone)
1/4": -13 dBV into 100 kOhms Load (Reference +/-33 kHz with 1 kHz Tone) | | RF Sensitivity | -105 dBm for 12 dB SINAD, Typical | | Image Rejection | >50 dB, Typical | | Housing | Molded ABS, Steel | | Power Requirement | 12 to 15 VDC @ 260 mA, Supplied by External Power Supply (Tip Positive) | | Dimensions (H x W x D) | 2.0 x 7.8 x 6.4" (50 x 198 x 163 mm) | | Weight | 2.2 lb (998 g) | | | | Box Dimensions (LxWxH) | 18.4 x 14.7 x 3.8" |
