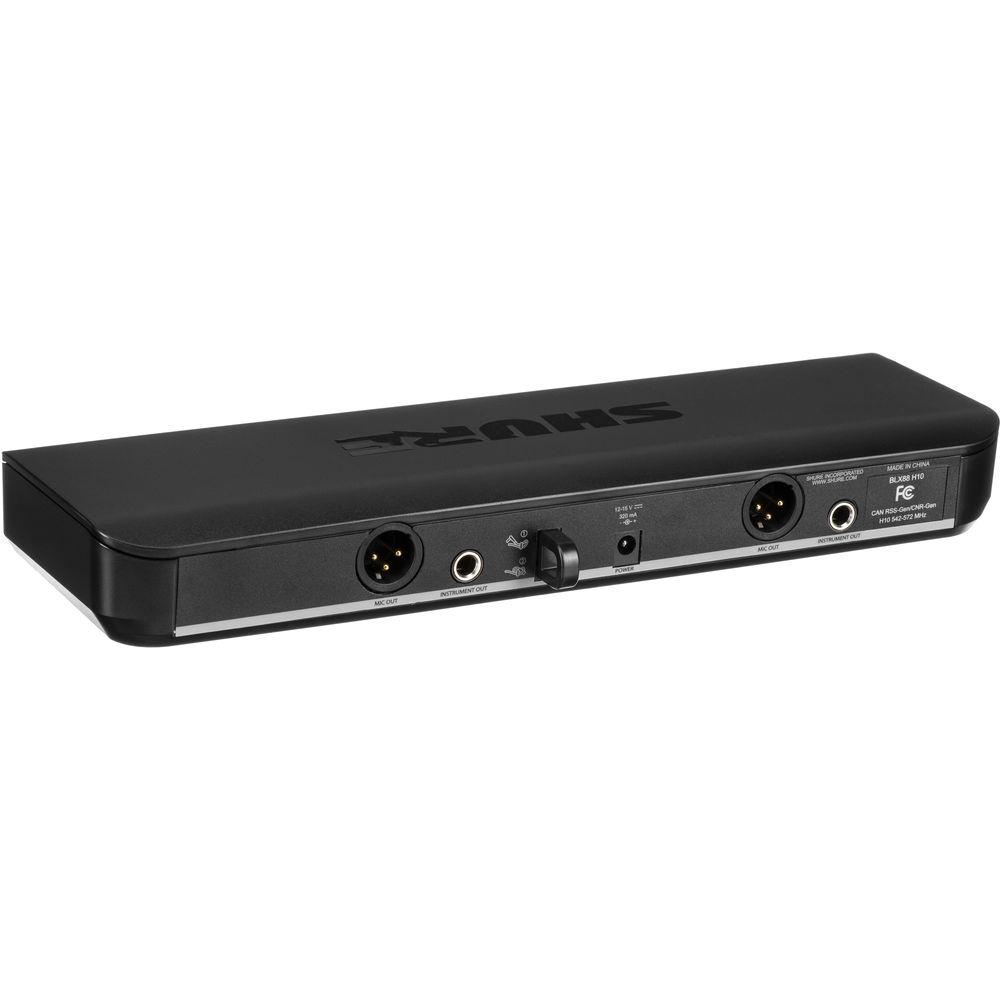

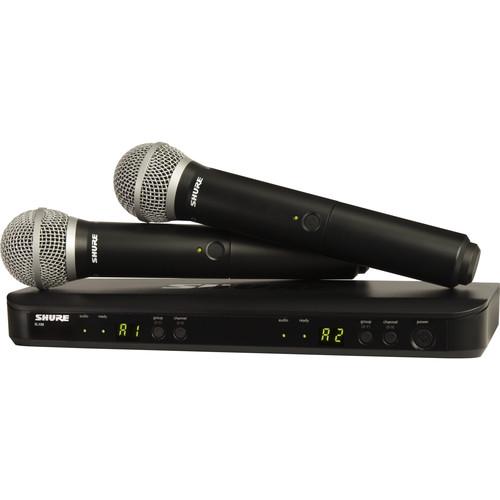

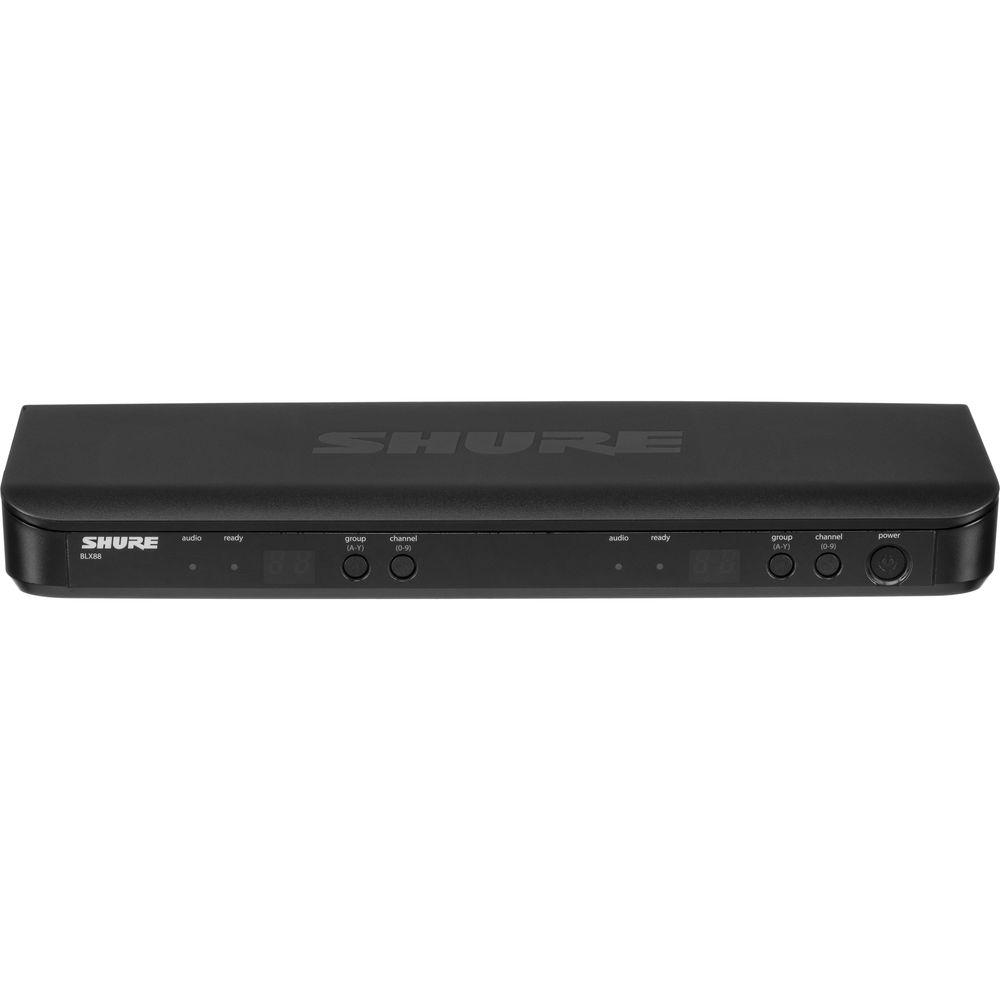

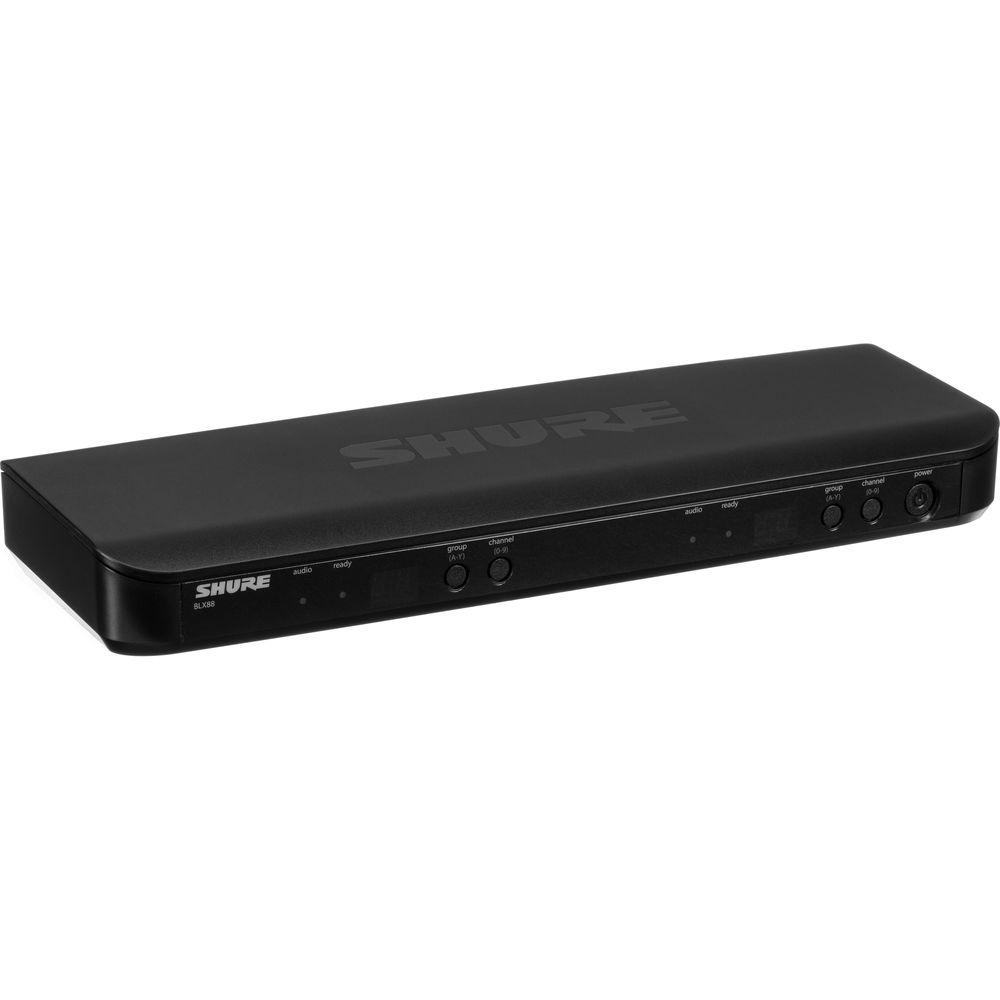

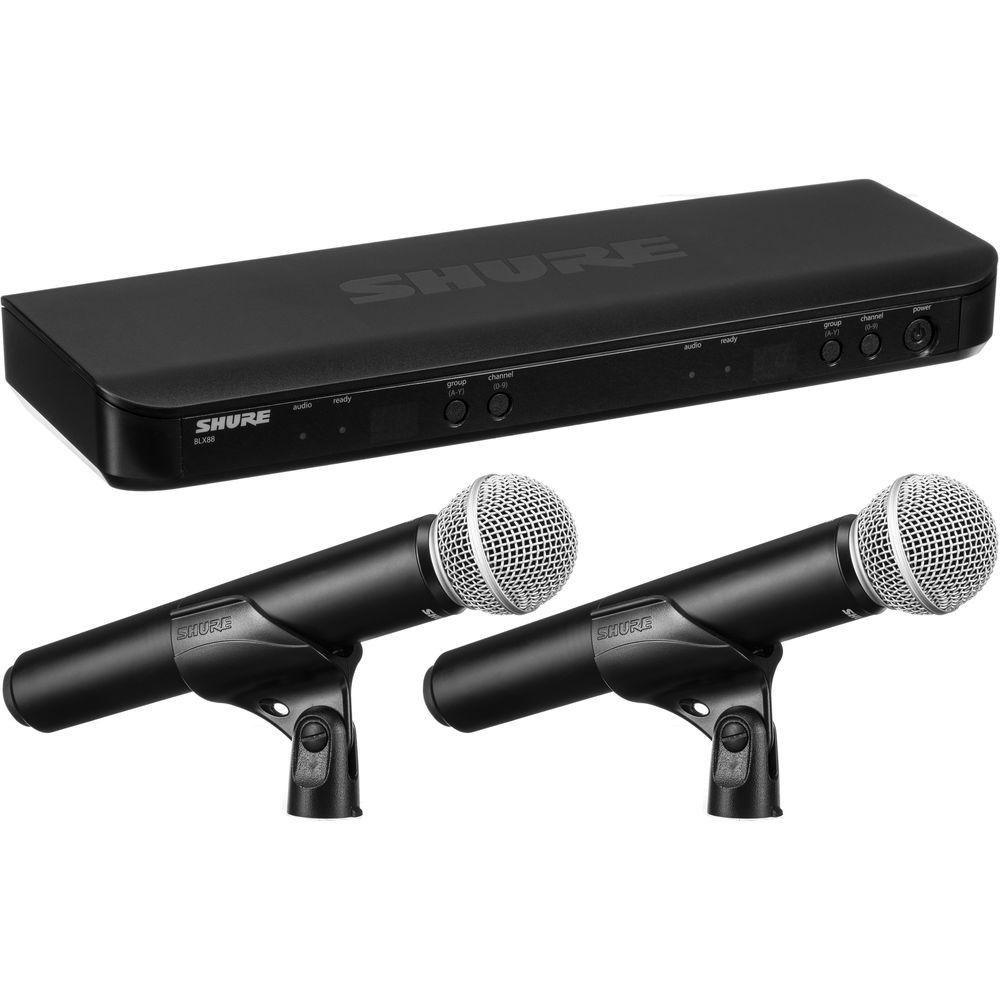

Product description The BLX288/PG58 Dual-Transmitter Handheld Wireless System from Shure includes a BLX88 dual-channel wireless receiver and two BLX2 handheld transmitters, both with PG58 microphone capsules. The system is set to Shure's H10 frequency band and operates between 542 to 572 MHz.
Both of the BLX2 handheld transmitters have a 300' line of sight operation range with the BLX88 receiver. They are each powered by two included AA batteries that can operate for up to 14 hours. The BLX88 receiver features microprocessor-controlled internal antenna diversity that helps prevent interference and signal dropouts. Its one-touch QuickScan feature detects the most interference-free frequency and sets the channel to it for fast setup. The BLX2 handheld transmitters feature an on/off switch on the mic body and are tuned for vocal applications. - BLX88 Dual-Channel Wireless Receiver (H10: 542 - 572 MHz) The BLX88 Dual-Channel Wireless Receiver from Shure is a dual-channel receiver set to Shure's H10 frequency band and operates between 542 to 572 MHz. It has microprocessor-controlled internal antenna diversity for reduced signal interference and dropouts. The one-touch QuickScan frequency selection feature allows you to quickly locate the frequency with the least amount of interference available.

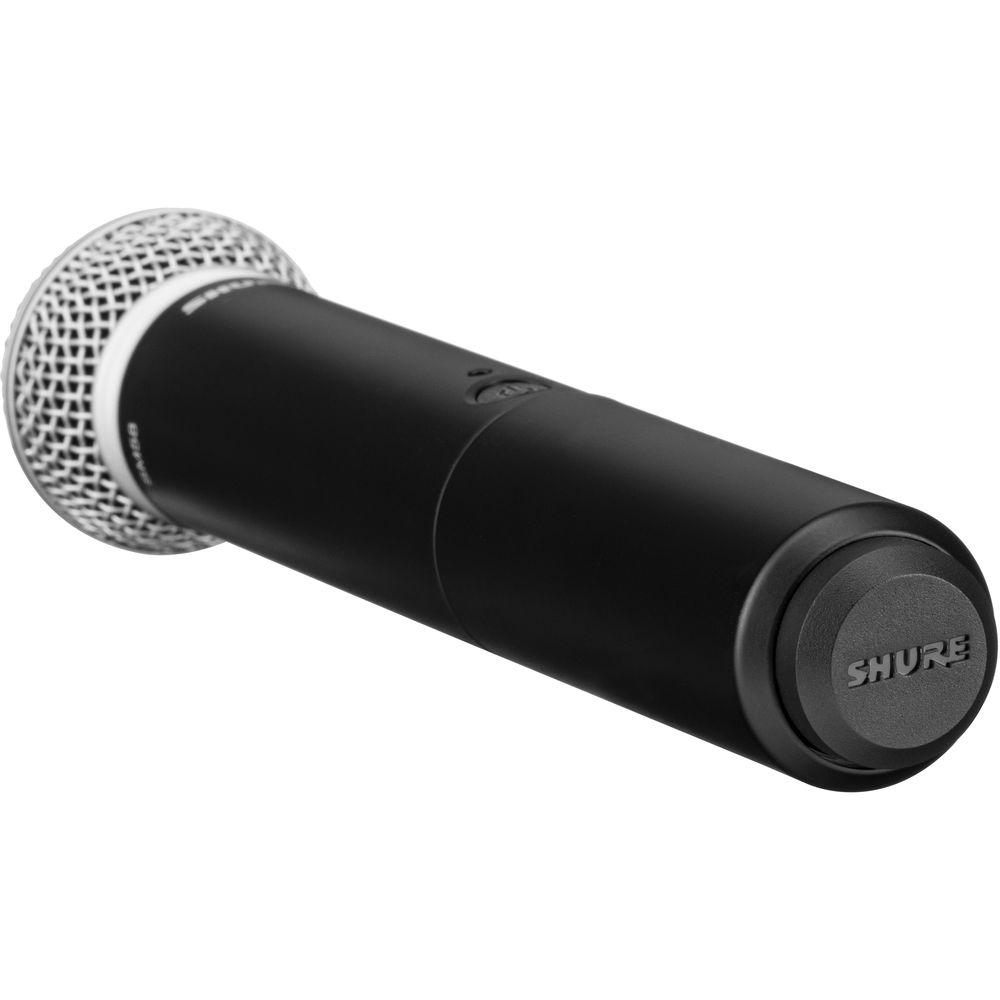

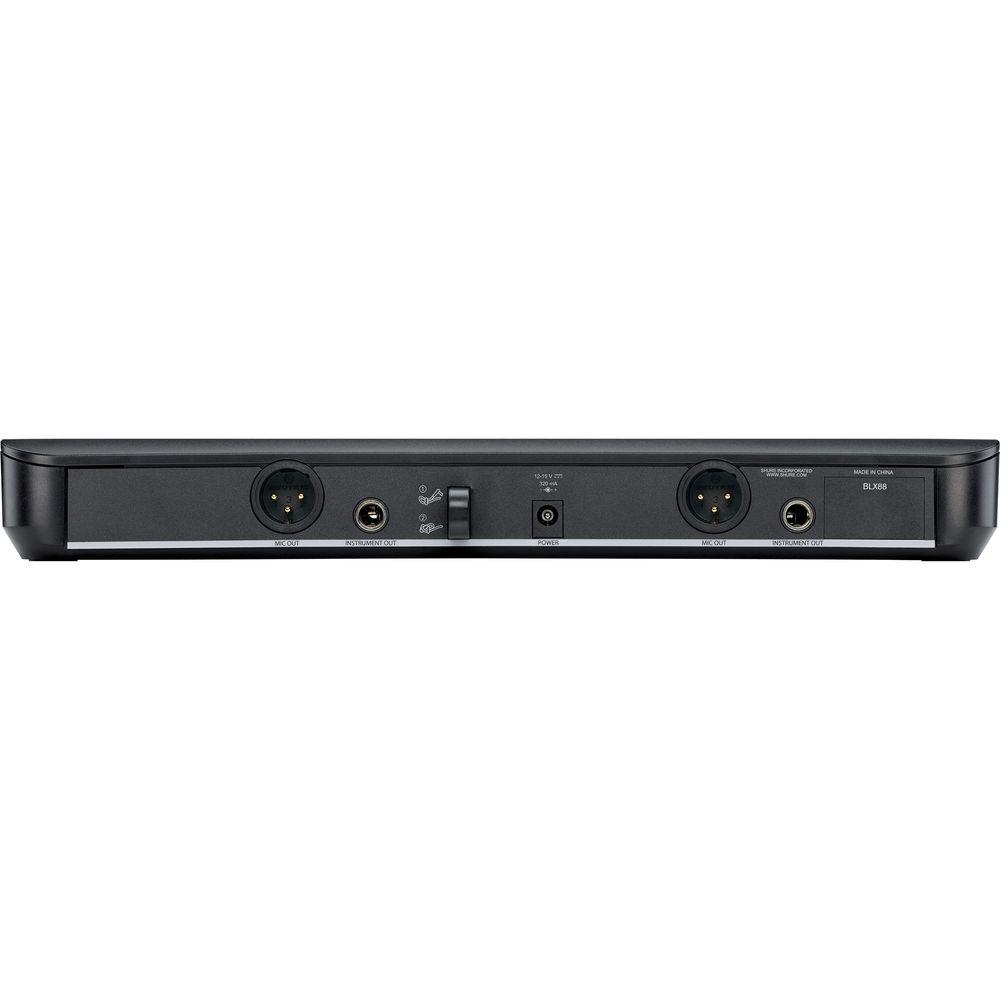

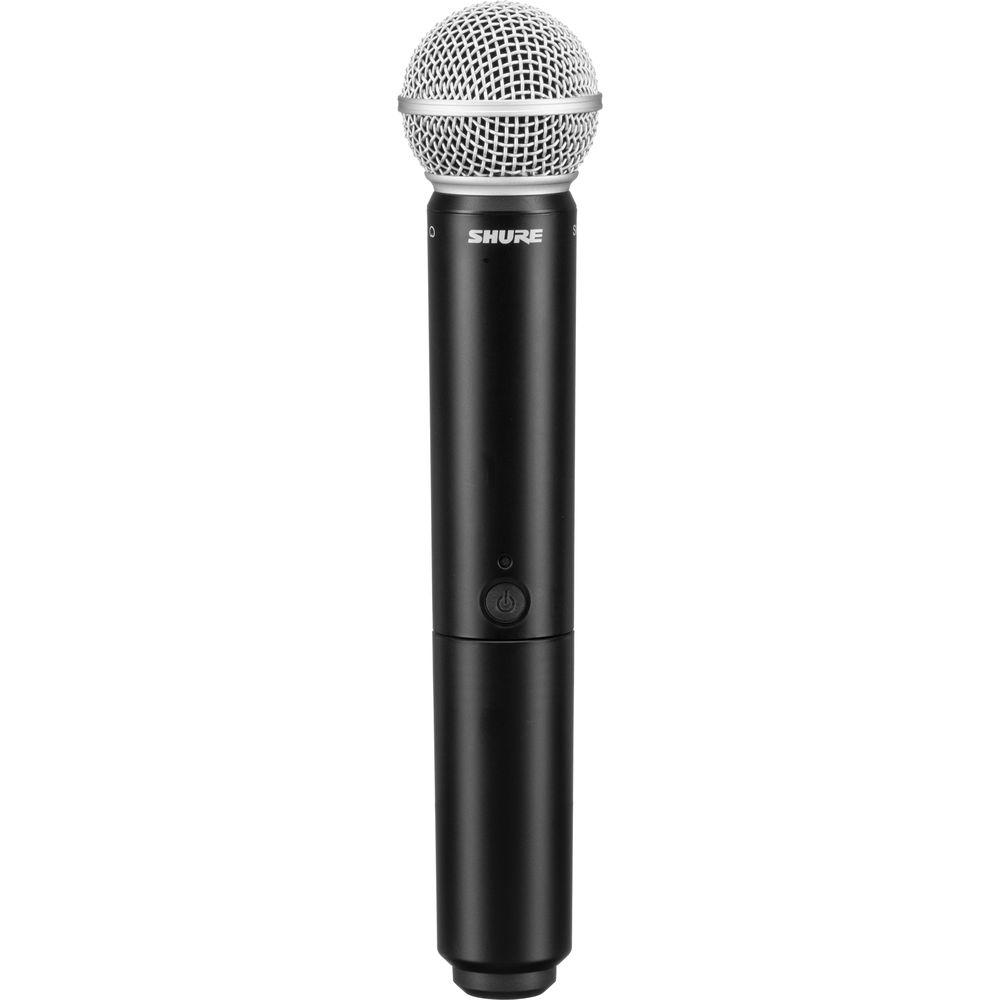

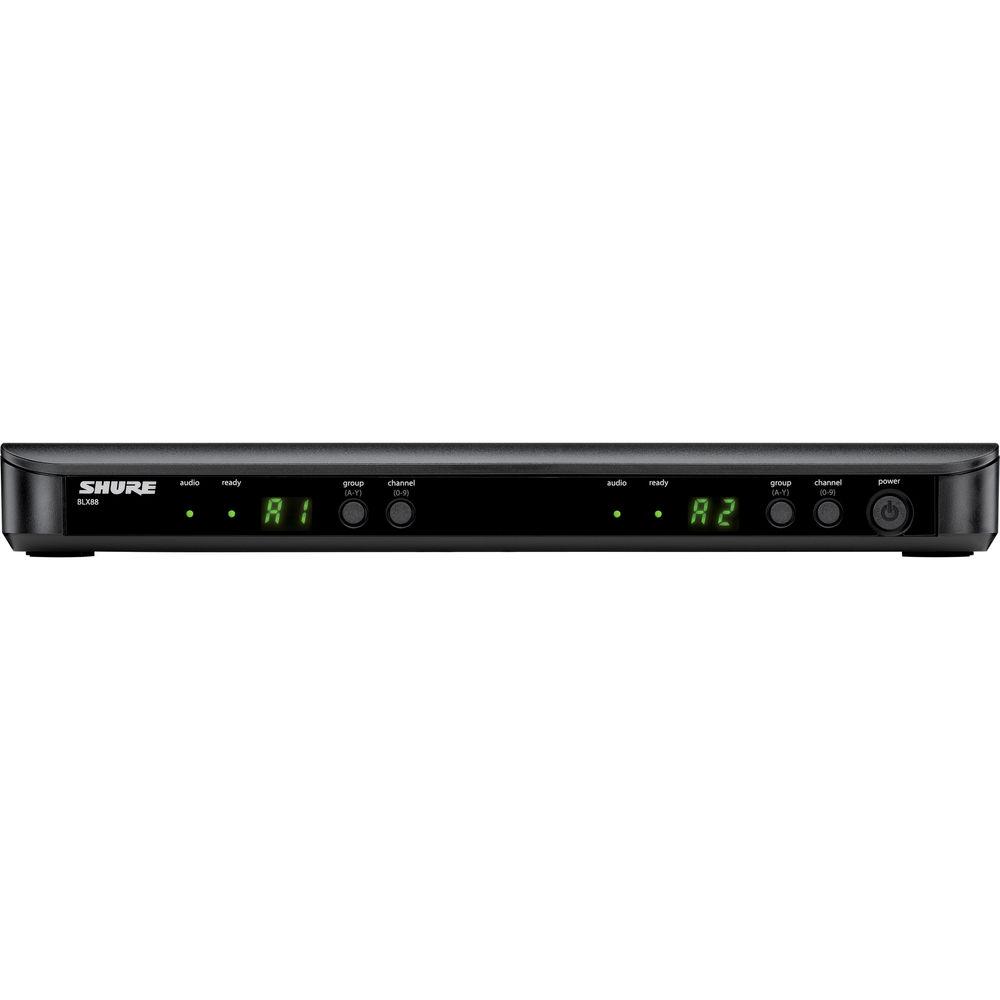

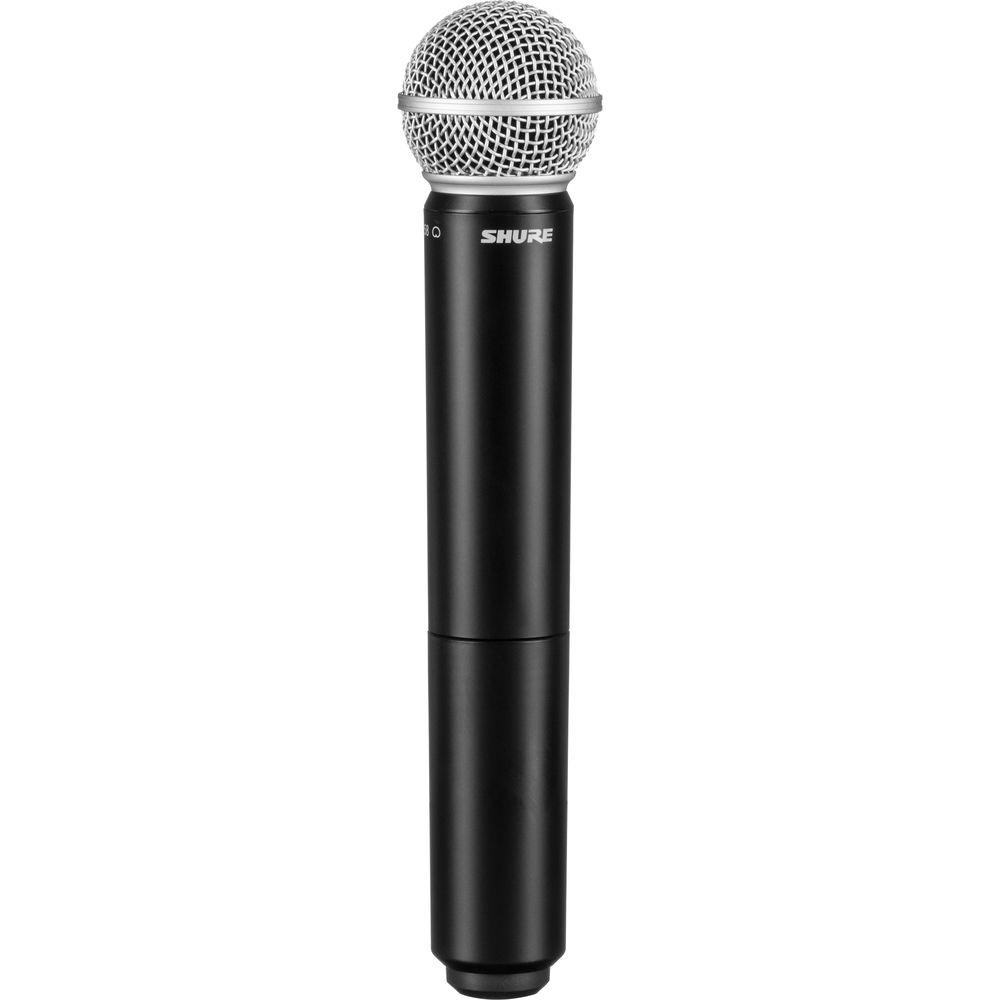

Its front-panel dual-color LED status indicator displays green for normal levels and red when clipping for fast metering. It has two XLR outputs in additional to two instrument-level 1/4" outputs. The BLX88 can be used with up to 11 other compatible systems simultaneously per frequency band. UPC: 042406470797 - BLX2 Handheld Transmitter with PG58 Microphone (H10: 542 - 572 MHz) The BLX2 Handheld Transmitter with PG58 Microphone from Shure is set to Shure's H10 frequency band between 542 to 572 MHz MHz and provides a 300' line of sight operating range. It is powered by two included AA batteries for up to 14 hours. It is compatible with Shure BLX wireless systems set to the same frequency band. A padded zipper case and microphone clip are included. UPC: 042406470094
In the Box Bundle Items BLX88 Dual-Channel Wireless Receiver (H10: 542 - 572 MHz) asbysubbefbttwctxrucxussfbw 2 x BLX2 Handheld Transmitter with PG58 Microphone (H10: 542 - 572 MHz)
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure BLX288 PG58 Dual-Transmitter Handheld Wireless System with 2 PG58 Mics in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - BLX88 Dual-Channel Wireless Receiver (H10: 542 - 572 MHz)
| Output | 2x XLR Output
2x 1/4" (6.35 mm) Output | | Output Impedance | XLR: 200 ohms
1/4": 50 ohms | | Audio Output Level | XLR Connector: -20.5 dBV into 100 kOhm Load (Reference +/-33 kHz with 1 kHz Tone)
1/4": -13 dBV into 100 kOhm Load (Reference +/-33 kHz with 1 kHz Tone) | | RF Sensitivity | -105 dBm for 12 dB SINAD, Typical | | Image Rejection | >50 dB, Typical | | Housing | Molded ABS | | Power Requirement | 12 to 15 VDC @ 320 mA, Supplied by External Power Supply (Tip Positive) | | Dimensions (H x W x D) | 1.5 x 15 x 4.5" (40 x 388 x 116 mm) | | Weight | 15.1 oz (429 g) | | | | Box Dimensions (LxWxH) | 19.1 x 16.2 x 3.6" | - BLX2 Handheld Transmitter with PG58 Microphone (H10: 542 - 572 MHz)
| | | Audio Input Level | 0 dB Gain: -20 dBV Maximum
-10 dB Gain: -10 dBV Maximum | | Gain Adjustment Range | 10 dB | | RF Output | 10 mW, Typical (Varies by Region) | | Power Requirement | 2x LR6 AA Batteries, 1.5 V Alkaline | | Housing | Molded ABS | | Dimensions (Ø x L) | 2.1 x 8.8" (53 x 224 mm) | | Weight | 7.7 oz (218 g) | | | | Type | Dynamic (Moving Coil) | | Polar Pattern | Cardioid | | Frequency Response | 60 Hz to 15 kHz | | Polarity | Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of microphone output connector | | Sensitivity | -53 dBV/Pa, (2.2 mV), 1 Pascal=94 dB SPL (@ 1 kHz) | | Electromagnetic Hum Sensitivity | 26 dB equivalent SPL in a 1 millioersted field (60 Hz) | | Temperature Range | -20 to 153°F (-29 to 57°C) | | Relative Humidity | 0 to 95% | | | | Box Dimensions (LxWxH) | 11.1 x 5.3 x 3.3" |
