User Manual for Shure BRH31M-NXLR5M Lightweight Single-Sided Broadcast Headset with Neutrik 5-Pin XLR-M Cable Click to enlarge the picture
Contents of the user manual for the Shure BRH31M-NXLR5M Lightweight Single-Sided Broadcast Headset
- Product category: Headsets Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Headsets
|
User manual for the Shure BRH31M-NXLR5M Lightweight Single-Sided Broadcast Headset contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|

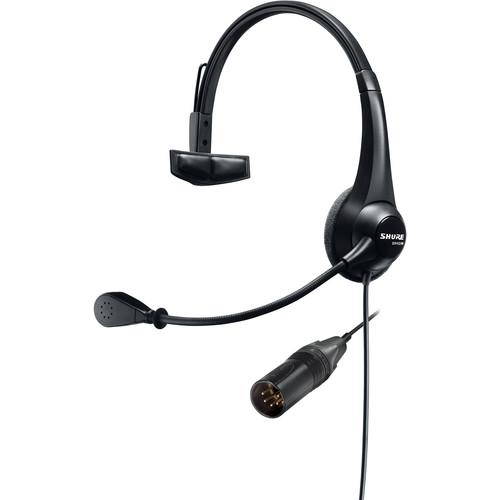

Product description The BRH31M-NXLR5M Lightweight Single-Sided Broadcast Headset with Neutrik 5-Pin XLR-M Cable from Shure features a dynamic microphone with a cardioid polar pattern, and a supra-aural, closed-back earcup to hear external audio cues. It can be used to capture and monitor audio by newsrooms, podcasters, radio announcers, sports commentators, and more in broadcast and media production applications.The dynamic capsule provides clear and natural vocal and speech reproduction in an ultra-lightweight design. The flexible-boom microphone can pivot 270°, for left or right-side wear, and permits precise positioning.Also, the single-sided headset has an adjustable headband with a cushioned temple pad for a more comfortable and ergonomic fit. The single-sided, Kevlar-reinforced cable offers increased durability. Finally, the included user-replaceable earcup pads and windscreen are of a robust design, which endures the demand of everyday professional use. - Closed-back, supra-aural design in an ultra-lightweight construction
- Natural and clear vocal reproduction with frequency response optimized for communication in loud environments
- Adjustable headband with cushioned temple pad for a comfortable and ergonomic fit
- Flexible-boom microphone that pivots 270° for left or right-side wear and precise positioning
- Kevlar-reinforced cable for increased durability
- Shure quality and durability to withstand the demands of everyday professional use
- Replaceable ear pad and windscreen included for a long product life
UPC: 042406509121 In the Box Shure BRH31M-NXLR5M Lightweight Single-Sided Broadcast Headset with Neutrik 5-Pin XLR-M Cable Replacement Earpads for BRH31M Headset (Pair) Replacement Foam Windscreen for BRH Headsets Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure BRH31M-NXLR5M Lightweight Single-Sided Broadcast Headset with Neutrik 5-Pin XLR-M Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure BRH31M-NXLR5M Specs | | | Type | Dynamic, neodymium magnet, 0.49" (12.5 mm) | | Polar Pattern | Cardioid | | Frequency Response | 50 Hz to 15 kHz | | Output Impedance | 150 Ohms | | Sensitivity | At 1 kHz, Open Circuit Voltage:
66.5 dBV/Pa (0.47 mV) 1 Pa = 94 dB SPL | | Polarity | Positive pressure on diaphragm produces positive voltage on red wire with respect to black wire | | | | Transducer Type | Dynamic, neodymium magnet | | Driver Size | 1.2" (30 mm) | | Frequency Response | 150 Hz to 12 kHz | | Sensitivity | 101 dB SPL/mW @ 1 kHz | | Impedance | 220 Ohms @ 1 kHz | | Maximum Input Power | 200 mW | | Cable | 5.7' (1.75 m) cable with hardwired Neutrik XLR 5-pin male connector | | | | Operating Temperature | 0 to 140°F (18 to 60°C) | | Storage Temperature | -20 to 165°F (-29 to 74°C) | | Relative Humidity | 0 to 95% | | Weight | 2.9 oz (81 g) without cable
4.4 oz (125 g) with connector | | | | Package Weight | 1.1 lb | | Box Dimensions (LxWxH) | 8.8 x 7.7 x 3.5" |
