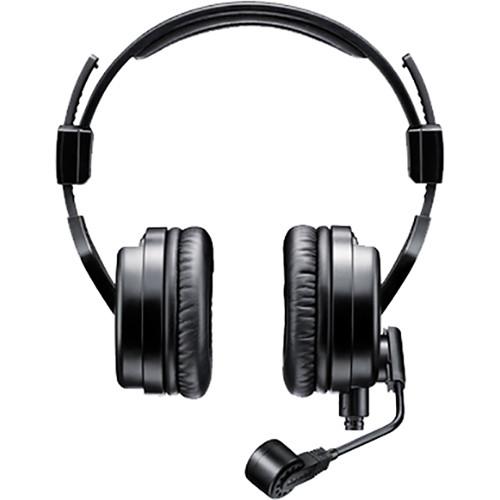

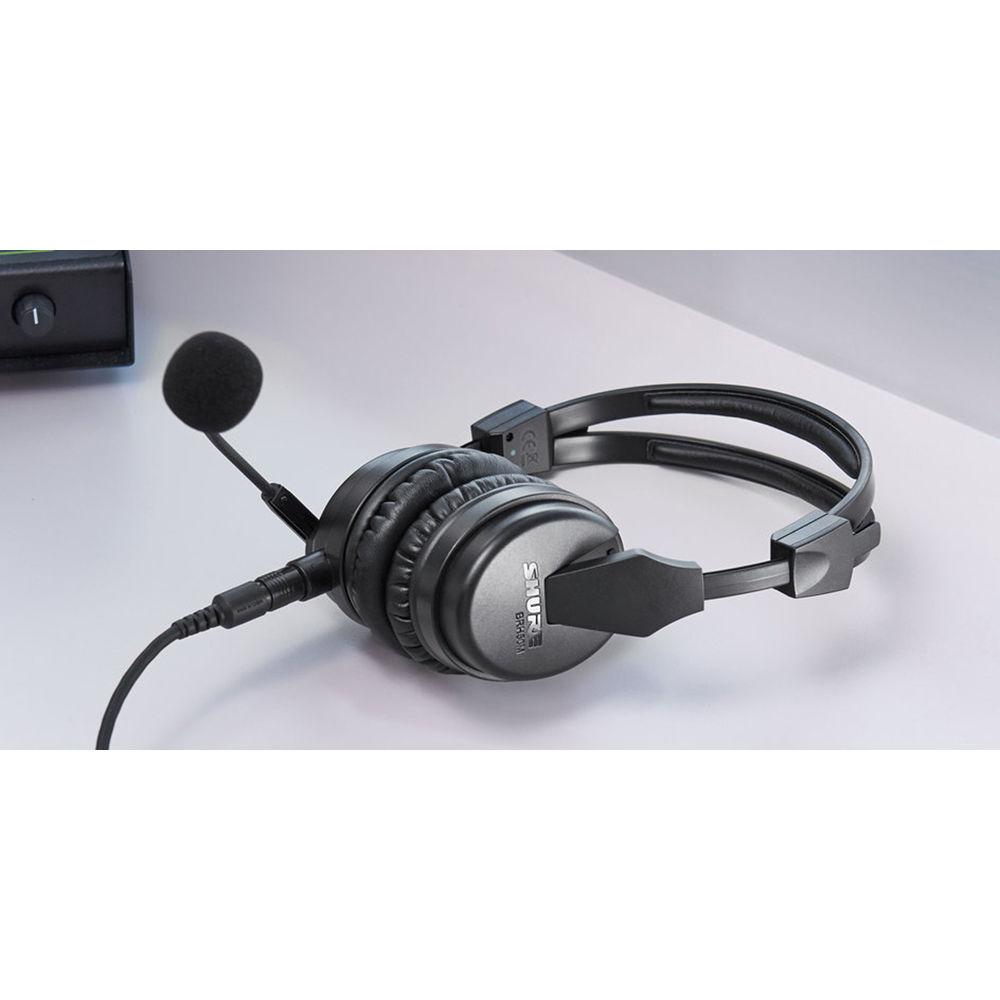

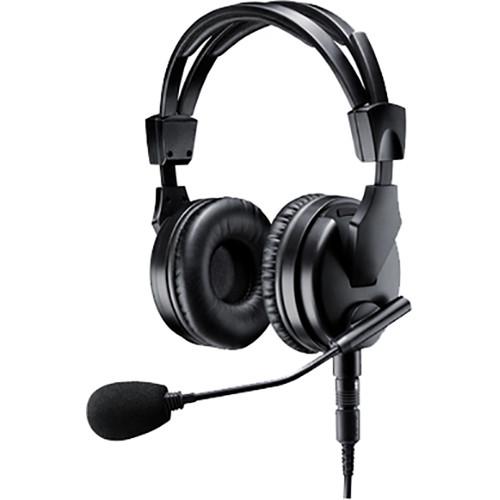

Product description The BRH50M from Shure is a lightweight, dual-sided headset designed for use in on-camera broadcast applications. Its dual earphones, pivoting boom microphone, and detachable cable allow easy configuration for left- or right-side wear.The closed-back, supra-aural earcups feature 40mm drivers, which provide a frequency response of 20 Hz to 20 kHz. The adjustable headband with padding ensures comfort.The boom arm for the mic pivots up to 270 degrees, allowing use on the left or right side. The dynamic microphone delivers a frequency response of 40 Hz to 16 kHz and is optimized for on-air broadcast of voice reproduction. It exhibits a cardioid polar pattern at 1 kHz and 4 kHz for optimal voice reproduction. At 500 Hz and 8 kHz, it utilizes a supercardioid polar pattern for increased rejection of off-axis sound.The single-sided, detachable cable connector is reinforced with Kevlar for increased durability. The included Y-cable terminates to Neutrik 3-pin XLR male and 1/4” stereo TRS. The ear pads and included windscreen are user-replaceable. -
- Lightweight, on-camera design
- Dual-sided headset with 40mm drivers
- Closed-back, supra-aural earcups
- Headset frequency response: 20 Hz to 20 kHz
- Adjustable headband with padding
- Dynamic microphone features a neodymium magnet
- Mic boom pivots up to 270 degrees for use on left or right side
- Cardioid polar pattern at 1 kHz and 4 kHz for optimal voice reproduction
- Supercardioid polar pattern at 500 Hz and 8 kHz for increased rejection of off-axis sound
- Microphone frequency response: 40 Hz to 16 kHz
- Single-sided, detachable cable connector is reinforced with Kevlar for increased durability
- Included Y-cable terminates to Neutrik 3-pin XLR male and 1/4" stereo TRS
- Includes windscreen
- Ear pads and windscreen are user-replaceable
UPC: 042406229326 In the Box Shure BRH50M Dual-Sided Broadcast Headset with Microphone and Cable BCAWS2 Replacement Windscreen for BRH50M Headset Straight 3-Pin XLR and 1/4" Male Cable for BRH50M/440M/441M Broadcast Headset (25') Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure BRH50M Dual-Sided Broadcast Headset with Microphone and Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure BRH50M Specs | | | Type | Dynamic, neodymium magnet | | Polar Pattern | Cardioid (1 kHz and 4 kHz)
Supercardioid (500 Hz and 8 kHz) | | Frequency Response | 40 Hz to 16 kHz | | Output Impedance | 250 Ohms | | Sensitivity | @ 1 kHz, open circuit voltage: -60 dBV/PA (1 Pa = 94 dB SPL) | | Polarity | Positive pressure on diaphragm produces positive voltage on pin 1 (red wire) with respect to pin 2 (black wire) | | | | Transducer Type | Dynamic, neodymium magnet | | Driver Size | 40 mm | | Frequency Range | 20 Hz to 20 kHz | | Sensitivity | @ 1 kHz: 110 dB SPL/mW | | Impedance | @ 1 kHz: 300 Ohms | | Maximum Input Power | 1000 mW | | | | Cable Length | 24.6' / 7.5 m | | Cable Connectors | Y-cable terminates to Neutrik 3-pin XLR male and 1/4" TRS | | Operating Temperature | 0 to 140°F / -18 to 60°C | | Storage Temperature | -29 to 165°F / -34 to 74°C | | Relative Humidity | 0 to 95% | | Weight | 7.4 oz / 208 g (without cable) | | | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 9.6 x 8.7 x 4.7" |
