User Manual for Shure Centaverse Overhead Cardioid Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Shure Centaverse Overhead Cardioid Condenser Microphone
- Product category: Hanging Microphones Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Hanging Microphones
|
User manual for the Shure Centaverse Overhead Cardioid Condenser Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|

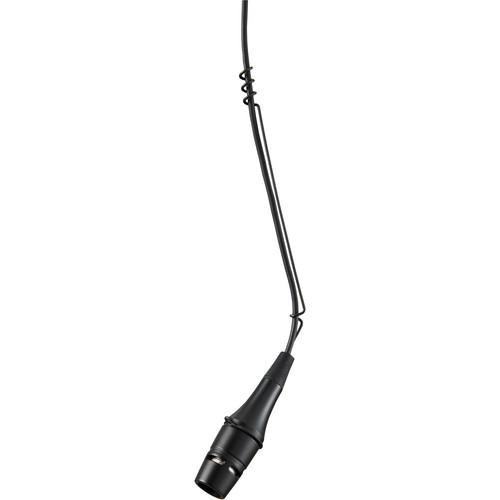

Product description The black Shure Centaverse Overhead Cardioid Condenser Microphone offers low-profile, discreet placement with minimum visibility in a variety of settings.An integrated wire aiming hanger allows for suitable placement above choirs and other ensembles. An attached 25-foot cable and snap-fit windscreen are also included with each microphone.Featuring CommShield technology, which guards against unwanted RF interference from portable wireless devices, this Centraverse microphone delivers high-quality sound and reliability. - Tailored frequency response suited for capturing fast transients above choirs and other ensembles
- CommShield Technology guards against unwanted RF interference from portable wireless devices (smartphones, etc.) and high resistance to intense nearby radio signals
- Aptly designed and rugged, dependable construction
UPC: 042406243599 In the Box Shure Centaverse Overhead Cardioid Condenser Microphone (Black) Windscreen (Black) Wire Aiming Hanger (Black) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure Centaverse Overhead Cardioid Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure CVO Specs | Cartridge Type | Electret Condenser | | Frequency Response | 70 to 16,000 Hz | | Polar Pattern | Cardioid | | Output Impedance | 180 Ω | | Sensitivity | -33 dBV/Pa (22 mV, 1 Pa = 94 dB SPL) at 1 kHz, open circuit voltage | | Maximum SPL | 120 dB SPL (1 kHz at 1% THD) | | Signal to Noise Ratio | 67 dB (referenced at 94 dB SPL) | | Dynamic Range | 93 dB | | Self Noise | 27 dB SPL (equivalent SPL, A-weighted, typical) | | Common Mode Rejection | >45 dB (10 Hz to 100 kHz) | | Clipping Level | Preamplifier Output: -7 dBV (1% THD) | | Polarity | Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3 | | Power Requirement | 11 to 52 VDC, 2.0 mA All specifications are measured with a 48 VDC phantom power supply. The microphone operates at lower voltages, but with slightly decreased headroom and sensitivity. | | Relative Humidity | 0 to 95% | | Operating Temperature Range | 0 to 135°F (-18 to 57°C) | | Storage Temperature Range | -20 to 165°F (-29 to 74°C) | | Cable Length | 25' (7.6 m) | | Dimensions (Ø x L) | Mic: 0.6 x 2.9" (1.5 x 5.5 cm)
XLR Connector: 0.9 x 4.8" (2.4 x 12.3 cm) | | Weight | 4.7 oz (133.0 g) | | | | Package Weight | 0.65 lb | | Box Dimensions (LxWxH) | 9.055 x 5.276 x 3.15" |
