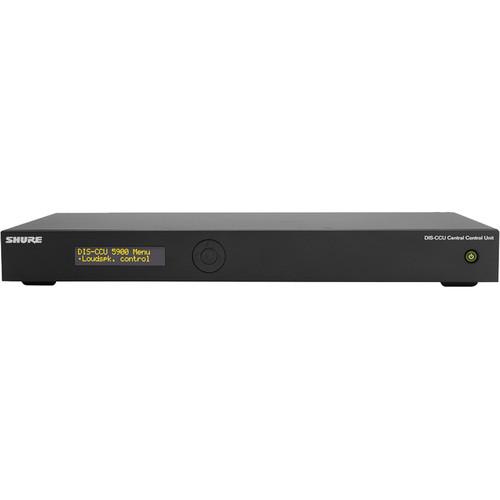

Product description The Central Control Unit for DDS 5900 and DCS 6000 Conference Systems from Shure powers up to 60 microphone units and supports up to 250 units. It supports 2 languages and 32 interpreters and can be used in various speech-application environments such as hotel/conference centers, multi-purpose/training rooms, education facilities, corporate/board rooms, courtrooms, and more. Featuring two analog audio inputs for external sources, the Central Control Unit has eight analog audio outputs for connections to videoconferencing systems, A/V recording equipment, supplemental sound reinforcement systems, or wireless language distributions system. In addition, with Feature License FL6000 (sold separately), the DIS-CCU can be used with DCS 6000-series microphone units serving up to 250 participants and 4 languages. Additional Feature Licenses enable support for up to 3,800 participants, 200 interpreters, and 31 languages. - Fully digital audio transmission of floor plus 31 interpretation channels and 8 conference microphone audio channels in a single digital-bus cable structure using shielded CAT5e cables
- OLED display on the front enables the user to setup basic system configurations in terms of maximum number of speakers/requests, microphone operation mode, etc.
- TCP/IP Ethernet connection for web browser control, integration with optional SW 6000 software suite, or third party external control system (AMX, Crestron, etc.)
- 2 analog audio inputs and 8 analog audio outputs for distribution of audio from eight groups of units, the floor channel, or the interpreter channels.
- Connection for Emergency Evacuation Message (EEM) is available using 'Audio In 2' and a contact closure switch
- Powers up to 60 units without additional power supply (depending on unit type)
UPC: 042406482608 In the Box Shure Central Control Unit for DDS 5900 and DCS 6000 Conference Systems (No Power Supply) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure Central Control Unit for DDS 5900 and DCS 6000 Conference Systems in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure DIS-CCU Specs | | | Max Number of Discussion Units | For DDS 5900:
250
Powered by CU 5905: 60 | | Microphones | Max Number Open: 8 | | Languages | Interpreter Channels: 2
Max Number of Interpreter Units: 32 | | | | LAN | DCS-LAN Outputs: 4 x RJ45 female sockets
TCP/IP 1 x RJ45 female socket | | | | Inputs | Analog Input 1: 1 x 3-pin female XLR socket (electronically balanced)
Analog Input 2 EEM: 1 x 3-pin female XLR socket (electronically balanced) with contact closure | | Input Level | Max: +15 dBm (4.5 Vrms) | | Input Impedance | 50 to 100 kOhms | | Audio Output | 8 x 3-pin XLR (electronically balanced)
Maximum load: >1 kOhms | | Maximum Load | >1 kOhms | | Nominal Output Levels | 0 dBm at nominal input | | Maximum Output Level | 4.9 Vrms ~ +16 dBm | | | | Power Consumption | 22 W/48 V (150 W max.) | | Supply Voltage | For Microphone Units: 122 W/48 V | | Sampling Frequency | 24-bit/32 kHz | | Total Harmonic Distortion (THD) | <0.1% | | Signal to Noise Ratio | >85 dBA | | | | Mounting | Tabletop, standard 19" rack. | | Storage Temperature Range | -4 to 140°F (-20 to 60°C) | | Operating Temperature Range | 41 to 104°F (5 to 40°C) | | Humidity | 10 to 80% | | Dimensions (H x W x D) | 1.75 x 16.8 x 7.2" (44.4 x 426 x 186 mm) | | Weight | 6.17 lb (2.8 kg) | | | | Package Weight | 9.55 lb | | Box Dimensions (LxWxH) | 22.7 x 15.2 x 5.6" |
