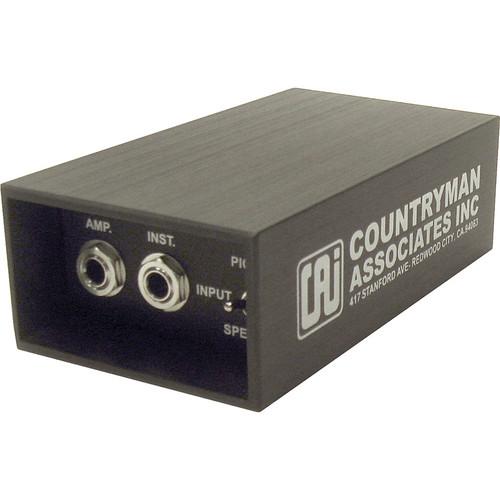

User Manual for Shure Countryman Type 85 Direct Box Click to enlarge the picture
Contents of the user manual for the Shure Countryman Type 85 Direct Box
- Product category: Direct Boxes Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Direct Boxes
|
User manual for the Shure Countryman Type 85 Direct Box contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|
Product description The Countryman Type 85 Direct Box from Shure is an active direct box, that due to its engineering adds nothing and removes nothing from the instrument's signal. No distortion, no electronic hum or buzz and no loss of dynamic range, instead delivering a clear, strong and warm signal to the console. - Connects any high-impedance instrument to an XLR microphone input
- Active direct box can run off internal 9V battery (~400 hours) if phantom power isn't available
- Strong, clean signal to the mix board with no added noise or distortion
- Isolates ground buzz between console and amplifier
- Small, compact and sleek design
- Almost invisible on stage
- Single-piece extruded case with extra-thick walls
- Internal components are fully protected against electrical damage
- Input circuit withstands 220VAC, and static spikes up to 20,000 volts
In the Box Shure Countryman Type 85 Direct Box One (1) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure Countryman Type 85 Direct Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure Type 85 Specs | Type | Active | | Input Connections | 2 x 1/4" TS phone | | Output Connectors | 1 x XLR | | Input Level | 5V P-P in Pickup mode
300V P-P in Speaker mode | | Output Level | Not specified by manufacturer | | Controls | 1 x Input Selector switch
1 x Ground Lift switch | | Frequency Response | 20Hz to 20kHz, +/-1.0dB | | Noise | 0.63µV RMS (-122dBu) BW = 20kHz | | Power | 9V battery or 0.4mA @ 48V phantom | | Dimensions (WxDxH) | 3 x 5 x 1.75" (77 x 127 x 45mm) | | Weight | 18.5 oz (0.52kg) |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 45 owners. Add your rating and experience with the product.
