User Manual for Shure CVB-B C Centraverse Cardioid Boundary Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Shure CVB-B C Centraverse Cardioid Boundary
- Product category: Boundary Microphones Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Boundary Microphones
 |
User manual for the Shure CVB-B C Centraverse Cardioid Boundary contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|

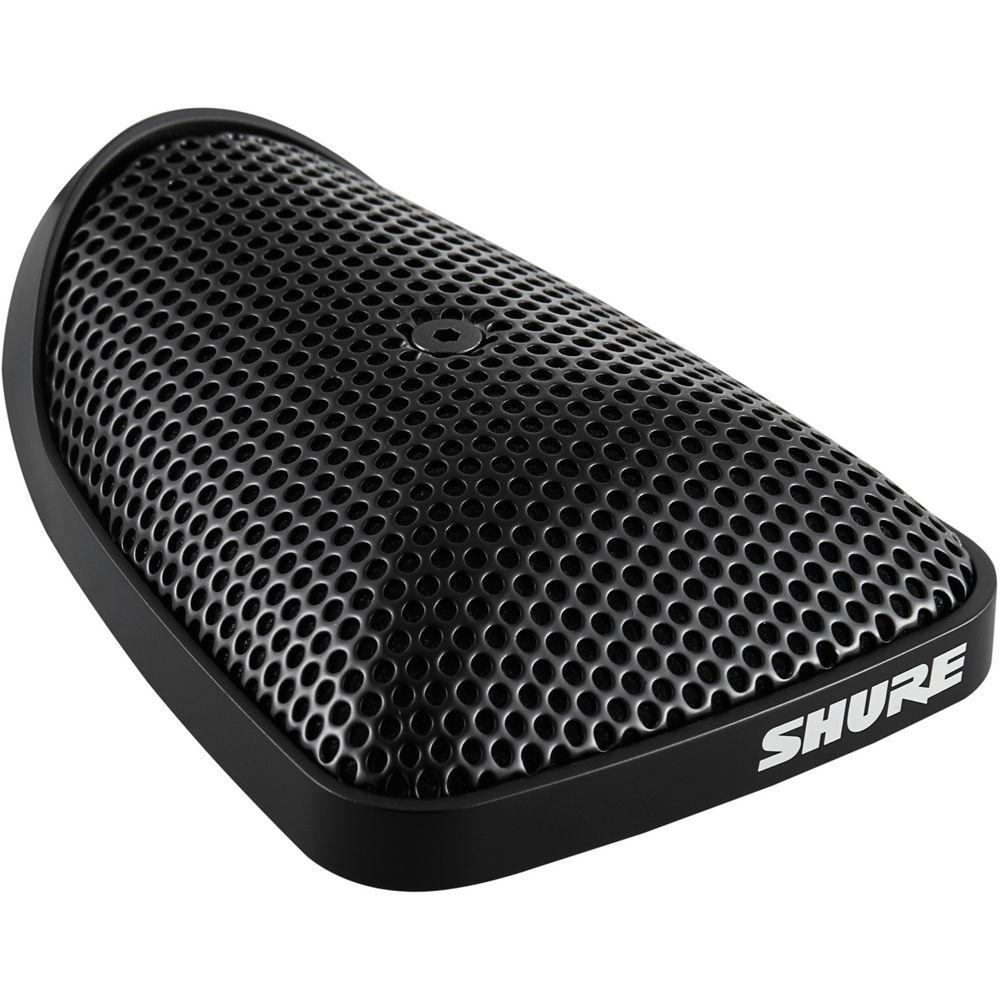

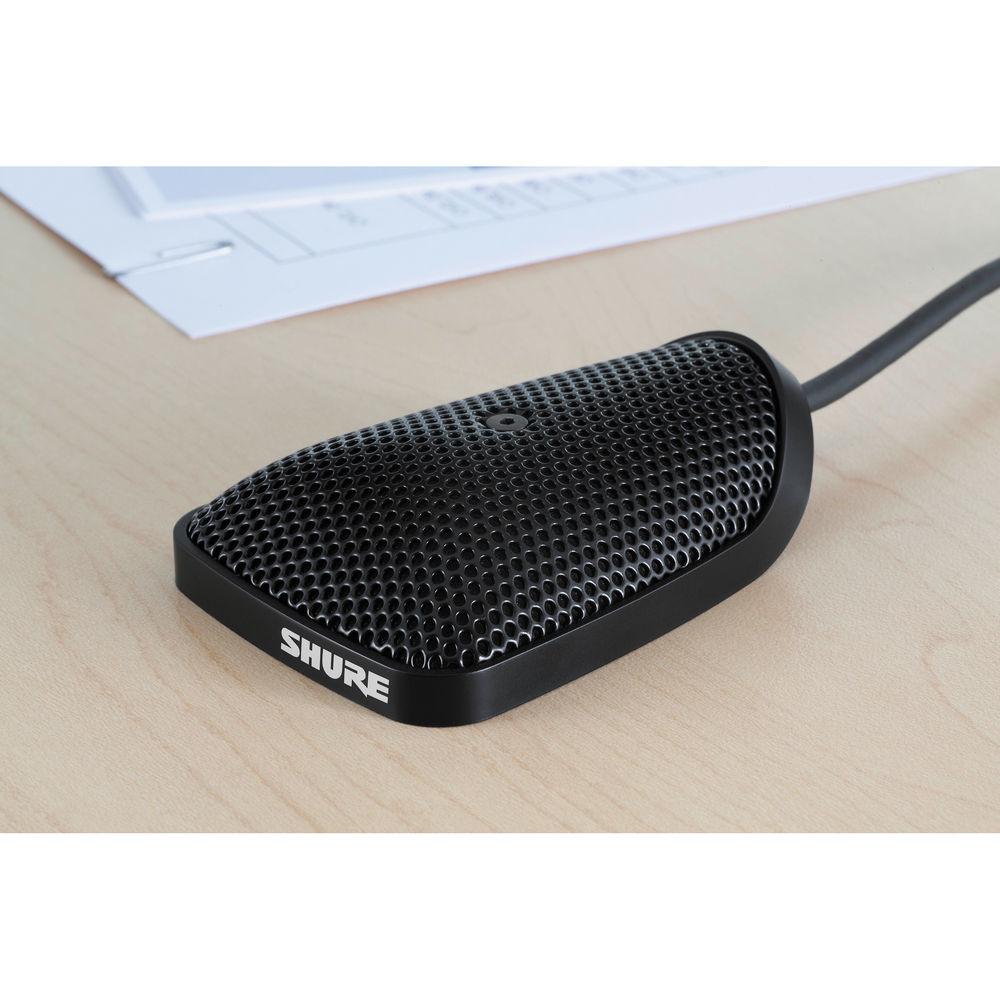

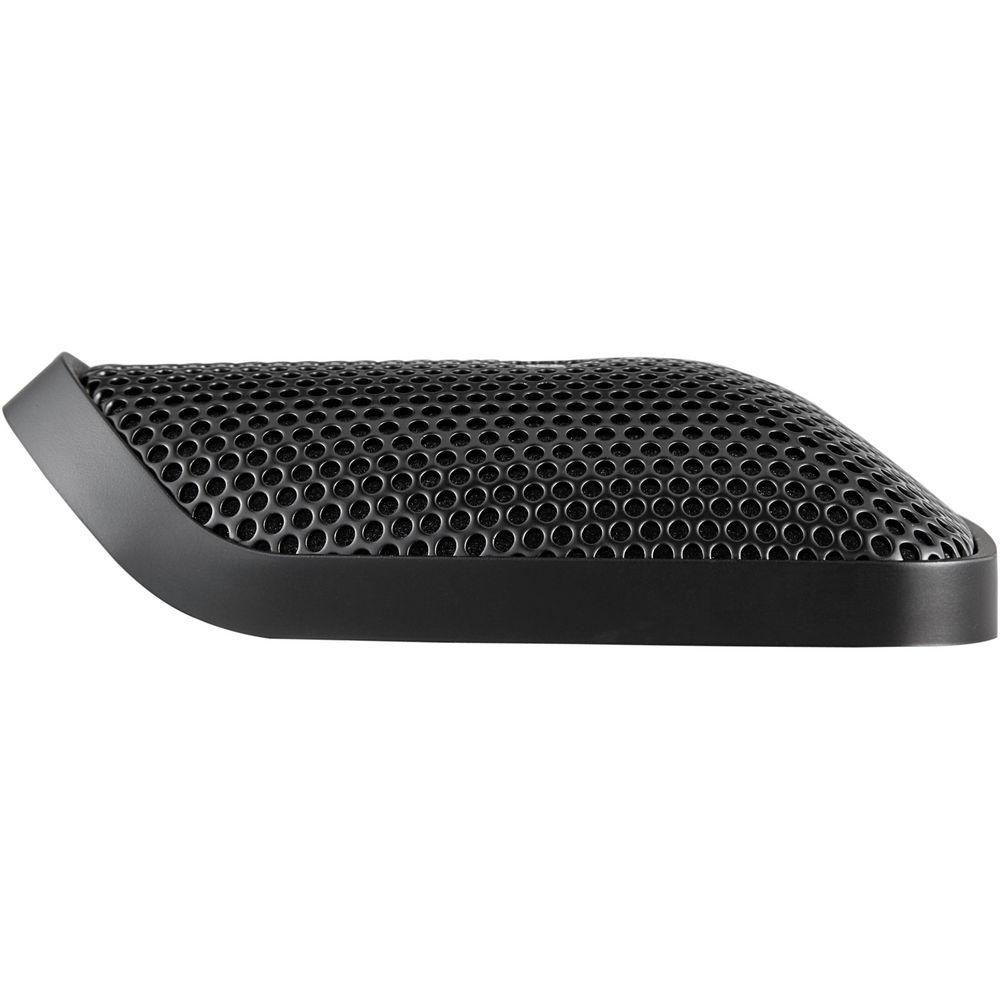

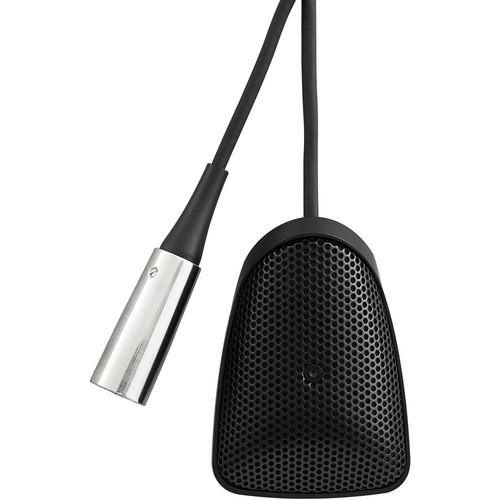

Product description The black Shure CVB-B/C is a Centraverse Series cardioid boundary condenser microphone designed to provide an optimized-for-speech frequency response and discreet desktop installation for presenters and speakers in conference rooms, corporate events, houses of worship, and meetings. The low-profile microphone features CommShield technology to reject RF interference and an attached 12’ XLR cable for compatibility with most mic preamps.The cardioid condenser element yields a frequency response of 70 Hz to 16 kHz, which naturally attenuates low frequencies that are often produced by vibration and rumble. It is powered by 11 to 52 VDC phantom power. - Cardioid polar pattern cartridge
- CommShield technology guards against RF interference from portable wireless devices (smartphones, among others) and enables high resistance to nearby radio signals
- Frequency response is suitable for capturing fast transients in a wide variety of locations such as podiums and desktops
- Shure design and rugged, dependable construction
- Mounting holes for secure installation
UPC: 042406243551 In the Box Shure CVB-B/C Centraverse Cardioid Boundary Condenser Microphone (Black) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure CVB-B C Centraverse Cardioid Boundary Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure CVB Specs | | | Sound Field | Mono | | Operating Principle | Pressure Gradient | | Transducer | Electret Condenser | | Tube | No | | Polar Pattern | Cardioid | | Frequency Range | 70 Hz to 16 kHz | | Signal to Noise Ratio | 67 dB | | Equivalent Noise Level | 27 dB A-Weighted | | Maximum SPL | 120 dB SPL | | THD | 1% | | Impedance | 180 Ohms | | Sensitivity | 23 mV/Pa | | Dynamic Range | 93 dB | | | | Output Connectors | 1 x 3-Pin XLR | | Cable Length | 12.0' / 3.66 m | | Operating Current Consumption | 2 mA | | Operating Voltage | 11 to 52 V | | Operating Temperature | 0 to 135°F / -17.78 to 57.22°C | | Operating Humidity | 0 to 95% | | Length | 3.5" / 88.90 mm | | Weight | 8 oz / 227 g | | | | Package Weight | 0.8 lb | | Box Dimensions (LxWxH) | 7.7 x 5.0 x 2.9" |
