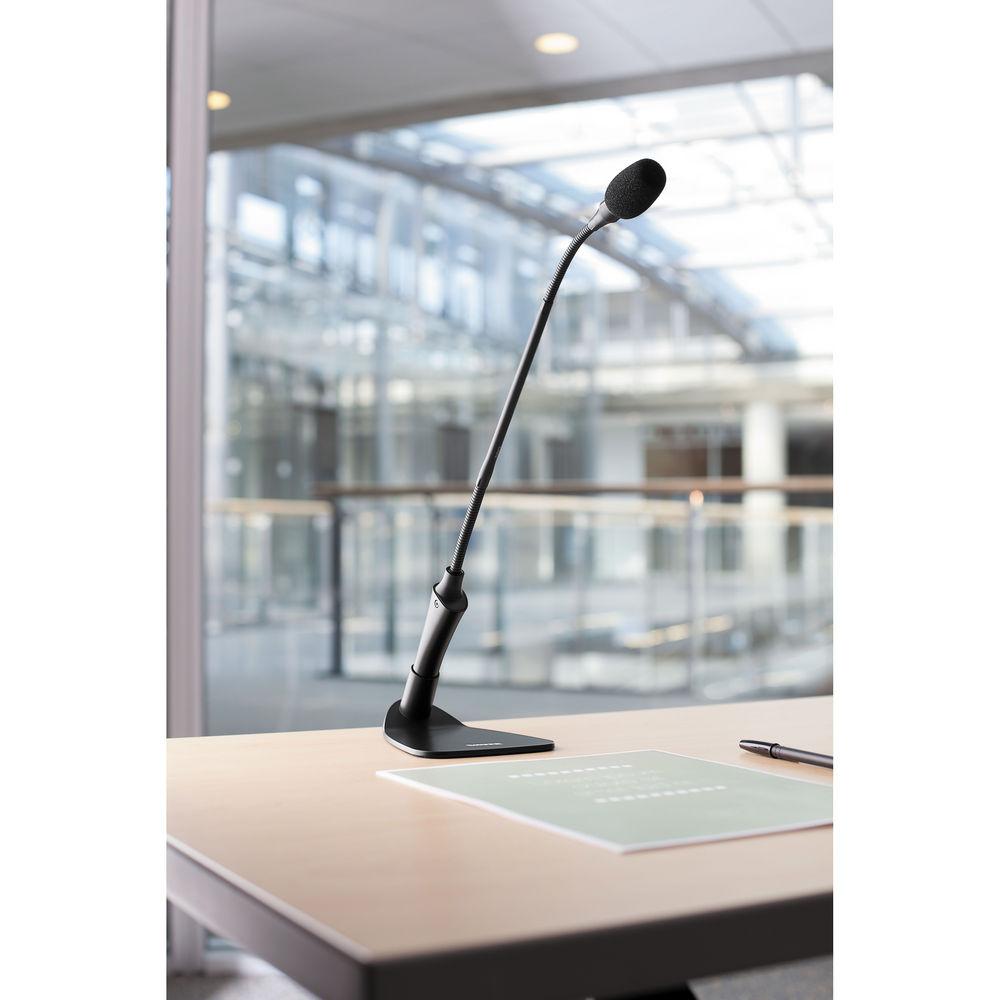

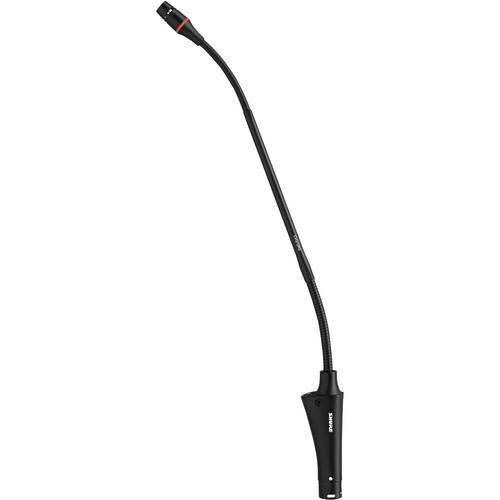

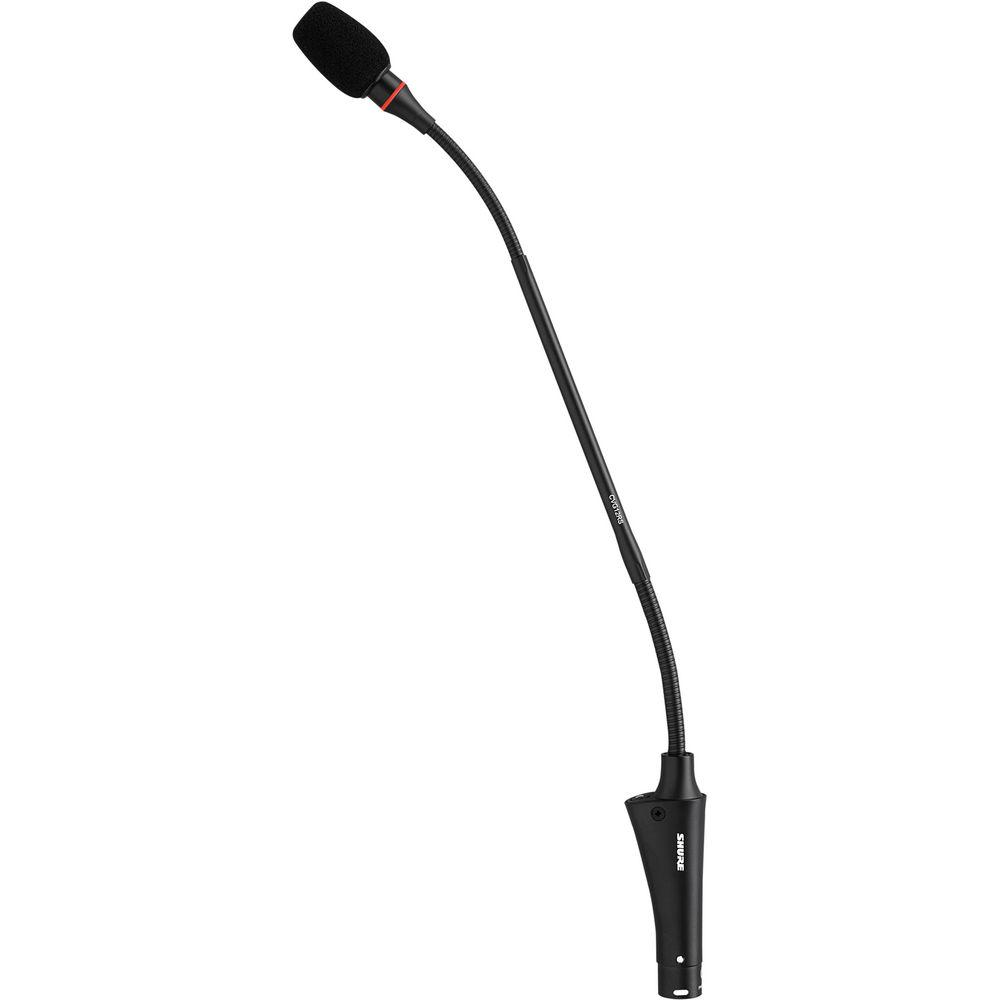

Product description The black Shure CVG12-B/C Centraverse 12" Condenser Microphone features a fully articulating dual-section gooseneck design that facilitates ease of use and positioning. Suitable for use in installed sound reinforcement applications such as corporate facilities, houses of worship, government institutions, boardrooms, conference tables, conventions, and meeting rooms. This microphone features CommShield technology for shielding against RF interference from portable wireless devices. In addition, it comes with a windscreen and a mounting flange. Note: Mute switch/LED and Mute switch/Light ring options are not sold in the Americas region. - Cardioid polar pattern cartridge with a tailored response for speech
- CommShield technology guards against unwanted RF interference from portable wireless devices and provides high resistance to intense radio signals
- Frequency response suitable for capturing fast transients in a wide variety of locations such as podiums and desktops
- 2-Section gooseneck design and rugged, dependable construction
- Included flange mount and snap-fit windscreen
UPC: 042406242936 In the Box Shure CVG12-B/C Centraverse 12" Gooseneck Condenser Microphone Windscreen Mounting Flange Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure CVG12-B C Centraverse 12" Gooseneck Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure CVG12 Specs | Cartridge Type | Electret condenser | | Frequency Response | 70 to 16,000 Hz | | Polar Pattern | Cardioid | | Output Impedance | 180 Ω | | Sensitivity | At 1 kHz, open circuit voltage: -33 dBV/Pa (22 mV) 1 Pa = 94 dB SPL | | Maximum SPL | 1 kHz at 1% THD: 120 dB SPL THD of microphone preamplifier when applied input signal level is equivalent to cartridge output at the specified SPL. | | Signal to Noise Ratio | Referenced at 94 dB SPL @ 1 kHz: 67 dB S/N ratio is the difference between 94 dB SPL and equivalent SPL of self noise, A-weighted | | Dynamic Range | 93 dB | | Self Noise | Equivalent SPL, A-weighted (typical): 27 dB SPL | | Common Mode Rejection | >45 dB (10 Hz to 100 kHz) | | Clipping Level | Preamplifier Output 1 kHz @ 1% THD: -7 dBV | | Polarity | Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3 | | Power Requirement | 11 to 52 VDC, 2.0 mA All specifications measured with a 48 VDC phantom power supply. The microphone operates at lower voltages, but with slightly decreased headroom and sensitivity. | | Relative Humidity | 0 to 95% | | Operating Temperature Range | 0 to 135°F (-18 to 57°C) | | Storage Temperature Range | -20 to 165°F (-29 to 74°C) | | Weight | 6.3 oz (178.6 g) | | | | Package Weight | 0.9 lb | | Box Dimensions (LxWxH) | 25.5 x 3.1 x 1.7" |
