User Manual for Shure CVG12D-BC 12" Gooseneck Condenser Mic with Integrated Desktop Base Click to enlarge the picture
Contents of the user manual for the Shure CVG12D-BC 12" Gooseneck Condenser Mic
- Product category: Gooseneck Microphones Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Gooseneck Microphones
|
User manual for the Shure CVG12D-BC 12" Gooseneck Condenser Mic contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|

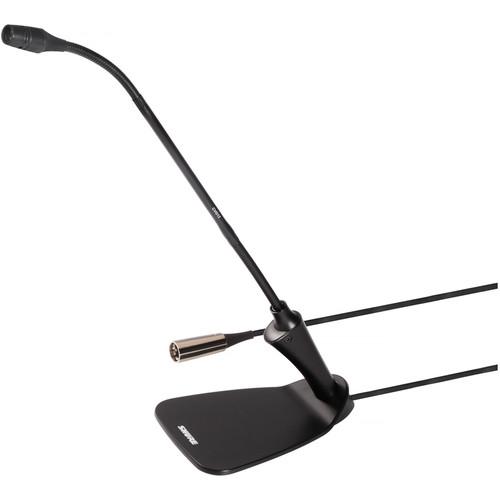

Product description The CVG12D-BC 12" Gooseneck Condenser Mic with Integrated Desktop Base from Shure features dual-gooseneck sections for full articulation, an inline preamp and an integrated base for precise positioning. It can be used as an all-in-one solution for sound reinforcement in small-to mid-sized discussion systems such as AV conferencing, meetings, public speaking systems, and more. The Centraverse microphone comes equipped with an integrated desktop base and a 12' cable with XLR termination for quick set up on podiums or desktops. The microphone is also equipped with CommShield Technology, which guards against unwanted RF interference from portable wireless devices such as smartphones and tablets. Additionally, from corporate facilities, houses of worship, to government institutions and more, the Centraverse microphone delivers for any conferencing customer. - Electret condenser microphone with inline preamp
- Cardioid polar pattern with tailored response for speech maximizes intelligibility in speech while reducing the chance for feedback
- Equipped with CommShield Technology, which is resistant to unwanted RF interference and radio signals
- Dual-section gooseneck enables ease of positioning and placement
- Best-in-class performance, construction, and design
- Includes integrated 12' cable with plug-and-play XLR termination that minimizes setup time
UPC: 042406505338 In the Box Shure CVG12D-BC 12" Gooseneck Condenser Mic with Integrated Desktop Base Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure CVG12D-BC 12" Gooseneck Condenser Mic with Integrated Desktop Base in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure CVG12D-B/C Specs | Cartridge Type | Electret condenser | | Frequency Response | 70 Hz to 16 kHz | | Polar Pattern | Cardioid | | Output Impedance | 180 Ohms | | Sensitivity | -33 dBV/Pa (22 mV) (at 1 kHz, open circuit voltage) | | Maximum SPL | 120 dB SPL (at 1 kHz at 1% THD) | | Signal-to-Noise Ratio | 67 dB (referenced at 94 dB SPL) | | Dynamic Range | 93 dB | | Self Noise (Equivalent SPL) | 27 dB SPL (A-weighted, typical) | | Common Mode Rejection | >45 dB (10 Hz to 100 kHz) | | Output Clipping Level | Preamplifier: -7 dBV (1% THD) | | Polarity | Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3 | | Power Requirements | 11-52 VDC, 2.0 mA | | Operating Temperature Range | 0 to 135°F (-18 to 57°C) | | Storage Temperature Range | -20 to 165°F (-29 to 74°C) | | Relative Humidity | 0 to 95% | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Package Weight | 2.5 lb | | Box Dimensions (LxWxH) | 26.4 x 6.5 x 5.5" |
