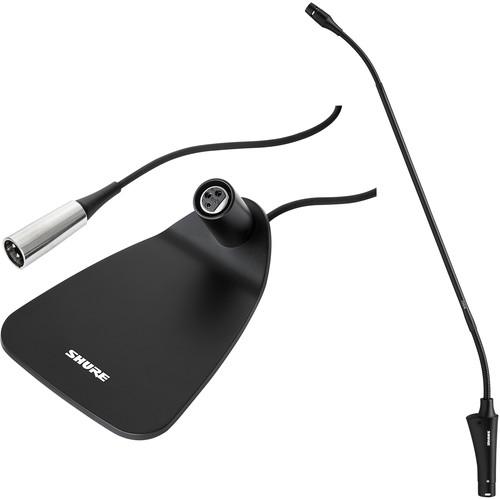

User Manual for Shure CVG18-B C Centraverse 18" Gooseneck Microphone and Desktop Base Kit Click to enlarge the picture
Contents of the user manual for the Shure CVG18-B C Centraverse 18" Gooseneck
- Product category: Audio Conferencing Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Audio Conferencing
|
User manual for the Shure CVG18-B C Centraverse 18" Gooseneck contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|
Product description The Shure CVG18-B/C Centraverse 18" Gooseneck Microphone and Desktop Base Kit from B&H includes a Shure dual-section, fully articulating gooseneck microphone, a Shure Centraverse desktop base, a windscreen, and a mounting flange. It can be used in installed sound reinforcement applications, such as corporate facilities, houses of worship, government institutions, boardrooms, and more.Featuring a cardioid polar pattern, the gooseneck microphone cartridge uses CommShield technology, which guards against unwanted RF interference from portable wireless devices and provides high resistance to intense radio signals. The 2-section gooseneck is built rugged and durable.The black Shure Centraverse Desktop Base is compatible with all Shure Centraverse gooseneck microphones and features an XLR input and a 12' cable that terminates in an XLR output connector. The base can be used freestanding or attached to a surface with screws using the integrated mounting holes. Additionally, a windscreen and a mounting flange are also included. - Shure CVG18-B/C Centraverse 18" Gooseneck Condenser Microphone The black Shure CVG18-B/C Centraverse 18" Condenser Microphone features a fully articulating dual-section gooseneck design that facilitates ease of use and positioning. Suitable for use in installed sound reinforcement applications such as corporate facilities, houses of worship, government institutions, boardrooms, conference tables, conventions, and meeting rooms. This microphone features CommShield technology for shielding against RF interference from portable wireless devices. In addition, it comes with a windscreen and a mounting flange. Note: Mute switch/LED and Mute switch/Light ring options are not sold in the Americas region.
- Cardioid polar pattern cartridge with a tailored response for speech
- CommShield technology guards against unwanted RF interference from portable wireless devices and provides high resistance to intense radio signals
- Frequency response suitable for capturing fast transients in a wide variety of locations such as podiums and desktops
- 2-Section gooseneck design and rugged, dependable construction
- Included flange mount and snap-fit windscreen
UPC: 042406243193 - Shure Centraverse Desktop Base (Black) The black Shure Centraverse Desktop Base is designed for use with all Shure Centraverse 12" and 18" gooseneck microphones. It features an XLR input and a 12-foot cable terminating in an XLR output connector. It has a 19-ounce body and can be used freestanding or attached to a surface with screws via its mounting holes. UPC: 042406262552
In the Box - CVG18-B/C Centraverse 18" Gooseneck Condenser Microphone
- Windscreen
- Mounting Flange
- Limited 2-Year Warranty
- Centraverse Desktop Base (Black)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure CVG18-B C Centraverse 18" Gooseneck Microphone and Desktop Base Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Shure CVG18-B/C Centraverse 18" Gooseneck Condenser Microphone
| Cartridge Type | Electret condenser | | Frequency Response | 70 to 16,000 Hz | | Polar Pattern | Cardioid | | Output Impedance | 180 Ω | | Sensitivity | At 1 kHz, open circuit voltage: -33 dBV/Pa (22 mV) 1 Pa = 94 dB SPL | | Maximum SPL | 1 kHz at 1% THD: 120 dB SPL THD of microphone preamplifier when applied input signal level is equivalent to cartridge output at the specified SPL. | | Signal to Noise Ratio | Referenced at 94 dB SPL @ 1 kHz: 67 dB S/N ratio is the difference between 94 dB SPL and equivalent SPL of self noise, A-weighted | | Dynamic Range | 93 dB | | Self Noise | Equivalent SPL, A-weighted (typical): 27 dB SPL | | Common Mode Rejection | >45 dB (10 Hz to 100 kHz) | | Clipping Level | Preamplifier Output 1 kHz @ 1% THD: -7 dBV | | Polarity | Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3 | | Power Requirement | 11 to 52 VDC, 2.0 mA All specifications measured with a 48 VDC phantom power supply. The microphone operates at lower voltages, but with slightly decreased headroom and sensitivity. | | Relative Humidity | 0 to 95% | | Operating Temperature Range | 0 to 135°F (-18 to 57°C) | | Storage Temperature Range | -20 to 165°F (-29 to 74°C) | | Weight | 6.8 oz (192.8 g) | | | | Box Dimensions (LxWxH) | 24.6 x 3.0 x 1.8" | - Shure Centraverse Desktop Base (Black)
| Inputs | 1x XLR Input | | Outputs | 1x XLR Output | | Operating Temperature | 0 to 135°F (-18 to 57°C) | | Storage Temperature | -20 to 165°F(-29 to 74°C) | | Relative Humidity | 0 to 95% | | Cable Length | 12' (3.6 m) | | Dimensions (LxWxH) | 6.25 x 4.328 x 2.25" (15.8 x 11.0 x 5.5 cm) | | Weight | 19.2 oz (544 g) | | | | Box Dimensions (LxWxH) | 7.7 x 5.0 x 3.0" |
