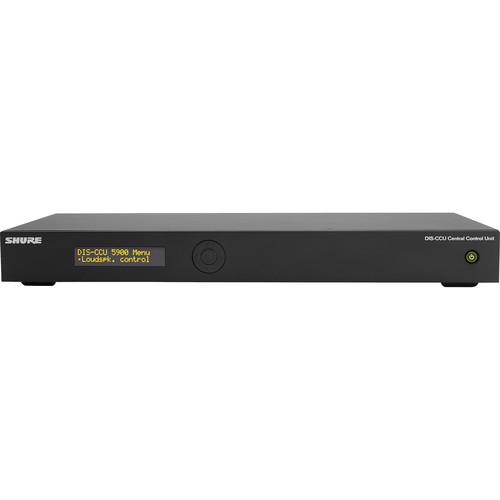

User Manual for Shure DIS-CCU-PS Central Control Unit with Power Supply Click to enlarge the picture
Contents of the user manual for the Shure DIS-CCU-PS Central Control Unit with
- Product category: Audio Conferencing Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Audio Conferencing
|
User manual for the Shure DIS-CCU-PS Central Control Unit with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|
Product description The DIS-CCU-PS Central Control Unit with Power Supply from Shure is the centerpiece of the DDS 5900 Digital Discussion System and the DCS 6000 Digital Conference System (sold separately). It can be used to distribute digital audio, control data, and power to chairman, delegate, and interpreter units over a standard shielded Cat 5e cable in a serial "daisy-chain" topology.The DIS-CCU includes two analog audio inputs for external audio sources and eight analog audio outputs for connection to videoconferencing systems, audio/video recorders, sound reinforcement systems, or wireless language distribution systems. The DIS-CCU distributes the floor audio mix plus interpretation channels to each discussion or conference unit. Up to eight microphones may be active simultaneously.In addition, four different microphone operating modes are supported: Automatic, First-In/First-On (FIFO), VOX (voice activated), and Manual. A web browser interface allows microphone control and system configuration using a computer or tablet. A TCP/IP connection is provided for connection to a third-party media control system. - Fully digital audio transmission of floor plus 31 interpretation channels and 8 conference microphone audio channels in a single digital bus cable structure using shielded Cat 5e cables
- OLED display on the front enables the user to setup basic system configurations in terms of maximum number of speakers/requests, microphone operation mode, etc.
- TCP/IP Ethernet connection for web browser control, integration with optional SW 6000 software suite, or third party external control system (AMX, Crestron, etc.)
- Multi-language web browser for system configuration, microphone/request list control, and basic operational parameters via tablet or computer
- Built-in seat table for attaching seat numbers and names to units using the web browser
- 8 x analog audio outputs for distribution of audio from eight groups of units, the floor channel or the interpreter channels
- Connection for Emergency Evacuation Message (EEM) is available using 'Audio In 2' and a contact closure switch
- Firmware upgrade of the entire DCS 6000 system is possible via a PC
- Powers up to 60 units without additional power supply (depending on unit type)
- Long-life, low-noise built-in temperature regulated fan
- Horizontal orientation of air stream for easy stacking of units in 19" racks
- External control possible via a 'simple to use' protocol for external control over Ethernet
- Using DCS-LAN, a proprietary high-speed all-digital audio channel, data, and power bus
- Four DCS-LAN chains powered by one external PS CU power supply
- Versatile test program available for testing the system performance, the conference units and the interpreter sets
- Control of microphone units serving up to 3800 participants
- Voting (1- to 5-button, with or without attendance check)
In the Box Shure DIS-CCU-PS Central Control Unit with Power Supply SNP-A15T 48 VDC Power Supply Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure DIS-CCU-PS Central Control Unit with Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure DIS-CCU-PS Specs | | | Max Number of Discussion Units | 250 | | Max Number of Discussion Units | Up to 60 | | Max Number of Open Microphone | 8 | | Language Interpreter Channels | 2 | | Max Number of Interpreter Units | 32 | | | | LAN Configuration | DCS-LAN Outputs: 4 x RJ45 Female Sockets
TCP/IP 1 x RJ45 Female Sockets | | | | Inputs | Analog Input 1: 1 x 3-Pin Female XLR Socket (Electronically Balanced)
Analog Input 2 (Audio In or Emergency Input - EEM): 1 x 3-Pin Female XLR Socket (Electronically Balanced) with Contact Closure | | Nominal Input | (Input 1) Switchable:
0 dBm (0.775 V RMS)
10 dBm (0.245 V RMS) | | Microphone Max Input Level | +15 dBm (4.5 V) | | Input Impedance | 50 to 100 kOhms | | Audio Outputs | 8 x 3-Pin XLR Sockets (Electronically Balanced) | | Maximum Load | > 1 kOhm | | Nominal Output Level | 0 dBm at Nominal Input | | Maximum Output Level | 4.9 V RMS ~ +16 dBm | | | | Power Consumption | 22 W / 48 V | | Supply Voltage | For Microphone Units: 122 W / 48 V | | Sound | Quality: 24-Bit Audio, 32 kHz Sampling Frequency | | Frequency Response | 65 Hz to 16 kHz | | Total Harmonic Distortion | <0.1% | | Signal to Noise Ratio | >85 dBA | | | | Mounting | Table Top
Standard 19" Rack | | Dimensions (H x W x D) | 1.8 x 16.8 x 7.2" / 4.4 x 42.7 x 18.3 cm | | Weight | 6.2 lb / 2.8 kg | | | | Voltage | 100 to 240 VAC, 50 to 60 Hz Nominal | | Maximum Current Consumption | 175 W | | Total Supply Power | 144 W (Power Factor: >0.9) | | Standby Current Consumption | <0.5 W (No Load) | | Supply Voltage | 48 V / 3 A @ 40°C | | Efficiency | 87%, Typical | | Inrush Current | 230 V: <80 a
115 V: <40 A |
