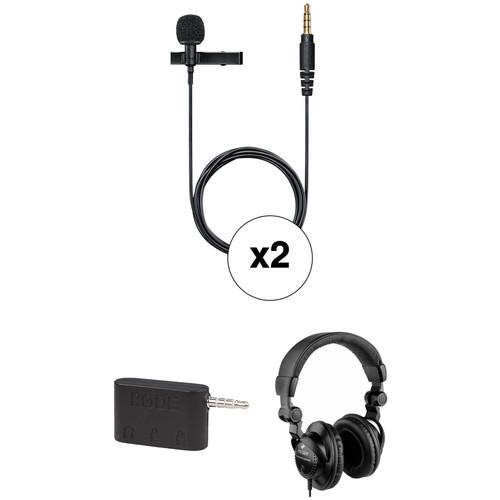

Product description The Shure Dual MOTIV MVL Lavalier Microphone and Two-Person Interview Kit from includes two Shure omnidirectional condenser lavalier microphones, a Rode SC6 dual TRRS input and headphone output for smartphones, Polsen HPC-A30 closed-back studio monitor headphones, foam windscreens, two drawstring carrying pouches, and two metal tie mounts. The kit can be used in various recording environments to capture audio for speeches, interviews, lectures, voiceovers, and more. The MOTIV MVL clips directly onto clothing and plugs into the headphone jack of any mobile phone or tablet. The microphone allows you to record with a free download of the MOTIV App for iOS software from the App store, or you can use any other digital recording platform. You can then share the recording via email or text. The Rode SC6 unit has two TRRS inputs and one stereo headphone output. It connects to any TRRS device, such as your smartphone, and allows you to use one or two smartLav microphones while providing a headphone jack for monitoring and playback. The SC6 unit can be used to monitor audio from the smartLav and input two smartLavs into a mono channel for interview or dual-dialog applications. The HPC-A30 headphones are designed for monitoring audio in the studio, field, mobile, and DJ applications. Featuring 50mm drivers, the headphones provide a frequency response of 18 Hz to 22 kHz for accurate reproduction of your audio. They have a collapsible folding mechanism for compact storage and transport, and are built with a single-sided, 9.8' cable that terminates in a 1/8" stereo connector. A 1/4" adapter is also included for additional compatibility. - 2 x Shure MOTIV MVL Omnidirectional Condenser Lavalier Microphone

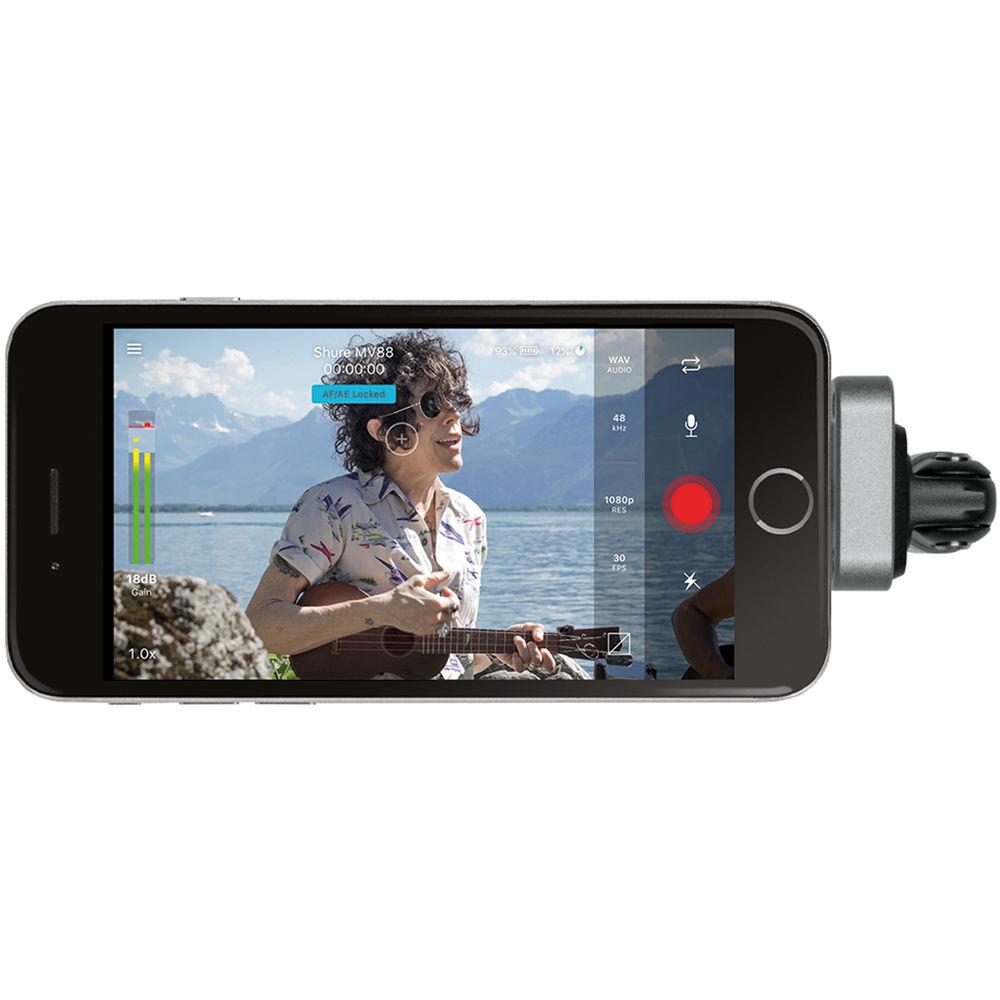

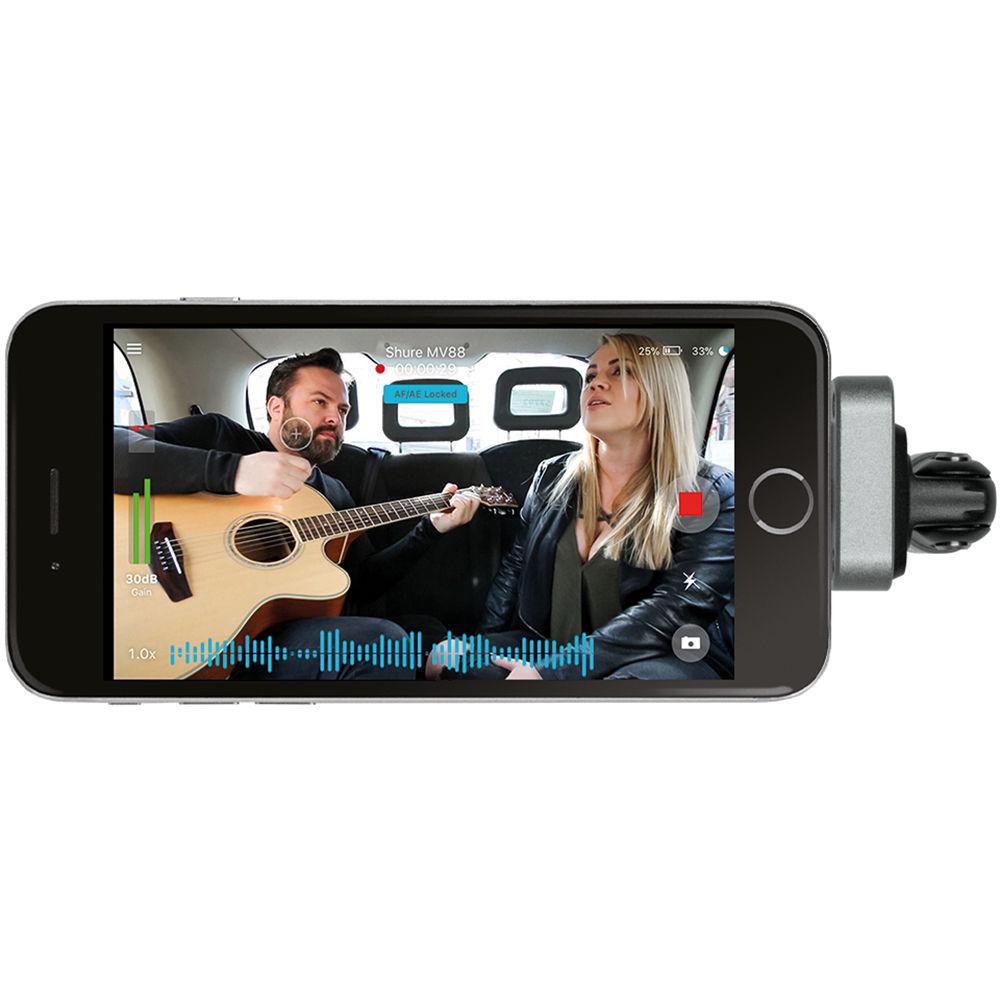

- ShurePlus MOTIV Video - Record your band rehearsal

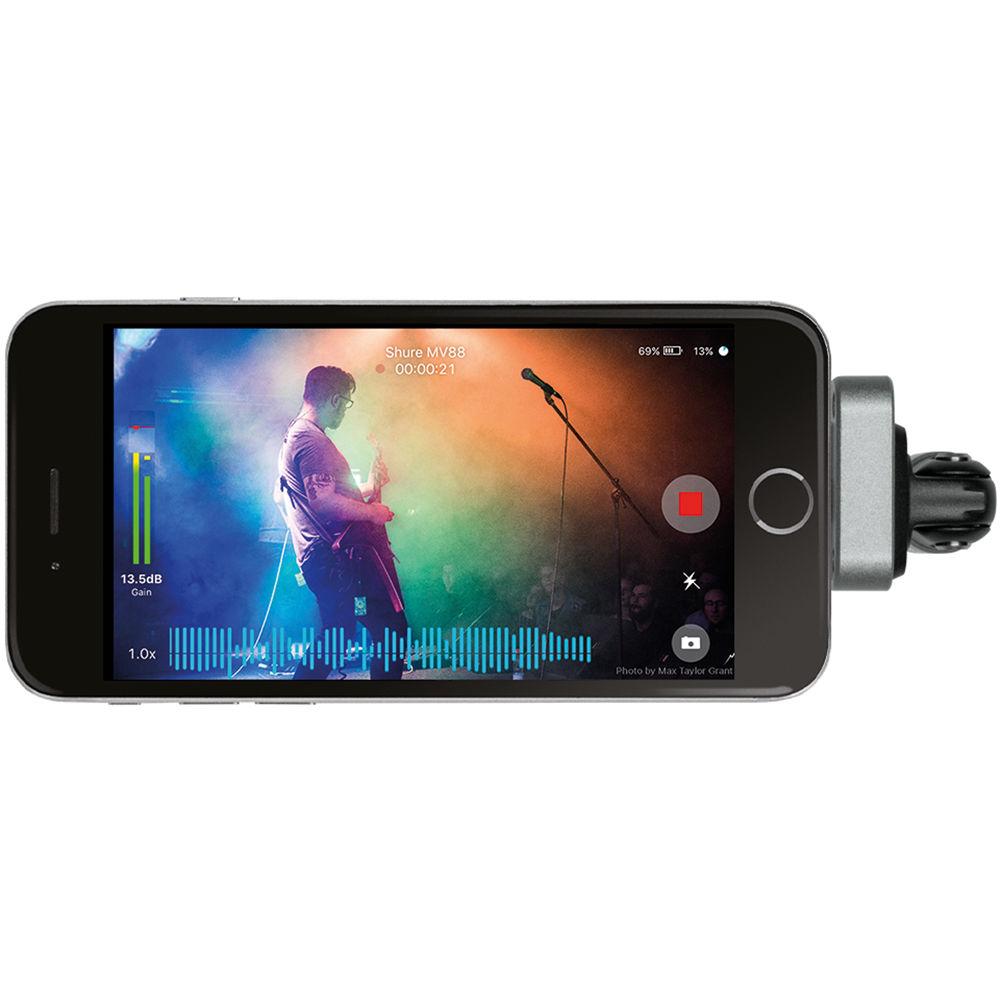

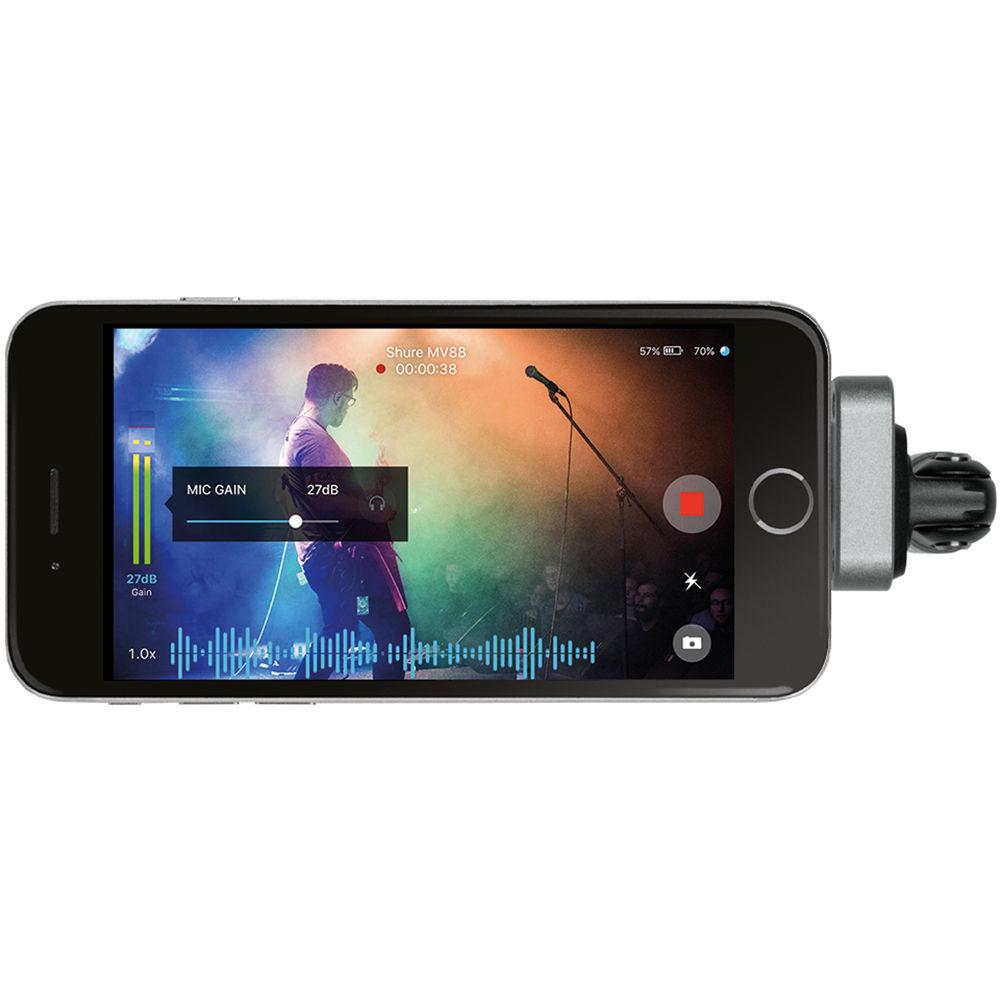

- ShurePlus MOTIV Video - Record a live performance
The MOTIV MVL from Shure is a digital omnidirectional condenser lavalier microphone that has a 1/8" (3.5mm) TRRS connector. It can be used in various recording environments to capture audio for speeches, interviews, lectures, voiceovers, and more. The MOTIV MVL clips directly onto clothing and plugs into the headphone jack of any mobile phone or tablet. The mic allows you to record using a free download of the MOTIV App for iOS software from the App store, or any other digital recording platform. You can then share the recording via email or text. A windscreen, carrying pouch, and clip are also included. - Sleek, miniature form factor for a discreet appearance onscreen
- Best-in-class signal-to-noise ratio, headroom, and maximum SPL
- Proven Shure RF/GSM interference that blocks errant noise artifacts
- Durable design and construction
UPC: 042406491341 - Rode SC6 Dual TRRS Input and Headphone Output for Smartphones
- ShurePlus MOTIV Video - Record your band rehearsal
- ShurePlus MOTIV Video - Record a live performance
The RØDE SC6 Dual TRRS Input and Headphone Output for Smartphones is an input/output breakout box for smartphones and tablets. It has two TRRS inputs and one stereo headphone output. It connects to any TRRS device, such as your smartphone, and allows you to use one or two smartLav microphones while providing a headphone jack for monitoring and playback. Use it to monitor audio from the smartLav and input two smartLavs into the mono channel in interview or dual-dialog applications. UPC: 698813003280 - Polsen HPC-A30 Closed-Back Studio Monitor Headphones
- ShurePlus MOTIV Video - Record your band rehearsal
- ShurePlus MOTIV Video - Record a live performance
The HPC-A30 Closed-Back Studio Monitor Headphones from Polsen are designed for monitoring audio in studio, field, mobile, and DJ applications. They feature 50mm drivers that provide a frequency response of 18Hz to 22kHz for accurate reproduction of your audio.
The ear cups on the HPC-A30 have an around-ear (circumaural), closed-back design, allowing for the increased isolation often desired while tracking or monitoring playback. Additionally, the ear cups can be pivoted for single-ear monitoring. The headphones have a collapsible folding mechanism for compact storage and transport. A padded and adjustable headband provides comfort during extended use. The 32 ohm impedance allows for ample volume when used with mobile devices. The headphones have a single-sided, 9.8-foot cable that terminates in a 3.5mm stereo connector. A 1/4" adapter is included for additional compatibility. UPC: 847628568488 In the Box - 2 x MOTIV MVL Omnidirectional Condenser Lavalier Microphone dfrxzwausfbczccycvwraazutbsfracw
- Foam Windscreen
- Drawstring Carrying Pouch
- Metal Tie Mount
- Limited 2-Year Warranty
- Rode - SC6 Dual TRRS Input and Headphone Output for Smartphones dfrxzwausfbczccycvwraazutbsfracw
- Polsen - HPC-A30 Closed-Back Studio Monitor Headphones dfrxzwausfbczccycvwraazutbsfracw
Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure Dual MOTIV MVL Lavalier Microphone and Two-Person Interview Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 2 x Shure MOTIV MVL Omnidirectional Condenser Lavalier Microphone
| Microphone Capsule | MEMS | | Polar Pattern | Omnidirectional | | Frequency Response | 45 Hz to 20 kHz | | Output Impedance | 350 Ohms | | Signal to Noise Ratio | 65 dB | | Maximum SPL | 124 dB SPL | | Dynamic Range | 95 dB, typical | | Sensitivity | -44.0 dBFS/Pa @ 1 kHz (Ref. 1 kHz) | | Output Noise | 29 dB A-weighted | | Microphone Connector | 1/8" (3.5 mm) TRRS (Tip=no connection, Ring 1=no connection, Ring 2=ground, Sleeve=audio | | Microphone Bias | 2.7 VDC through 2.2 kOhms resistor | | Current Drain | 245 µA, typical | | Housing | Cast zinc | | Dimensions (L x W x D) | 52 x .6 x .22" (132 x 15.2 x 5.5 mm) with cable | | Net Weight | 8.0 g (.28 oz) | | | | Box Dimensions (LxWxH) | 6.0 x 3.2 x 1.7" | - Rode SC6 Dual TRRS Input and Headphone Output for Smartphones
| Dimensions (HxWxD) | 2 x 2 x 2" (50 x 50 x 50 mm) | | Weight | 1.8 oz (50 g) | | | | Box Dimensions (LxWxH) | 3.1 x 2.8 x 0.7" | - Polsen HPC-A30 Closed-Back Studio Monitor Headphones
| | | Driver Size | 2" / 50 mm | | Design | Over-Ear (Circumaural) | | Earcup Style | Closed-Back | | | | Frequency Response | 18 Hz to 22 kHz | | Sensitivity | 93 dB at 1 kHz / 1 mW | | Impedance | 32 Ohms | | Maximum Power Handling | 600 mW | | Total Harmonic Distortion (THD) | 5% | | | | Audio Connector | 1/8" (3.5 mm) TRS | | Adapter (Included) | 1/4" (6.3 mm) | | | | Design | Single-Sided | | Color | Black | | Detachable | No | | In-Line Remote/Microphone | No | | Cable Length | 9.84' / 3 m | | | | Certifications | CE, RoHS, as per Manufacturer | | Weight | 6.5 oz / 184 g | | | | Box Dimensions (LxWxH) | 8.7 x 7.4 x 3.8" |
