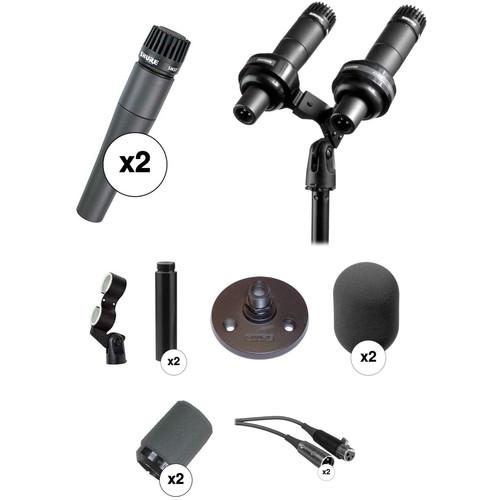

User Manual for Shure Dual SM57 Microphones and Podium Mounting Kit Click to enlarge the picture
Contents of the user manual for the Shure Dual SM57 Microphones and Podium
- Product category: Dynamic Microphones Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Dynamic Microphones
|
User manual for the Shure Dual SM57 Microphones and Podium contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|
Product description The Dual SM57 Microphones and Podium Mounting Kit from B&H provides an effective setup for dual-miking important subjects such as company heads and political figures at podiums, lecterns, desks, and tables. It includes two Shure SM57-LC dynamic microphones, horizontal and vertical dual microphone holders, a heavy-duty mounting flange with two 3” extension tubes, large and standard windscreens, and two 25’ XLR cables. Use it to mount two SM57-LCs side by side or one atop another for higher gain before feedback, signal redundancy, and dual destinations.Each Shure SM57-LC mic features a cardioid polar pattern for directional focus and optimal rejection of off-axis sounds. The 40 Hz to 15 kHz frequency response naturally attenuates high-frequency hiss and low-frequency rumble. Standard and large windscreens are provided for versatile protection against wind noise and plosives. The mounting flange can be screwed into a flat surface, and the extension tubes offer up to 6” of extra height. - 2 x Shure SM57-LC Microphone
- Mic Shootout 3: Dynamic Microphones
- Shure Mike's "Ultimate Chopper Drop Test
The Shure SM57-LC Microphone is a unidirectional dynamic microphone and a true professional workhorse used in many applications including the USA's presidential podium for over 3 decades. It is an exceptional choice for musical instrument pickup or for vocals. With its bright, clean sound and carefully contoured presence rise, the SM57-LC is ideal for live sound reinforcement and recording. It has an extremely effective cardioid pickup pattern which isolates the main sound source while minimizing background noise.
In the studio, the SM57-LC is excellent for recording drums, guitar, and woodwinds. For musical instruments or vocals, the SM57-LC is a consistent choice of professional performers. Its outstanding performance, legendary reliability, and application diversity make this workhorse the choice of performers, producers, and sound engineers all over the world. - Professional workhorse for vocals and instruments in live sound reinforcement
- Legendarily bright and clean sound reproduction
- Used at the official podium of the President of the United States
- Contoured frequency response for clean, instrumental reproduction and rich vocal pickup
- Dynamic design requires no power
- Uniform cardioid pickup pattern isolates the main sound source while reducing background noise
- Extremely durable design, with a pneumatic shock mount system that cuts down handling noise
UPC: 042406051316 - Shure Dual Microphone Holder for SM57
- Mic Shootout 3: Dynamic Microphones
- Shure Mike's "Ultimate Chopper Drop Test
Shure's Dual Microphone Holder for SM57 holds two SM57 microphones that can be mounted horizontally or vertically on a lectern or microphone stand. UPC: 042406403894 - Shure Dual Microphone Mount
- Mic Shootout 3: Dynamic Microphones
- Shure Mike's "Ultimate Chopper Drop Test
The Shure Dual Microphone Mount A26M is a mount designed specifically for use with Shure 545 Series, SM57 and Beta 57A microphones. Take advantage of this dual mount's unique design, which allows you to use two microphones in a single mount. - Double Mounting
- Take advantage of this model's unique design to mount two Shure 545 Series, SM57, or Beta 57A microphones with one mount.
UPC: 042406053006 - 2 x Shure Extension Tube
- Mic Shootout 3: Dynamic Microphones
- Shure Mike's "Ultimate Chopper Drop Test
The Shure A26X 3-Inch Extension Tube for Desk Stands provides additional height for desktop recording. It also adapts Shure's Beta 56 microphone to various mounting devices. UPC: 042406056601 - Shure A13HD Heavy-Duty Mounting Flange
- Mic Shootout 3: Dynamic Microphones
- Shure Mike's "Ultimate Chopper Drop Test
The Shure A13HD is a heavy-duty microphone stand, mounting flange designed for flush-mounting into desktops, podiums, etc. The A13HD features a 5/8"-27 threaded fitting for compatible goosenecks, microphone mounting shafts, etc. UPC: 042406053716 - 2 x Shure A81WS - Windscreen for SM81 & SM57
- Mic Shootout 3: Dynamic Microphones
- Shure Mike's "Ultimate Chopper Drop Test
Large foam windscreen for Shure SM81 and SM57 microphones. UPC: 042406056649 - 2 x Shure A2WS - Windscreen
- Mic Shootout 3: Dynamic Microphones
- Shure Mike's "Ultimate Chopper Drop Test
Standard windscreen for Shure SM57, SM77 and 545 series handheld microphones. Color, Gray. UPC: 042406112413 - 2 x Shure C25E 25' Triple-Flex Balanced Microphone Cable
- Mic Shootout 3: Dynamic Microphones
- Shure Mike's "Ultimate Chopper Drop Test
The C25E 25' Triple-Flex Balanced Microphone Cable from Shure is a double-wrapped, shielded cable for microphones. It features Switchcraft connectors with a black finish on the microphone end. The cable has a 3-pin XLRM connector on one end and a 3-pin XLRF connector on the other. It is designed for low-impedance operation. UPC: 042406052450 In the Box - 2 x SM57-LC Microphone sscauxxdtcvczffdcexarbu
- (26A13) Padded Bag
- A25D - Stand Adapter
- Limited 2-Year Warranty
- Dual Microphone Holder for SM57
- Dual Microphone Mount A26M
- 2 x A26X Extension Tube for Desk Stands - Measures: 3" (7.62 cm)
- A13HD Heavy-Duty Mounting Flange for Gooseneck and Shaft Microphone Mounts (Matte Black)
- 2 x A81WS - Large Foam Windscreen for the Shure SM81 and SM57 Microphones
- 2 x A2WS - Windscreen for SM57, SM77 & 545 Series Handheld Microphones (Gray)
- 2 x C25E 25' Triple-Flex Balanced Microphone Cable
Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure Dual SM57 Microphones and Podium Mounting Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 2 x Shure SM57-LC Microphone
| Transducer | (Moving Coil) Dynamic | | Polar Pattern | Cardioid | | Frequency Response | 40 Hz - 15 kHz | | Maximum Input Sound Level | Not Specified by Manufacturer | | Power Requirements | None Dynamic, Requires No Phantom or Battery Power | | Output Impedance | 150 Ohms (300 Ohms Actual) for Connection to Low Impedance Microphone Inputs | | Output Connectors | XLR-3M Type | | Dimensions | 6.2 x 1.25" (157 x 32mm) LxD | | Weight | 10 oz (284g) | | | | Box Dimensions (LxWxH) | 10.15 x 4.95 x 3.3" | - Shure Dual Microphone Holder for SM57
| | | Box Dimensions (LxWxH) | 4.3 x 1.4 x 0.2" | - Shure Dual Microphone Mount
| | | Box Dimensions (LxWxH) | 5.6 x 3.7 x 3.2" | - 2 x Shure Extension Tube
| | | Box Dimensions (LxWxH) | 4.0 x 1.0 x 1.0" | - Shure A13HD Heavy-Duty Mounting Flange
| | | Box Dimensions (LxWxH) | 5.1 x 5.0 x 2.9" | - 2 x Shure A81WS - Windscreen for SM81 & SM57
| | | Box Dimensions (LxWxH) | 8.8 x 4.4 x 4.3" | - 2 x Shure A2WS - Windscreen
| | | Box Dimensions (LxWxH) | 7.0 x 5.2 x 2.2" | - 2 x Shure C25E 25' Triple-Flex Balanced Microphone Cable
| Type | Triple-flex, double-wrapped, shielded cable | | Connector 1 | 3-pin XLRM | | Connector 2 | 3-pin XLRF | | Cable Length | 25' (7.6 m) | | Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 7.0 x 6.8 x 1.0" |
