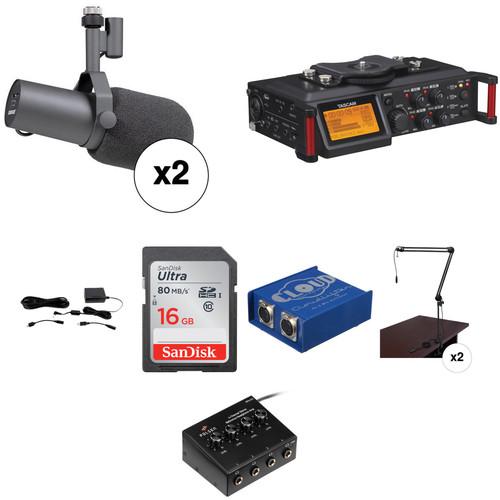

Product description

• 2 x Shure SM7B Vocal Microphone
  • Mic Shootout 3: Dynamic Microphones
  • Shure Mike's "Ultimate Chopper Drop Test
  The Shure SM7B Vocal Microphone is a dynamic microphone with a smooth, flat, wide-range frequency response appropriate for music and speech in all professional audio applications.

  It features a cardioid polar pattern, bass roll-off and midrange emphasis (presence boost) controls, and shielding against broadband interference. An internal air suspension shock isolation helps to eliminate mechanical noise transmission and a yoke mount facilitates mounting and provides precise control of the mic position.
  Flat, Wide-Range Frequency Response
  • The flat-frequency response enhances the midrange and high frequencies that are associated with the human voice.
  Rejection of Electromagnetic Hum
  • Improved rejection of electromagnetic hum, optimized for shielding against broadband interference emitted by computer monitors.
  Air Suspension Shock Isolation
  • Internal air suspension shock isolation virtually eliminates mechanical noise transmission.
  Pop Filter
  • The built-in pop filter eliminates the need for any add-on protection against explosive breath sounds, even for close-up vocals or narration.
  Cardioid Polar Pattern
  • Cardioid polar pattern effectively isolates signal source improving gain before feedback.
  UPC: 042406088879
• Tascam DR-70D 4-Channel Audio Recording Device for DSLR and Video Cameras
  • Mic Shootout 3: Dynamic Microphones
  • Shure Mike's "Ultimate Chopper Drop Test
  Designed as an audio recording solution for filmmakers, the DR-70D 4-Channel Audio Recording Device for DSLR and Video Cameras from Tascam features dual built-in omnidirectional microphones and is capable of recording up to 4 tracks simultaneously. It has tripod mounts on both the top and bottom of the unit and can be mounted above or below your DSLR or video camera as well as on a follow-focus cage.

  Recording to SD, SDHC, or SDXC cards up to 128GB, the DR-70D tracks in BWAV format for NLE compatibility. All integral parameters feature dedicated hardware controls, so you never have to go searching through menus to quickly change a setting. A dedicated camera output lets you send a mic-level signal to your camera's audio input to create a reference track for easier synching in post, while the dedicated headphone output allows you to monitor your audio.
  • Designed for use with video and DSLR cameras and can be screwed to the bottom of a DSLR camera with jacks and controls that stay out of the way
  • Simplified interface with controls on hardware switches and knobs instead of menus, for quick adjustment during a take
  • Dual record function captures a safety track to have a backup in case of distortion
  • Tascam's HDDA microphone preamps which are designed for low noise, low distortion, and full-bandwidth
  • BWAV format capture for NLE compatibility
  • Limiter and high-pass filter prevent wind or mic bumps from overdriving the recording
  • Microphone level camera output allows you to record the same audio to the camera for easy synchronization in your editor
  • Records to SD/SDHC/SDXC media
  • Individual headphone and camera outputs allows you to monitor recording with headphones while sending another output to the camera
  • Slate function records a tone for precise synchronization between DR-70D and camera audio in post
  • 4-track recording records from four XLR microphone inputs
  • Built-in omnidirectional microphones allow you to record without packing mics
  • Runs on 4 AA batteries
  UPC: 043774031139
• Tascam PS-P520E AC Power Adapter
  • Mic Shootout 3: Dynamic Microphones
  • Shure Mike's "Ultimate Chopper Drop Test
  The PS-P520E from Tascam is an external power supply for the MP-GT1 Portable MP3 Guitar Trainer. The adapter is also compatible with the company's DR-1, GT-R1, DR-2d, DR-07, DR-V1HD, DR-100, DR-100MK2, DP-004, DP-006, DP-008, DP-008EX, CD-GT2, CD-BT2, CD-VT2, MP-GT1, MP-BT1, MP-VT1, GB-10, LR-10, PT-7, and US-2x2. When using a DC to mini-USB cable, the power supply supports the Tascam GB-10, LR-10, DR-03, DR-05, DR-07MK2, DR-40, DR-22WL, DR-44WL, DR-60D, DR-60DMK2, DR-70D, and DR-701D models. It replaces the discontinued PS-P520. UPC: 043774032242
• SanDisk 16GB Ultra UHS-I SDHC Memory Card (Class 10)
  • Mic Shootout 3: Dynamic Microphones
  • Shure Mike's "Ultimate Chopper Drop Test
  Record Full HD 1080p video with this Class 10 compliant 16GB Ultra UHS-I SDHC Memory Card from SanDisk. With enhanced data read speeds of up to 80 MB/s this Ultra SDHC memory card is designed to suit the needs of compact and mid-range point and shoot cameras. You can also save and store a variety of files such as music, movies, documents and more. The writable label found on the card allows you to write down what is saved to the card while the built-in write protect switch helps to prevent accidental data loss. This card, as with most SanDisk cards, comes shock, temperature, x-ray, magnet, and waterproof to take your files with you nearly anywhere you go.
  • Class 10 performance for Full HD Video (1080p)
  • Read speeds up to 80 MB/s
  • Writable label for easy identification and organization
  • Engineered with UHS-I bus architecture
  • This SD memory card comes shock, temperature, x-ray, magnet, and waterproof proof
  UPC: 619659136451
• Cloud Microphones Cloudlifter CL-2 Mic Activator
  • Mic Shootout 3: Dynamic Microphones
  • Shure Mike's "Ultimate Chopper Drop Test
  The Cloudlifter CL-2 Mic Activator from Cloud Microphones is a compact, dual-input solution for common audio problems in the field and in the studio involving low-output passive microphones, including ribbons. The CL-2 uses any standard phantom-powered mixer or microphone input device to provide up to +25 dB of clean, transparent gain. This improves signal-to-noise ratio and improves the performance of passive microphone signals by driving stronger, cleaner signals over longer XLR cable runs, making them ideal for broadcast, live, and studio applications. The CL-2 is housed in a rugged steel enclosure which offers shielding and durability.
  Transparent Gain
  • Gives passive mics up to +25 dB additional active output and keeps the direct audio path free-and- clear of transformers, capacitors, and resistors. The CL-2 houses discrete JFET circuitry that delivers clean gain while preserving the natural sonic characteristics of the source
  Useful for a Variety of Applications
  • • Use with noisy or low-gain preamps
    • Use with mixers/preamps that negatively impact the sound at higher gain setting
    • Use with low-output dynamic microphones and ribbons
    • Mic softer sound sources such as acoustic instruments and voice
    • Use for long cable runs
  Features at a Glance
  • • Gives passive mics up to +25 dB additional active output
    • Provides 2 distinct stages of clean gain
    • Easy to use self-contained design requires only phantom power
    • Recommended for use with all passive dynamic microphones
    • Compatible with tube, battery, or power supply driven microphones
    • Safe for all passive ribbons with no transfer of phantom
    • Utilizes Patent Pending Class A, Discrete JFET circuitry
    • Ideal impedance loading for optimal performance @ 3 kOhms
    • Rugged, road ready, and portable, for studio, stage, and broadcasting
  UPC: 094922484215
• 2 x Auray BAI-2X Two-Section Broadcast Arm with Internal Springs and Integrated XLR Cable
  • Mic Shootout 3: Dynamic Microphones
  • Shure Mike's "Ultimate Chopper Drop Test
  The Auray BAI-2X is a two-section broadcast arm with internal springs and an integrated XLR cable. This versatile and sturdy broadcast arm is great for studio as well as home use. It's ideal for broadcast, voiceover, and podcasts.

  The BAI-2X broadcast arm is designed with internal springs that provide a clean and sleek look. The internal balance springs are precision engineered to support and hold in place microphones of up to 5 lb. (2.27 kg). The design also minimizes handling noise when re-positioning the arm. The broadcast arm features a standard 5/8"-27 microphone stud mount that is compatible with most shockmounts and microphone clips. The angle of the microphone stud mount can be adjusted and secured with the locking knob, and the angle is maintained when re-positioning the arm. This eliminates the need to readjust it every time the arm is moved. With an extension of up to 40 inches, and the ability to rotate the arm 360°, the BAI-2X allows for precise microphone placement.

  The BAI-2X also features a heavy-duty combo mount that consists of a sturdy C-clamp and a heavy-metal desktop mount. The C-clamp is capable of fastening onto desktops up to 2.3" thick. The C-clamp's slim design minimizes the clearance needed to mount it between a desk and wall. The desktop mount detaches from the C-clamp and provides the option of permanent installation to a desktop with the mounting screws (included). A 14" riser is included for adding height to the broadcast arm in order to extend over computer or studio monitors.
  Versatile
  • Ideal for studios as well as home use
  Internal Springs
  • Internal springs provide smooth, noise-free positioning and clean and sleek profile
  Sturdy
  • Supports microphones up to 5 lb. (2.27 kg)
  Compatibility
  • The 5/8"-27 standard microphone thread is compatible with most shockmounts and microphone clips
  Precision
  • Extends up to 40" (101.6 cm) and rotates 360° allowing for precise microphone placement
  XLR Cable
  • The integrated 15-foot (457.2 cm) XLR cable provides a secure, locking connection and excellent signal transfer
  Extra Height
  • A 14" (13.6 cm) riser is included. It provides extra height to the broadcast arm for extending over computer or studio monitors
  Combo Mount
  • The heavy-duty combo mount is comprised of a C-clamp for clamping to a desktop up to 2.3-inch (5.8 cm) thick, and a detachable desktop mount for permanent attachment to a desktop with the included screws
  14" Riser
  • The included riser adds 14" of height to the broadcast arm so that it can easily extend over computer or studio monitors
  UPC: 847628578272
• Polsen HPA-4X2 4-Channel Stereo Reference Headphone Amplifier
  • Mic Shootout 3: Dynamic Microphones
  • Shure Mike's "Ultimate Chopper Drop Test
  The HPA-4X2 4-Channel Stereo Reference Headphone Amplifier from Polsen features a durable and compact design and can be used for a variety of professional and project applications including studio recording and stage monitoring, or any application that requires multiple headphone connections. Features include a wide frequency response of 20 Hz to 20 kHz with low distortion at high volumes, and no signal loss when all 4 headphone outputs are used simultaneously. Each of its four channels allows for independent volume control. Thanks to its Link feature, you can daisy chain multiple HPA-4X2s together to cater to your needed headphone count.

  The unit features a 1/4" stereo TRS input, and stereo RCA inputs. It mono button allows for mono signal compatibility. For its headphone outputs, it features four 1/4" TRS connectors. To assure compatibility with a variety of headphones, Polsen includes four 1/8" to 1/4" adapters as well as a stereo mini cable that, when used with one of the included adapters, allows you to connect a device with a 1/8" output.
  • Durable, compact, and easy to use
  • High output level for precise monitoring at high volume
  • Low noise circuitry
  • 1/4" TRS and RCA inputs
  • Four headphone jacks each with independent volume control
  • Wide frequency response (20 Hz to 20 kHz) for full-range stereo sound
  • Stereo/mono switch provides options for monitoring playback
  • Link feature to daisy chain additional headphone amplifiers
  • No loss of signal when all four headphones are connected
  • Included stereo mini cable for connecting devices with 1/8" output (use included 1/4" adapter)
  UPC: 847628577695

• 2 x SM7B - Cardioid Dynamic Vocal Microphone xqbqfrvwvc
• Swivel (Yoke Mount) Stand Adapter
• A7WS Shure Windscreen (SM7, SM7A, and SM7B)
• RPM602 Switch Cover Plate for SM7A and SM7B Broadcast Microphones
• Limited 2-Year Warranty

• Tascam - DR-70D 4-Channel Audio Recording Device for DSLR and Video Cameras xqbqfrvwvc

• Tascam - PS-P520E AC Power Adapter

• SanDisk - 16GB Ultra UHS-I SDHC Memory Card (Class 10)

• Cloud Microphones - Cloudlifter CL-2 Mic Activator

• 2 x Auray - BAI-2X Two-Section Broadcast Arm with Internal Springs and Integrated XLR Cable xqbqfrvwvc

• Polsen - HPA-4X2 4-Channel Stereo Reference Headphone Amplifier

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 2 x Shure SM7B Vocal Microphone

  Sound Field	Mono
  Transducer	Dynamic
  Polar Pattern	Cardioid
  Frequency Range	50 Hz to 20 kHz
  Impedance	150 Ohms
  Sensitivity	-59 dBV/Pa at 1 kHz

  Output Connectors	1 x 3-Pin XLR
  Length	7.4" / 187.96 mm
  Diameter	2.5" / 63.50 mm
  Weight	1.69 lb / 767 g

  Box Dimensions (LxWxH)	13.5 x 7.0 x 5.0"

• Tascam DR-70D 4-Channel Audio Recording Device for DSLR and Video Cameras

  Number of Tracks	4
  Max Sample Rate/Resolution	96 kHz / 24-Bit
  Microphone	Built-In Omnidirectional Stereo Pair
  Built-In Speaker	No
  Memory Card Support	SD (64 MB to 2 GB) SDHC (4 to 32 GB) SDXC (48 to 128 GB)

  Audio File Formats	BWF, WAV
  Sample Rates	44.1 kHz
  Bit Depth	16/24-Bit
  Timecode	No

  Analog I/O	1 x 1/8" / 3.5 mm TRS Camera Input 1 x 1/8" / 3.5 mm TRS Headphone Output 1 x 1/8" / 3.5 mm TRS Input 1 x 1/8" / 3.5 mm TRS Line Output 4 x Combo XLR / 1/4" TRS Input 1 x 2.5 mm TRS Remote Input 1 x 1/8" / 3.5 mm TRS Camera Output
  Phantom Power	+24 / 48 V ± 4 V
  Phantom Power Current	10 mA per Channel
  Plug-In Power	Yes
  Host Connection	1 x Micro-USB (USB 2.0)

  Frequency Response	Line Outputs, Mic/Line Inputs: 20 Hz to 20 kHz +0.5/-2 dB (at 48 kHz, JEITA) 20 Hz to 40 kHz +0.5/-3 dB (at 96 kHz, JEITA)
  Gain Range	Mic Inputs: +11 to +64 dB 1/8" Inputs: +3 dB to +38 dB
  Max Input Level	Mic Inputs: -72 dBu Line Inputs: +20 dBu 1/8" Inputs: +10 dBV Camera Inputs: +6 dBV
  Max Output Level	-24 dBV
  Headphone Output Power	20 mW per Channel
  Impedance	Camera Inputs: 10 kOhms Mic Inputs: 2 kOhms Line Inputs: ≥10 kOhms Camera Outputs: 200 Ohms Line Outputs: 200 Ohms
  SNR	≥92 dB
  THD	<0.02%
  EIN	≤-120 dBu

  Power Options	Batteries, USB Bus Power, AC/DC Power Adapter
  Battery Type	4 x AA 4 x AA

  Operating Temperature	32 to 104°F / 0 to 40°C
  Dimensions	6.7 x 2.2 x 4.2" / 169.0 x 55.2 x 106.5 mm (with Adapter Attached)
  Weight	1.4 lb / 625.0 g (with Batteries) 1.2 lb / 530.0 g (without Batteries)

  Box Dimensions (LxWxH)	10.6 x 8.1 x 4.3"

• Tascam PS-P520E AC Power Adapter

  Input Power	100 - 200 VAC, 50/60 Hz
  Output Power	5.0 V, 2 A

  Box Dimensions (LxWxH)	6.2 x 4.1 x 3.4"

• SanDisk 16GB Ultra UHS-I SDHC Memory Card (Class 10)

  Card Type	SDHC
  Storage Capacity	16 GB
  Bus Type	UHS-I
  Speed Class	10
  Bus Interface Speed	UHS Class I
  Data Transfer	Read Speed: 80 MB/s Maximum (Burst) Write Speed: 10 MB/s Minimum
  Durability	Magnet-Proof, Shockproof, Temperature Extremes, Waterproof, X-Ray Proof
  Operating Temperature	-13 to 185°F/ -25 to 85°C
  Storage Temperature	-40 to 185°F/ -40 to 85°C
  Built-in Write-Protect Switch	Yes

  Box Dimensions (LxWxH)	4.3 x 4.0 x 0.1"

• Cloud Microphones Cloudlifter CL-2 Mic Activator

  I/O	2x XLR input 2x XLR output
  Input Impedance	3 kOhms
  Gain	+25 dB

  Box Dimensions (LxWxH)	5.75 x 5.35 x 2.4"

• 2 x Auray BAI-2X Two-Section Broadcast Arm with Internal Springs and Integrated XLR Cable

  Length	40" (101.6 cm)
  Weight Capacity	5 lb (2.27 kg)
  Microphone Mount	5/8"-27 standard microphone thread
  Clamping Range	2.3" (5.8 cm)
  Riser	14" (35.56 cm)
  Cable	XLR M to XLR F: 15' (457.2 cm)
  Weight	4.47 lb. (2.02 kg)

  Box Dimensions (LxWxH)	23.5 x 7.4 x 3.5"

• Polsen HPA-4X2 4-Channel Stereo Reference Headphone Amplifier

  Channels	4
  Input Connections	1x 1/4" (6.3 mm) TRS master input 1x L,R RCA
  Output Connectors	4x 1/4" (6.3 mm) TRS headphone outputs
  Maximum Input Level	+14 dBV
  Maximum Output Level	22 dB, per channel
  Input Impedance	1 kΩ
  Output Impedance	Minimum 10 Ω, per channel
  Signal to Noise Ratio	>98 dB
  THD	<0.007%
  Power	12 V DC, 150 mA
  Dimensions (L x W x D)	3.00 x 3.75 x 1.20" (76 x 95 x 30 mm)
  Weight	10.4 oz (295 g)

  Box Dimensions (LxWxH)	8.25 x 4.85 x 2.8"
