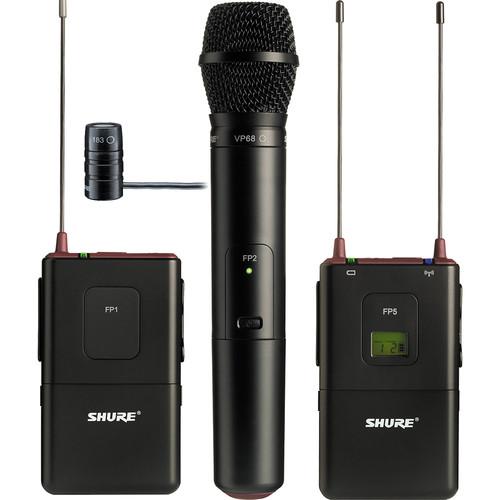

Product description The FP Combo Wireless System from Shure includes the FP1 bodypack transmitter, the FP2 handheld transmitter, the FP5 portable receiver, and the WL183 lavalier microphone. The system is set up for Shure's J3 frequency band and operates from 572 to 596 MHz. .
The FP1 Bodypack Transmitter features automatic transmitter setup for syncing to your receiver's frequency and employs Shure's audio referencing commanding for clear reproduction of your audio. The FP2 Handheld Transmitter features the VP68 omnidirectional capsule, and is compatible with any Shure wireless capsule. The FP5 Receiver features diversity reception, easy one-touch channel search and lightweight plastic housing. Infrared sync provides quick and easy channel syncing between the transmitter and FP5 receiver. - Shure FP1 Wireless Bodypack Transmitter (J3: 572 - 596 MHz) The FP1 Wireless Bodypack Transmitter from Shure is designed for compatibility with both FP and SLX wireless systems from Shure. It is tuned to Shure's J3 frequency band and operates between 572 and 596 MHz. The FP1 features Automatic Transmitter Setup for syncing to your receiver's frequency and employs Shure's Audio Referencing Companding for clear reproduction of your audio.
The transmitter has a 300-foot line of sight range of operation with ideal conditions and is powered by 2 AA batteries for up to 12 hours. It features a TA4F connector for compatibility with a range of lavalier and headset microphones. Thanks to the FP1's Audio Input Gain control, you can adjust your volume levels at the source and before transmission. UPC: 042406227544 - Shure FP2 Wireless Handheld Transmitter (J3 / 572 - 596MHz) The Shure FP2 Wireless Handheld Transmitter is available as part of the Shure FP series wireless microphone systems or individually. The Shure FP series provides professional, portable wireless operation in the 24MHz band, is easy to operate and affordable. The handheld transmitter features the Shure VP68 omnidirectional capsule, and is compatible with any Shure wireless capsule. Infrared sync provides quick and easy channel syncing between the transmitter and FP5 receiver (sold separately). The FP2 handheld is ruggedly built and powered on a pair of AA batteries.
- Automatic transmitter setup to instantly sync the transmitter to the receiver frequency
- LED indicator for control lockout, IR RF sync, low battery indicator
- Includes VP68 capsule, compatible with all other Shure capsules
UPC: 042406227599 - Shure FP5 Wireless Portable Receiver (J3: 572 - 596MHz) The Shure FP5 Wireless Portable Receiver is available as part of the Shure FP series wireless microphone systems or individually. The Shure FP series provides professional, portable wireless operation in the 24MHz band, is easy to operate and affordable. The FP5 receiver features diversity reception, easy one-touch channel search and lightweight plastic housing. Infrared sync provides quick and easy channel syncing between the FP5 receiver and FP series transmitters (sold separately). The FP5 receiver is ruggedly built and powered on a pair of AA batteries.
- Patented audio reference companding for crystal-clear audio
- Automatic frequency selection to locate an open frequency at the touch of a button
- Automatic transmitter setup to instantly sync the transmitter to the receiver frequency
- Power LED with low battery indicator
- RF LED to indicate transmitter sync when illuminated
- Support for up to 20 compatible systems simultaneously
- Receiver output level control to manage output to camera/mixer
- TA3F cable output to either XLR or 1/8" connectors (included)
- Diversity antennas for consistent reception of signal transmission
- Camera shoe mount (included)
UPC: 042406227919 - Shure WL183 Omnidirectional Lavalier Microphone The Shure WL183 is a miniature omnidirectional microphone designed for general recording and sound reinforcement application. The omnidirectional pattern provides a generous pick up at the perimeter of the capsule, enhancing ambient audio pick up while minimizing handling noise. The WL183 features a wide sensitivity and frequency response, reproducing speech with great detail and clarity. The 4 foot (1.2 meter) cable cable terminates to a 4-pin TA4-female connector, compatible with Shure wireless transmitters and power supplies.
- Miniature Profile
- The miniature profile of the WL183 capsule allows the microphone to be easily concealed during performances or video shoots.
- Omnidirectional Pattern
- The omnidirectional polar pattern provides a 360 degree pick up range, enabling a generous signal pick up without added noise.
- TA4 Female Connection
- The 4 foot (1.2 meter) cable terminates to a TA4 female connection, compatible with Shure wireless transmitters and power supply modules.
UPC: 042406055307 In the Box - FP1 Wireless Bodypack Transmitter (J3: 572 - 596 MHz) fwfytszwufewbuzvuebwustdey
- Limited 2-Year Warranty
- FP2 Wireless Handheld Transmitter (J3 / 572 - 596MHz) fwfytszwufewbuzvuebwustdey
- FP5 Wireless Portable Receiver (J3: 572 - 596MHz)
- WL183 Omnidirectional Lavalier Microphone
Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure FP Combo Wireless System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Shure FP1 Wireless Bodypack Transmitter (J3: 572 - 596 MHz)
| Gain Adjustment Range | −10 to 20 dBV | | Input Impedance | 1 MΩ | | RF Output Power | 10 to 30 mW, varies by region | | Connector | TA4F (pin 1 = ground, pin 2 = +5 V bias, pin 3 = audio, pin 4 = tied through active load to ground, on instrument adapter cable pin 4 floats) | | Power Requirements | 2x LR6 AA batteries | | Battery Life | Up to 12 hours | | Dimensions (H x W x D) | 7 x 2.5 x 0.7" (108 x 64 x 19 mm) | | Weight | 3 oz (81 g) | | | | Box Dimensions (LxWxH) | 12.126 x 4.724 x 3.307" | - Shure FP2 Wireless Handheld Transmitter (J3 / 572 - 596MHz)
| | | Box Dimensions (LxWxH) | 12.1 x 4.8 x 3.3" | - Shure FP5 Wireless Portable Receiver (J3: 572 - 596MHz)
| | | Box Dimensions (LxWxH) | 12.1 x 4.7 x 3.3" | - Shure WL183 Omnidirectional Lavalier Microphone
| Transducer | Electret Condenser | | Polar Pattern | Omnidirectional | | Frequency Response | 50 Hz - 17 kHz | | Dynamic Range (Typical) | 102.5 dB | | Signal-to-Noise Ratio | Output Noise: 22.5dB SPL | | Maximum Input Sound Level | 125 dB | | Power Requirements | +5v DC on Pin 2, Return on Pin 1 (Ground) Provided by Wireless Transmitters | | Output Impedance | 1800 ohms | | Output Connectors | TA4F Mini 4-Pin Connector | | Pad | None | | Low Frequency Roll-Off | None | | Dimensions | Cable Length - 4 feet (1.2m) | | Weight | not specified by manufacturer | | | | Box Dimensions (LxWxH) | 6.7 x 4.4 x 3.3" |
