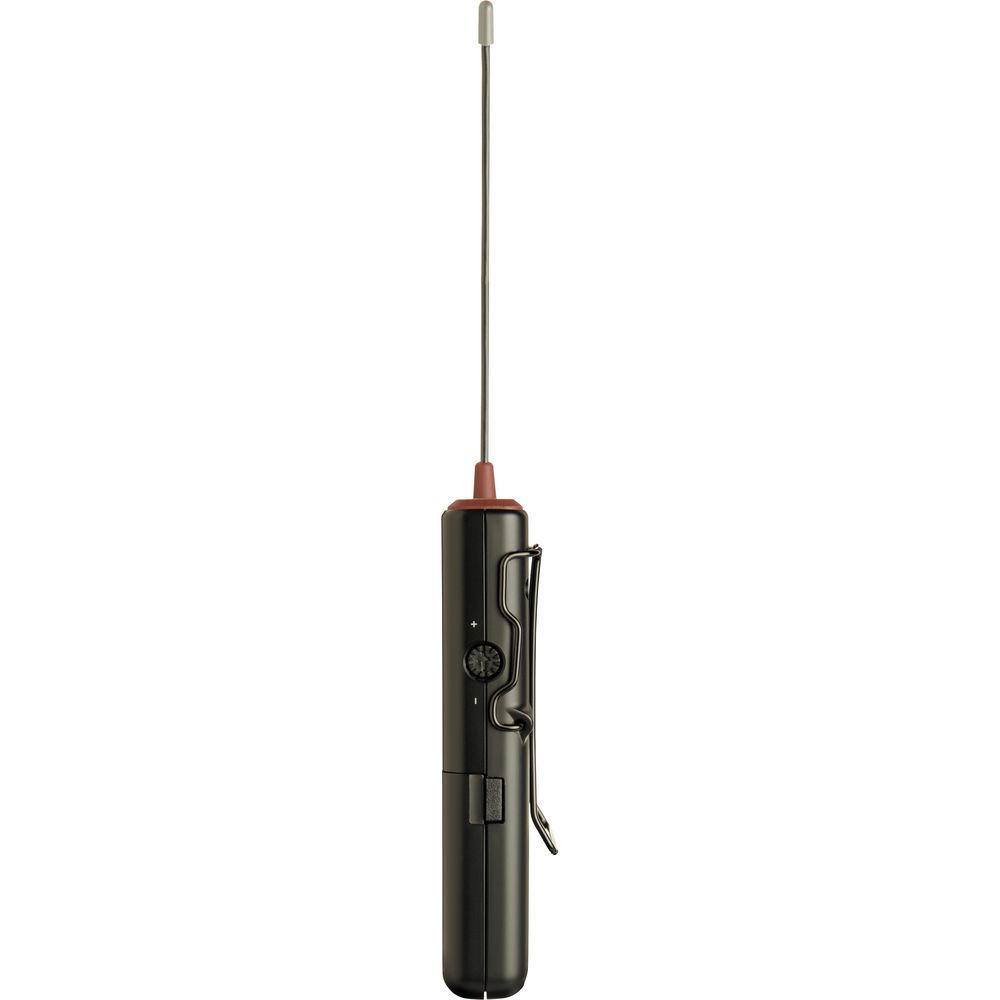

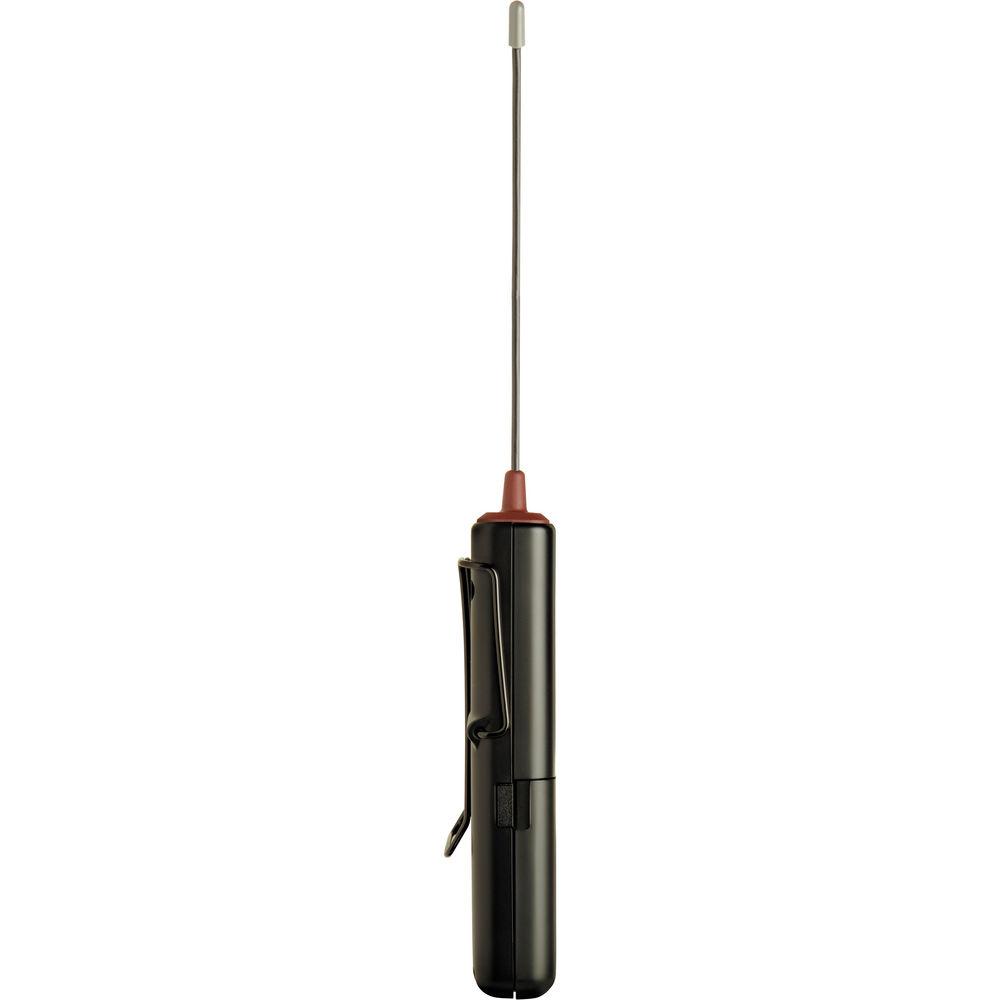

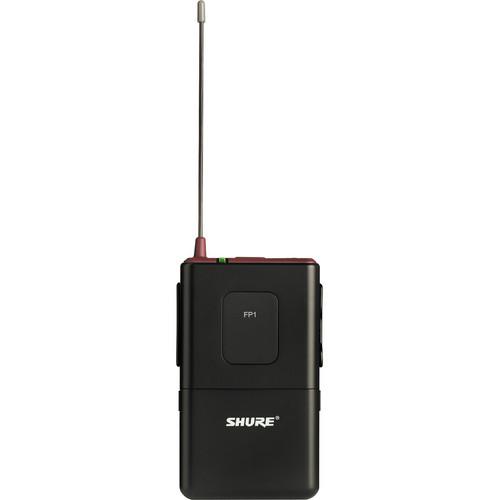

User Manual for Shure FP1 Wireless Bodypack Transmitter Click to enlarge the picture
Contents of the user manual for the Shure FP1 Wireless Bodypack Transmitter
- Product category: Wireless Transmitters Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Wireless Transmitters
 |
User manual for the Shure FP1 Wireless Bodypack Transmitter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|
Product description The FP1 Wireless Bodypack Transmitter from Shure is designed for compatibility with both FP and SLX wireless systems from Shure. It is tuned to Shure's G5 frequency band and operates between 494 and 518 MHz. The FP1 features Automatic Transmitter Setup for syncing to your receiver's frequency and employs Shure's Audio Referencing Companding for clear reproduction of your audio.

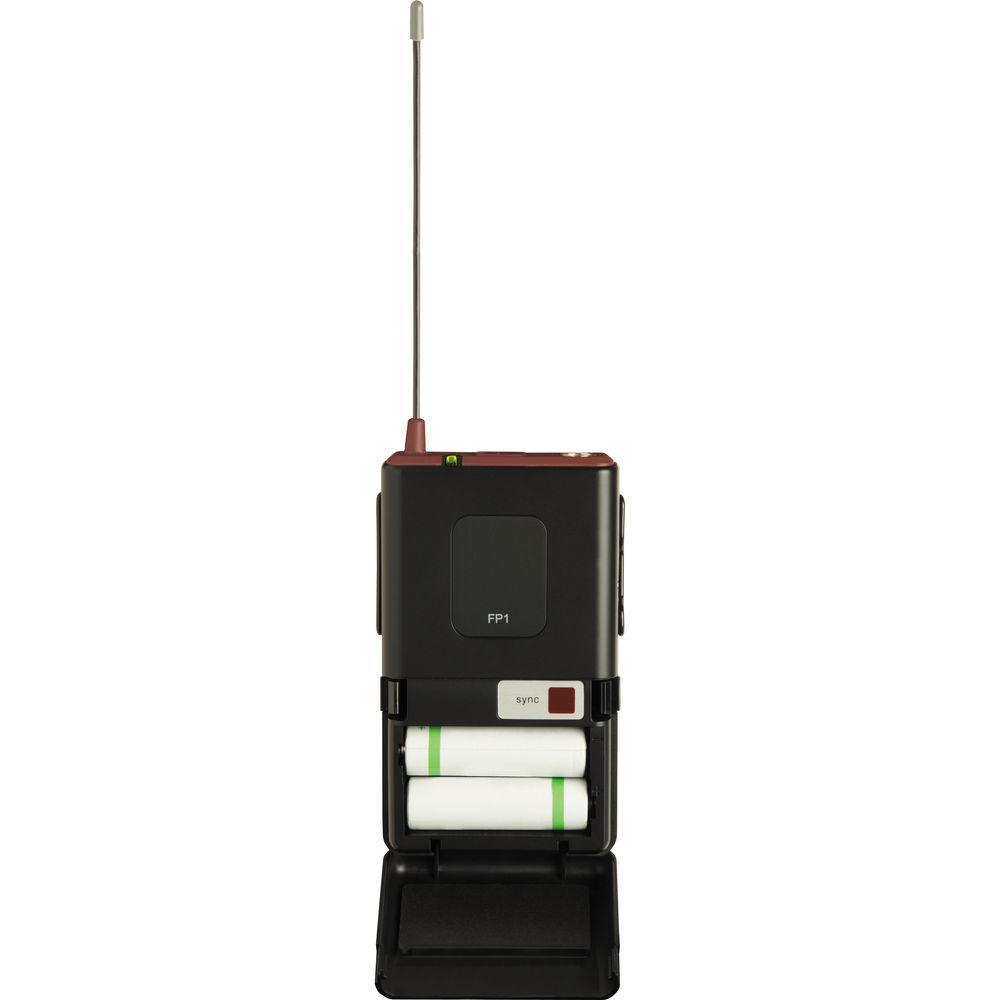

The transmitter has a 300-foot line of sight range of operation with ideal conditions and is powered by 2 AA batteries for up to 12 hours. It features a TA4F connector for compatibility with a range of lavalier and headset microphones. Thanks to the FP1's Audio Input Gain control, you can adjust your volume levels at the source and before transmission. UPC: 042406226073 In the Box Shure FP1 Wireless Bodypack Transmitter (G5: 494 - 518 MHz) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure FP1 Wireless Bodypack Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure FP1 Specs | Gain Adjustment Range | −10 to 20 dBV | | Input Impedance | 1 MΩ | | RF Output Power | 10 to 30 mW, varies by region | | Connector | TA4F (pin 1 = ground, pin 2 = +5 V bias, pin 3 = audio, pin 4 = tied through active load to ground, on instrument adapter cable pin 4 floats) | | Power Requirements | 2x LR6 AA batteries | | Battery Life | Up to 12 hours | | Dimensions (H x W x D) | 7 x 2.5 x 0.7" (108 x 64 x 19 mm) | | Weight | 3 oz (81 g) | | | | Package Weight | 0.9 lb | | Box Dimensions (LxWxH) | 12.1 x 4.8 x 3.4" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 03 owners. Add your rating and experience with the product.
