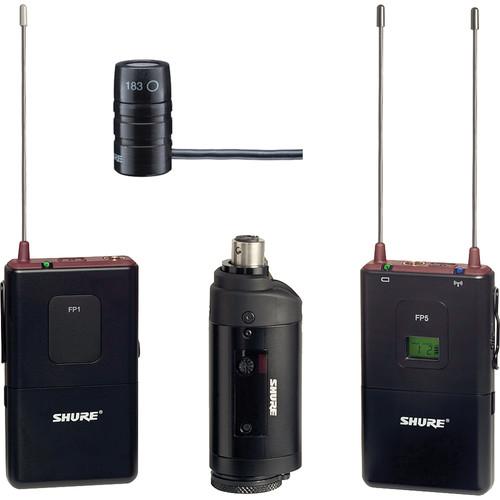

Product description The FP1 Wireless Bodypack Transmitter with Wireless Transmitter/Receiver and Microphone from Shure includes the Shure FP1 wireless bodypack transmitter, the FP3 wireless plug-in transmitter, the FP5 wireless portable receiver, and the WL183 omnidirectional lavalier microphone.
The FP1 Wireless Bodypack Transmitter is tuned to Shure's H5 frequency band and operates between 518 and 542 MHz. The FP1 features Automatic Transmitter Setup for syncing to your receiver's frequency and employs Shure's Audio Referencing Companding for clear reproduction of your audio.
The transmitter has a 300-foot line of sight range of operation with ideal conditions and is powered by 2 AA batteries for up to 12 hours. It features a TA4F connector for compatibility with a range of lavalier and headset microphones. Thanks to the FP1's Audio Input Gain control, you can adjust your volume levels at the source and before transmission.
The FP3 Wireless Plug-on Transmitter provides professional, portable wireless operation in the 24 MHz band, is easy to operate and affordable. The FP3 plug-on transmitter features a 3-pin XLR input for connecting dynamic or self-powered handheld microphones, and line level outputs from mixers, player devices, etc. Infrared sync provides quick and easy channel syncing between the transmitter and FP5 receiver. The FP3 transmitter is ruggedly built and powered on a pair of AA batteries.
The FP5 Wireless Portable Receiver provides professional, portable wireless operation in the 24 MHz band, is easy to operate and affordable. The FP5 receiver features diversity reception, easy one-touch channel search and lightweight plastic housing. Infrared sync provides quick and easy channel syncing between the FP5 receiver and the FP3 transmitter. The FP5 receiver is ruggedly built and powered on a pair of AA batteries.
The WL183 is a miniature omnidirectional microphone designed for general recording and sound reinforcement application. The omnidirectional pattern provides a generous pick up at the perimeter of the capsule, enhancing ambient audio pick up while minimizing handling noise. The WL183 features a wide sensitivity and frequency response, reproducing speech with great detail and clarity. The 4' cable terminates to a 4-pin TA4-female connector, compatible with Shure wireless transmitters and power supplies. - Shure FP1 Wireless Bodypack Transmitter (H5: 518 - 542 MHz) The FP1 Wireless Bodypack Transmitter from Shure is designed for compatibility with both FP and SLX wireless systems from Shure. It is tuned to Shure's H5 frequency band and operates between 518 and 542 MHz. The FP1 features Automatic Transmitter Setup for syncing to your receiver's frequency and employs Shure's Audio Referencing Companding for clear reproduction of your audio.
The transmitter has a 300-foot line of sight range of operation with ideal conditions and is powered by 2 AA batteries for up to 12 hours. It features a TA4F connector for compatibility with a range of lavalier and headset microphones. Thanks to the FP1's Audio Input Gain control, you can adjust your volume levels at the source and before transmission. UPC: 042406227131 - Shure FP3 Wireless Plug-In Transmitter (H5 / 518 - 542MHz) The Shure FP3 Wireless Plug-on Transmitter is available as part of the Shure FP series wireless microphone systems or individually. The Shure FP series provides professional, portable wireless operation in the 24MHz band, is easy to operate and affordable. The FP3 plug-on transmitter features a 3-pin XLR input for connecting dynamic or self-powered handheld microphones, and line level outputs from mixers, player devices, etc. Infrared sync provides quick and easy channel syncing between the transmitter and FP5 receiver (sold separately). The FP3 transmitter is ruggedly built and powered on a pair of AA batteries.
- Automatic transmitter setup to instantly sync the transmitter to the receiver frequency
- LED indicator for control lockout, IR RF sync, low battery indicator
- Audio input gain for adjustment of audio level
- Three-stage audio input level indicator
UPC: 042406227186 - Shure FP5 Wireless Portable Receiver (H5: 518 - 542MHz) The Shure FP5 Wireless Portable Receiver is available as part of the Shure FP series wireless microphone systems or individually. The Shure FP series provides professional, portable wireless operation in the 24MHz band, is easy to operate and affordable. The FP5 receiver features diversity reception, easy one-touch channel search and lightweight plastic housing. Infrared sync provides quick and easy channel syncing between the FP5 receiver and FP series transmitters (sold separately). The FP5 receiver is ruggedly built and powered on a pair of AA batteries.
- Patented audio reference companding for crystal-clear audio
- Automatic frequency selection to locate an open frequency at the touch of a button
- Automatic transmitter setup to instantly sync the transmitter to the receiver frequency
- Power LED with low battery indicator
- RF LED to indicate transmitter sync when illuminated
- Support for up to 20 compatible systems simultaneously
- Receiver output level control to manage output to camera/mixer
- TA3F cable output to either XLR or 1/8" connectors (included)
- Diversity antennas for consistent reception of signal transmission
- Camera shoe mount (included)
UPC: 042406227513 - Shure WL183 Omnidirectional Lavalier Microphone The Shure WL183 is a miniature omnidirectional microphone designed for general recording and sound reinforcement application. The omnidirectional pattern provides a generous pick up at the perimeter of the capsule, enhancing ambient audio pick up while minimizing handling noise. The WL183 features a wide sensitivity and frequency response, reproducing speech with great detail and clarity. The 4 foot (1.2 meter) cable cable terminates to a 4-pin TA4-female connector, compatible with Shure wireless transmitters and power supplies.
- Miniature Profile
- The miniature profile of the WL183 capsule allows the microphone to be easily concealed during performances or video shoots.
- Omnidirectional Pattern
- The omnidirectional polar pattern provides a 360 degree pick up range, enabling a generous signal pick up without added noise.
- TA4 Female Connection
- The 4 foot (1.2 meter) cable terminates to a TA4 female connection, compatible with Shure wireless transmitters and power supply modules.
UPC: 042406055307 In the Box - FP1 Wireless Bodypack Transmitter (H5: 518 - 542 MHz) retsqywqcfrqabyqetrt
- Limited 2-Year Warranty
- FP3 Wireless Plug-In Transmitter (H5 / 518 - 542MHz) retsqywqcfrqabyqetrt
- FP5 Wireless Portable Receiver (H5: 518 - 542MHz)
- WL183 Omnidirectional Lavalier Microphone
Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure FP1 Wireless Bodypack Transmitter with Wireless Transmitter Receiver and Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Shure FP1 Wireless Bodypack Transmitter (H5: 518 - 542 MHz)
| Gain Adjustment Range | −10 to 20 dBV | | Input Impedance | 1 MΩ | | RF Output Power | 10 to 30 mW, varies by region | | Connector | TA4F (pin 1 = ground, pin 2 = +5 V bias, pin 3 = audio, pin 4 = tied through active load to ground, on instrument adapter cable pin 4 floats) | | Power Requirements | 2x LR6 AA batteries | | Battery Life | Up to 12 hours | | Dimensions (H x W x D) | 7 x 2.5 x 0.7" (108 x 64 x 19 mm) | | Weight | 3 oz (81 g) | | | | Box Dimensions (LxWxH) | 12.1 x 4.8 x 3.2" | - Shure FP3 Wireless Plug-In Transmitter (H5 / 518 - 542MHz)
| | | Box Dimensions (LxWxH) | 12.125 x 4.625 x 3.25" | - Shure FP5 Wireless Portable Receiver (H5: 518 - 542MHz)
| | | Box Dimensions (LxWxH) | 12.0 x 4.7 x 3.3" | - Shure WL183 Omnidirectional Lavalier Microphone
| Transducer | Electret Condenser | | Polar Pattern | Omnidirectional | | Frequency Response | 50 Hz - 17 kHz | | Dynamic Range (Typical) | 102.5 dB | | Signal-to-Noise Ratio | Output Noise: 22.5dB SPL | | Maximum Input Sound Level | 125 dB | | Power Requirements | +5v DC on Pin 2, Return on Pin 1 (Ground) Provided by Wireless Transmitters | | Output Impedance | 1800 ohms | | Output Connectors | TA4F Mini 4-Pin Connector | | Pad | None | | Low Frequency Roll-Off | None | | Dimensions | Cable Length - 4 feet (1.2m) | | Weight | not specified by manufacturer | | | | Box Dimensions (LxWxH) | 6.7 x 4.4 x 3.3" |
