User Manual for Shure FP15 83 Camera-Mount Wireless Omni Lavalier Microphone System Click to enlarge the picture
Contents of the user manual for the Shure FP15 83 Camera-Mount Wireless Omni
- Product category: Wireless Systems Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Wireless Systems
 |
User manual for the Shure FP15 83 Camera-Mount Wireless Omni contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|

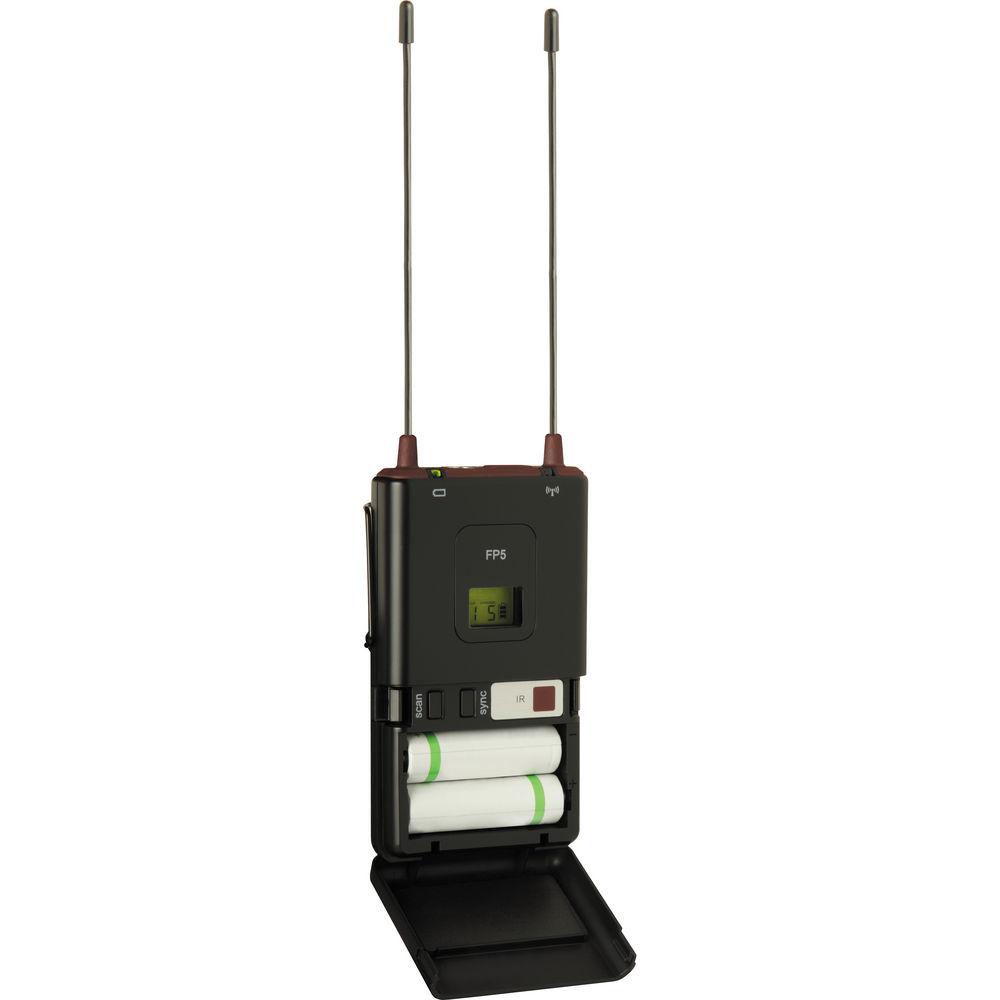

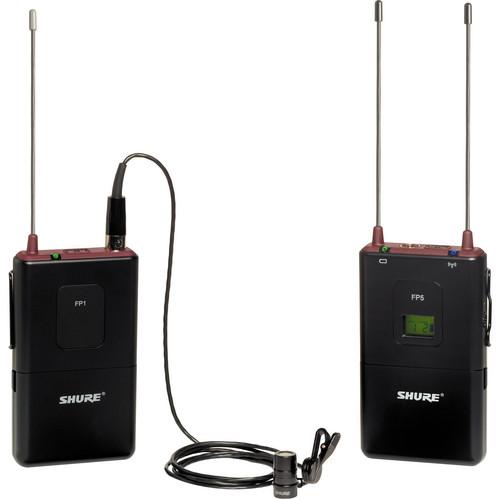

Product description The Shure FP Wireless Bodypack System features the FP5 portable diversity receiver, FP1 bodypack transmitter and WL 183 lavalier microphone. The Shure FP series provides professional, portable wireless operation in the 24MHz band, is easy to operate and affordable. The FP5 receiver features diversity reception, easy one-touch channel search and lightweight plastic housing.Infrared sync provides quick and easy channel syncing between the FP5 receiver and FP1 bodypack. The FP1 bodypack is lightweight and features a TA4 (4-pin) input connection for compatible Shure lavalier microphones. An input gain control is featured for flexible input level adjustment. The FP5 receiver and FP1 bodypack is ruggedly built and powered on a pair of AA batteries. FP5 Portable Wireless Receiver - Patented audio reference companding for crystal-clear audio
- Automatic frequency selection to locate an open frequency at the touch of a button
- Automatic transmitter setup to instantly sync the transmitter to the receiver frequency
- Power LED with low battery indicator
- RF LED to indicate transmitter sync when illuminated
- Support for up to 20 compatible systems simultaneously
- Receiver output level control to manage output to camera/mixer
- TA3F cable output to either XLR or 1/8" connectors (included)
- Diversity antennas for consistent reception of signal transmission
- Camera shoe mount (included)

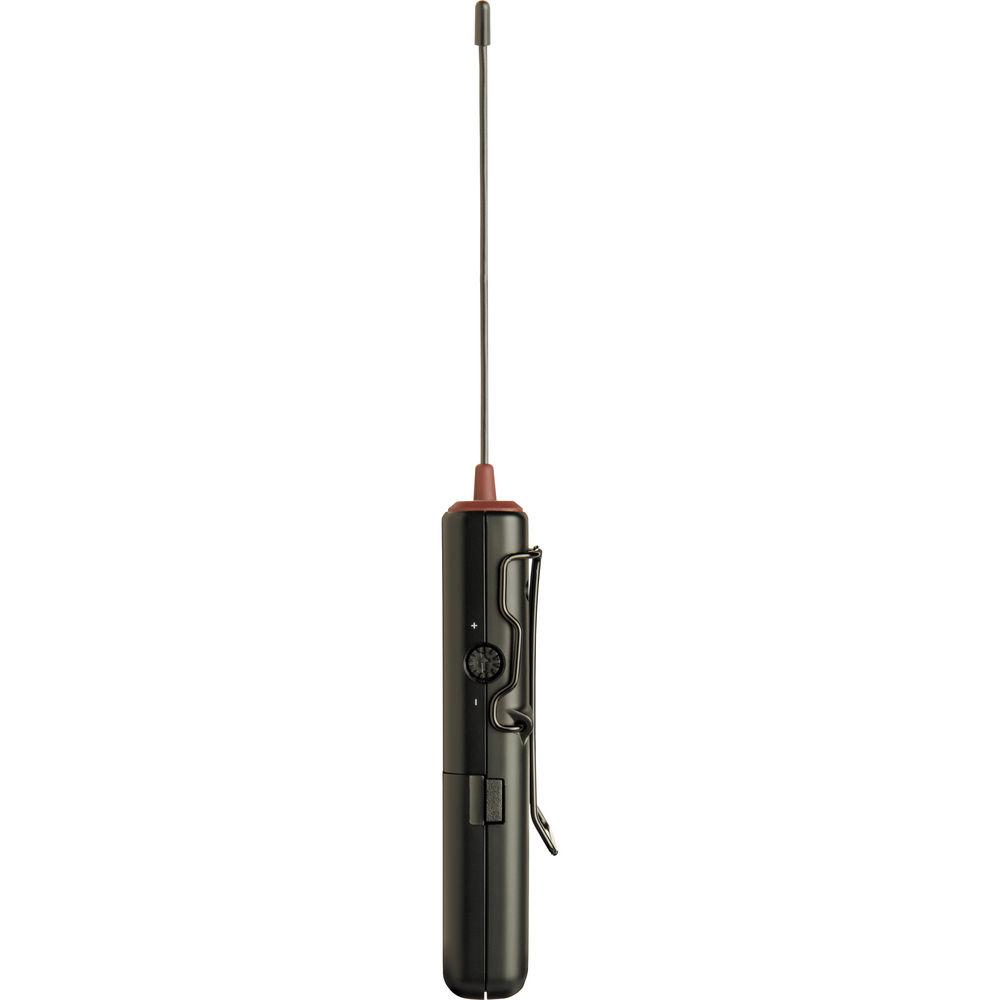

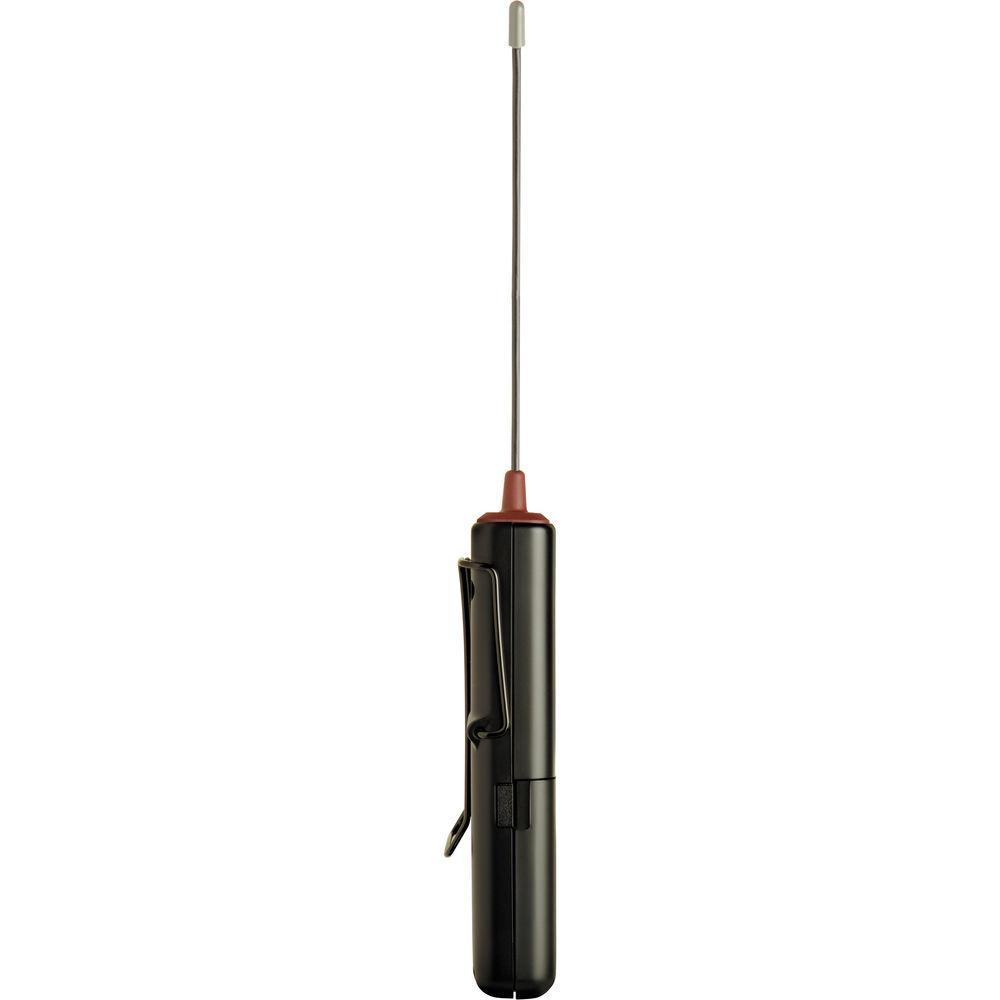

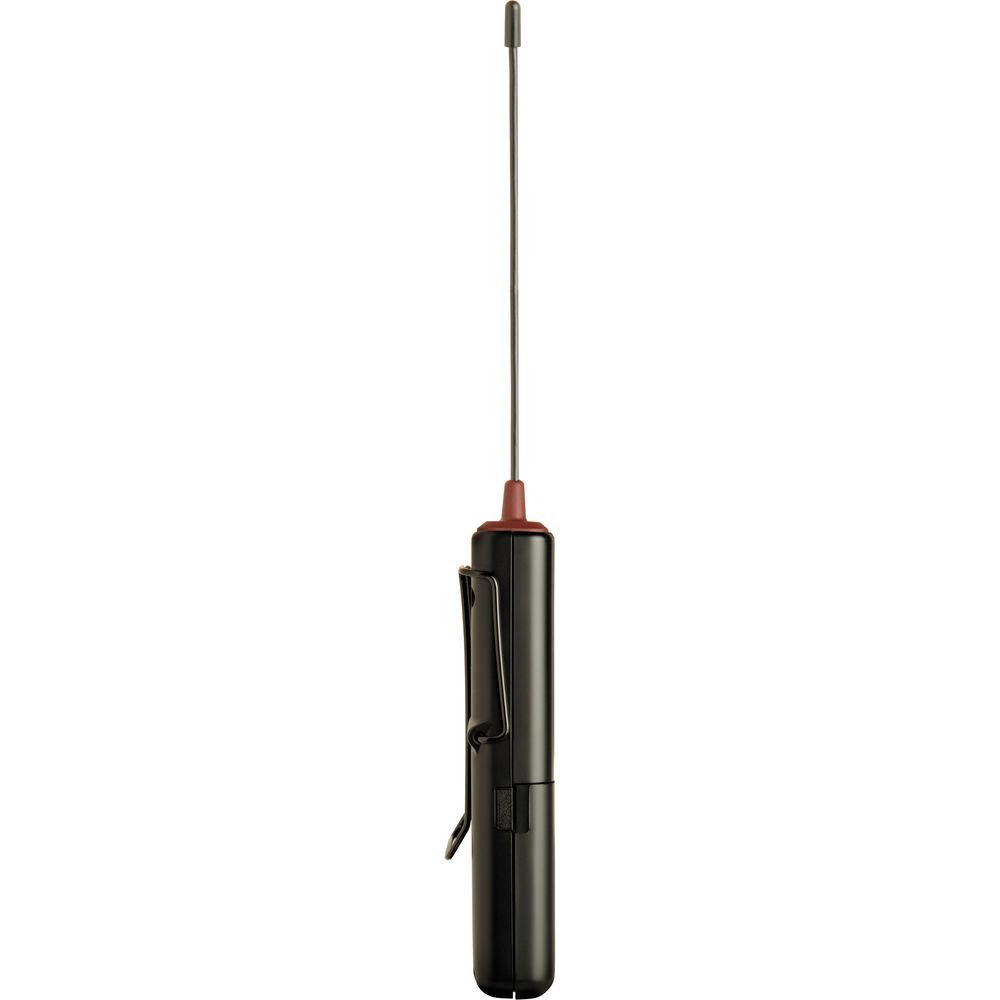

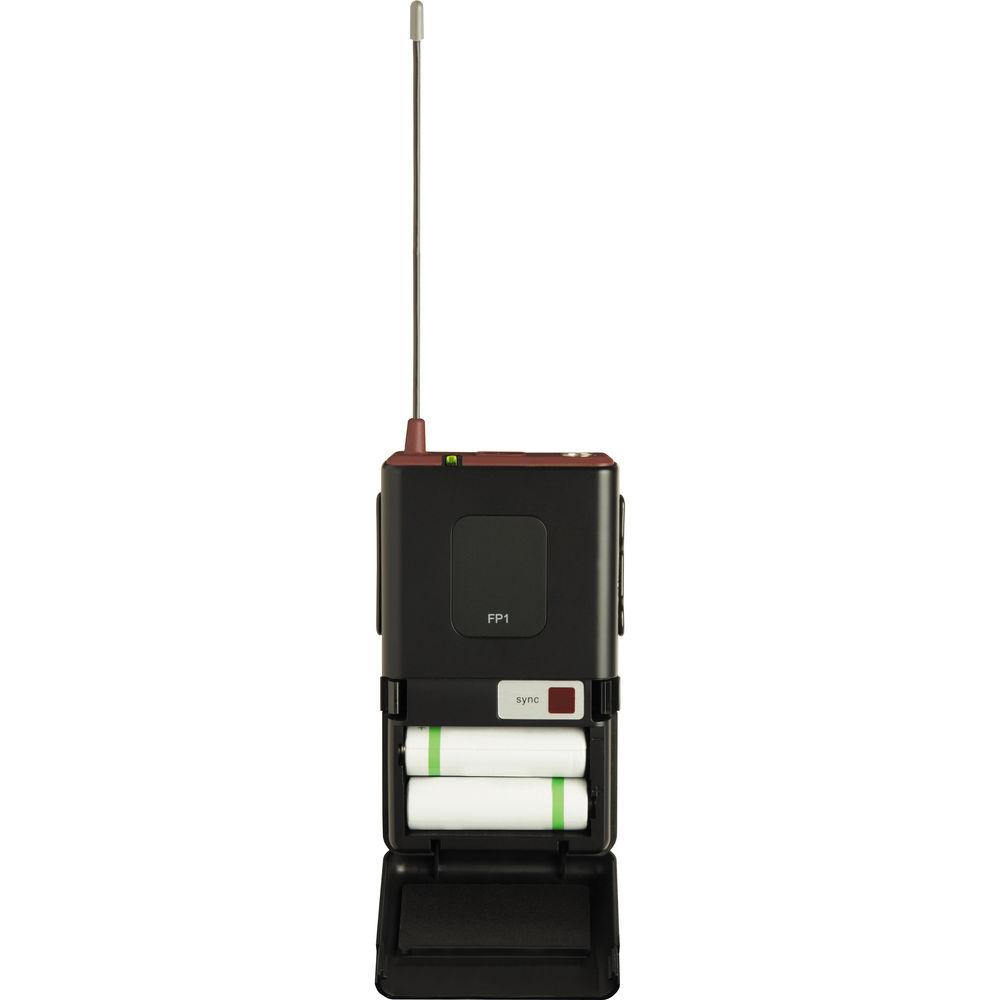

FP1 Bodypack Transmitter - Automatic transmitter Setup to instantly sync the transmitter to the receiver frequency
- LED indicator for control lockout, IR RF sync, low battery indicator
- Audio input gain for adjustment of audio level
- 4-Pin microphone input jack for use with lavaliers or headset mics with TA4F connectors
UPC: 042406227148 In the Box Shure FP15/83 Camera-Mount Wireless Omni Lavalier Microphone System (H5: 518 to 542 Mhz) FP5 Wireless Portable Receiver (H5: 518 - 542MHz) FP1 Wireless Bodypack Transmitter (H5: 518 - 542 MHz) WL183 Omnidirectional Lavalier Microphone Camera Shoe Mount TA3F Cable to XLR or 1/8" Mini 2 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure FP15 83 Camera-Mount Wireless Omni Lavalier Microphone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure FP15/83-H5 Specs | | | Wireless Transmission | Analog UHF | | Number of RF Channels | 960 | | Included Transmitters | 1 x Bodypack | | RF Frequency Band | H5: 518 to 542 MHz | | Encryption | None | | | | Form Factor | Camera-Mount | | Number of Audio Channels | 1 | | Audio I/O | 1 x Proprietary Male Unbalanced Output | | Phantom Power Protection | Not Specified by Manufacturer | | Form Factor | Bodypack | | Audio I/O | None | | Frequency Response | 45 Hz to 15 kHz | | USB Port | Yes | | | | Package Weight | 3.35 lb | | Box Dimensions (LxWxH) | 14.3 x 12.4 x 3.8" |
