User Manual for Shure FP25 SM58 Camera-Mount Wireless Cardioid Handheld Microphone System Click to enlarge the picture
Contents of the user manual for the Shure FP25 SM58 Camera-Mount Wireless Cardioid
- Product category: Wireless Systems Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Wireless Systems
 |
User manual for the Shure FP25 SM58 Camera-Mount Wireless Cardioid contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|

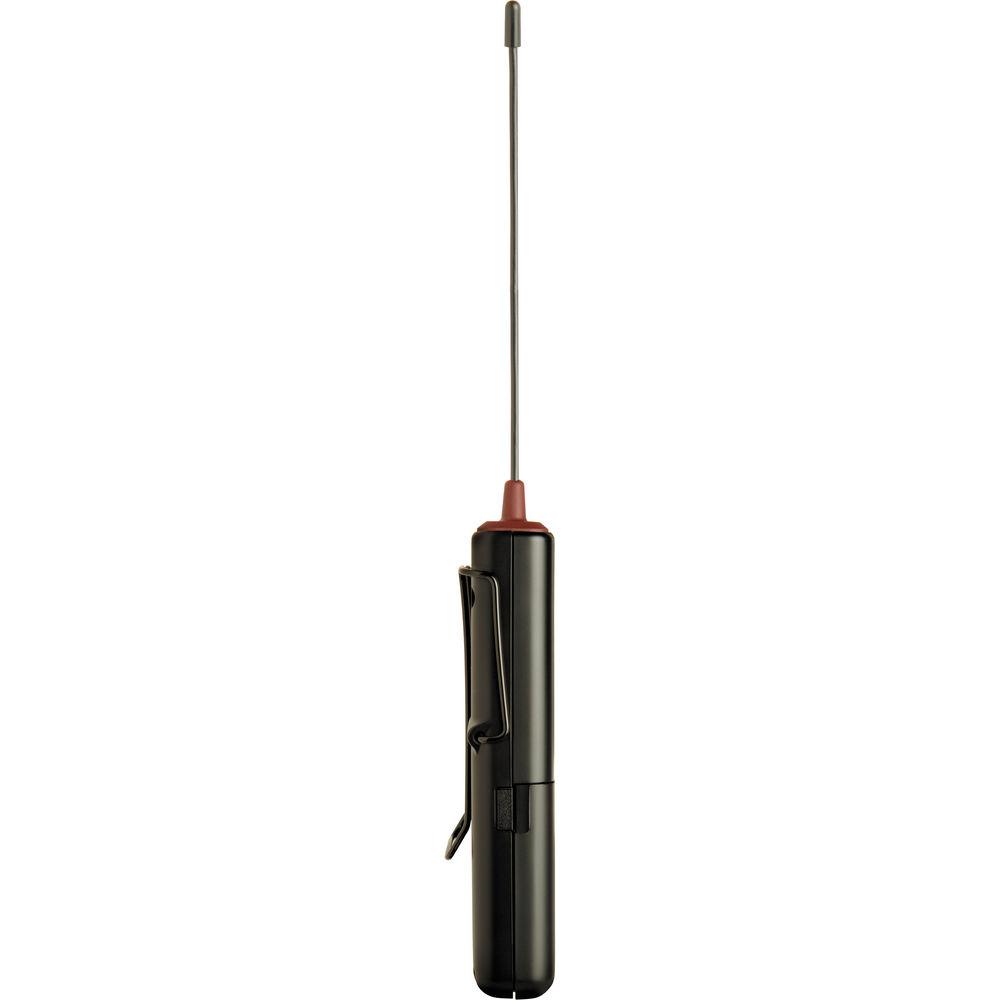

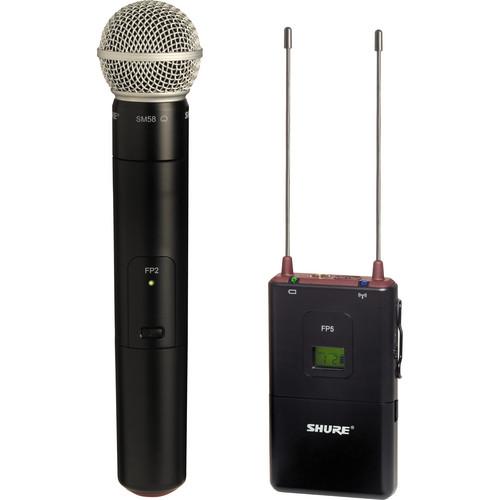

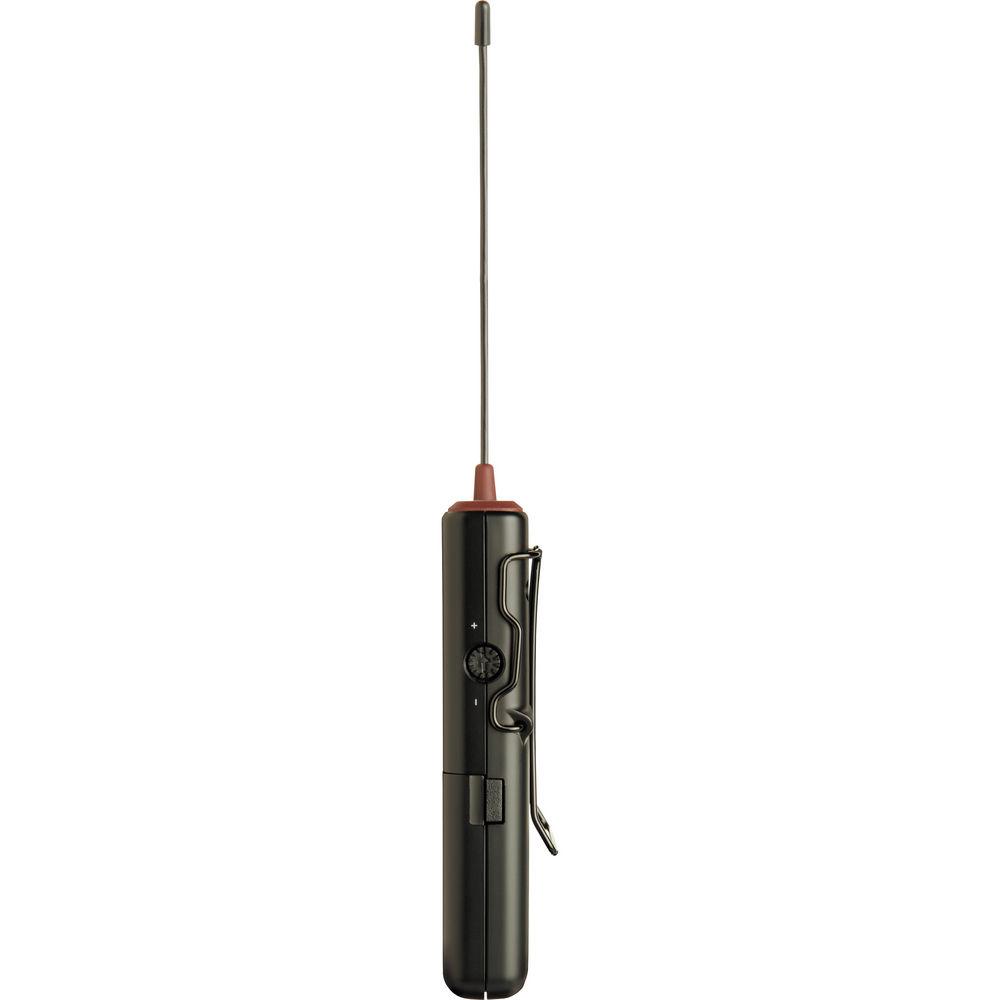

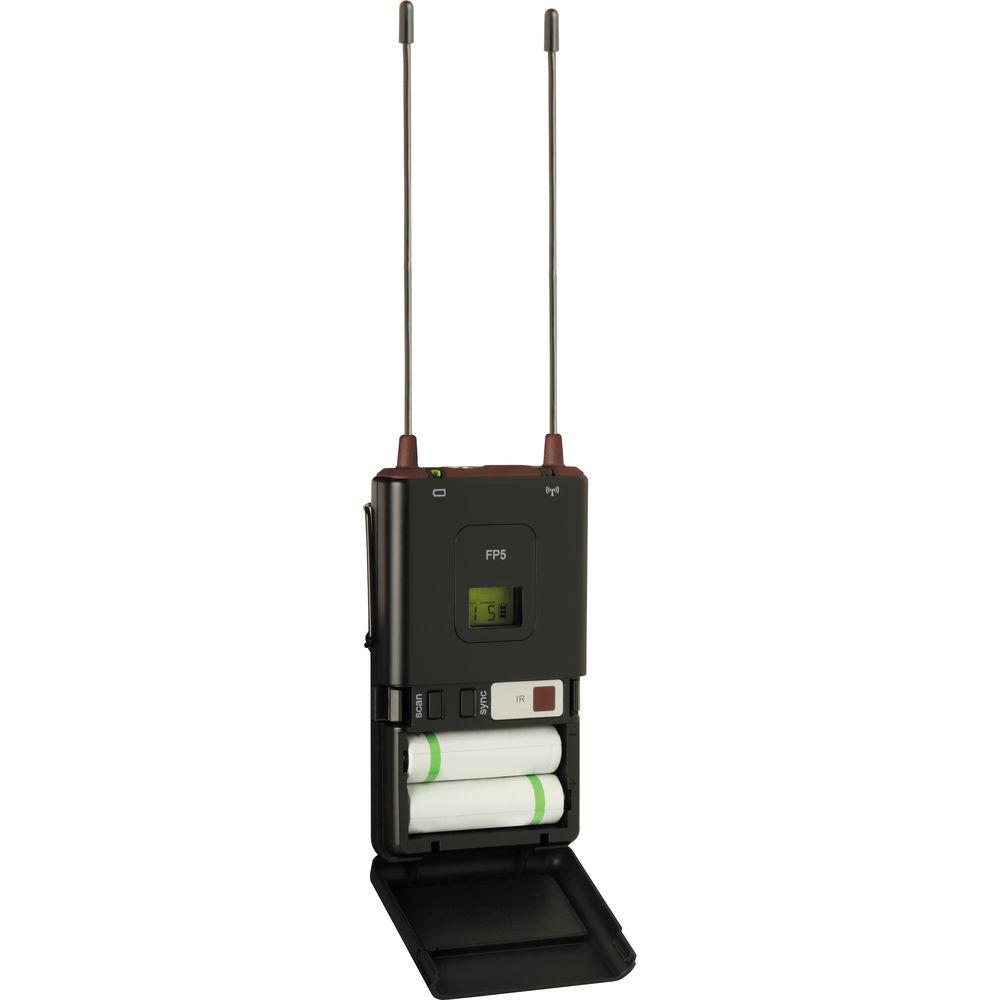

Product description The Shure FP Wireless Handheld System features the FP5 portable diversity receiver and FP2 handheld transmitter with SM58 cardioid capsule. The Shure FP series provides professional, portable wireless operation in the 24MHz band, is easy to operate and affordable. The FP5 receiver features diversity reception, easy one-touch channel search and lightweight plastic housing.Infrared sync provides quick and easy channel syncing between the FP5 receiver and FP2 transmitter. The FP2 handheld transmitter is lightweight and features the SM58 cardioid capsule and is compatible with any Shure capsule. An input gain control is featured for flexible input level adjustment. The FP5 receiver and FP2 transmitter is ruggedly built and powered on a pair of AA batteries. FP5 Portable Wireless Receiver - Patented audio reference companding for crystal-clear audio
- Automatic frequency selection to locate an open frequency at the touch of a button
- Automatic transmitter setup to instantly sync the transmitter to the receiver frequency
- Power LED with low battery indicator
- RF LED to indicate transmitter sync when illuminated
- Support for up to 20 compatible systems simultaneously
- Receiver output level control to manage output to camera/mixer
- TA3F cable output to either XLR or 1/8" connectors (included)
- Diversity antennas for consistent reception of signal transmission
- Camera shoe mount (included)
FP2 Handheld Transmitter - Automatic transmitter Setup to instantly sync the transmitter to the receiver frequency
- LED indicator for control lockout, IR RF sync, low battery indicator
- Includes SM58 cardioid capsule and is compatible with all other Shure capsules
UPC: 042406232906 In the Box Shure FP25/SM58 Camera-Mount Wireless Cardioid Handheld Microphone System (G5: 494 to 518 MHz) FP5 Wireless Portable Receiver (G5: 494 - 518MHz) vfbabbdrdbrurzb FP2 Wireless Handheld Transmitter (G5: 494-518 MHz) Camera Shoe Mount TA3F Cable to XLR or 1/8" Mini 2 Year Warranty User Manual PDF 1.7mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure FP25 SM58 Camera-Mount Wireless Cardioid Handheld Microphone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure FP25/SM58-G5 Specs | | | Wireless Transmission | Analog UHF | | Number of RF Channels | 960 | | Included Transmitters | 1 x Handheld | | RF Frequency Band | G5: 494 to 518 MHz | | Encryption | None | | | | Form Factor | Camera-Mount | | Number of Audio Channels | 1 | | Audio I/O | 1 x Proprietary Unbalanced Output | | Phantom Power Protection | Not Specified by Manufacturer | | | | Form Factor | Handheld | | Audio I/O | None | | Frequency Response | 45 Hz to 15 kHz | | Battery Type | 2 x AA | | USB Port | None | | Display & Indicators | None | | | | Form Factor | Handheld Capsule | | Polar Pattern | Cardioid | | | | Package Weight | 3.75 lb | | Box Dimensions (LxWxH) | 14.3 x 12.5 x 3.8" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 65 owners. Add your rating and experience with the product.
