Product description Shure GLX-D Advanced Digital Wireless System Read More - Shure GLX-D Advanced - How to Set up Frequency Manager
The Shure GLX-D4R Receiver is a single-channel rack-mountable receiver with removable antennas for improved audio and solid performance in multi-system installations for houses of worship, education and live music applications. The receiver features LINKFREQ Automatic Frequency Management (2.4 GHz) and an integrated battery charge port for charging a spare Shure lithium-ion battery. Up to nine compatible systems can be used in a typical setting, while a total of eleven systems can be achieved under optimum conditions when using optional GLX-D Frequency Managers.

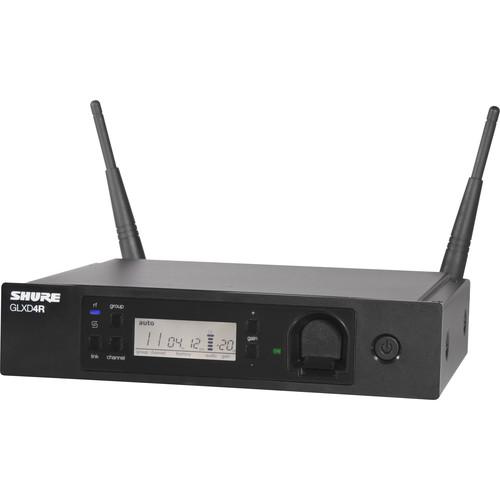

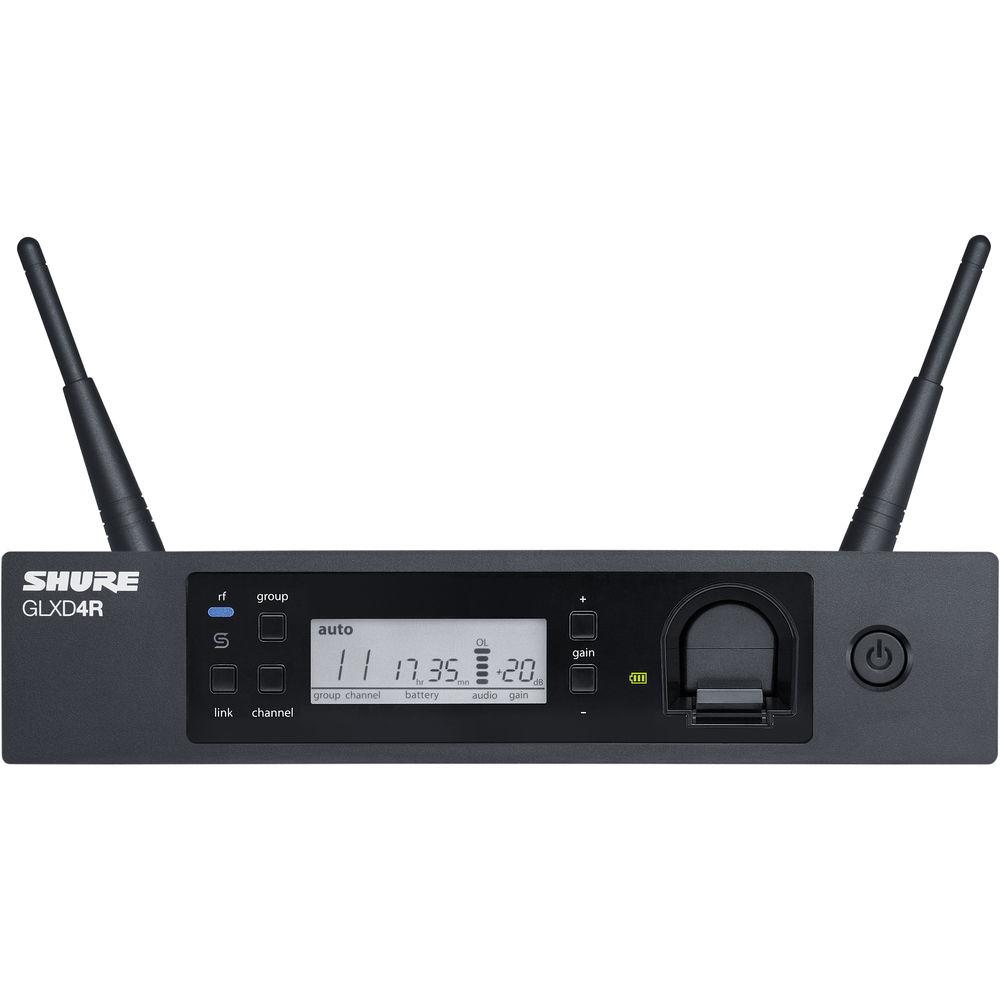

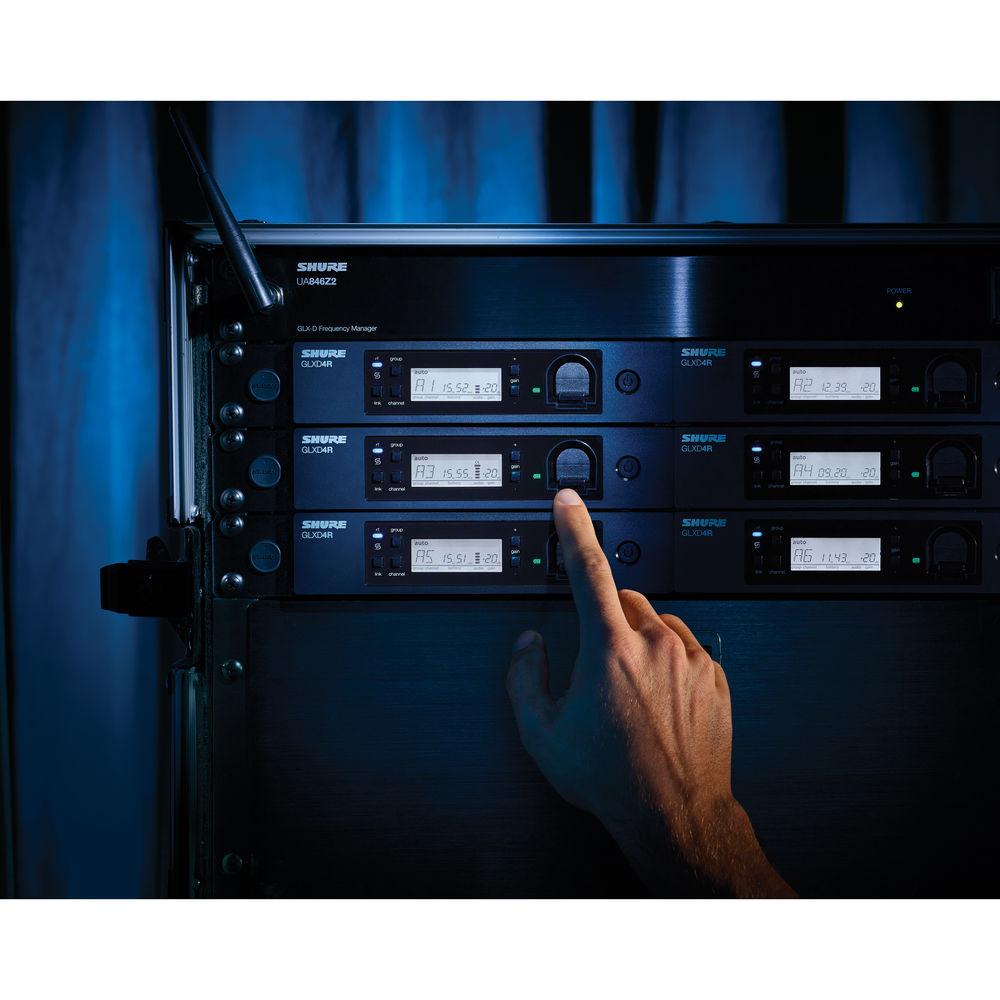

The front panel features a high-resolution LCD screen, which displays the system status and real-time transmitter battery life in hours and minutes with an accuracy within ±15 minutes. Additional features include a remotely adjustable transmitter gain control, XLR & 1/4" output connectors, and a two-color LED charging indicator. The GLX-D4R receiver is enclosed in a rugged metal chassis and ships with two detachable antennas, a power supply, and rackmount hardware. -
- Rock-solid RF performance from patented data communication
- Integrated battery charge port for proprietary Shure lithium-ion transmitter batteries with two-color charge indicator LED
- Green: Charged
- Flashing Green: 90% charged
- Red: Charging
- Detachable antennas for remote mounting
- Remote adjustable transmitter gain control
- Hi-res LCD screen status display
- Real-time battery run-time displayed in hours and minutes (accurate within ±15 minutes)
- XLR and 1/4” output connectors
- Rugged metal chassis design
- Includes rackmount hardware
UPC: 042406496100 In the Box Shure GLX-D4R Digital Wireless Multi-System Receiver 2 x Antennas with Mounting Cables Rackmount Hardware Power Supply Limited 2-Year Warranty 2017 NAMM Show: Shure New GLX-D Advanced Digital Wireless System BH Online Videos 01/23/2017 Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure GLX-D4R Digital Wireless Multi-System Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

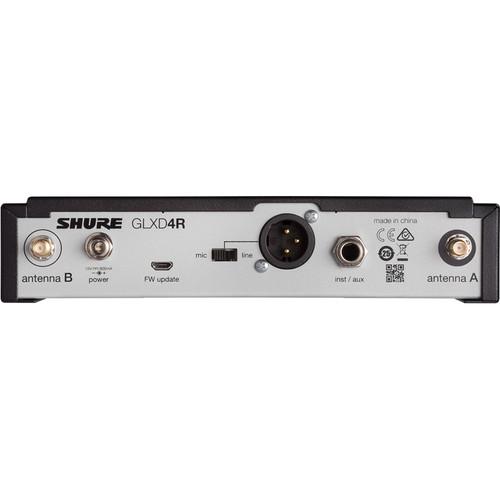

Technical parametersShure GLXD4R-Z2 Specs | | | Configuration | XLR Output: Balanced
1/4" / 6.35 mm Output: Impedance balanced | | Impedance | XLR Output: 100 Ohms
1/4" / 6.35 mm Output: 100 Ohms (50 Ohms, unbalanced) | | Full Scale Output | XLR Connector:
Line Setting: +18 dBV
Mic Setting: -12 dBV
1/4" / 6.35 mm Output: +12 dBV | | Pin Assignments | XLR Output: 1=ground, 2=hot, 3=cold
1/4" / 6.35 mm Connector: Tip=audio, Ring=no audio, Sleeve=ground | | Mic/Line Switch | 30 dB pad | | Spurious Rejection | >35 dB, typical | | Gain Range | -18 to 42 dB in 1 dB steps | | Phantom Power Protection | Yes | | | | Impedance | 50 Ohms | | Antenna Type | 1/2 Wave Sleeve Dipole | | Maximum Input Level | -20 dBm | | | | Housing | Steel | | Power | Power Requirements: 14 to 18 VDC (Tip positive with respect to ring), 550 mA | | Dimensions (H x W x D) | 1.7 x 7.8 x 6.4" / 42.0 x 197.0 x 163.0 mm | | Weight | 32.0 oz / 907.2 g | | | | Package Weight | 6.1 lb | | Box Dimensions (LxWxH) | 18.3 x 14.8 x 4.3" |
