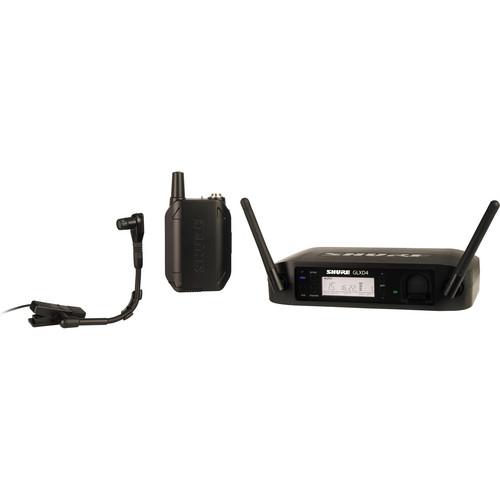

Product description The GLXD14/Beta98H Instrument Wireless System from Shure includes a GLXD1 bodypack transmitter, a GLXD4 receiver, and a Beta 98H/C cardioid clip-on instrument mic. The system operates on the 2.4GHz ISM band in the Z2 frequency band between 2400 and 2483.5MHz.
Both the GLXD1 transmitter and the GLXD4 receiver feature Shure's LINKFREQ automatic frequency management that allows them to scan for the clearest frequency available and automatically link to each other without any setup required from you besides turning both units on. With their continuous interference monitoring, both the transmitter and receiver automatically switch to the clearest frequencies available to avoid interference and dropouts. The GLXD1 includes a rechargeable battery pack that provides up to 16 hours of operation from a full charge. The system has a 200' range of operation and can be used with 7 other GLX-D systems simultaneously.
The Beta98H/C mic has a 10' flexible cable as well as a gooseneck with ratcheting swivel joint that allows for a variety of placement options. Its clip is designed to clamp onto the bell of your sax, woodwind, or brass instrument. It can handle an SPL of up to 155dB, making it well suited for the volume levels of most brass and woodwinds. - GLXD4 Digital Wireless Receiver (Z2 Band: 2400 - 2483.5 MHz) The GLXD4 Digital Wireless Receiver from Shure is designed to work with Shure's GLX-D series digital wireless systems. It operates on Shure's Z2 frequency band between 2400 and 2483.5 MHz on a 2.4 GHz ISM wireless band. Shure's proprietary LINKFREQ automatic frequency management, which scans for clearest available frequency range, will automatically link the GLXD4 and a compatible transmitter. The GLXD4 has continuous interference monitoring and will automatically switch frequencies to avoid interference and drop outs. The integrated battery charging station allows you to charge your transmitter when not in use, or a back-up battery pack while in use. Your transmitters remaining battery life is displayed on the GLXD4's front-panel LCD screen. Up to 8 systems can be used simultaneously. UPC: 042406262460
- GLXD1 Bodypack Transmitter (Z2 Band: 2400 - 2483.5 MHz) The GLXD1 Bodypack Transmitter from Shure is designed to work with Shure's GLX-D series digital wireless systems. It operates on Shure's Z2 frequency band between 2400 and 2483.5 MHz on a 2.4 GHz ISM wireless band. The transmitter provides up to a 200' range of operation and features Shure's LINKFREQ automatic frequency management that allows it to automatically link to a GLX-D compatible transmitter without having to perform any setup. It includes a rechargeable battery pack that provides up to 16 hours of performance time per charge. The battery can be recharged with the included USB charger cable. A 15-minute charge can provide up to 1.5 hours of performance time. The GLXD1 has a 4-pin TA4M connector and is compatible with both lavalier microphones as well as instrument cables with a proper adapter. UPC: 042406261104
- BETA-98H/C - Clip-On Condenser Microphone The Beta 98H/C is a cardioid, mini-condenser instrumental microphone with in-line preamplifier is designed to clearly capture the sounds of today's professional horn players. The pickup pattern of the Beta 98H/C provides high gain-before-feedback and excellent rejection of unwanted noise. With a high maximum sound pressure level (SPL), the Beta 98H/C is ready to handle the demands of brass and woodwind instruments, and is a strong performer for percussion applications. The transformerless preamplifier circuitry of the Beta 98H/C improves linearity across the full frequency range. In situations where phantom power is not available, the MX1-BP battery-powered preamplifier will perform exceptionally.
The integrated gooseneck and ratcheting swivel joint of the Beta 98H/C allows for easy microphone positioning and securing. Once the position is determined, the gooseneck angle brace ensures that the Beta 98H/C will stay in place during even the most active performances. - Tailored frequency response for open, natural sound reproduction
- Compact, lightweight construction provides a low degree of visibility
- Interchangeable microphone cartridges are available: RPM108 - Cardioid cartridge, RPM110 - Supercardioid cartridge
- Gooseneck, ratcheting swivel joint, and gooseneck angle brace allow for optimum placement and fixed positioning
- Legendary Shure ruggedness and reliability
UPC: 042406083379 In the Box Bundle Items GLXD4 Digital Wireless Receiver (Z2 Band: 2400 - 2483.5 MHz) baeezrwcbbr GLXD1 Bodypack Transmitter (Z2 Band: 2400 - 2483.5 MHz) - SB902 Rechargeable Lithium-Ion Battery
BETA-98H/C - Clip-On Condenser Microphone - 10' (3 m) High Flex Cable
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure GLXD14 Beta98H Instrument Wireless System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - GLXD4 Digital Wireless Receiver (Z2 Band: 2400 - 2483.5 MHz)
| Outputs | 1x XLR Output
1x 1/4" (6.35 mm) Output | | Output Impedance | XLR: 100 Ω
1/4": 100 Ω, 50 Ω unbalanced | | Maximum Audio Output Level Analog | XLR: 1 dBV (into 600 Ω load)
1/4": 8.5 dBV (into 3 kΩ load) | | Tuning Frequency Range | 2400 to 2483.5 MHz | | Range of Operation | 200' (60 m) (typical, depends on RF signal absorption, reflection, and interference) | | Transmit Mode | Frequency Hopping | | Frequency Response | 20 Hz to 20 kHz | | Dynamic Range | 120 dB, A-weighted | | RF Sensitivity | -88 dBm, typical | | Total Harmonic Distortion | 0.2%, typical | | RF Output | 10 mW E.I.R.P., maximum | | Operating Temperature Range | 0° to 135°F (-18° to 57°C) | | Storage Temperature Range | -20° to 165°F (-29° to 74°C) | | Pin Configuration | XLR: 1= ground, 2= hot, 3=cold
1/4": Tip= audio, ring= no audio, sleeve= ground | | Antenna | Impedance: 50 Ω
Type: 1/2 wave sleeve dipole, non-removable
Max Input Level: -20 dBm | | Power Requirements | 14 to 18 V DC (tip positive with respect to ring), 550 mA | | Spurious Rejection | >35 dB, typical | | Gain Adjustment Range | -20 to 40 dB in 1 dB steps | | Phantom Power Protection | Yes | | Housing | Molded plastic | | Dimensions (HxWxD) | 1.6 x 7.2 x 4.6" (40 x 183 x 117 mm) | | Weight | 10.1 oz (286 g) | | | | Box Dimensions (LxWxH) | 18.25 x 13.0 x 4.63" | - GLXD1 Bodypack Transmitter (Z2 Band: 2400 - 2483.5 MHz)
| Connector | 1x Unbalanced 4-pin TA4M male mini-connector | | Tuning Frequency Range | 2400 to 2483.5 MHz | | Range of Operation | 200' (60 m) (typical, depends on RF signal absorption, reflection, and interference) | | Transmit Mode | Frequency Hopping | | Frequency Response | 20 Hz to 20 kHz | | Dynamic Range | 120 dB, A-weighted | | RF Sensitivity | -88 dBm, typical | | Total Harmonic Distortion | 0.2%, typical | | RF Output | 10 mW E.I.R.P, maximum | | Operating Temperature Range | 0° to 135°F (-18° to 57°C) | | Storage Temperature Range | -20° to 165°F (-29° to 74°C) | | Polarity | Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 1/4-inch output | | Battery Life | Up to 16 hours | | Power Requirements | 3.7 V Rechargeable Li-Ion | | Input Impedance | 900 kΩ | | RF Output | 10 mW E.I.R.P. maximum | | Maximum Input Level | 1 kHz at 1% THD
8.4 dBV (7.5 Vp-p) | | Antenna | Internal Monopole | | Pin Configuration | 1: ground (cable shield)
2: +5 V bias
3: Audio
4: Tied through active load to ground (On instrument adapter cable, pin 4 floats) | | Housing | Cast Metal | | Dimensions (H x W x D) | 3.56 x 2.54 x 0.90" (90.4 x 64.5 x 22.9 mm), without antenna | | | | Box Dimensions (LxWxH) | 11.024 x 5.433 x 3.228" | - BETA-98H/C - Clip-On Condenser Microphone
| Transducer | Condenser | | Polar Pattern | Unidirectional (Cardioid) | | Frequency Response | 20 Hz - 20 kHz | | Dynamic Range (Typical) | 132 dB (2.5 kΩ Load) | | Signal-to-Noise Ratio | 63 dB at 94 dB SPL (IEC 651) | | Maximum Input Sound Level | 143.5 dB | | Power Requirements | 11 to 52V DC Phantom Power, or
(Use a Battery in the Optional MX1-BP Battery Powered Supply) | | Output Impedance | 150 Ohms | | Output Connectors | Tini Q-G Connector (from Microphone), XLR-3M Type (from Pre-Amp) | | Pad | None | | Low Frequency Roll-Off | None | | Applications | Saxophone, Soprano Saxophone, Trombone, Trumpet, Drums (Toms) | | Dimensions | .44" (11 mm) Grille Face Diameter
1" (25 mm) Grille Face to Back of the Head
6.68" (167 mm) Top of the Head to Base of Gooseneck | | Weight | Microphone with Cable and Tini Q-G Connector: 2.3 oz. (65 g)
Preamplifier: 3.4 oz (96 g) | | | | Box Dimensions (LxWxH) | 10.079 x 4.961 x 3.465" |
