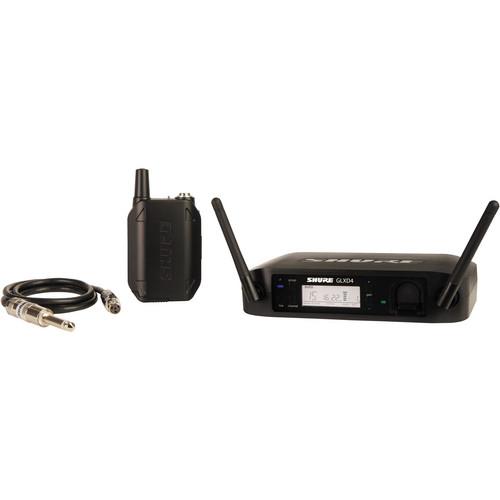

Shure GLXD14 Bodypack Instrument Wireless System

User Manual for Shure GLXD14 Bodypack Instrument Wireless System

• Product category: Wireless Systems Shure
• Brand: Shure
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Shure Wireless Systems

Product description

• GLXD1 Bodypack Transmitter (Z2 Band: 2400 - 2483.5 MHz) The GLXD1 Bodypack Transmitter from Shure is designed to work with Shure's GLX-D series digital wireless systems. It operates on Shure's Z2 frequency band between 2400 and 2483.5 MHz on a 2.4 GHz ISM wireless band. The transmitter provides up to a 200' range of operation and features Shure's LINKFREQ automatic frequency management that allows it to automatically link to a GLX-D compatible transmitter without having to perform any setup. It includes a rechargeable battery pack that provides up to 16 hours of performance time per charge. The battery can be recharged with the included USB charger cable. A 15-minute charge can provide up to 1.5 hours of performance time. The GLXD1 has a 4-pin TA4M connector and is compatible with both lavalier microphones as well as instrument cables with a proper adapter. UPC: 042406261104
• GLXD4 Digital Wireless Receiver (Z2 Band: 2400 - 2483.5 MHz) The GLXD4 Digital Wireless Receiver from Shure is designed to work with Shure's GLX-D series digital wireless systems. It operates on Shure's Z2 frequency band between 2400 and 2483.5 MHz on a 2.4 GHz ISM wireless band. Shure's proprietary LINKFREQ automatic frequency management, which scans for clearest available frequency range, will automatically link the GLXD4 and a compatible transmitter. The GLXD4 has continuous interference monitoring and will automatically switch frequencies to avoid interference and drop outs. The integrated battery charging station allows you to charge your transmitter when not in use, or a back-up battery pack while in use. Your transmitters remaining battery life is displayed on the GLXD4's front-panel LCD screen. Up to 8 systems can be used simultaneously. UPC: 042406262460
• WA302 Intrument & Guitar Cable Instrument Cable, 2.5 foot (1.2 m), 4 Pin Mini Connector (TA4F) to 1/4-inch Connector, used with ULX, T1, SC1, LX1, U1, UC1 and UT1 Bodypack Transmitters UPC: 042406053174

• SB902 Rechargeable Lithium-Ion Battery

• Padded Zipper Case

• USB Charger Cable

• Limited 2-Year Warranty

• Power Supply

• Limited 2-Year Warranty

Also Includes

• Limited 2-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• GLXD1 Bodypack Transmitter (Z2 Band: 2400 - 2483.5 MHz)

  Connector	1x Unbalanced 4-pin TA4M male mini-connector
  Tuning Frequency Range	2400 to 2483.5 MHz
  Range of Operation	200' (60 m) (typical, depends on RF signal absorption, reflection, and interference)
  Transmit Mode	Frequency Hopping
  Frequency Response	20 Hz to 20 kHz
  Dynamic Range	120 dB, A-weighted
  RF Sensitivity	-88 dBm, typical
  Total Harmonic Distortion	0.2%, typical
  RF Output	10 mW E.I.R.P, maximum
  Operating Temperature Range	0° to 135°F (-18° to 57°C)
  Storage Temperature Range	-20° to 165°F (-29° to 74°C)
  Polarity	Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 1/4-inch output
  Battery Life	Up to 16 hours
  Power Requirements	3.7 V Rechargeable Li-Ion
  Input Impedance	900 kΩ
  RF Output	10 mW E.I.R.P. maximum
  Maximum Input Level	1 kHz at 1% THD 8.4 dBV (7.5 Vp-p)
  Antenna	Internal Monopole
  Pin Configuration	1: ground (cable shield) 2: +5 V bias 3: Audio 4: Tied through active load to ground (On instrument adapter cable, pin 4 floats)
  Housing	Cast Metal
  Dimensions (H x W x D)	3.56 x 2.54 x 0.90" (90.4 x 64.5 x 22.9 mm), without antenna

  Box Dimensions (LxWxH)	11.024 x 5.433 x 3.228"

• GLXD4 Digital Wireless Receiver (Z2 Band: 2400 - 2483.5 MHz)

  Outputs	1x XLR Output 1x 1/4" (6.35 mm) Output
  Output Impedance	XLR: 100 Ω 1/4": 100 Ω, 50 Ω unbalanced
  Maximum Audio Output Level Analog	XLR: 1 dBV (into 600 Ω load) 1/4": 8.5 dBV (into 3 kΩ load)
  Tuning Frequency Range	2400 to 2483.5 MHz
  Range of Operation	200' (60 m) (typical, depends on RF signal absorption, reflection, and interference)
  Transmit Mode	Frequency Hopping
  Frequency Response	20 Hz to 20 kHz
  Dynamic Range	120 dB, A-weighted
  RF Sensitivity	-88 dBm, typical
  Total Harmonic Distortion	0.2%, typical
  RF Output	10 mW E.I.R.P., maximum
  Operating Temperature Range	0° to 135°F (-18° to 57°C)
  Storage Temperature Range	-20° to 165°F (-29° to 74°C)
  Pin Configuration	XLR: 1= ground, 2= hot, 3=cold 1/4": Tip= audio, ring= no audio, sleeve= ground
  Antenna	Impedance: 50 Ω Type: 1/2 wave sleeve dipole, non-removable Max Input Level: -20 dBm
  Power Requirements	14 to 18 V DC (tip positive with respect to ring), 550 mA
  Spurious Rejection	>35 dB, typical
  Gain Adjustment Range	-20 to 40 dB in 1 dB steps
  Phantom Power Protection	Yes
  Housing	Molded plastic
  Dimensions (HxWxD)	1.6 x 7.2 x 4.6" (40 x 183 x 117 mm)
  Weight	10.1 oz (286 g)

  Box Dimensions (LxWxH)	18.25 x 13.0 x 4.63"

• WA302 Intrument & Guitar Cable

  Box Dimensions (LxWxH)	4.8 x 4.0 x 1.3"
