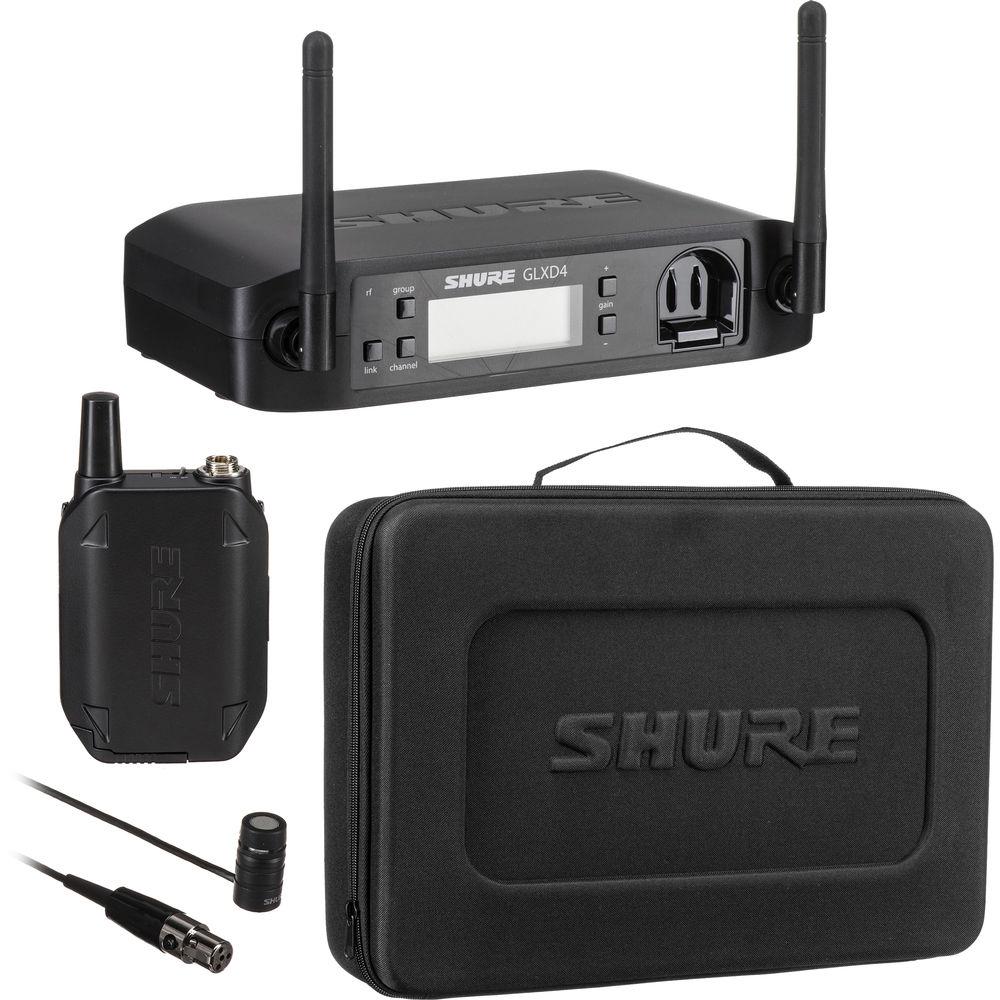

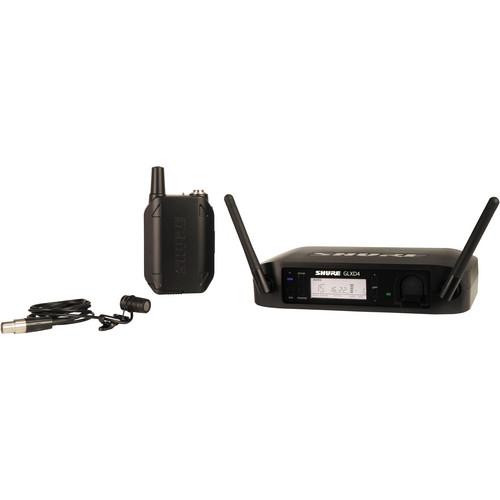

Product description The GLXD14/WL185 Lavalier Wireless System from Shure includes a GLXD1 bodypack transmitter, a GLXD4 receiver, and a WL185 cardioid lavalier microphone. The system operates on the 2.4GHz ISM band in the Z2 frequency band between 2400 and 2483.5MHz.
Both the GLXD1 transmitter and the GLXD4 receiver feature Shure's LINKFREQ automatic frequency management that allows them to scan for the clearest frequency available and automatically link to each other without any setup required from you besides turning both units on. With their continuous interference monitoring, both the transmitter and receiver automatically switch to the clearest frequencies available to avoid interference and dropouts. The GLXD1 includes a rechargeable battery pack that provides up to 16 hours of operation of a full charge. The system has a 200' range of operation and can be used with 7 other GLX-D systems simultaneously.

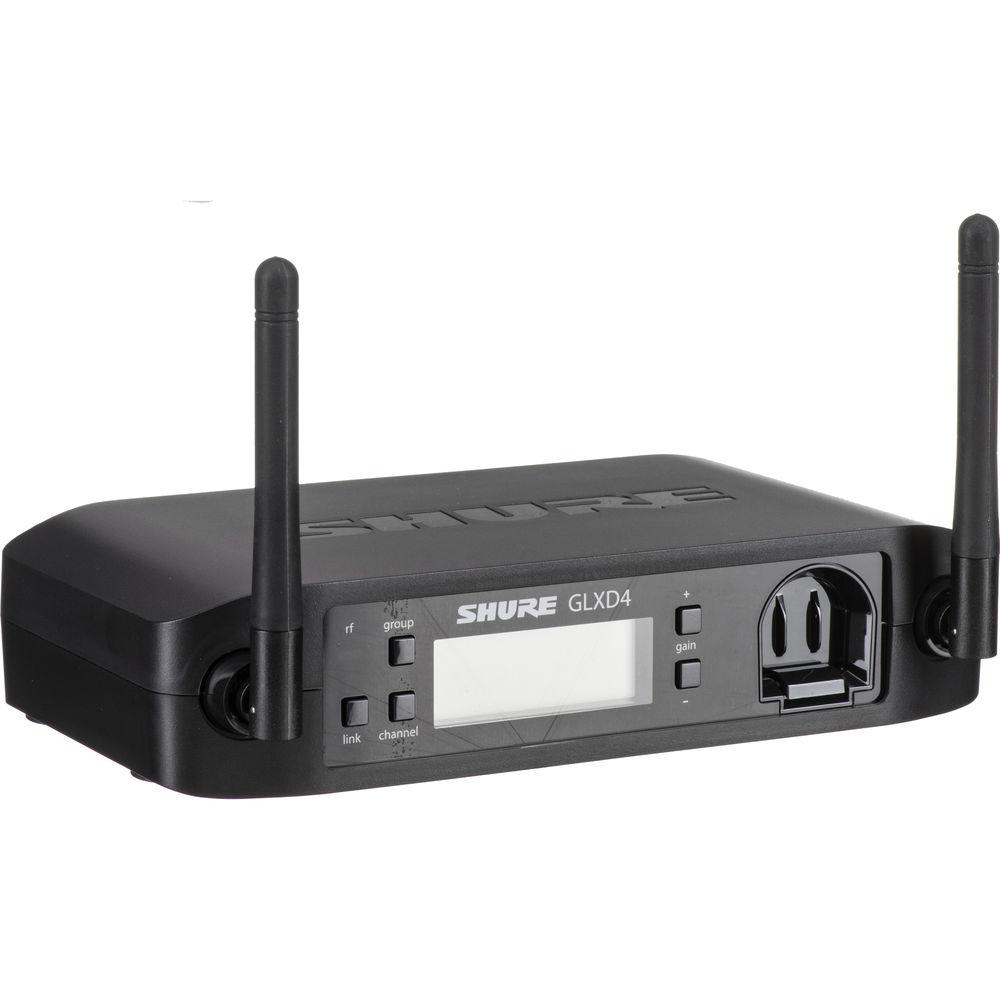

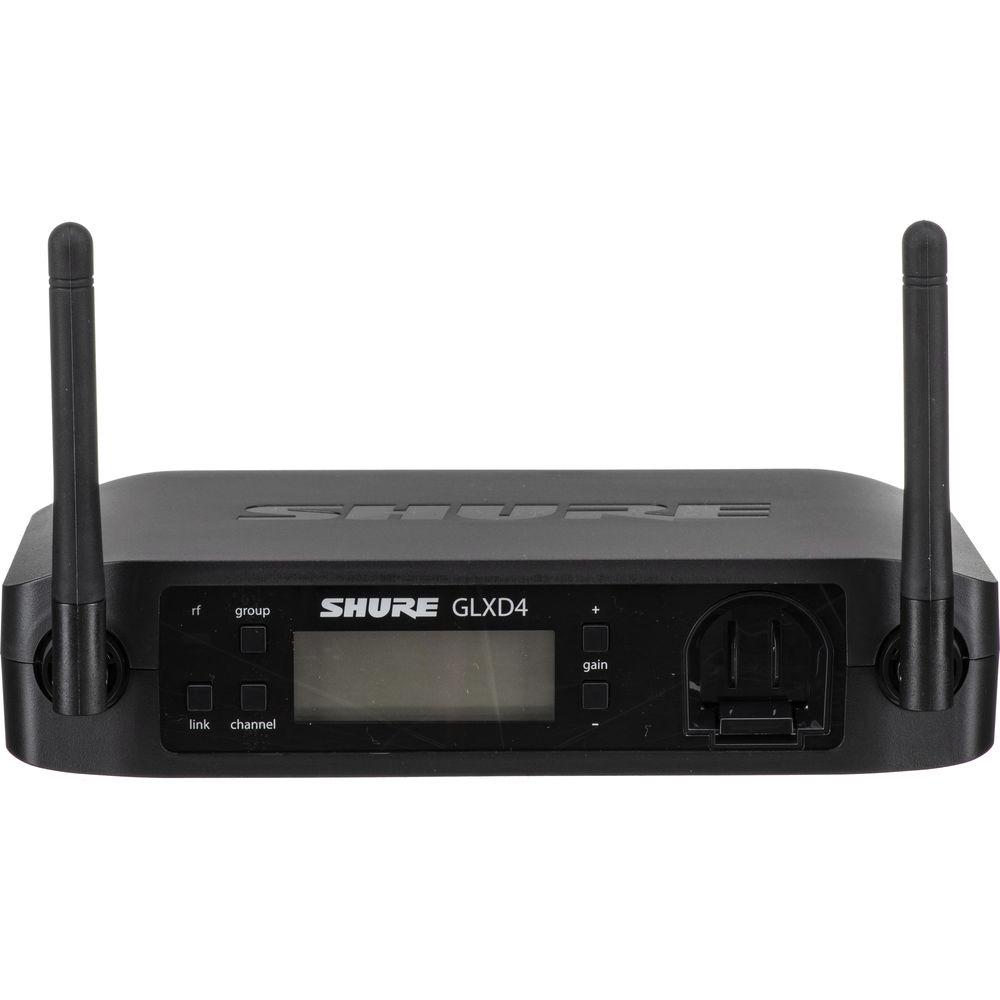

A WL185 cardioid lavalier is included for your miking needs. It has a tie clip that can be rotated in 90° intervals for flexibility in placement. - GLXD4 Digital Wireless Receiver (Z2 Band: 2400 - 2483.5 MHz) The GLXD4 Digital Wireless Receiver from Shure is designed to work with Shure's GLX-D series digital wireless systems. It operates on Shure's Z2 frequency band between 2400 and 2483.5 MHz on a 2.4 GHz ISM wireless band. Shure's proprietary LINKFREQ automatic frequency management, which scans for clearest available frequency range, will automatically link the GLXD4 and a compatible transmitter. The GLXD4 has continuous interference monitoring and will automatically switch frequencies to avoid interference and drop outs. The integrated battery charging station allows you to charge your transmitter when not in use, or a back-up battery pack while in use. Your transmitters remaining battery life is displayed on the GLXD4's front-panel LCD screen. Up to 8 systems can be used simultaneously. UPC: 042406262460

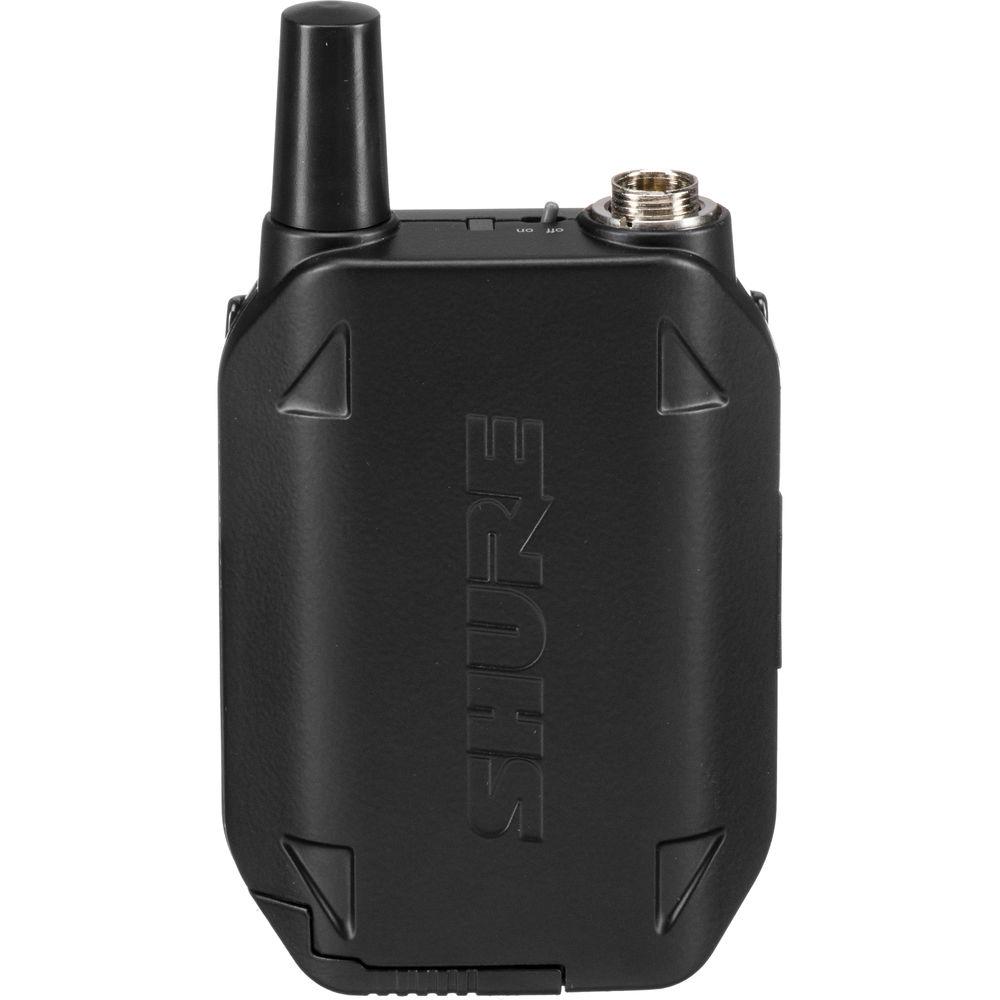

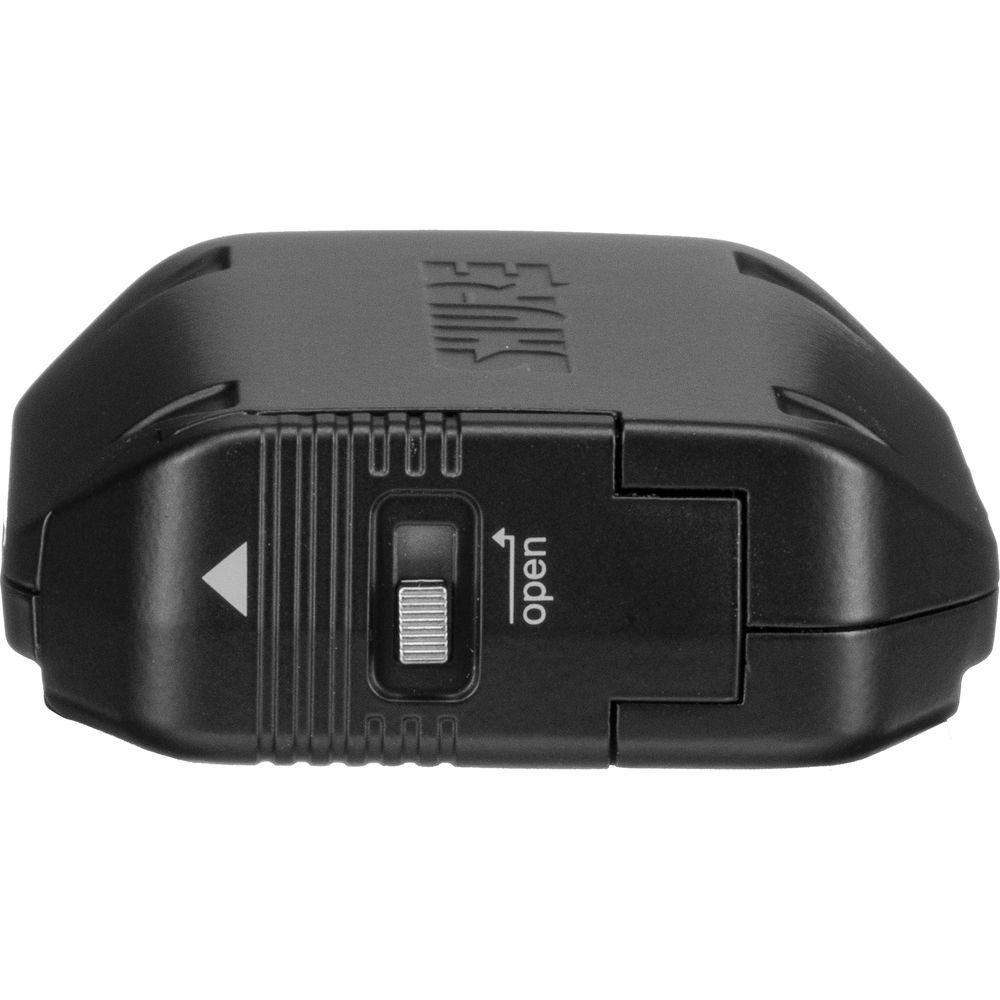

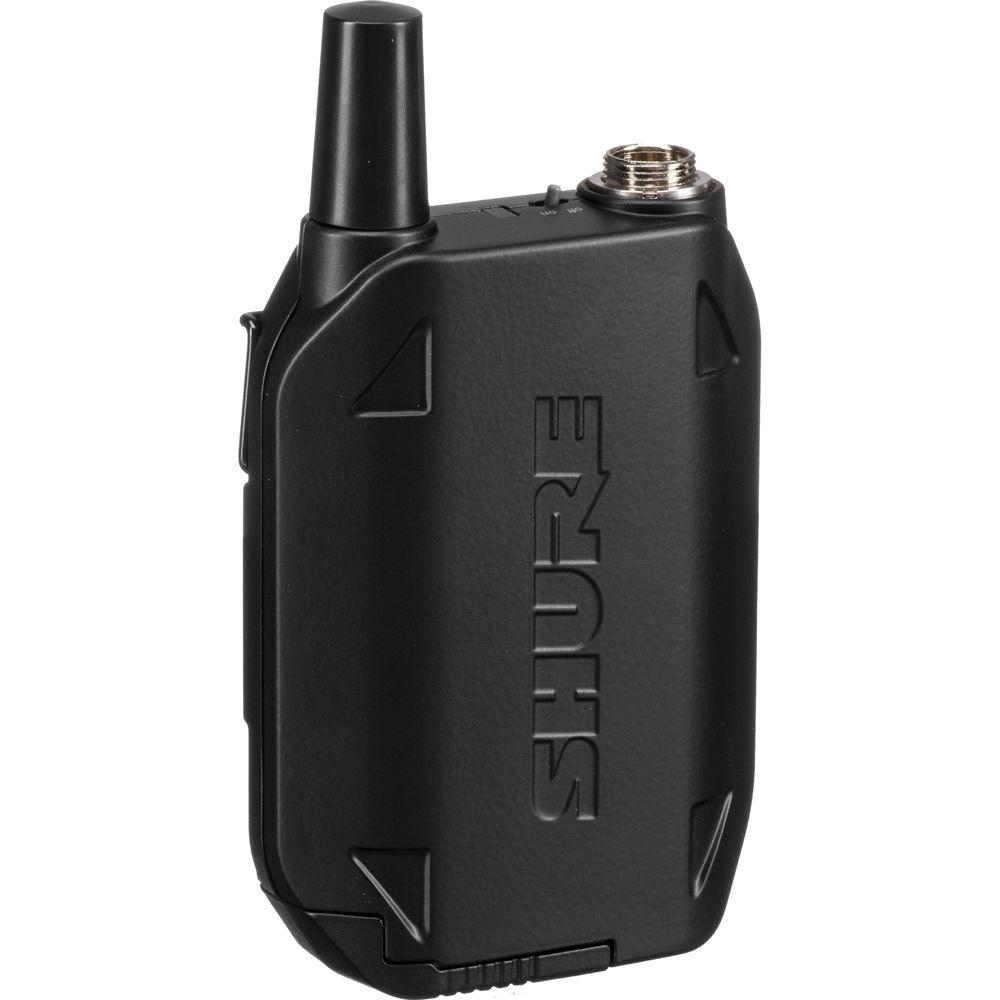

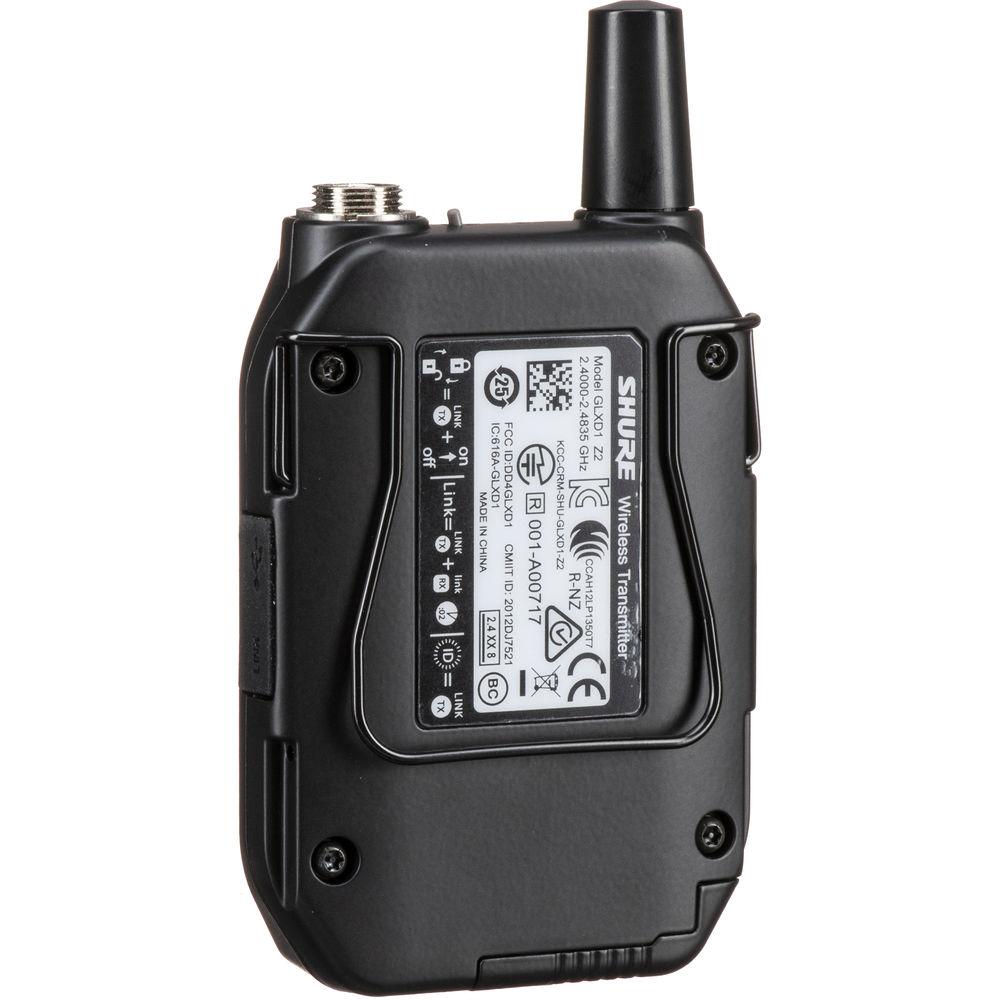

- GLXD1 Bodypack Transmitter (Z2 Band: 2400 - 2483.5 MHz) The GLXD1 Bodypack Transmitter from Shure is designed to work with Shure's GLX-D series digital wireless systems. It operates on Shure's Z2 frequency band between 2400 and 2483.5 MHz on a 2.4 GHz ISM wireless band. The transmitter provides up to a 200' range of operation and features Shure's LINKFREQ automatic frequency management that allows it to automatically link to a GLX-D compatible transmitter without having to perform any setup. It includes a rechargeable battery pack that provides up to 16 hours of performance time per charge. The battery can be recharged with the included USB charger cable. A 15-minute charge can provide up to 1.5 hours of performance time. The GLXD1 has a 4-pin TA4M connector and is compatible with both lavalier microphones as well as instrument cables with a proper adapter. UPC: 042406261104
- WL185 Cardioid Lavalier Microphone The Shure WL185 is a cardioid subminiature lavalier microphone with signal characteristics ideal for general sound reinforcement applications. The cardioid pick up pattern provides adequate rejection of off-axis ambient signal that can cause noise and feedback. The low-profile subminiature design is ideal for applications where the microphone must be concealed. The hardwired 4-foot cable terminates to a 4-pin TA4-female connector which is compatible with Shure wireless transmitters and power supplies.
- Subminiature Profile
- The miniature capsule is easy to conceal during video, broadcast, stage and sound reinforcement applications
- Cardioid Polar Pattern
- The cardioid polar pattern effectively minimizes noise and ambiance at the off-axis sections of the capsule, reducing noise and feedback
- Full Signal Reproduction
- A wide frequency response and high SPL rating results in full, clear audio reproduction for speech
- TA4-Female Connection
- The hardwired cable terminates to a TA4-female connection, compatible with Shure wireless microphone transmitters
UPC: 042406055321 In the Box Bundle Items GLXD4 Digital Wireless Receiver (Z2 Band: 2400 - 2483.5 MHz) yqavqyvzyfaeuddyxfttftwrfzvz GLXD1 Bodypack Transmitter (Z2 Band: 2400 - 2483.5 MHz) - SB902 Rechargeable Lithium-Ion Battery
WL185 Cardioid Lavalier Microphone
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure GLXD14 WL185 Lavalier Wireless System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

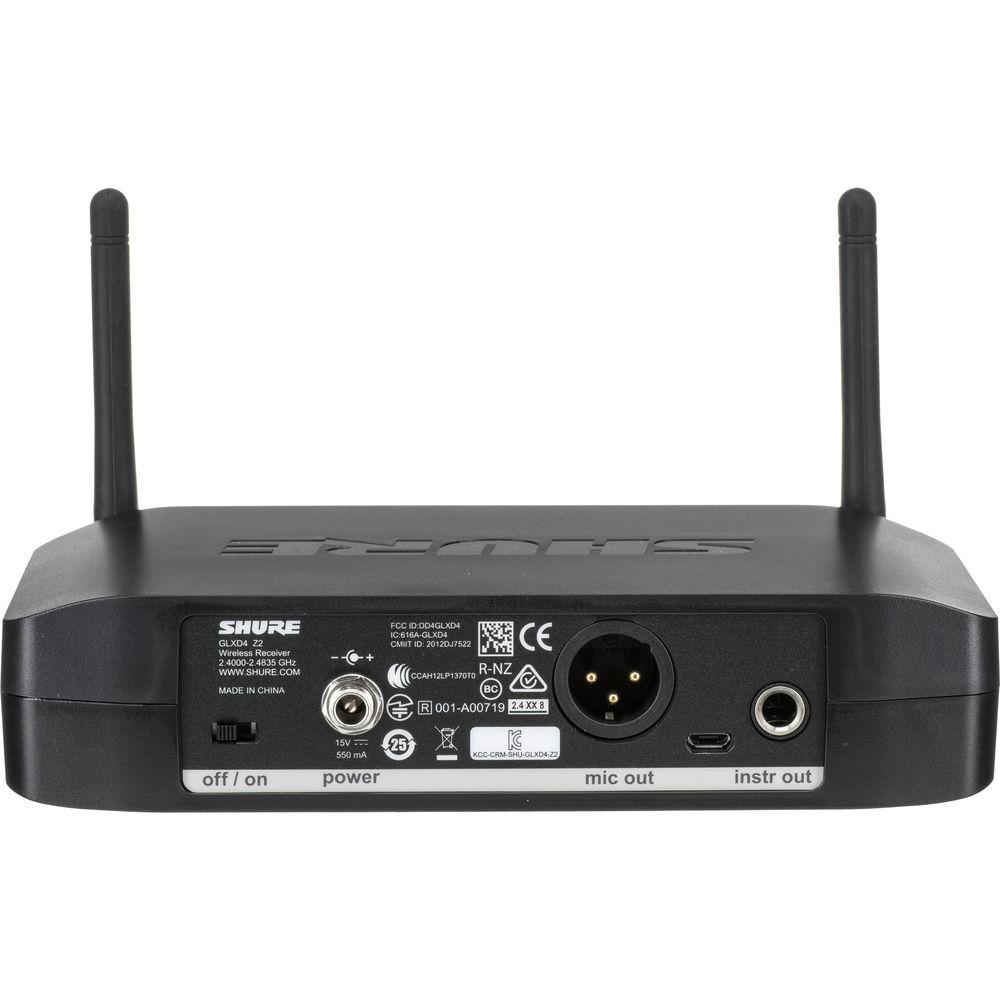

Technical parameters - GLXD4 Digital Wireless Receiver (Z2 Band: 2400 - 2483.5 MHz)
| Outputs | 1x XLR Output
1x 1/4" (6.35 mm) Output | | Output Impedance | XLR: 100 Ω
1/4": 100 Ω, 50 Ω unbalanced | | Maximum Audio Output Level Analog | XLR: 1 dBV (into 600 Ω load)
1/4": 8.5 dBV (into 3 kΩ load) | | Tuning Frequency Range | 2400 to 2483.5 MHz | | Range of Operation | 200' (60 m) (typical, depends on RF signal absorption, reflection, and interference) | | Transmit Mode | Frequency Hopping | | Frequency Response | 20 Hz to 20 kHz | | Dynamic Range | 120 dB, A-weighted | | RF Sensitivity | -88 dBm, typical | | Total Harmonic Distortion | 0.2%, typical | | RF Output | 10 mW E.I.R.P., maximum | | Operating Temperature Range | 0° to 135°F (-18° to 57°C) | | Storage Temperature Range | -20° to 165°F (-29° to 74°C) | | Pin Configuration | XLR: 1= ground, 2= hot, 3=cold
1/4": Tip= audio, ring= no audio, sleeve= ground | | Antenna | Impedance: 50 Ω
Type: 1/2 wave sleeve dipole, non-removable
Max Input Level: -20 dBm | | Power Requirements | 14 to 18 V DC (tip positive with respect to ring), 550 mA | | Spurious Rejection | >35 dB, typical | | Gain Adjustment Range | -20 to 40 dB in 1 dB steps | | Phantom Power Protection | Yes | | Housing | Molded plastic | | Dimensions (HxWxD) | 1.6 x 7.2 x 4.6" (40 x 183 x 117 mm) | | Weight | 10.1 oz (286 g) | | | | Box Dimensions (LxWxH) | 18.25 x 13.0 x 4.63" | - GLXD1 Bodypack Transmitter (Z2 Band: 2400 - 2483.5 MHz)

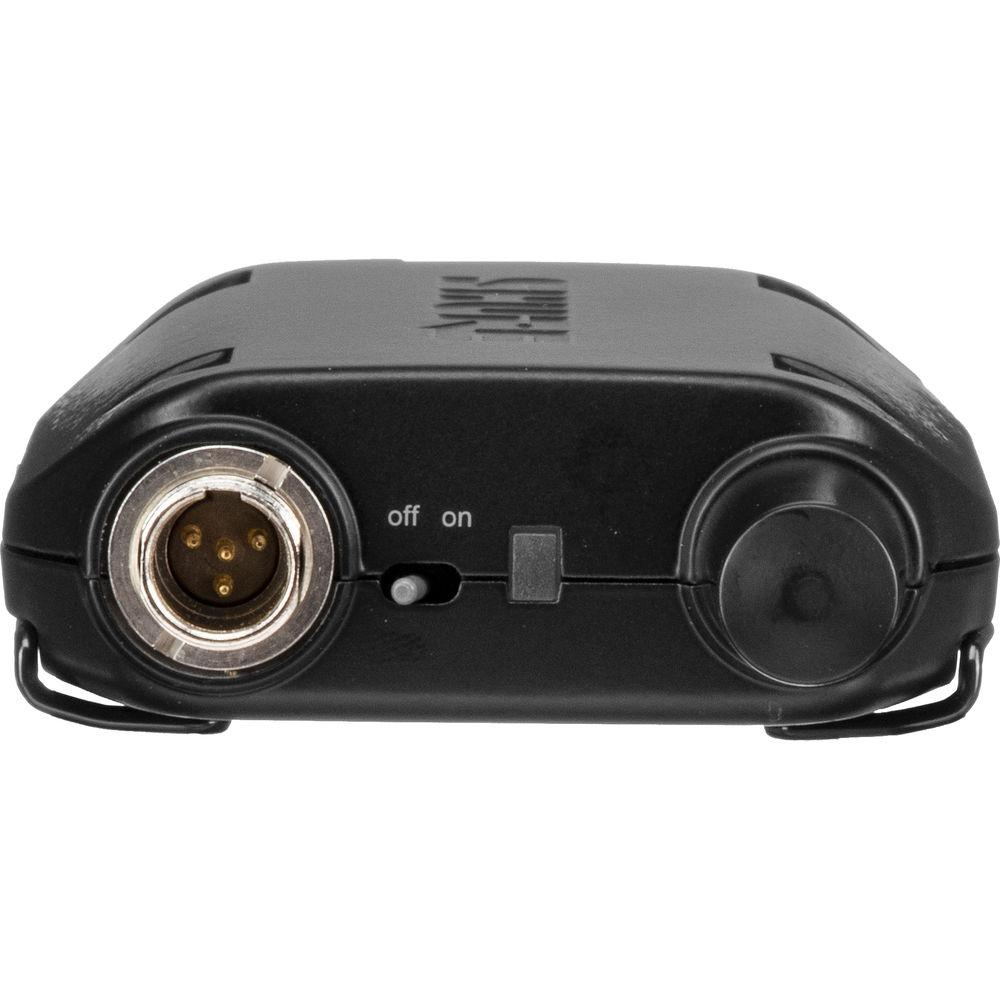

| Connector | 1x Unbalanced 4-pin TA4M male mini-connector | | Tuning Frequency Range | 2400 to 2483.5 MHz | | Range of Operation | 200' (60 m) (typical, depends on RF signal absorption, reflection, and interference) | | Transmit Mode | Frequency Hopping | | Frequency Response | 20 Hz to 20 kHz | | Dynamic Range | 120 dB, A-weighted | | RF Sensitivity | -88 dBm, typical | | Total Harmonic Distortion | 0.2%, typical | | RF Output | 10 mW E.I.R.P, maximum | | Operating Temperature Range | 0° to 135°F (-18° to 57°C) | | Storage Temperature Range | -20° to 165°F (-29° to 74°C) | | Polarity | Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 1/4-inch output | | Battery Life | Up to 16 hours | | Power Requirements | 3.7 V Rechargeable Li-Ion | | Input Impedance | 900 kΩ | | RF Output | 10 mW E.I.R.P. maximum | | Maximum Input Level | 1 kHz at 1% THD
8.4 dBV (7.5 Vp-p) | | Antenna | Internal Monopole | | Pin Configuration | 1: ground (cable shield)
2: +5 V bias
3: Audio
4: Tied through active load to ground (On instrument adapter cable, pin 4 floats) | | Housing | Cast Metal | | Dimensions (H x W x D) | 3.56 x 2.54 x 0.90" (90.4 x 64.5 x 22.9 mm), without antenna | | | | Box Dimensions (LxWxH) | 11.024 x 5.433 x 3.228" | - WL185 Cardioid Lavalier Microphone
| Transducer | Electret Bias | | Polar Pattern | Cardioid | | Frequency Response | 50 Hz to 17 kHz | | Dynamic Range (Typical) | 102 dB | | Signal-to-Noise Ratio | 18 dB SPL (A-weighted) | | Maximum Input Sound Level | 130 dB | | Power Requirements | Regulated Nominal +5 VDC (2 to 10 VDC) | | Output Impedance | 28 ohms | | Output Connector | TA4-Female | | Pad | No | | Low Frequency Roll-Off | No | | Cable Length | 4' (1.2 m) | | Weight | not specified by manufacturer | | | | Box Dimensions (LxWxH) | 6.9 x 4.4 x 3.5" |
