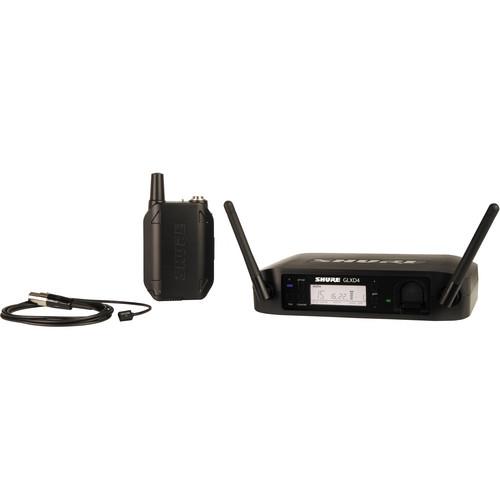

Shure GLXD14 WL93 Lavalier Wireless System

User Manual for Shure GLXD14 WL93 Lavalier Wireless System

• Product category: Wireless Systems Shure
• Brand: Shure
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Shure Wireless Systems

Product description

• GLXD4 Digital Wireless Receiver (Z2 Band: 2400 - 2483.5 MHz) The GLXD4 Digital Wireless Receiver from Shure is designed to work with Shure's GLX-D series digital wireless systems. It operates on Shure's Z2 frequency band between 2400 and 2483.5 MHz on a 2.4 GHz ISM wireless band. Shure's proprietary LINKFREQ automatic frequency management, which scans for clearest available frequency range, will automatically link the GLXD4 and a compatible transmitter. The GLXD4 has continuous interference monitoring and will automatically switch frequencies to avoid interference and drop outs. The integrated battery charging station allows you to charge your transmitter when not in use, or a back-up battery pack while in use. Your transmitters remaining battery life is displayed on the GLXD4's front-panel LCD screen. Up to 8 systems can be used simultaneously. UPC: 042406262460
• GLXD1 Bodypack Transmitter (Z2 Band: 2400 - 2483.5 MHz) The GLXD1 Bodypack Transmitter from Shure is designed to work with Shure's GLX-D series digital wireless systems. It operates on Shure's Z2 frequency band between 2400 and 2483.5 MHz on a 2.4 GHz ISM wireless band. The transmitter provides up to a 200' range of operation and features Shure's LINKFREQ automatic frequency management that allows it to automatically link to a GLX-D compatible transmitter without having to perform any setup. It includes a rechargeable battery pack that provides up to 16 hours of performance time per charge. The battery can be recharged with the included USB charger cable. A 15-minute charge can provide up to 1.5 hours of performance time. The GLXD1 has a 4-pin TA4M connector and is compatible with both lavalier microphones as well as instrument cables with a proper adapter. UPC: 042406261104
• WL93 Professional Micro-Lavalier Omni Mic (Black) The Shure model WL93 Microphones are economical omnidirectional, subminiature, lavalier, condenser microphones designed for general speech applications where a visually unobtrusive microphone is desirable. All WL93 models are supplied with a mounting block with attached tie bar, a sew-on mounting bracket, and an acoustic windscreen to minimize wind noise in outdoor applications. All WL93 models include a cable terminated with a 4-pin mini connector which connects directly to a Shure wireless body-pack transmitter.
  • Subminiature lavalier design; ideal size for theater, television broadcasting, video, film, and sound reinforcement
  • Uniform omnidirectional polar pattern
  • Full, clear sound comparable to larger microphones
  • Smooth extended frequency response with presence rise specially tailored for chest-worn microphone operation
  • Controlled low-frequency rolloff reduces low-frequency clothing and room noise
  • Low distortion, wide dynamic range
  • Small, inconspicuous mounting hardware
  UPC: 042406055338

• Power Supply

• Limited 2-Year Warranty

• SB902 Rechargeable Lithium-Ion Battery

• Padded Zipper Case

• USB Charger Cable

• Limited 2-Year Warranty

• Mounting Block with Attached Tie Bar

• Sew-On Mounting Bracket

• Zippered Pouch

• Black Acoustic Windscreen

• 1 Year Warranty

Also Includes

• Limited 2-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• GLXD4 Digital Wireless Receiver (Z2 Band: 2400 - 2483.5 MHz)

  Outputs	1x XLR Output 1x 1/4" (6.35 mm) Output
  Output Impedance	XLR: 100 Ω 1/4": 100 Ω, 50 Ω unbalanced
  Maximum Audio Output Level Analog	XLR: 1 dBV (into 600 Ω load) 1/4": 8.5 dBV (into 3 kΩ load)
  Tuning Frequency Range	2400 to 2483.5 MHz
  Range of Operation	200' (60 m) (typical, depends on RF signal absorption, reflection, and interference)
  Transmit Mode	Frequency Hopping
  Frequency Response	20 Hz to 20 kHz
  Dynamic Range	120 dB, A-weighted
  RF Sensitivity	-88 dBm, typical
  Total Harmonic Distortion	0.2%, typical
  RF Output	10 mW E.I.R.P., maximum
  Operating Temperature Range	0° to 135°F (-18° to 57°C)
  Storage Temperature Range	-20° to 165°F (-29° to 74°C)
  Pin Configuration	XLR: 1= ground, 2= hot, 3=cold 1/4": Tip= audio, ring= no audio, sleeve= ground
  Antenna	Impedance: 50 Ω Type: 1/2 wave sleeve dipole, non-removable Max Input Level: -20 dBm
  Power Requirements	14 to 18 V DC (tip positive with respect to ring), 550 mA
  Spurious Rejection	>35 dB, typical
  Gain Adjustment Range	-20 to 40 dB in 1 dB steps
  Phantom Power Protection	Yes
  Housing	Molded plastic
  Dimensions (HxWxD)	1.6 x 7.2 x 4.6" (40 x 183 x 117 mm)
  Weight	10.1 oz (286 g)

  Box Dimensions (LxWxH)	18.25 x 13.0 x 4.63"

• GLXD1 Bodypack Transmitter (Z2 Band: 2400 - 2483.5 MHz)

  Connector	1x Unbalanced 4-pin TA4M male mini-connector
  Tuning Frequency Range	2400 to 2483.5 MHz
  Range of Operation	200' (60 m) (typical, depends on RF signal absorption, reflection, and interference)
  Transmit Mode	Frequency Hopping
  Frequency Response	20 Hz to 20 kHz
  Dynamic Range	120 dB, A-weighted
  RF Sensitivity	-88 dBm, typical
  Total Harmonic Distortion	0.2%, typical
  RF Output	10 mW E.I.R.P, maximum
  Operating Temperature Range	0° to 135°F (-18° to 57°C)
  Storage Temperature Range	-20° to 165°F (-29° to 74°C)
  Polarity	Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 1/4-inch output
  Battery Life	Up to 16 hours
  Power Requirements	3.7 V Rechargeable Li-Ion
  Input Impedance	900 kΩ
  RF Output	10 mW E.I.R.P. maximum
  Maximum Input Level	1 kHz at 1% THD 8.4 dBV (7.5 Vp-p)
  Antenna	Internal Monopole
  Pin Configuration	1: ground (cable shield) 2: +5 V bias 3: Audio 4: Tied through active load to ground (On instrument adapter cable, pin 4 floats)
  Housing	Cast Metal
  Dimensions (H x W x D)	3.56 x 2.54 x 0.90" (90.4 x 64.5 x 22.9 mm), without antenna

  Box Dimensions (LxWxH)	11.024 x 5.433 x 3.228"

• WL93 Professional Micro-Lavalier Omni Mic (Black)

  Transducer	Electret Condenser
  Polar Pattern	Omnidirectional
  Frequency Response	80 Hz - 20 kHz
  Dynamic Range (Typical)	98dB @ Max. SPL, A-Weighted
  Signal-to-Noise Ratio	72dB
  Maximum Input Sound Level	120dB @ 1 kHz,(1% THD)
  Power Requirements	2 to 10v; 5v Nominal (Pin 2 to Pins 3 and 4) (Supplied by Shure Wireless Body Transmitter Pack)
  Output Impedance	3000 Ω
  Output Connectors	TA4F, for Use with the Shure Wireless Transmitters
  Case	Zippered Carrying Pouch
  Pad	None
  Low Frequency Roll-Off	None
  Applications	Radio, Television and Broadcast, Wireless Videography.
  Dimensions	Approximately: .023 x 0.37" (5.84 x 9.40mm)DiameterxL
  Weight	Approximately: 0.57 oz. (16 g)

  Box Dimensions (LxWxH)	6.7 x 4.3 x 3.4"
