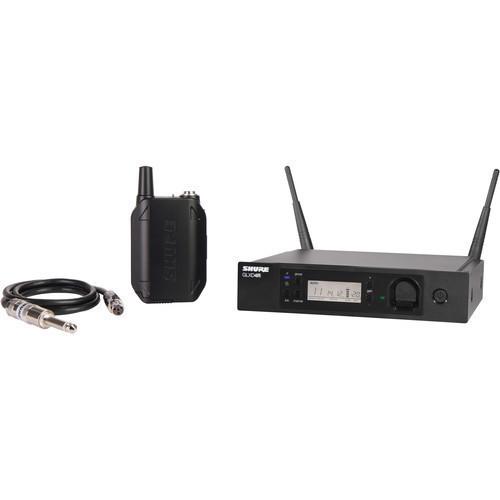

Product description The 2.4 GHz GLXD14R Guitar Wireless System from Shure includes a GLXD4R rack-mountable receiver, a GLXD1 bodypack transmitter, a WA302 guitar cable, an SB902 rechargeable lithium-ion battery, a USB charging cable, 2 detachable antennas, and rackmount hardware. It is designed for use with a guitar, a bass, or any other musical instrument with a 1/4" output. The GLXD14R provides an integrated battery charge port, RF performance, automatic frequency management, increased channel count, and XLR & 1/4" output connectors. - GLXD1 Bodypack Transmitter (Z2 Band: 2400 - 2483.5 MHz)
- Shure GLX-D Advanced - How to Set up Frequency Manager

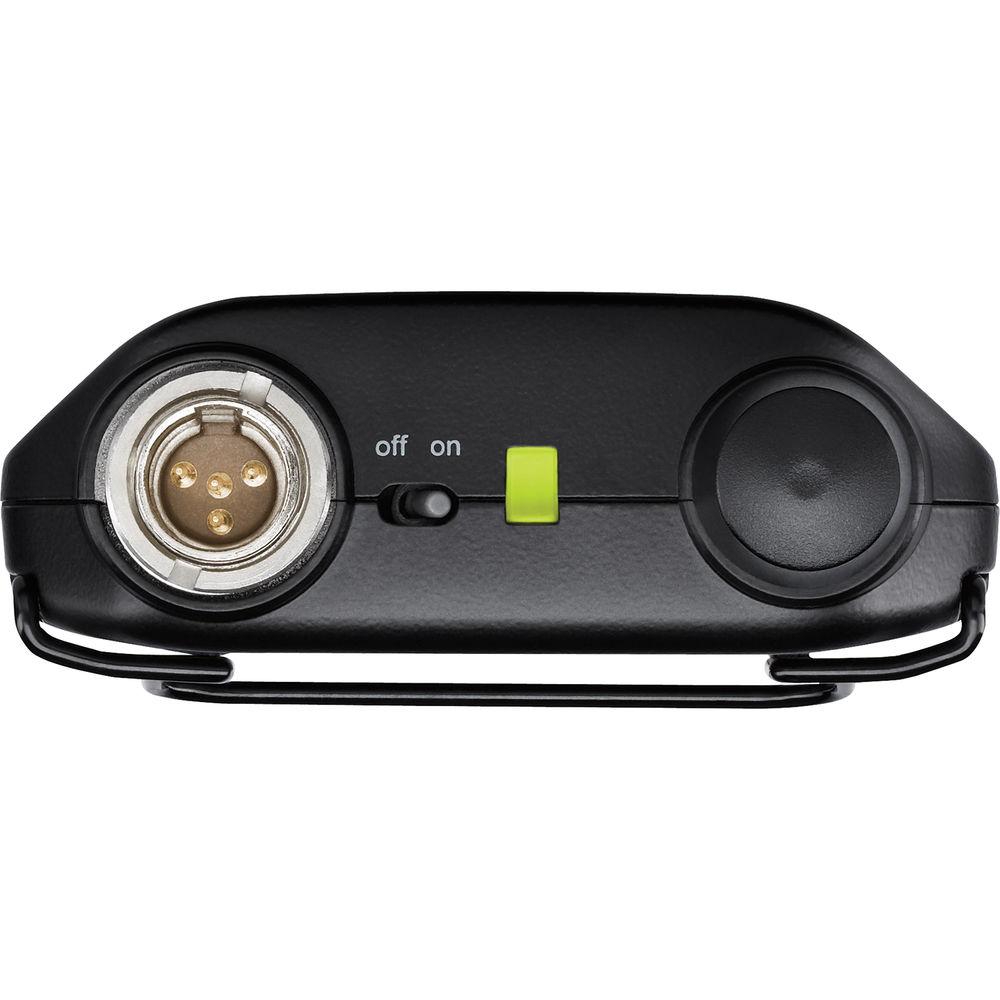

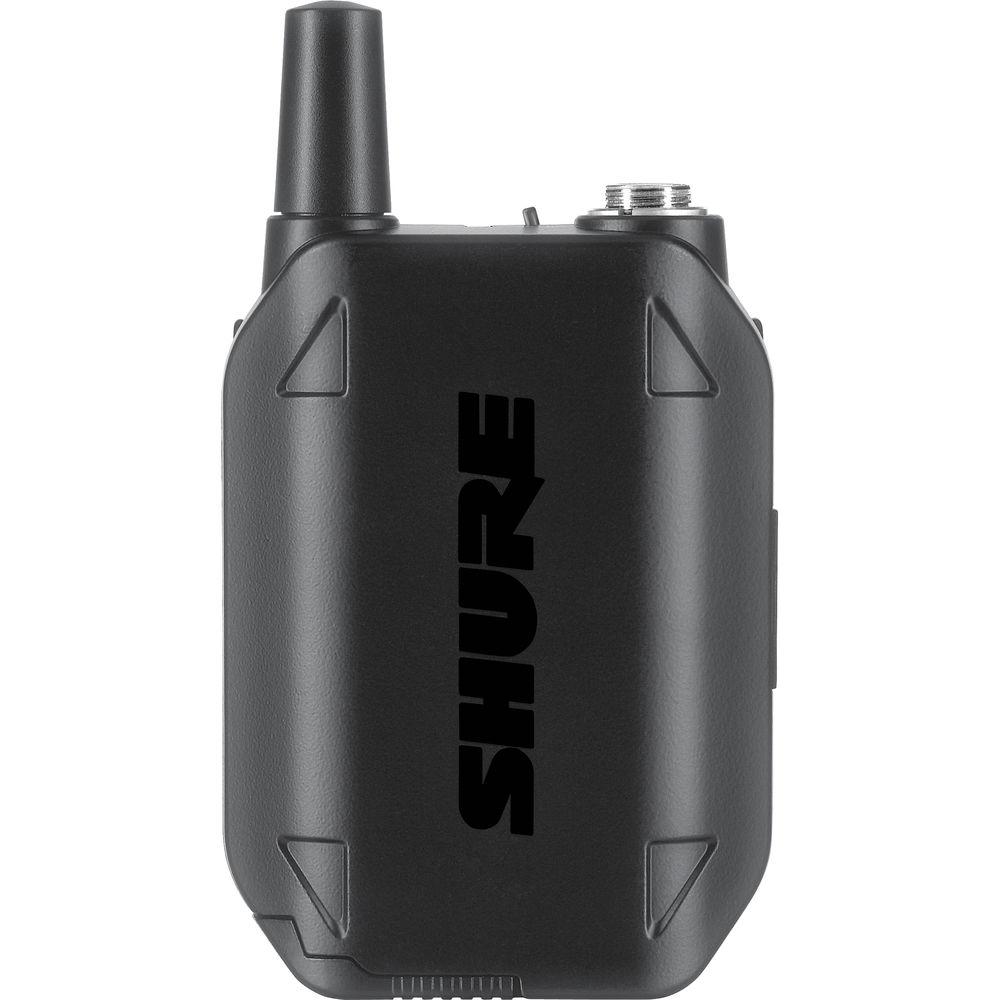

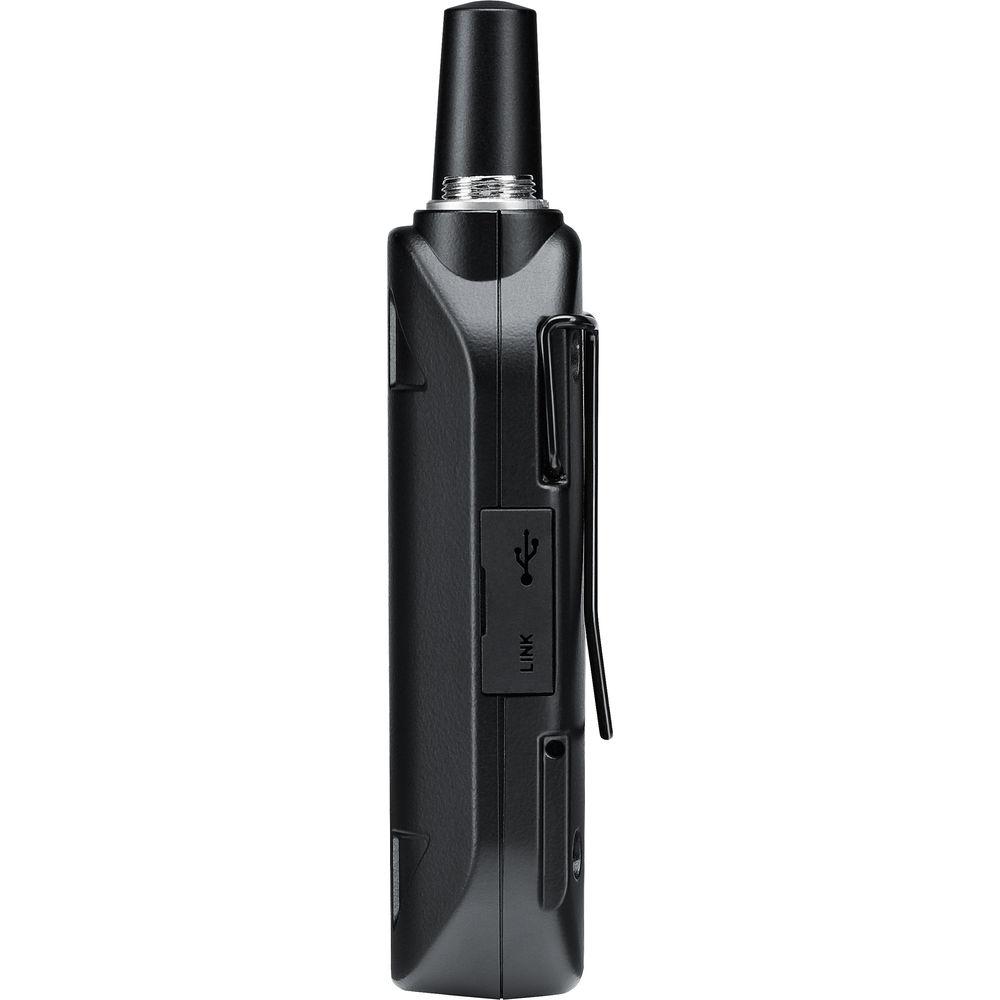

The GLXD1 Bodypack Transmitter from Shure is designed to work with Shure's GLX-D series digital wireless systems. It operates on Shure's Z2 frequency band between 2400 and 2483.5 MHz on a 2.4 GHz ISM wireless band. The transmitter provides up to a 200' range of operation and features Shure's LINKFREQ automatic frequency management that allows it to automatically link to a GLX-D compatible transmitter without having to perform any setup. It includes a rechargeable battery pack that provides up to 16 hours of performance time per charge. The battery can be recharged with the included USB charger cable. A 15-minute charge can provide up to 1.5 hours of performance time. The GLXD1 has a 4-pin TA4M connector and is compatible with both lavalier microphones as well as instrument cables with a proper adapter. UPC: 042406261104 - GLX-D4R Digital Wireless Multi-System Receiver The Shure GLX-D4R Receiver is a single-channel rack-mountable receiver with removable antennas for improved audio and solid performance in multi-system installations for houses of worship, education and live music applications. The receiver features LINKFREQ Automatic Frequency Management (2.4 GHz) and an integrated battery charge port for charging a spare Shure lithium-ion battery. Up to nine compatible systems can be used in a typical setting, while a total of eleven systems can be achieved under optimum conditions when using optional GLX-D Frequency Managers.

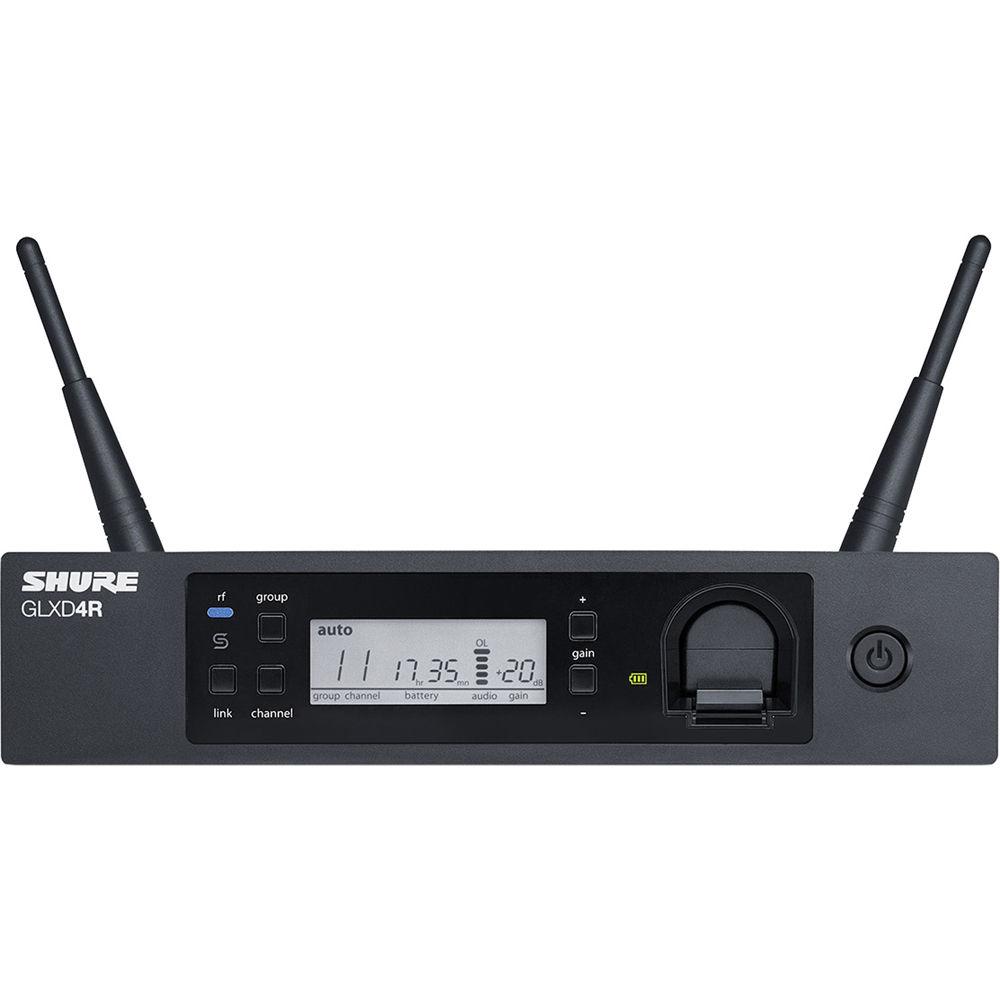

The front panel features a high-resolution LCD screen, which displays the system status and real-time transmitter battery life in hours and minutes with an accuracy within ±15 minutes. Additional features include a remotely adjustable transmitter gain control, XLR & 1/4" output connectors, and a two-color LED charging indicator. The GLX-D4R receiver is enclosed in a rugged metal chassis and ships with two detachable antennas, a power supply, and rackmount hardware. -
- Rock-solid RF performance from patented data communication
- Integrated battery charge port for proprietary Shure lithium-ion transmitter batteries with two-color charge indicator LED
- Green: Charged
- Flashing Green: 90% charged
- Red: Charging
- Detachable antennas for remote mounting
- Remote adjustable transmitter gain control
- Hi-res LCD screen status display
- Real-time battery run-time displayed in hours and minutes (accurate within ±15 minutes)
- XLR and 1/4” output connectors
- Rugged metal chassis design
- Includes rackmount hardware
UPC: 042406496100 - WA302 Intrument & Guitar Cable Instrument Cable, 2.5 foot (1.2 m), 4 Pin Mini Connector (TA4F) to 1/4-inch Connector, used with ULX, T1, SC1, LX1, U1, UC1 and UT1 Bodypack Transmitters UPC: 042406053174
In the Box Bundle Items GLXD1 Bodypack Transmitter (Z2 Band: 2400 - 2483.5 MHz) vssaceruszzecwtaarfceqrqsx - SB902 Rechargeable Lithium-Ion Battery
GLX-D4R Digital Wireless Multi-System Receiver - 2 x Antennas with Mounting Cables
WA302 Intrument & Guitar Cable Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure GLXD14R Guitar Wireless System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - GLXD1 Bodypack Transmitter (Z2 Band: 2400 - 2483.5 MHz)
| Connector | 1x Unbalanced 4-pin TA4M male mini-connector | | Tuning Frequency Range | 2400 to 2483.5 MHz | | Range of Operation | 200' (60 m) (typical, depends on RF signal absorption, reflection, and interference) | | Transmit Mode | Frequency Hopping | | Frequency Response | 20 Hz to 20 kHz | | Dynamic Range | 120 dB, A-weighted | | RF Sensitivity | -88 dBm, typical | | Total Harmonic Distortion | 0.2%, typical | | RF Output | 10 mW E.I.R.P, maximum | | Operating Temperature Range | 0° to 135°F (-18° to 57°C) | | Storage Temperature Range | -20° to 165°F (-29° to 74°C) | | Polarity | Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 1/4-inch output | | Battery Life | Up to 16 hours | | Power Requirements | 3.7 V Rechargeable Li-Ion | | Input Impedance | 900 kΩ | | RF Output | 10 mW E.I.R.P. maximum | | Maximum Input Level | 1 kHz at 1% THD
8.4 dBV (7.5 Vp-p) | | Antenna | Internal Monopole | | Pin Configuration | 1: ground (cable shield)
2: +5 V bias
3: Audio
4: Tied through active load to ground (On instrument adapter cable, pin 4 floats) | | Housing | Cast Metal | | Dimensions (H x W x D) | 3.56 x 2.54 x 0.90" (90.4 x 64.5 x 22.9 mm), without antenna | | | | Box Dimensions (LxWxH) | 11.024 x 5.433 x 3.228" | - GLX-D4R Digital Wireless Multi-System Receiver
| | | Configuration | XLR Output: Balanced
1/4" / 6.35 mm Output: Impedance balanced | | Impedance | XLR Output: 100 Ohms
1/4" / 6.35 mm Output: 100 Ohms (50 Ohms, unbalanced) | | Full Scale Output | XLR Connector:
Line Setting: +18 dBV
Mic Setting: -12 dBV
1/4" / 6.35 mm Output: +12 dBV | | Pin Assignments | XLR Output: 1=ground, 2=hot, 3=cold
1/4" / 6.35 mm Connector: Tip=audio, Ring=no audio, Sleeve=ground | | Mic/Line Switch | 30 dB pad | | Spurious Rejection | >35 dB, typical | | Gain Range | -18 to 42 dB in 1 dB steps | | Phantom Power Protection | Yes | | | | Impedance | 50 Ohms | | Antenna Type | 1/2 Wave Sleeve Dipole | | Maximum Input Level | -20 dBm | | | | Housing | Steel | | Power | Power Requirements: 14 to 18 VDC (Tip positive with respect to ring), 550 mA | | Dimensions (H x W x D) | 1.7 x 7.8 x 6.4" / 42.0 x 197.0 x 163.0 mm | | Weight | 32.0 oz / 907.2 g | | | | Box Dimensions (LxWxH) | 18.3 x 14.8 x 4.3" | - WA302 Intrument & Guitar Cable
| | | Box Dimensions (LxWxH) | 4.8 x 4.0 x 1.3" |
